Kelvinator
Chest Freezer

Model # KCS130GW0 Official Kelvinator freezer

Here are the diagrams and repair parts for Official Kelvinator KCS130GW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Filter Drier 216938600
#4

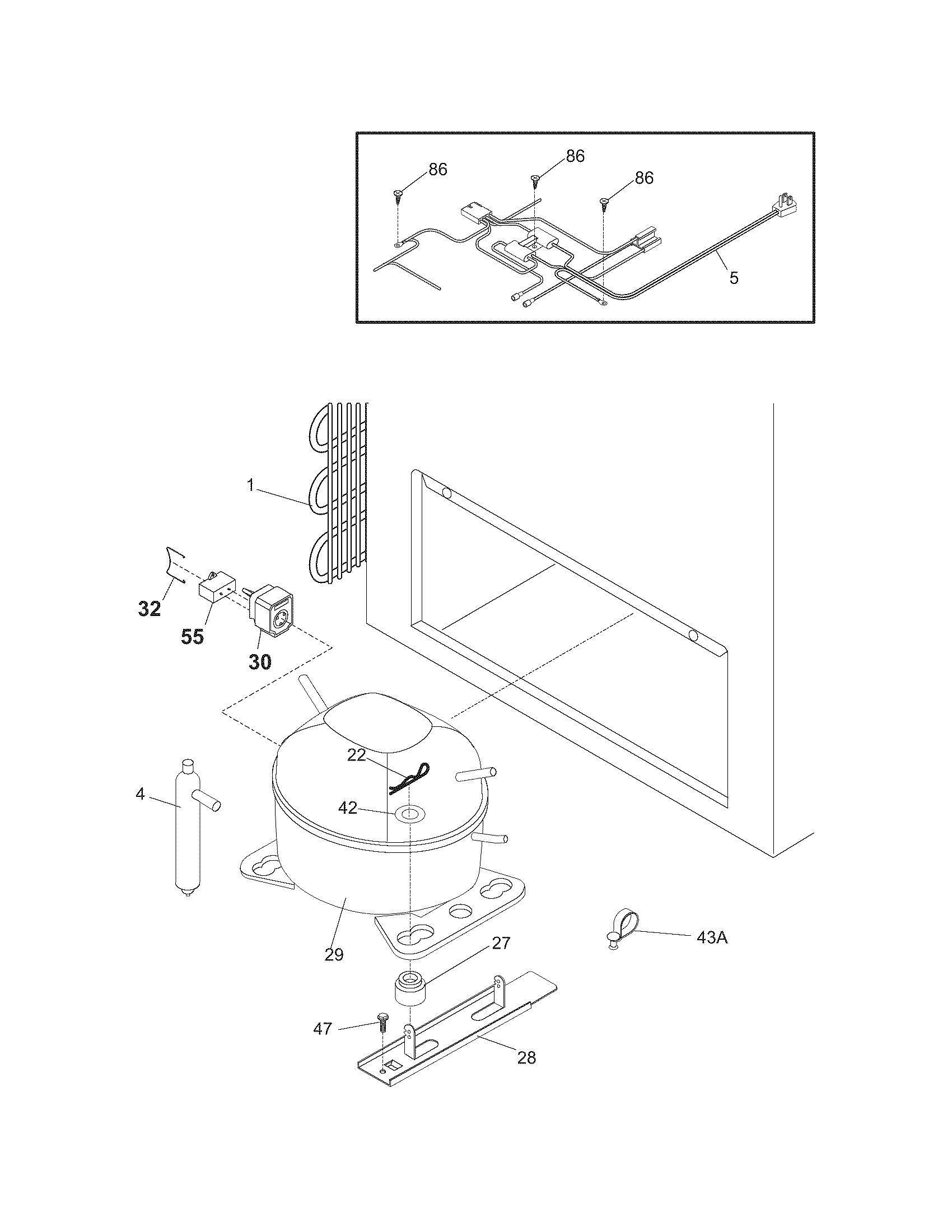

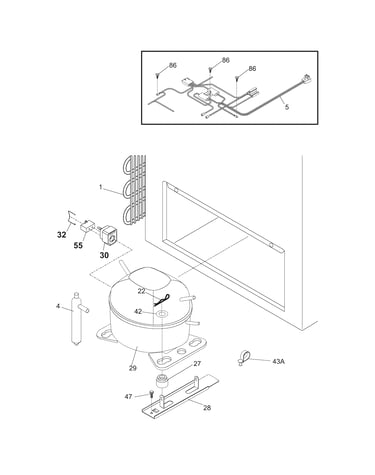

System diagram

Filter drier

Part #216938600

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216938600. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Chest Freezer Run Capacitor 218909915
#55

System diagram

Chest freezer run capacitor

Part #218909915

Replaced by #297286803

?
Manufacturer substitution
This part replaces 218909915. Substitute parts can look different from the original.
BEST SELLER
$35.37 |
15% OFF Phone Price : $41.37
In Stock
Freezer Gasket And Liner Fastener Kit 5304406520
#NI

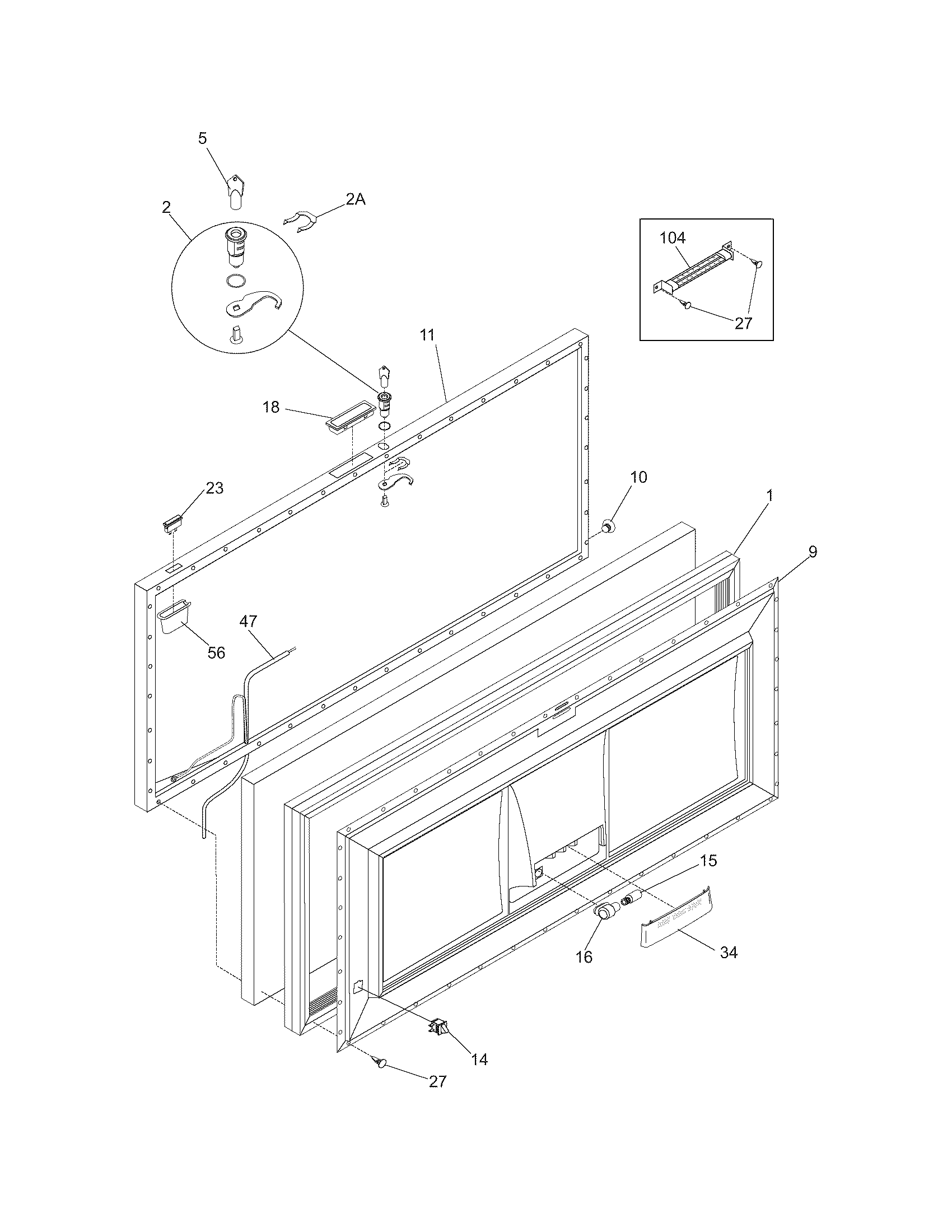

Door diagram

Freezer gasket and liner fastener kit

Part #5304406520

BEST SELLER
$34.42 |
15% OFF Phone Price : $40.42
In Stock
Freezer Door Switch (replaces 216998000, 7216822900) 216822900
#14

Door diagram

Freezer door switch (replaces 216998000, 7216822900)

Part #216822900

BEST SELLER
$52.89 |
10% OFF Phone Price : $58.89
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Light Socket 216817600
#16

Door diagram

Light socket

Part #216817600

Replaced by #297139501

?
Manufacturer substitution
This part replaces 216817600. Substitute parts can look different from the original.
This item is not returnable
$19.99 |
9% OFF Phone Price : $21.99
In Stock
White-westinghouse Refrigerator Start Relay Retainer Clip 241544101
#32

System diagram

White-westinghouse refrigerator start relay retainer clip

Part #241544101

$8.49
In Stock
Screw 131420300
#62

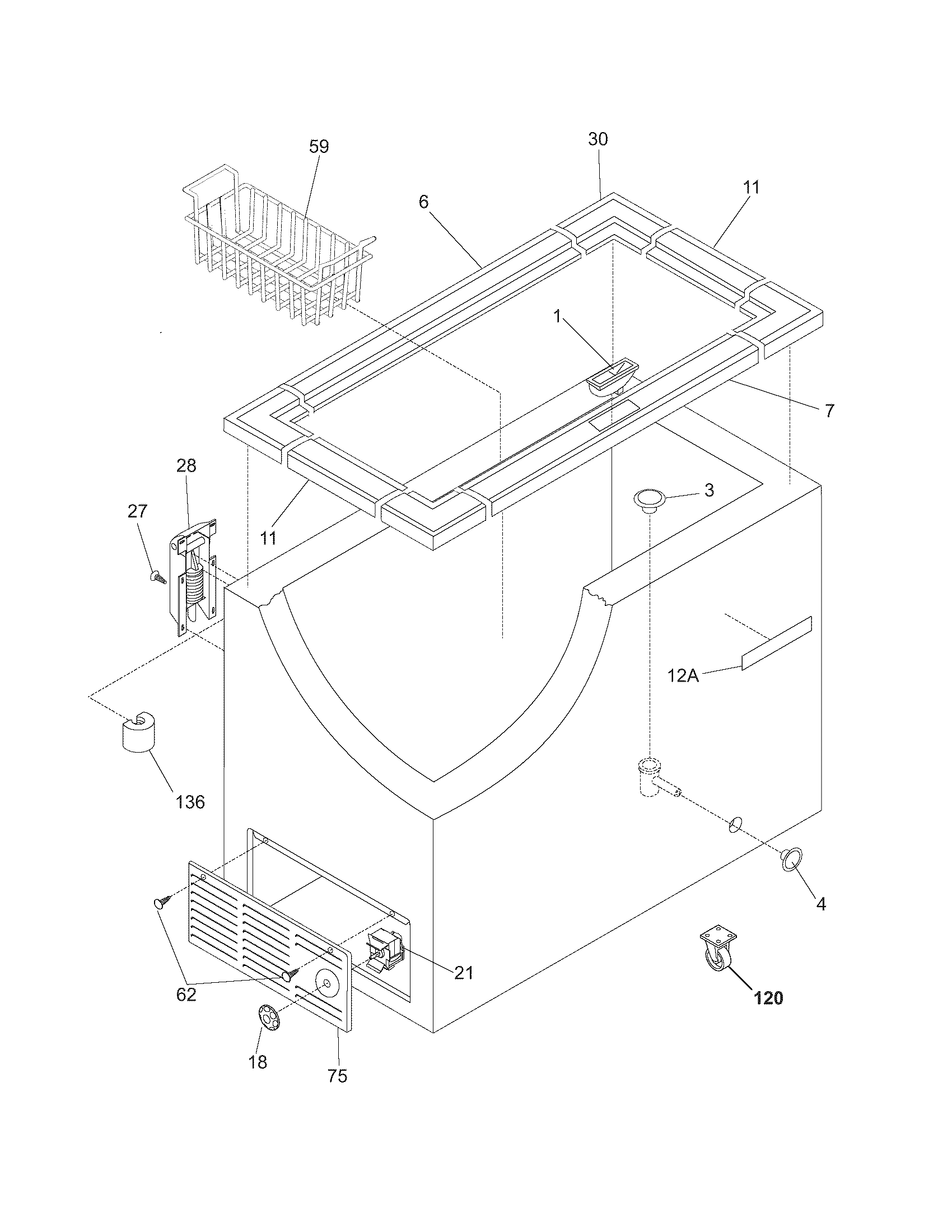

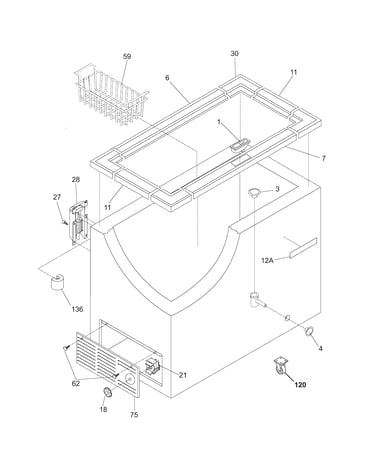

Cabinet diagram

Screw

Part #131420300

Replaced by #131420300

?
Manufacturer substitution
This part replaces 131420300. Substitute parts can look different from the original.
This item is not returnable
$15.80
In Stock
Grommet 5308002681
#27

System diagram

Grommet

Part #5308002681

Replaced by #216498900

?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
Harness 216819900
#47

Door diagram

Harness

Part #216819900

Replaced by #5304504154

?
Manufacturer substitution
This part replaces 216819900. Substitute parts can look different from the original.
$65.89
In Stock
