Electric Range

Model # 79092402016 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79092402016 electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
79092402016 Ranges
Frigidaire Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

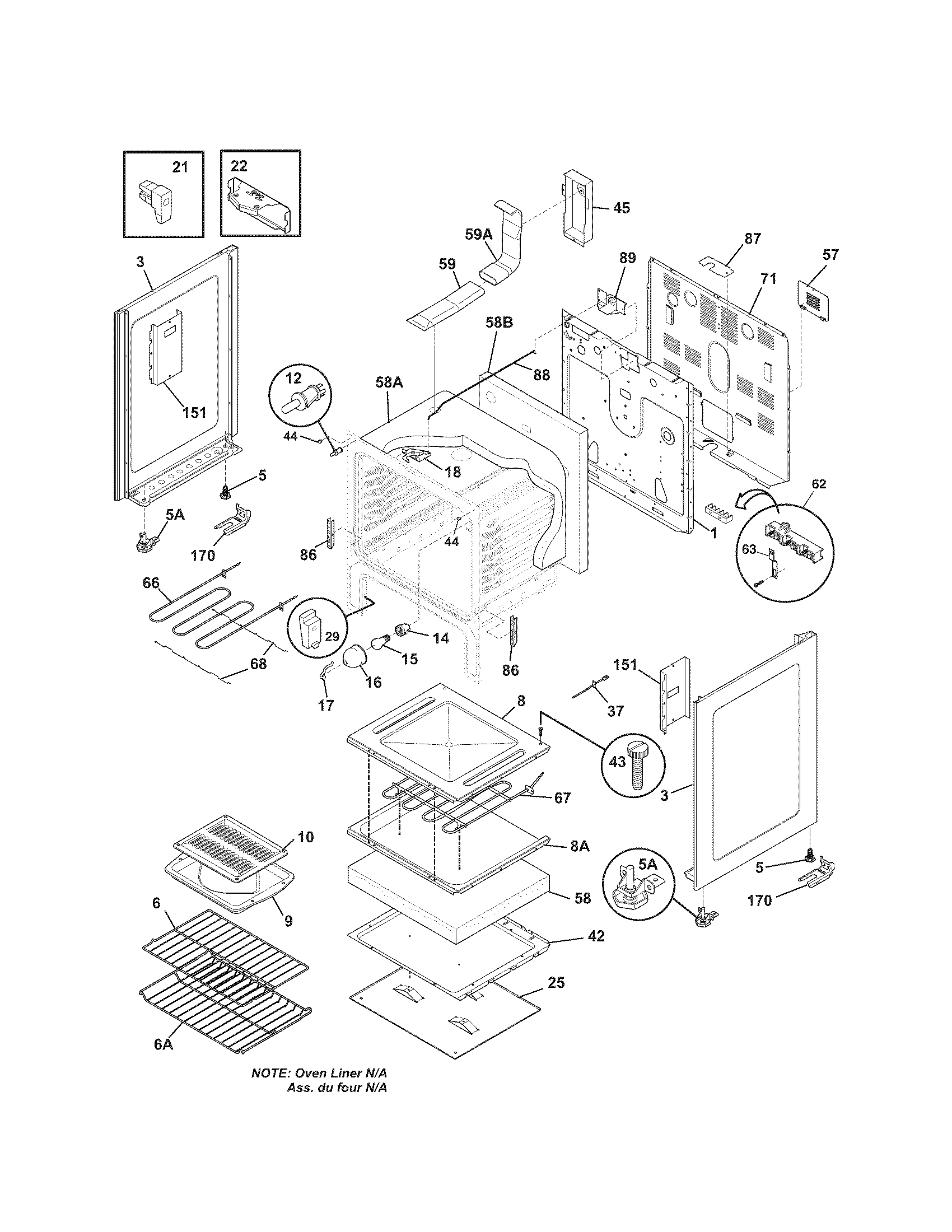

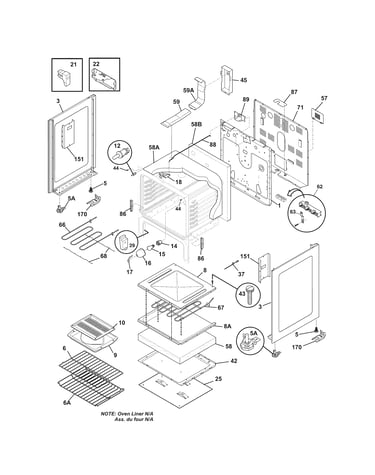

Body diagram

Frigidaire range oven temperature sensor (replaces 316490003)

Part #316490000

3.8 (35)
BEST SELLER
$39.93 |
13% OFF Phone Price : $45.93
In Stock
Frigidaire Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

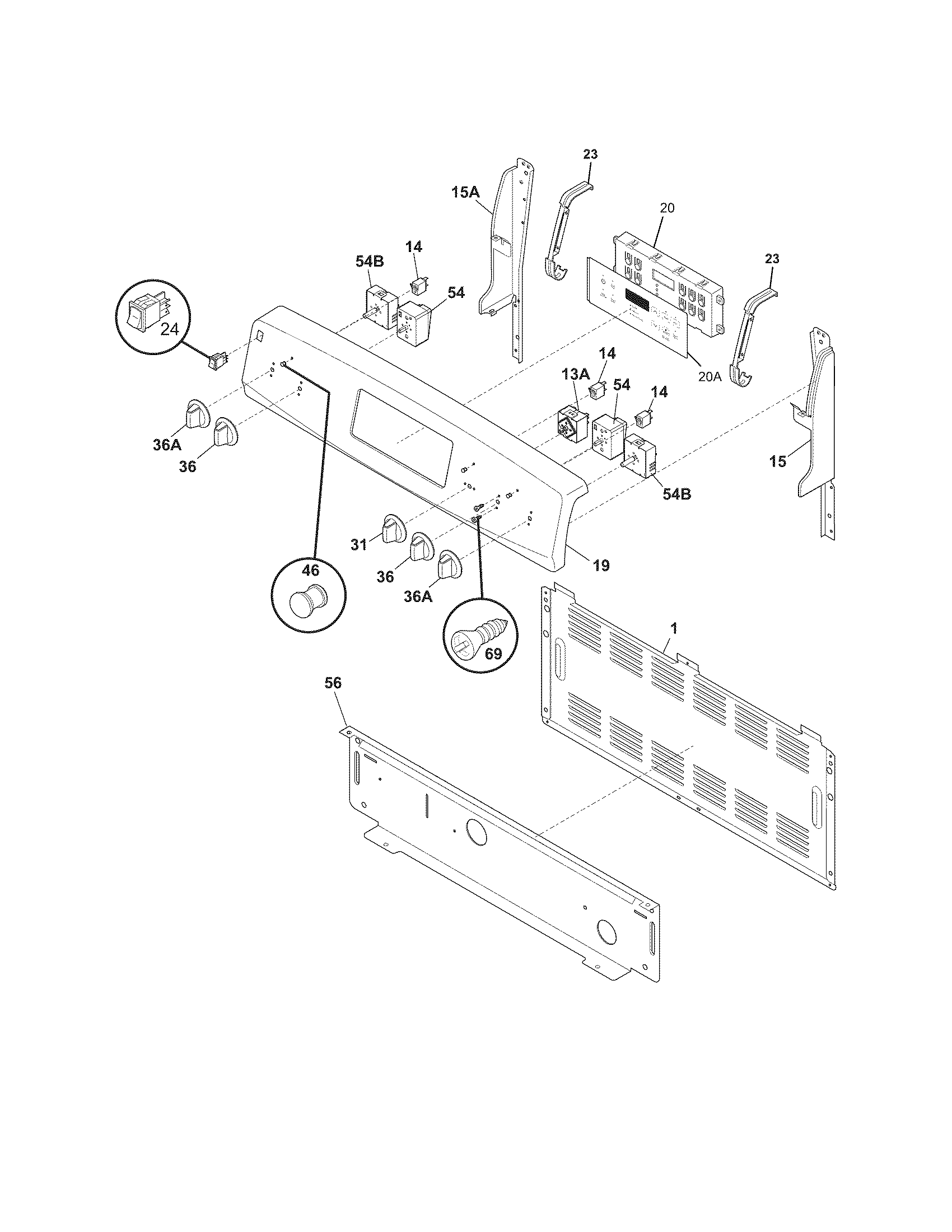

Backguard diagram

Frigidaire range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

4.1 (30)
BEST SELLER
$51.03 |
11% OFF Phone Price : $57.03
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
5 (2)
BEST SELLER
$16.96 |
11% OFF Phone Price : $18.96
In Stock
Frigidaire Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

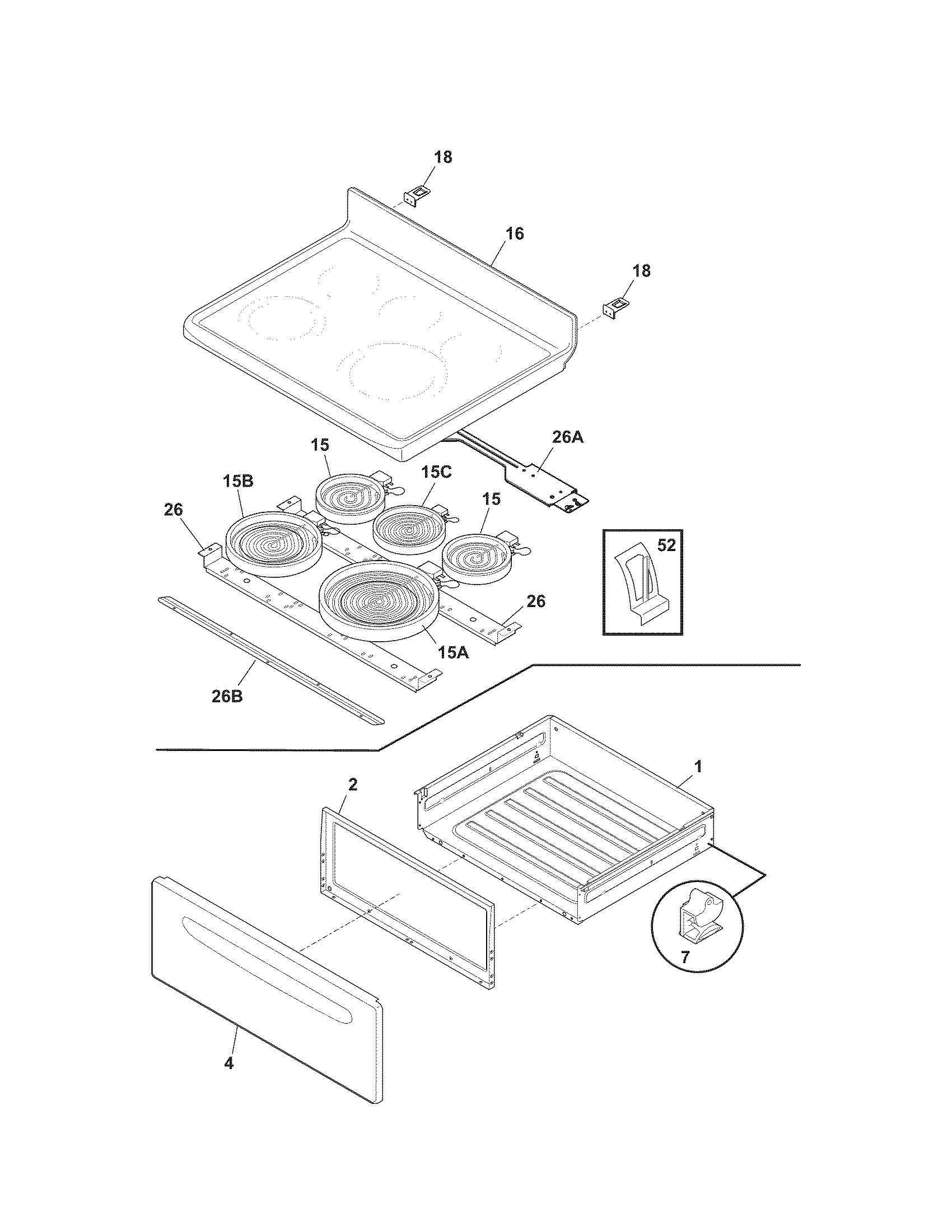

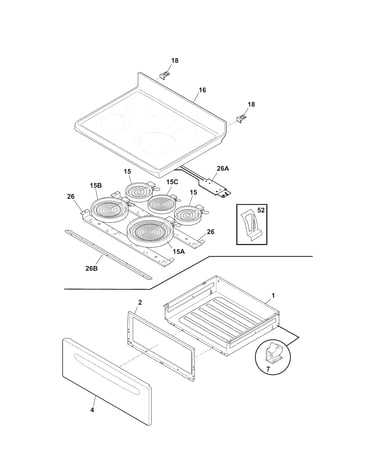

Top/drawer diagram

Frigidaire range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

4.35 (20)
BEST SELLER
$95.42 |
11% OFF Phone Price : $107.42
In Stock
Range Broil Element 316200600
#66

Body diagram

Range broil element

Part #316200600

Replaced by #316203301

?
Manufacturer substitution
This part replaces 316200600. Substitute parts can look different from the original.
4.4 (25)
BEST SELLER
$124.31 |
9% OFF Phone Price : $136.31
In Stock
Frigidaire Range Dual Radiant Surface Element (replaces 316418400, 316418401) 316555800
#15B

Top/drawer diagram

Frigidaire range dual radiant surface element (replaces 316418400, 316418401)

Part #316555800

2.73 (44)
BEST SELLER
$113.17 |
10% OFF Phone Price : $125.17
In Stock
Range Oven Door Inner Glass 316117502
#8

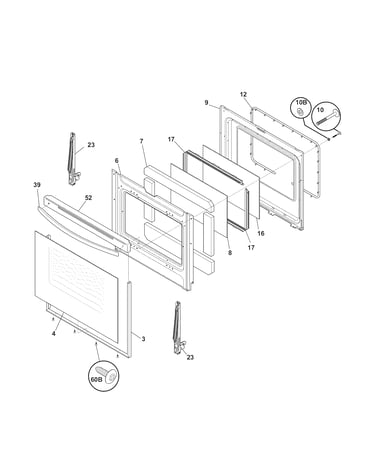

Door diagram

Range oven door inner glass

Part #316117502

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117502. Substitute parts can look different from the original.
5 (8)
BEST SELLER
$72.95 |
8% OFF Phone Price : $78.95
In Stock
Range Oven Door Inner Glass 316117504
#16

Door diagram

Range oven door inner glass

Part #316117504

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117504. Substitute parts can look different from the original.
5 (8)
BEST SELLER
$72.95 |
8% OFF Phone Price : $78.95
In Stock
Range Oven Control Overlay 316352004
#20A

Backguard diagram

Range oven control overlay

Part #316352004

Replaced by #316419141

?
Manufacturer substitution
This part replaces 316352004. Substitute parts can look different from the original.
5 (3)
BEST SELLER
$37.54 |
14% OFF Phone Price : $43.54
In Stock
Range Indicator Light Lens (replaces 316437800) 316557300
#46

Backguard diagram

Range indicator light lens (replaces 316437800)

Part #316557300

5 (2)
BEST SELLER
$13.63 |
13% OFF Phone Price : $15.63
In Stock
