Model # 30DGMCWAN4 Official Tappan gas range - lv32489330

Here are the diagrams and repair parts for Official Tappan 30DGMCWAN4 gas range - lv32489330, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Light 3013071
#16

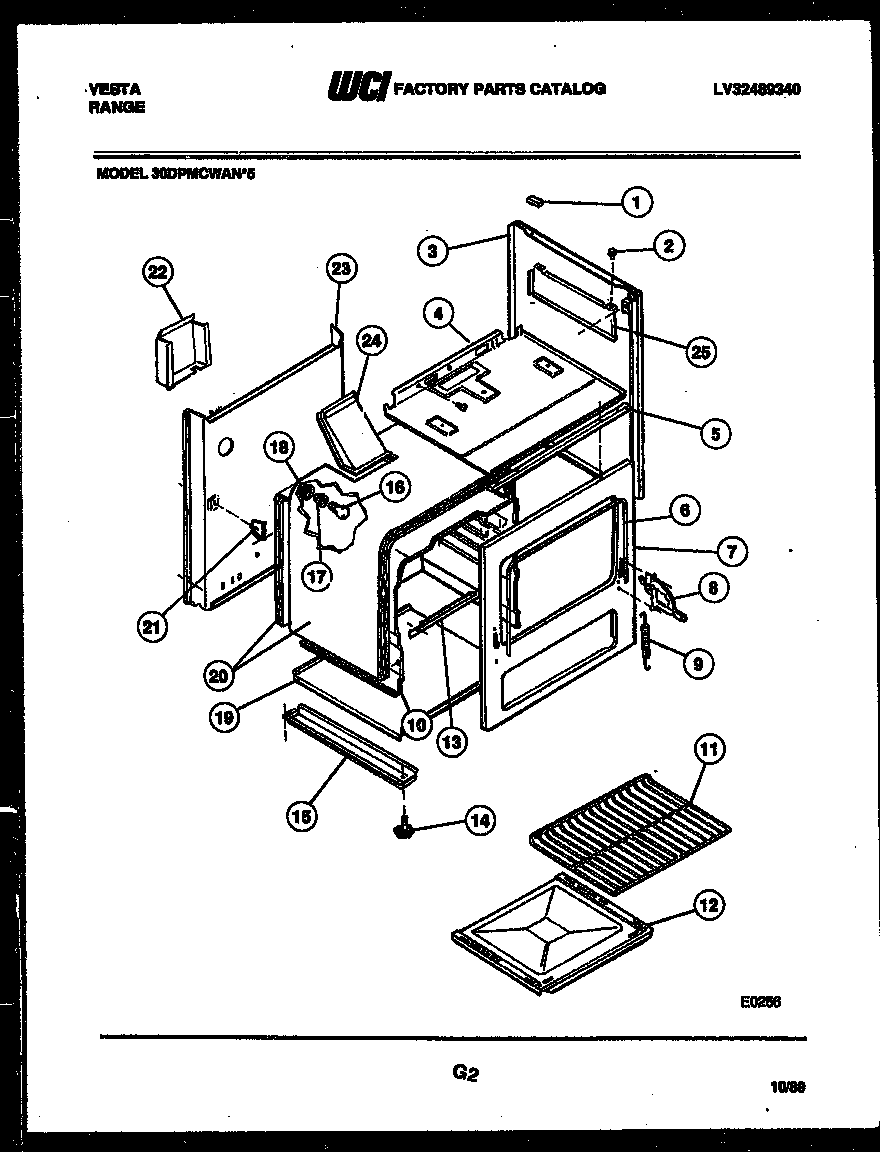

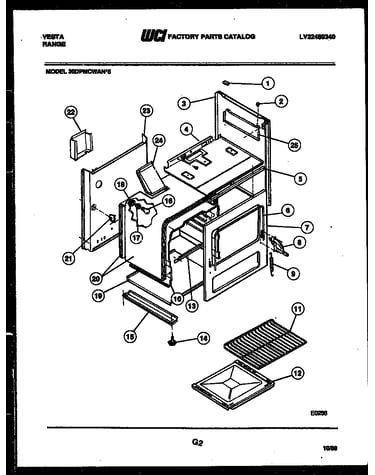

Body parts diagram

Light

Part #3013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Receptacle 3009410
#17

Body parts diagram

Receptacle

Part #3009410

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3009410. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Hinge 3204672
#8

Body parts diagram

Hinge

Part #3204672

Replaced by #318348801

?
Manufacturer substitution
This part replaces 3204672. Substitute parts can look different from the original.
$97.04 |
11% OFF Phone Price : $109.04
In Stock
Nut 3051038
#5

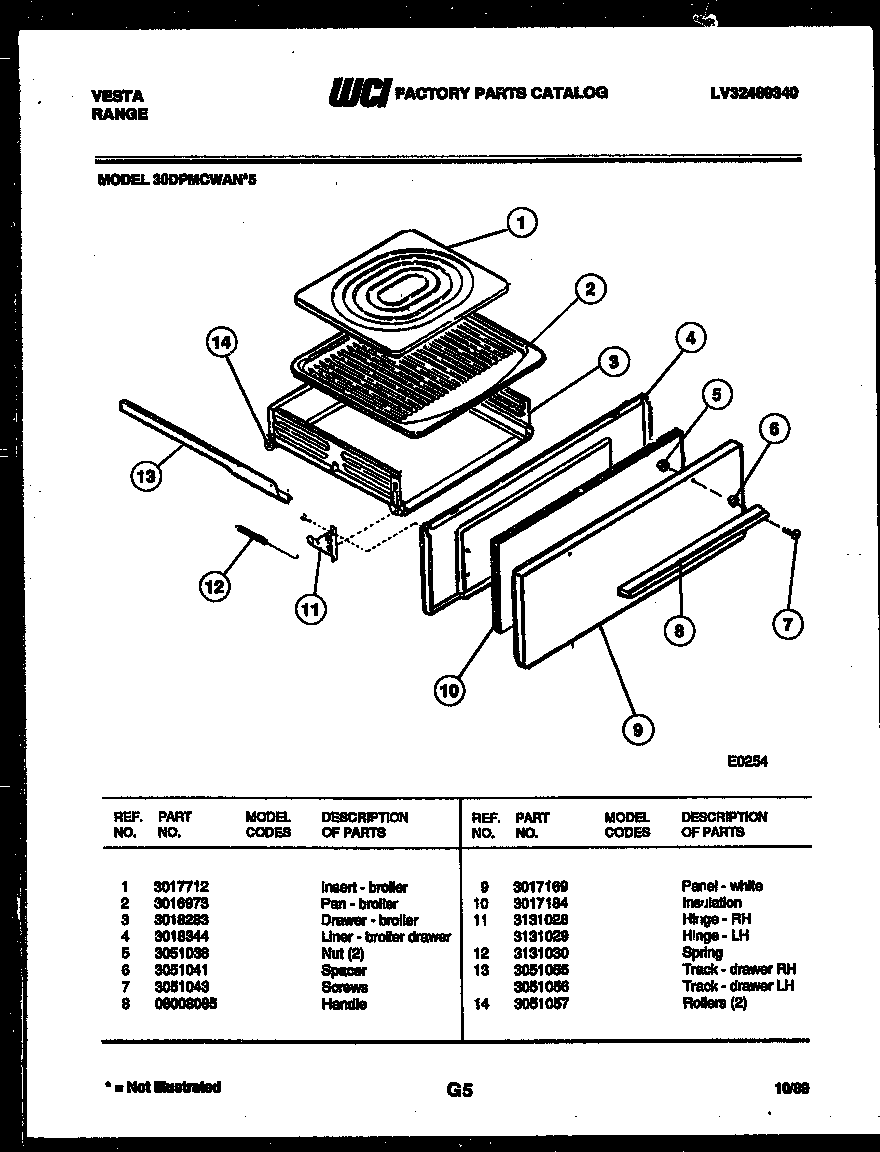

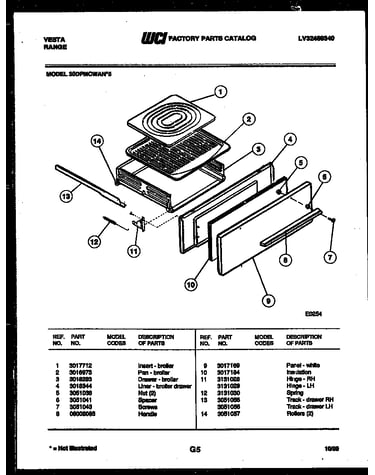

Broiler drawer parts diagram

Nut

Part #3051038

This item is not returnable
$2.91
In Stock
Drawer 3018283
#3

Broiler drawer parts diagram

Drawer

Part #3018283

Replaced by #5304504568

?
Manufacturer substitution
This part replaces 3018283. Substitute parts can look different from the original.
$182.07 |
6% OFF Phone Price : $194.07
In Stock
Screw 3051043
#7

Broiler drawer parts diagram

Screw

Part #3051043

Replaced by #5303292012

?
Manufacturer substitution
This part replaces 3051043. Substitute parts can look different from the original.
$13.29
In Stock
Screw 3131767
#3

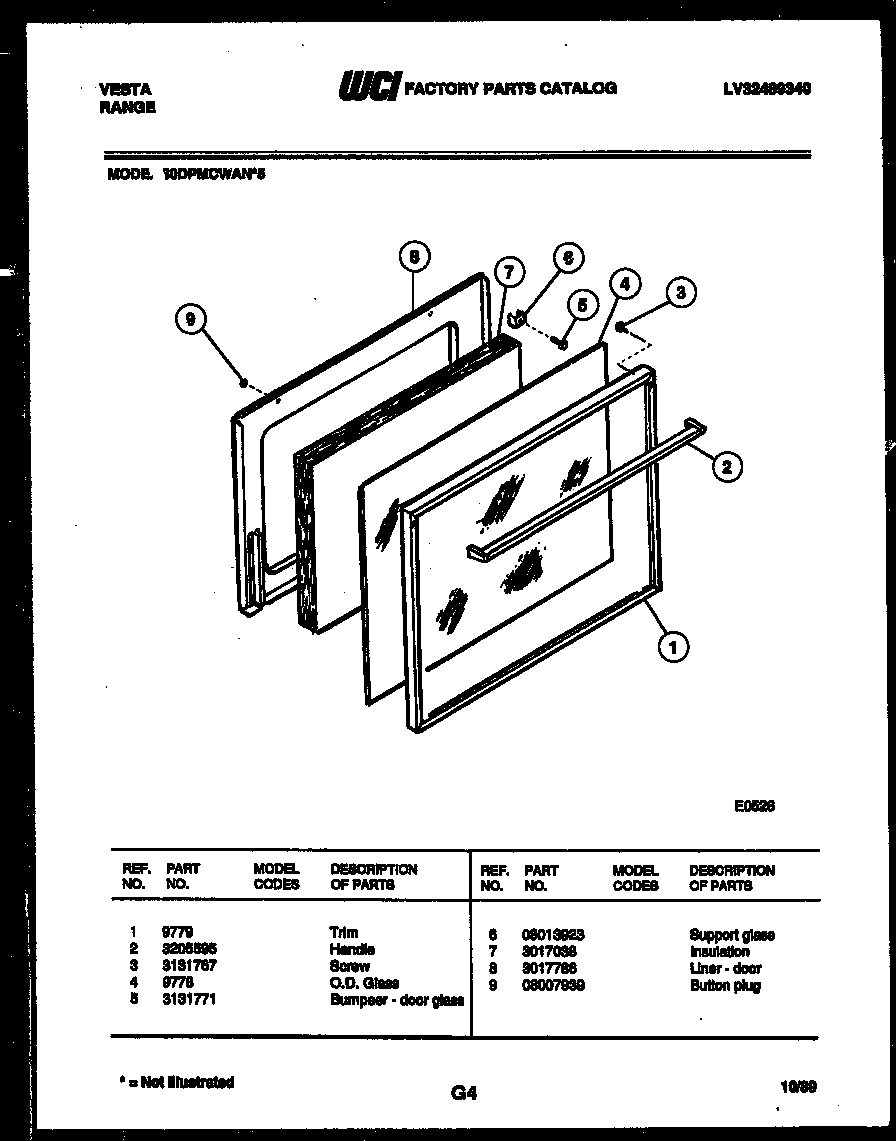

Door parts diagram

Screw

Part #3131767

Replaced by #5303282557

?
Manufacturer substitution
This part replaces 3131767. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Regulator 08007974
#1

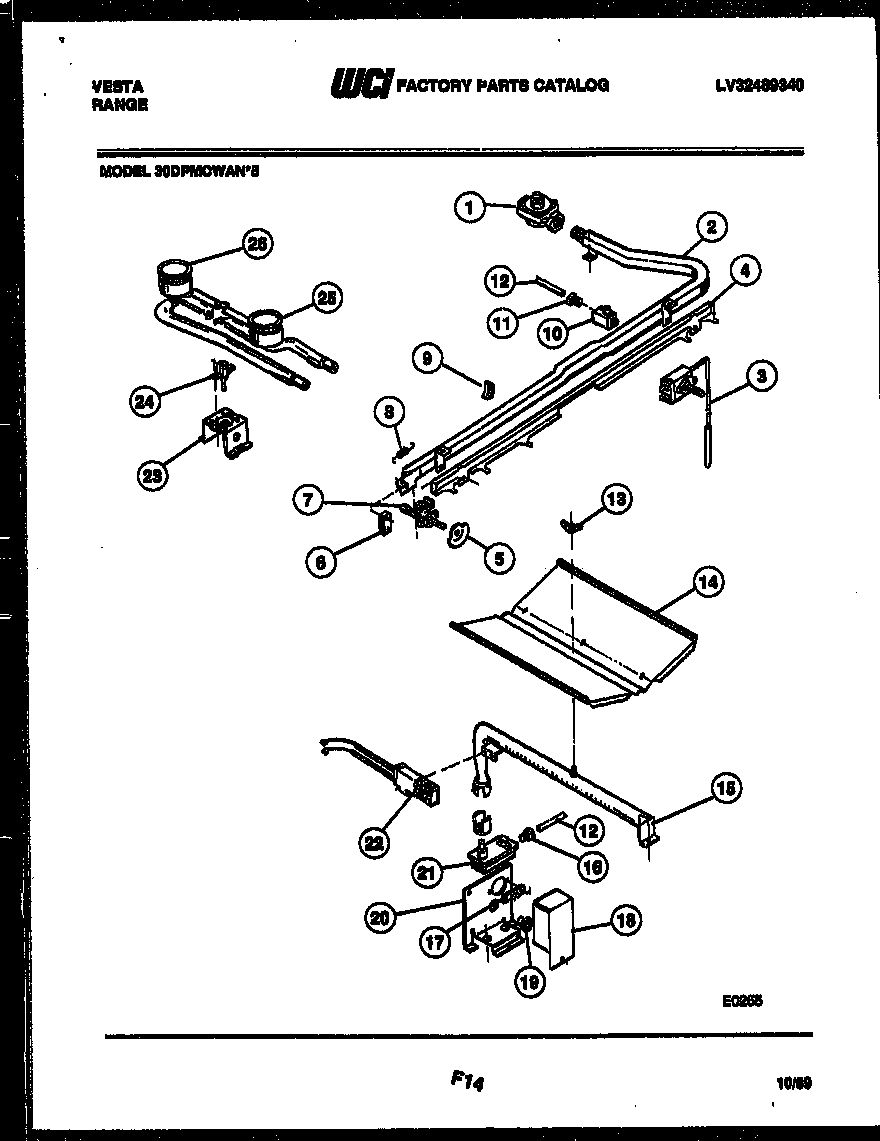

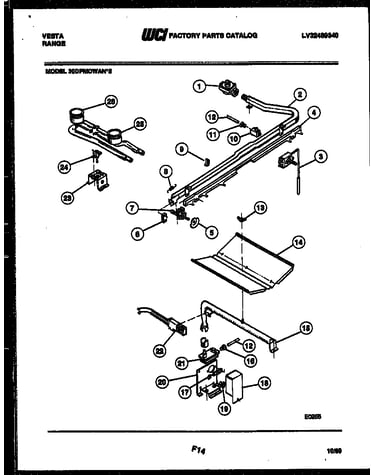

Burner, manifold and gas control diagram

Regulator

Part #08007974

Replaced by #5308007974

?
Manufacturer substitution
This part replaces 08007974. Substitute parts can look different from the original.
$186.45 |
6% OFF Phone Price : $198.45
In Stock
Knob 08013898
#2

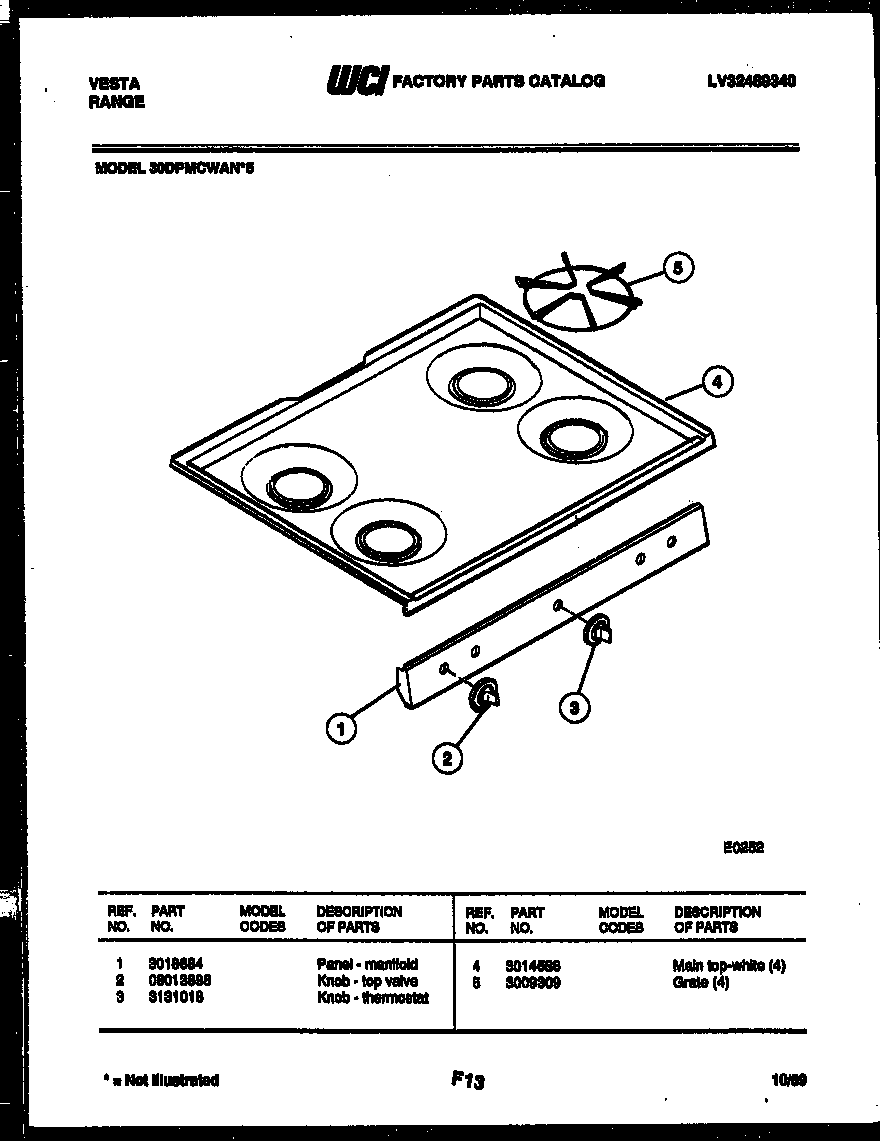

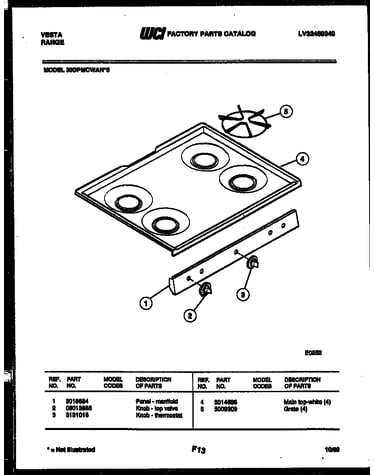

Cooktop parts diagram

Knob

Part #08013898

Replaced by #5308013898

?
Manufacturer substitution
This part replaces 08013898. Substitute parts can look different from the original.
$26.73
In Stock
Thermostat 08013927
#5

Burner, manifold and gas control diagram

Thermostat

Part #08013927

The manufacturer no longer makes this part, and there's no substitute part
