Gibson
Laundry Center

Model # WL24F2WYMB Official Gibson 24" laundry center - 5995231072

Here are the diagrams and repair parts for Official Gibson WL24F2WYMB 24" laundry center - 5995231072, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 251 parts  |
Screw 5303285470
Screw

Part #5303285470

Replaced by #131168200

?
Manufacturer substitution
This part replaces 5303285470. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Screw 5308027517
#12

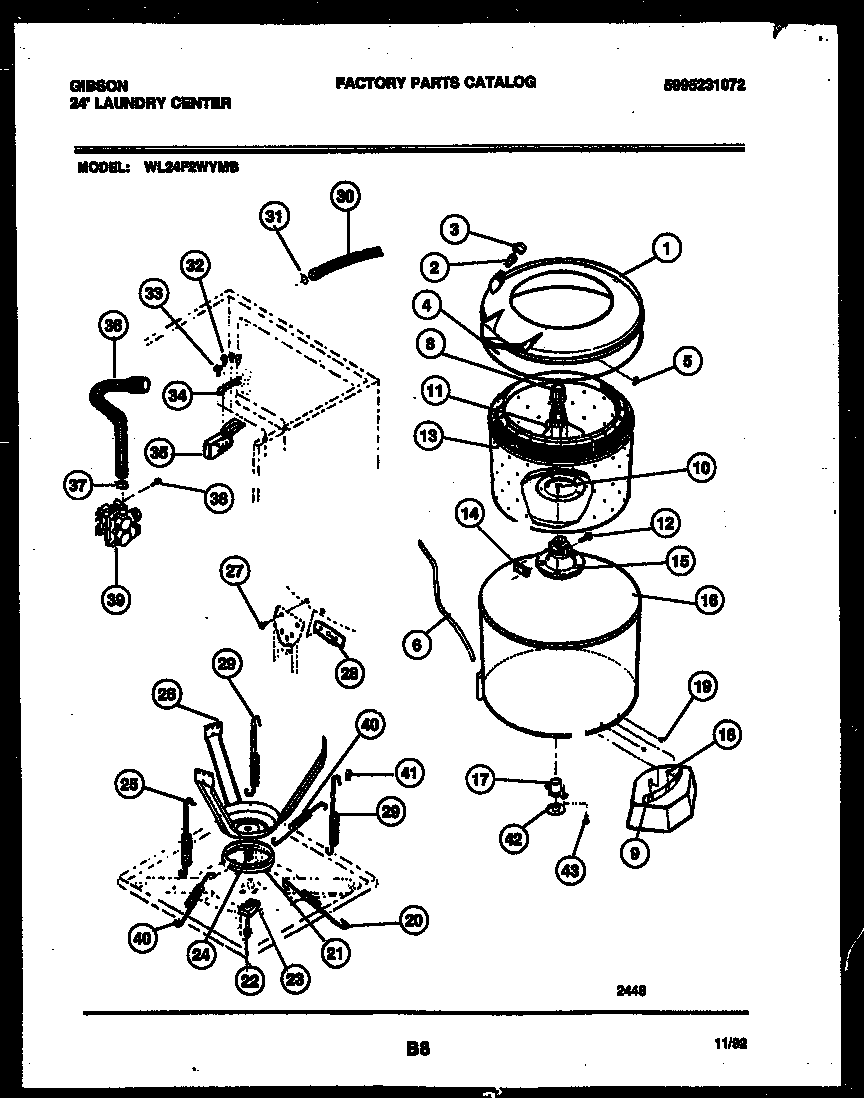

Tub and water inlet diagram

Screw

Part #5308027517

Replaced by #137539500

?
Manufacturer substitution
This part replaces 5308027517. Substitute parts can look different from the original.
BEST SELLER
$15.24 |
12% OFF Phone Price : $17.24
In Stock
Trunnion 5303283294
#15

Tub and water inlet diagram

Trunnion

Part #5303283294

Replaced by #131545101

?
Manufacturer substitution
This part replaces 5303283294. Substitute parts can look different from the original.
BEST SELLER
$102.42 |
10% OFF Phone Price : $114.42
In Stock
Washer Valve 5303207418
#39

Tub and water inlet diagram

Washer valve

Part #5303207418

Replaced by #134190200

?
Manufacturer substitution
This part replaces 5303207418. Substitute parts can look different from the original.
$125.33 |
9% OFF Phone Price : $137.33
In Stock
Electrolux Washing Machine Washer (replaces 000132835, 08002401, 132835000, 132835-000, 3161289, 5303161410, F000132835, F132835, F132835000, F132835-000, Q000440115, Q440115) 5308002401
#42

Tub and water inlet diagram

Electrolux washing machine washer (replaces 000132835, 08002401, 132835000, 132835-000, 3161289, 5303161410, f000132835, f132835, f132835000, f132835-000, q000440115, q440115)

Part #5308002401

$20.89 |
22% OFF Phone Price : $26.89
In Stock
Foot 5303272067
#35

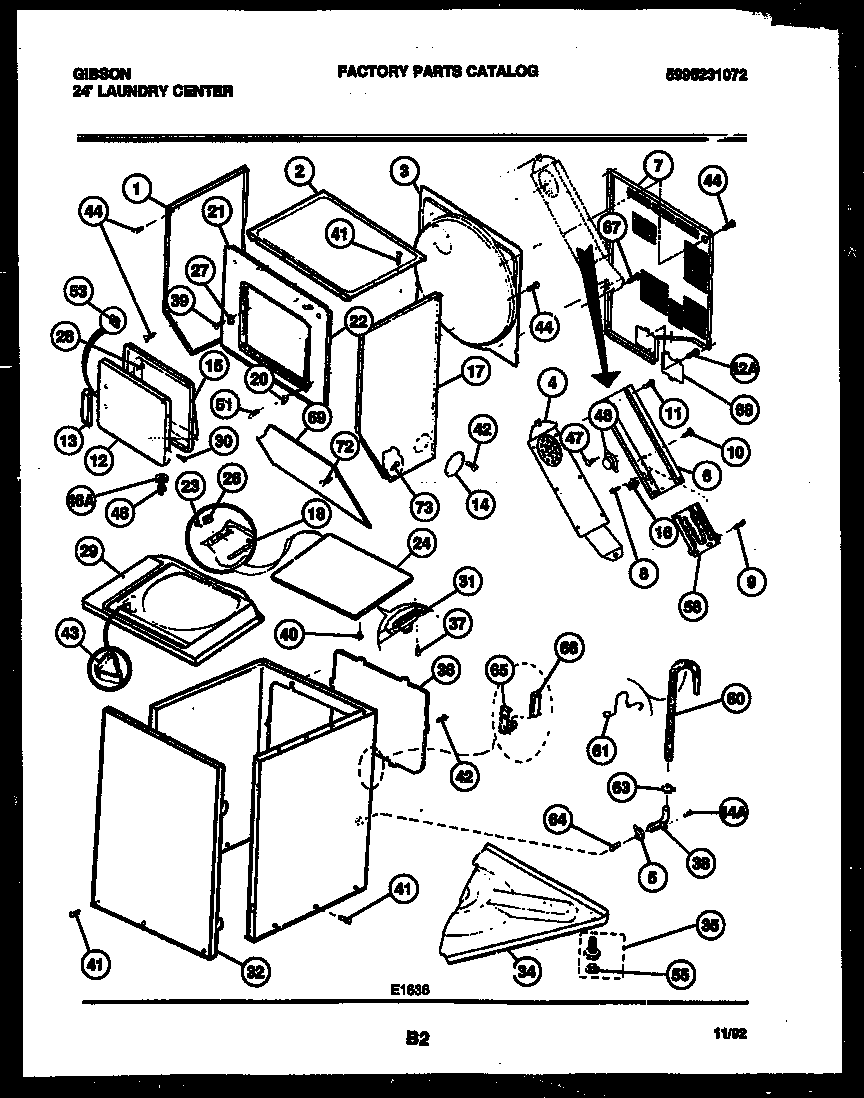

Cabinet parts diagram

Foot

Part #5303272067

Replaced by #134548800

?
Manufacturer substitution
This part replaces 5303272067. Substitute parts can look different from the original.
This item is not returnable
$14.57 |
12% OFF Phone Price : $16.57
In Stock
Strike 3204970
#31

Cabinet parts diagram

Strike

Part #3204970

Replaced by #131390000

?
Manufacturer substitution
This part replaces 3204970. Substitute parts can look different from the original.
$54.89 |
10% OFF Phone Price : $60.89
In Stock
Screw 5303161244
Screw

Part #5303161244

Replaced by #131205100

?
Manufacturer substitution
This part replaces 5303161244. Substitute parts can look different from the original.
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Screw 5308006553
Screw

Part #5308006553

Replaced by #131205100

?
Manufacturer substitution
This part replaces 5308006553. Substitute parts can look different from the original.
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Washer Screw 3205150
#43

Tub and water inlet diagram

Washer screw

Part #3205150

This item is not returnable
$3.86
In Stock
