Miter Saw

Model # MS250 Official Delta 10" compound power miter saw

Here are the diagrams and repair parts for Official Delta MS250 10" compound power miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

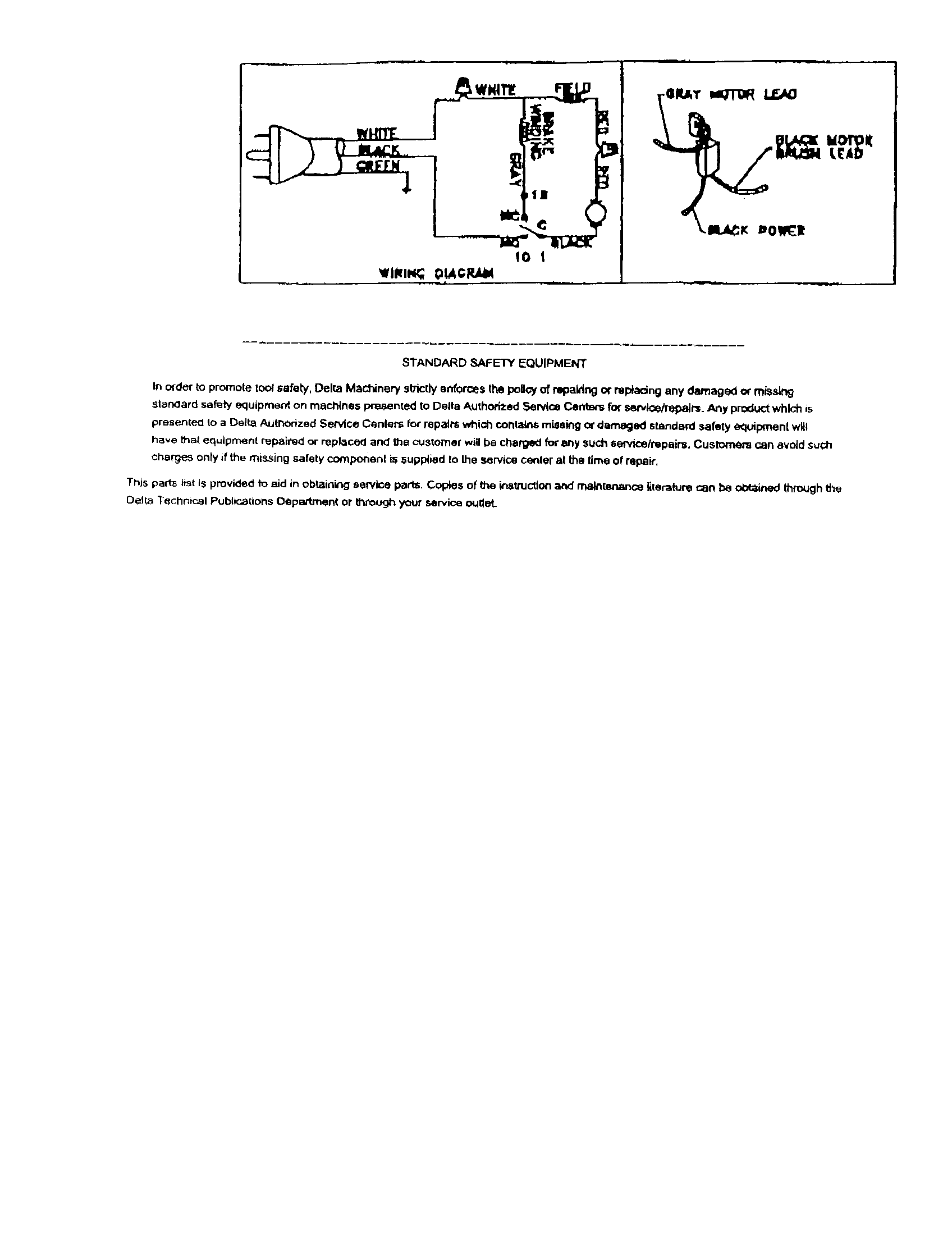

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Pad 900187
#77

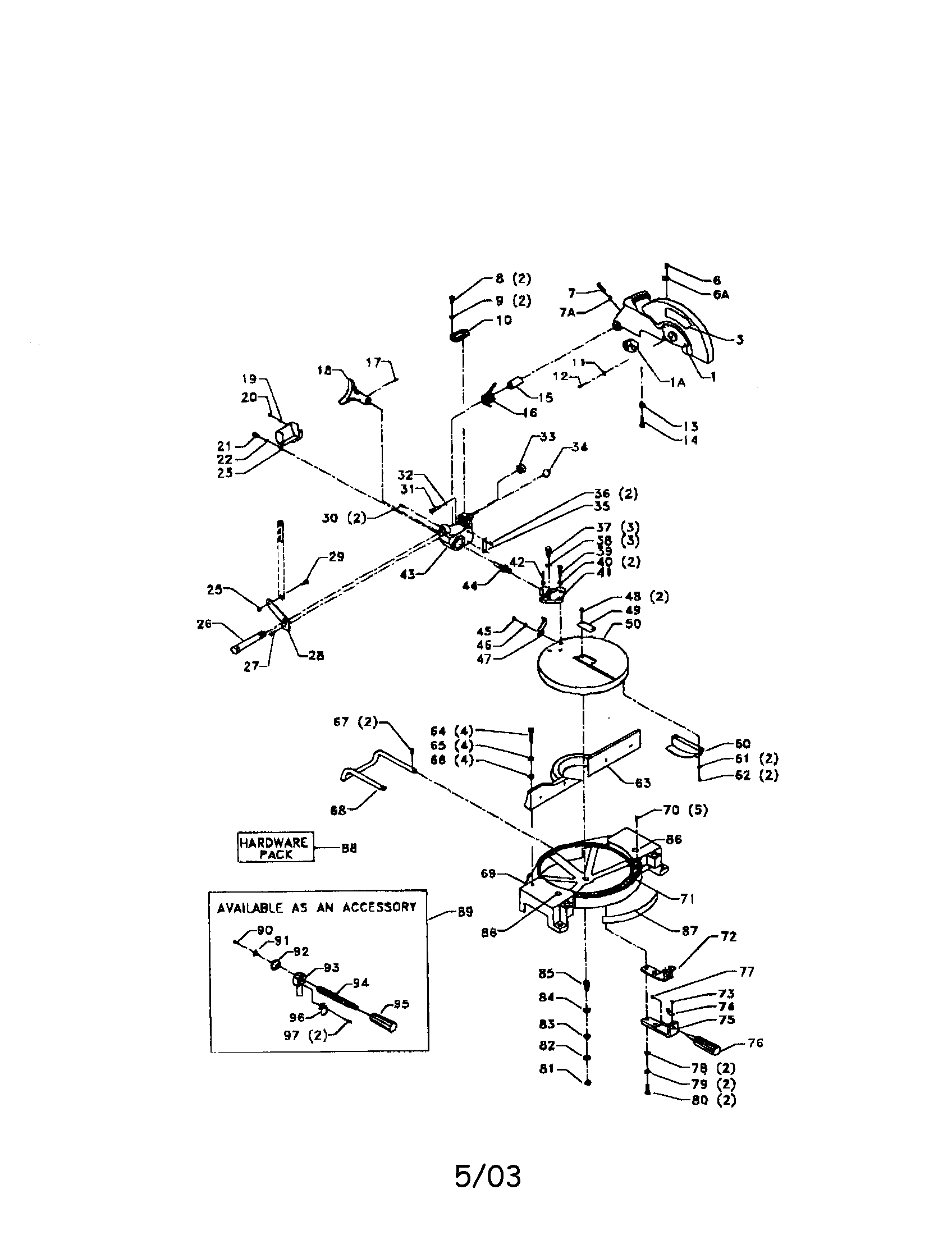

Upper arm/handle/table diagram

Pad

Part #900187

The manufacturer no longer makes this part, and there's no substitute part

Spec.screw 1349953
#29

Upper arm/handle/table diagram

Spec.screw

Part #1349953

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin 1310311
#17

Upper arm/handle/table diagram

Spring pin

Part #1310311

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Motor Brush 1347143
#108

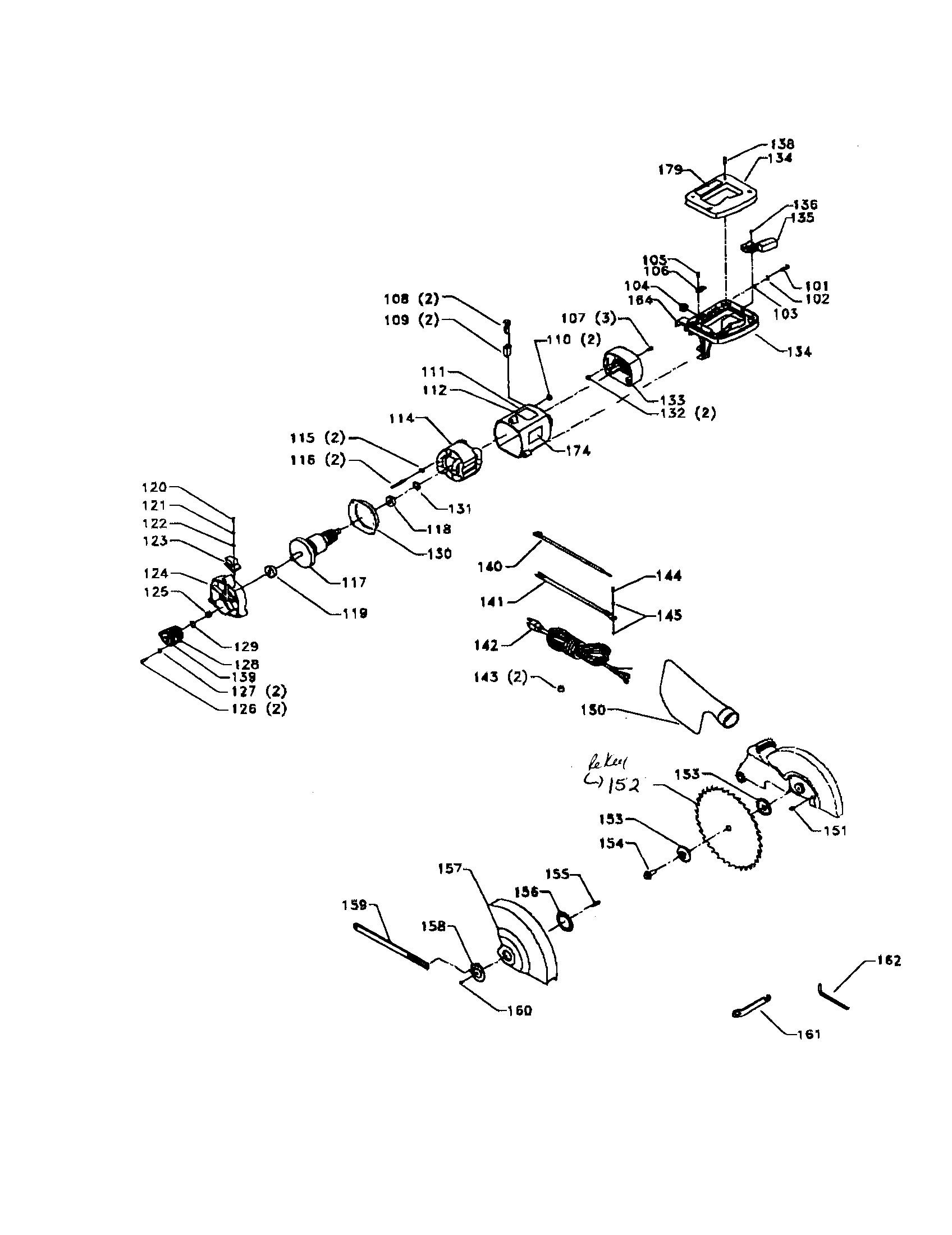

Motor and blade assemblies diagram

Miter saw motor brush

Part #1347143

The manufacturer no longer makes this part, and there's no substitute part

Screw 1310148
#116

Motor and blade assemblies diagram

Screw

Part #1310148

The manufacturer no longer makes this part, and there's no substitute part

Ext T Wshr 1320102
#145

Motor and blade assemblies diagram

Ext t wshr

Part #1320102

The manufacturer no longer makes this part, and there's no substitute part

Screw 1246004
#8

Upper arm/handle/table diagram

Screw

Part #1246004

The manufacturer no longer makes this part, and there's no substitute part

Jumper 1347161
#141

Motor and blade assemblies diagram

Jumper

Part #1347161

The manufacturer no longer makes this part, and there's no substitute part

Delta Motor Assembly 901929
#0

Motor and blade assemblies diagram

Delta motor assembly

Part #901929

The manufacturer no longer makes this part, and there's no substitute part

Label 899917
#179

Motor and blade assemblies diagram

Label

Part #899917

The manufacturer no longer makes this part, and there's no substitute part
