Maytag
Upright Freezer

Model # CFU2046GRW Official Maytag freezer

Here are the diagrams and repair parts for Official Maytag CFU2046GRW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

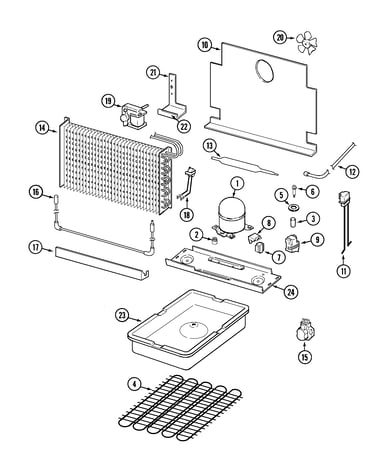

Unit compartment & system diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 68001324
#5

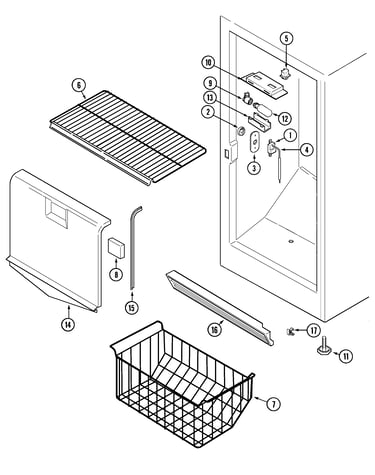

Freezer compartment diagram

Light switch

Part #68001324

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 68001324. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Compressor 68001494
#1

Unit compartment & system diagram

Compressor

Part #68001494

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 68001494. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Door Handle Screw 68001413
#2D

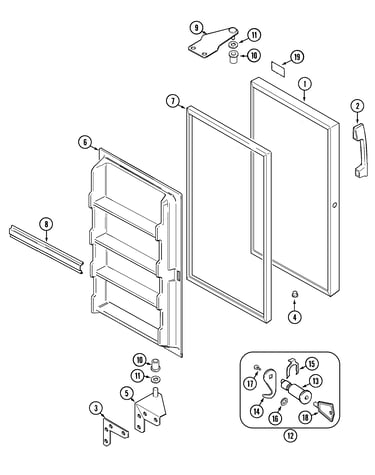

Door diagram

Door handle screw

Part #68001413

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces 68001413. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Tubing Control 68001066
#4

Freezer compartment diagram

Tubing control

Part #68001066

Replaced by #WP2196003

?
Manufacturer substitution
This part replaces 68001066. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
Defrost Heater 045329-01
#16

Unit compartment & system diagram

Defrost heater

Part #045329-01

Replaced by #W11175809

?
Manufacturer substitution
This part replaces 045329-01. Substitute parts can look different from the original.
$78.88 |
7% OFF Phone Price : $84.88
In Stock
Door Gasket 68001109
#7

Door diagram

Door gasket

Part #68001109

Replaced by #WP4-81049-001

?
Manufacturer substitution
This part replaces 68001109. Substitute parts can look different from the original.
$221.81 |
5% OFF Phone Price : $233.81
In Stock
Kickplate Ki 68001327
#16

Freezer compartment diagram

Kickplate ki

Part #68001327

Replaced by #WP4-60461-002

?
Manufacturer substitution
This part replaces 68001327. Substitute parts can look different from the original.
$43.99 |
12% OFF Phone Price : $49.99
In Stock
Evaporator Screw 68001121
#14A

Freezer compartment diagram

Evaporator screw

Part #68001121

Replaced by #WP3-24004-109

?
Manufacturer substitution
This part replaces 68001121. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Clip 045520-01
#17

Freezer compartment diagram

Clip

Part #045520-01

Replaced by #1-80247-101

?
Manufacturer substitution
This part replaces 045520-01. Substitute parts can look different from the original.
$8.22 |
11% OFF Phone Price : $9.22
In Stock
