Modern Maid
Gas Wall Oven

Model # DKO757 Official Modern Maid wall oven

Here are the diagrams and repair parts for Official Modern Maid DKO757 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Receptacle, Disconnect 69393
#2

Electrical components diagram

Receptacle, disconnect

Part #69393

The manufacturer no longer makes this part, and there's no substitute part

Fixed Hinge - Left Hand 75953
#7B

Oven and broiler parts diagram

Fixed hinge - left hand

Part #75953

The manufacturer no longer makes this part, and there's no substitute part

Clock-timer - 60 Cycle 64414
#11

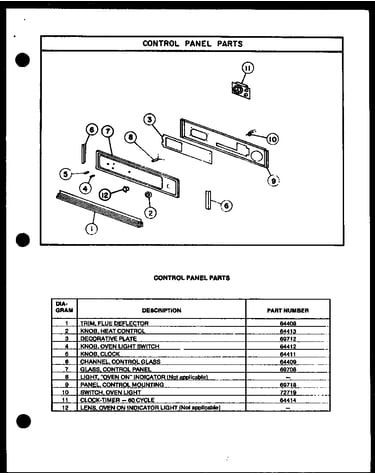

Control panel parts diagram

Clock-timer - 60 cycle

Part #64414

The manufacturer no longer makes this part, and there's no substitute part

Angle, Wiring Shield 93765
#9

Main body parts diagram

Angle, wiring shield

Part #93765

The manufacturer no longer makes this part, and there's no substitute part

Backer, Oven Door - Dg0 757 77311-3
#3A

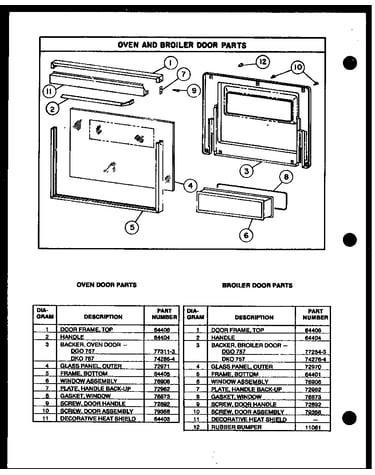

Oven and broiler door parts diagram

Backer, oven door - dg0 757

Part #77311-3

The manufacturer no longer makes this part, and there's no substitute part

Main Body 69725
#5

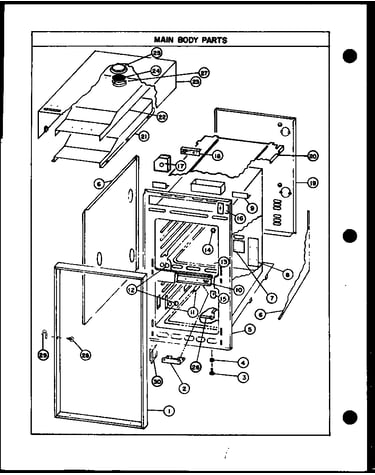

Main body parts diagram

Main body

Part #69725

The manufacturer no longer makes this part, and there's no substitute part

Cover Box, Oven Light Wires 95600
#6

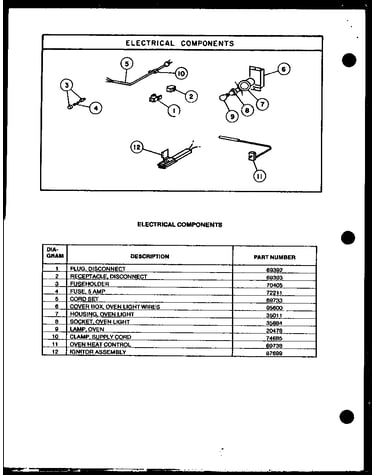

Electrical components diagram

Cover box, oven light wires

Part #95600

The manufacturer no longer makes this part, and there's no substitute part

Oven Broiler Rack 77260
#10

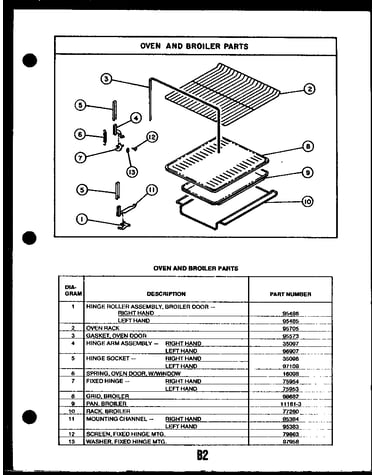

Oven and broiler parts diagram

Oven broiler rack

Part #77260

The manufacturer no longer makes this part, and there's no substitute part

Tbg. W/ftg., 3/8" Gas Valve To Orifice Ftg. 69603
#4

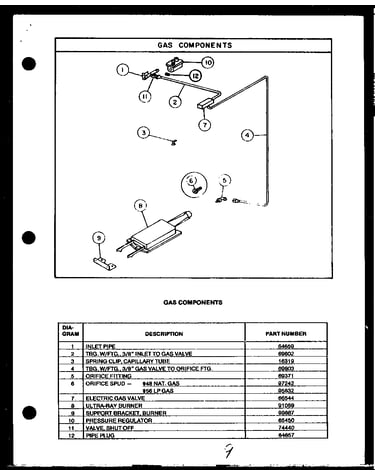

Gas components diagram

Tbg. w/ftg., 3/8" gas valve to orifice ftg.

Part #69603

The manufacturer no longer makes this part, and there's no substitute part

Nut, Retainer 98548
#4

Main body parts diagram

Nut, retainer

Part #98548

The manufacturer no longer makes this part, and there's no substitute part
