Model # JKD910CB1CC Official GE warming drawer
Here are the diagrams and repair parts for Official GE JKD910CB1CC warming drawer, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
JKD910CB1CC Warming Drawer
#5

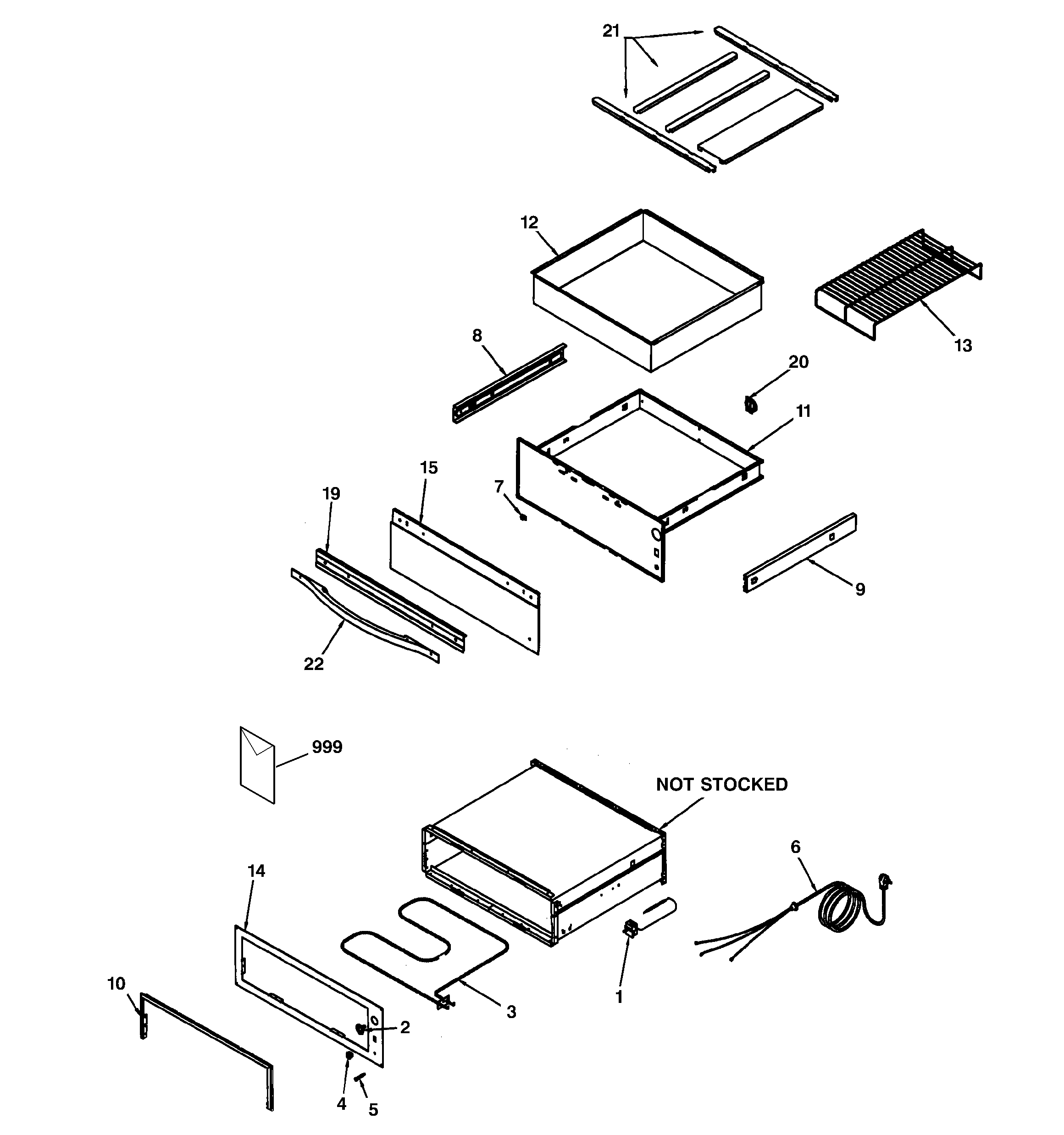

Warming drawer diagram
Indicator lamp
Part #WB02X10587
$74.69 |
7% OFF Phone Price : $80.69
In Stock
#14
Warming drawer diagram
Face panel
Part #WB56X10118
$168.40
In Stock
#12
Warming drawer diagram
Drawer pan
Part #WB58X10004
$268.62
In Stock
#20
Warming drawer diagram
Magnet closure
Part #WB02X10592
$153.33
In Stock
#13
Warming drawer diagram
Wire rack
Part #WB48X10010
Replaced by #WB48X10045
?
Manufacturer substitution
This part replaces WB48X10010. Substitute parts can look different from the original.
$143.09 |
8% OFF Phone Price : $155.09
In Stock
#999
Warming drawer diagram
Uc/install j
Part #49-8933
Replaced by #49-8933-1
?
Manufacturer substitution
This part replaces 49-8933. Substitute parts can look different from the original.
$20.49
In Stock
#3
Warming drawer diagram
Element
Part #WB44X10024
Replaced by #WB44X10029
?
Manufacturer substitution
This part replaces WB44X10024. Substitute parts can look different from the original.
$86.69 |
6% OFF Phone Price : $92.69
In Stock
#21
Warming drawer diagram
Rail kit, 27
Part #WB64X10001
Replaced by #WB64X10031
?
Manufacturer substitution
This part replaces WB64X10001. Substitute parts can look different from the original.
$228.07
In Stock
#11
Warming drawer diagram
Drawer frame
Part #WB58X10003
Replaced by #WB58X10017
?
Manufacturer substitution
This part replaces WB58X10003. Substitute parts can look different from the original.
$314.22
In Stock
#7
Warming drawer diagram
Knob, vent s
Part #WB03X10061
The manufacturer no longer makes this part, and there's no substitute part
