Model # 867763352 Official Kenmore pilot-free gas-fired space saver furnace
Here are the diagrams and repair parts for Official Kenmore 867763352 pilot-free gas-fired space saver furnace, as well as links to manuals and error code tables, if available.
By Schematic

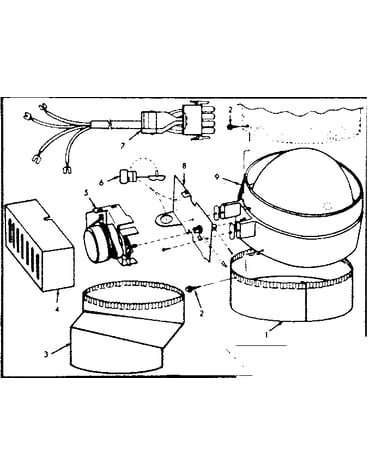

SELECT DIAGRAM
Browse Parts for
867763352 Pilot-Free Gas-Fired Space Saver Furnace
#4

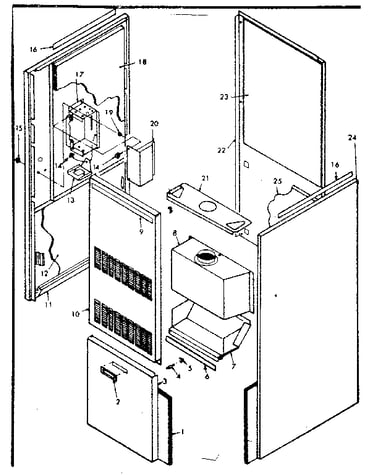

Cabinet diagram
Strike
Part #602089
Replaced by #279570
?
Manufacturer substitution
This part replaces 602089. Substitute parts can look different from the original.
This item is not returnable
$4.01 |
20% OFF Phone Price : $5.01
In Stock
#5
Cabinet diagram
Catch
Part #602090
Replaced by #279570
?
Manufacturer substitution
This part replaces 602090. Substitute parts can look different from the original.
This item is not returnable
$4.01 |
20% OFF Phone Price : $5.01
In Stock
#NI
All parts diagram
Module
Part #612919
The manufacturer no longer makes this part, and there's no substitute part
#17

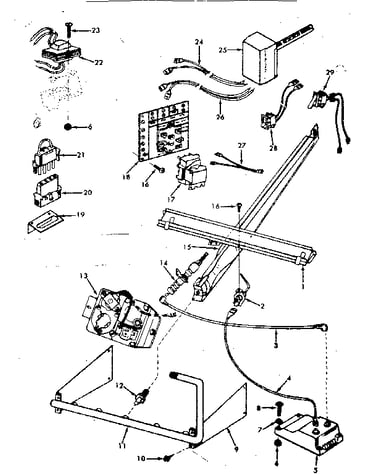

Burner and controls diagram
Relay
Part #700577
The manufacturer no longer makes this part, and there's no substitute part
#4A

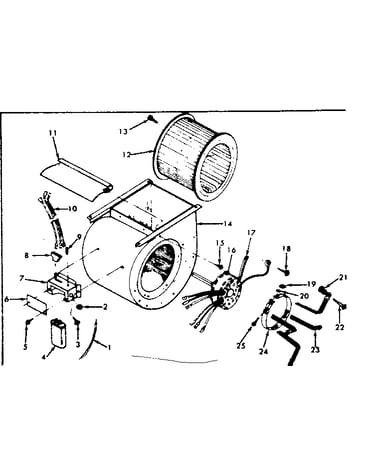

Blower diagram
Capacitor
Part #87964
Replaced by #12910
?
Manufacturer substitution
This part replaces 87964. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
#NI
All parts diagram
Thermostat
Part #42-9295
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Thermostate
Part #42-9235
The manufacturer no longer makes this part, and there's no substitute part
#27
Blower diagram
Furnace blower fan motor mounting kit
Part #609227
$113.60
In Stock
#3A

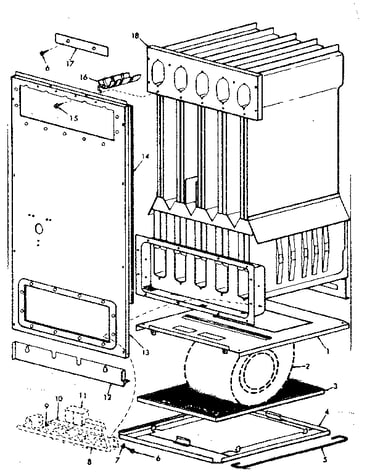

Heat exchanger diagram
Furnace air filter
Part #602859
$94.00
In Stock
#12A
Blower diagram
Furnace blower fan wheel
Part #601210
$217.38
In Stock
