Model # GFWS2505F0RR Official GE washer

Here are the diagrams and repair parts for Official GE GFWS2505F0RR washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |

Washer Outer Rear Tub WH45X10136
#315

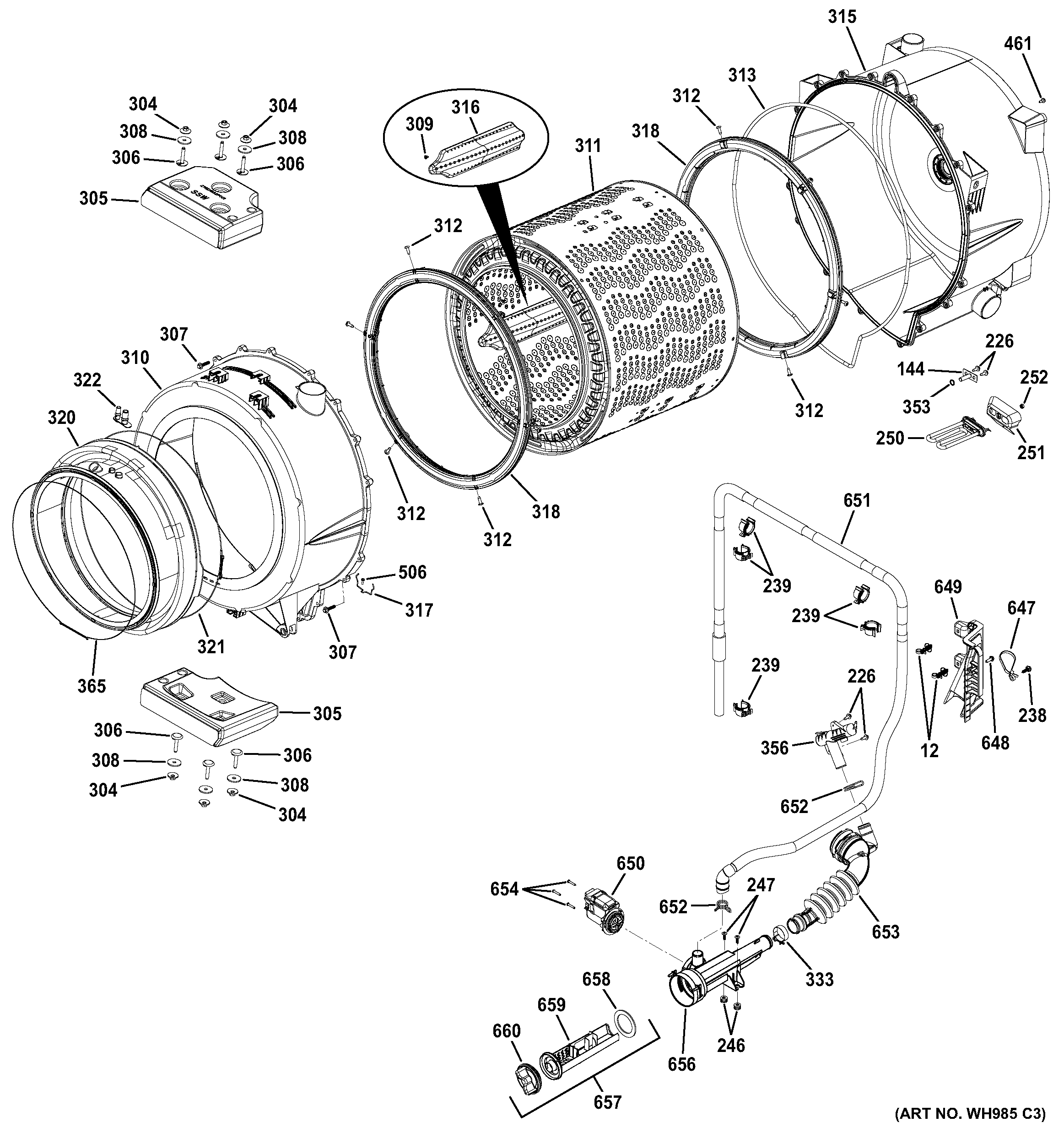

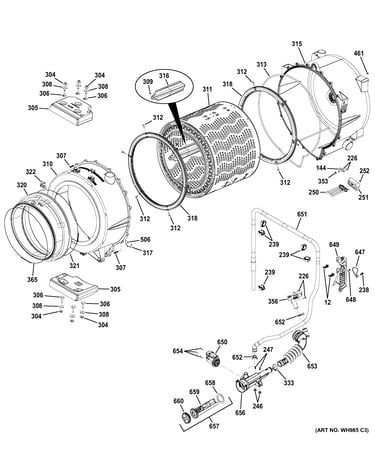

Tub & motor diagram

Washer outer rear tub

Part #WH45X10136

BEST SELLER
$448.84
$12.00 OFF Phone Price : $460.84
In Stock
Washer Shock Absorber WH01X10727
#210

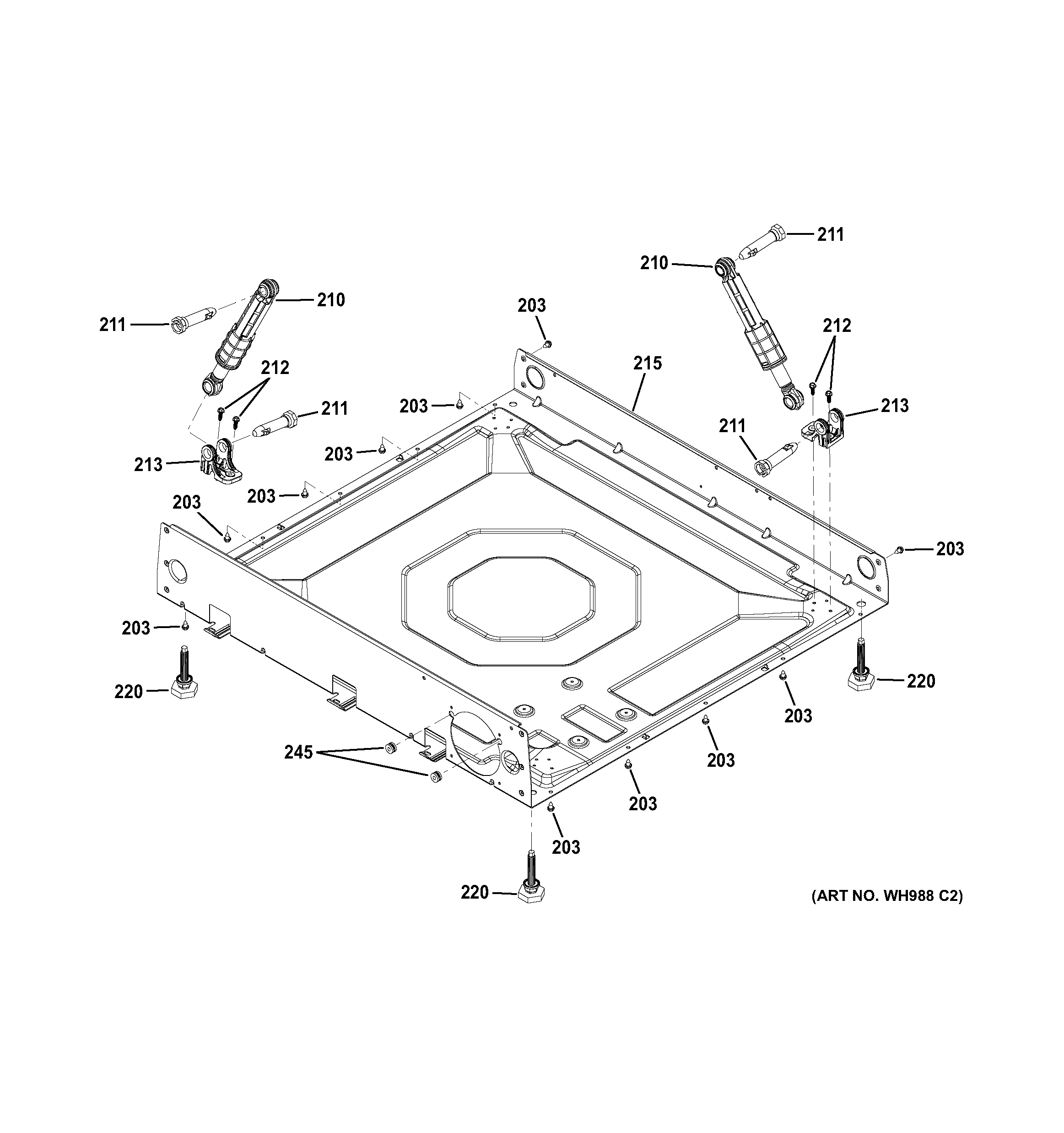

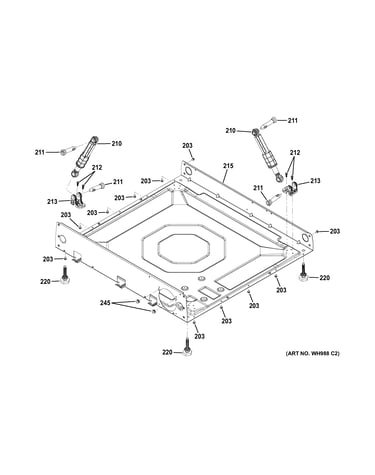

Base pan diagram

Washer shock absorber

Part #WH01X10727

$24.81
19% OFF Phone Price : $30.81
In Stock
Rps Module WH12X10594
#326

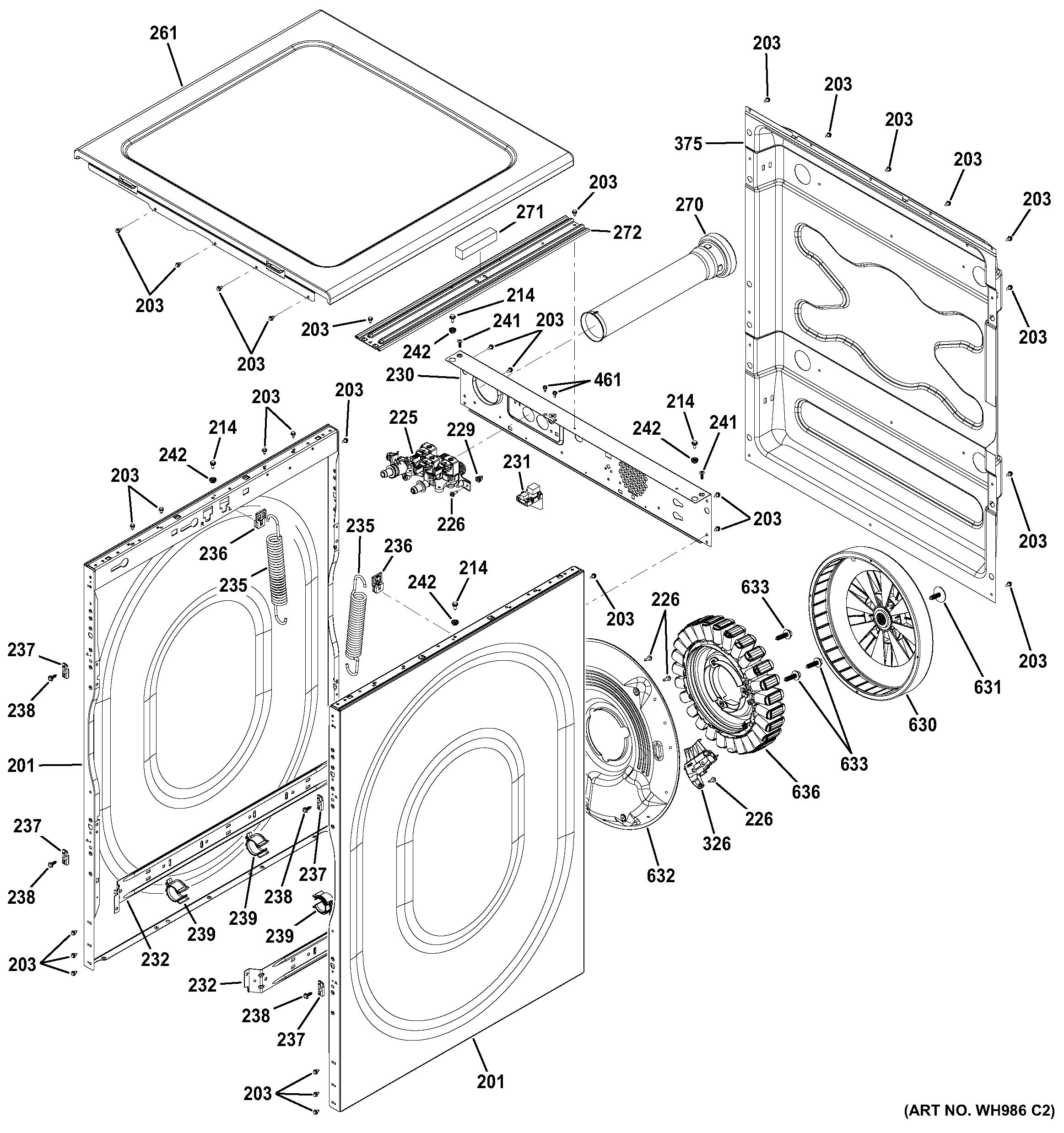

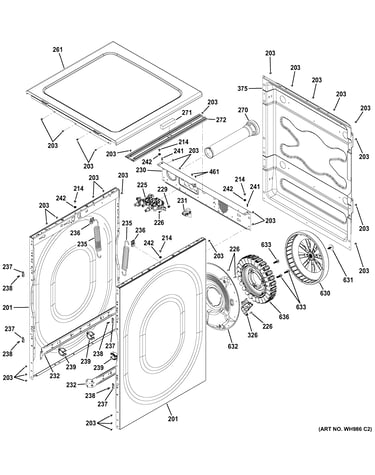

Cabinet (1) diagram

Rps module

Part #WH12X10594

Replaced by #WH12X23995

?
Manufacturer substitution
This part replaces WH12X10594. Substitute parts can look different from the original.
$39.32
13% OFF Phone Price : $45.32
In Stock
Wire Tie WH01X10704
#23

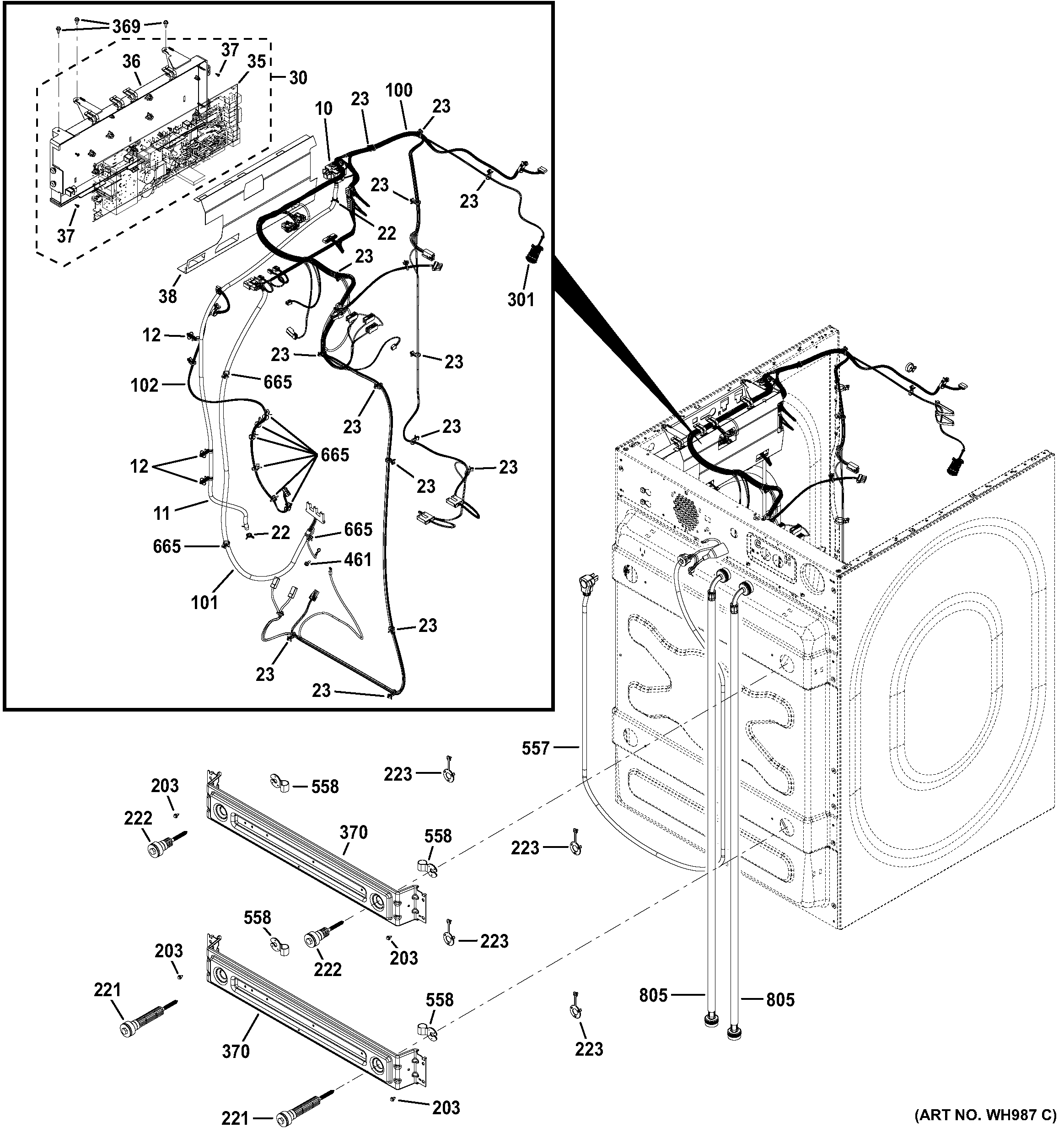

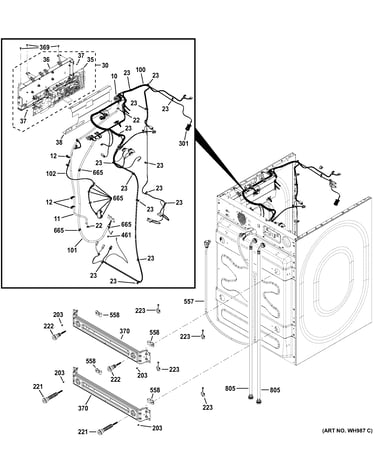

Cabinet (2) diagram

Wire tie

Part #WH01X10704

This item is not returnable
In Stock
Washer Drain Pump (replaces Wh23x10050) WH23X10051
#650

Tub & motor diagram

Washer drain pump (replaces wh23x10050)

Part #WH23X10051

$84.14
7% OFF Phone Price : $90.14
In Stock
Washer Outer Front Tub WH45X10141
#310

Tub & motor diagram

Washer outer front tub

Part #WH45X10141

This item is not returnable
$153.12
7% OFF Phone Price : $165.12
In Stock
Pcb Ui Asm WH12X10608
#120

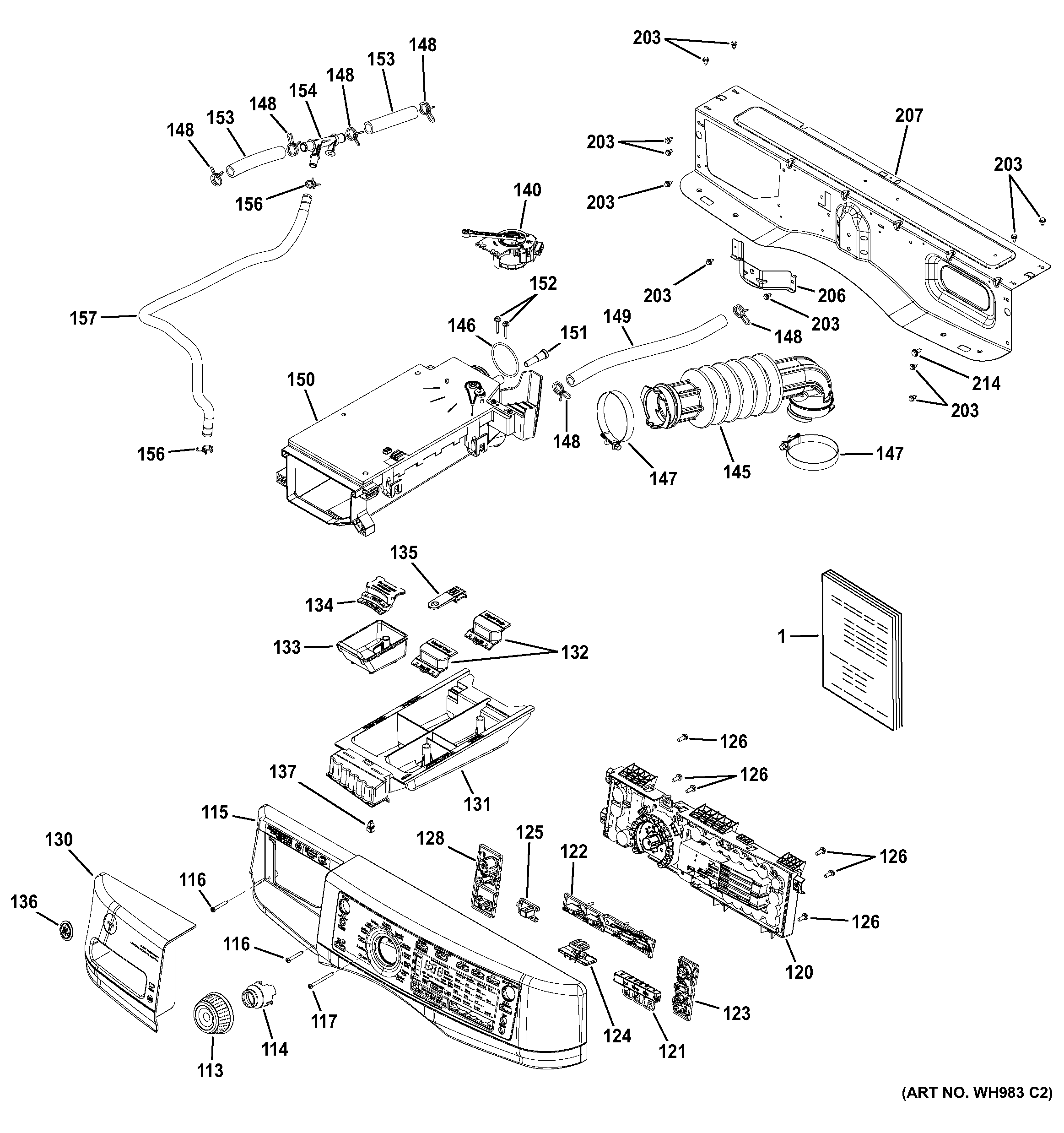

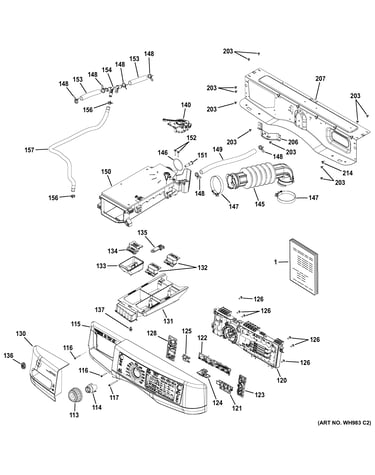

Controls & dispenser diagram

Pcb ui asm

Part #WH12X10608

Replaced by #WH12X25837

?
Manufacturer substitution
This part replaces WH12X10608. Substitute parts can look different from the original.
$301.13
$12.00 OFF Phone Price : $313.13
In Stock
Hotpoint Washer Screw, #10-32 X 25-mm WH02X10139
#332

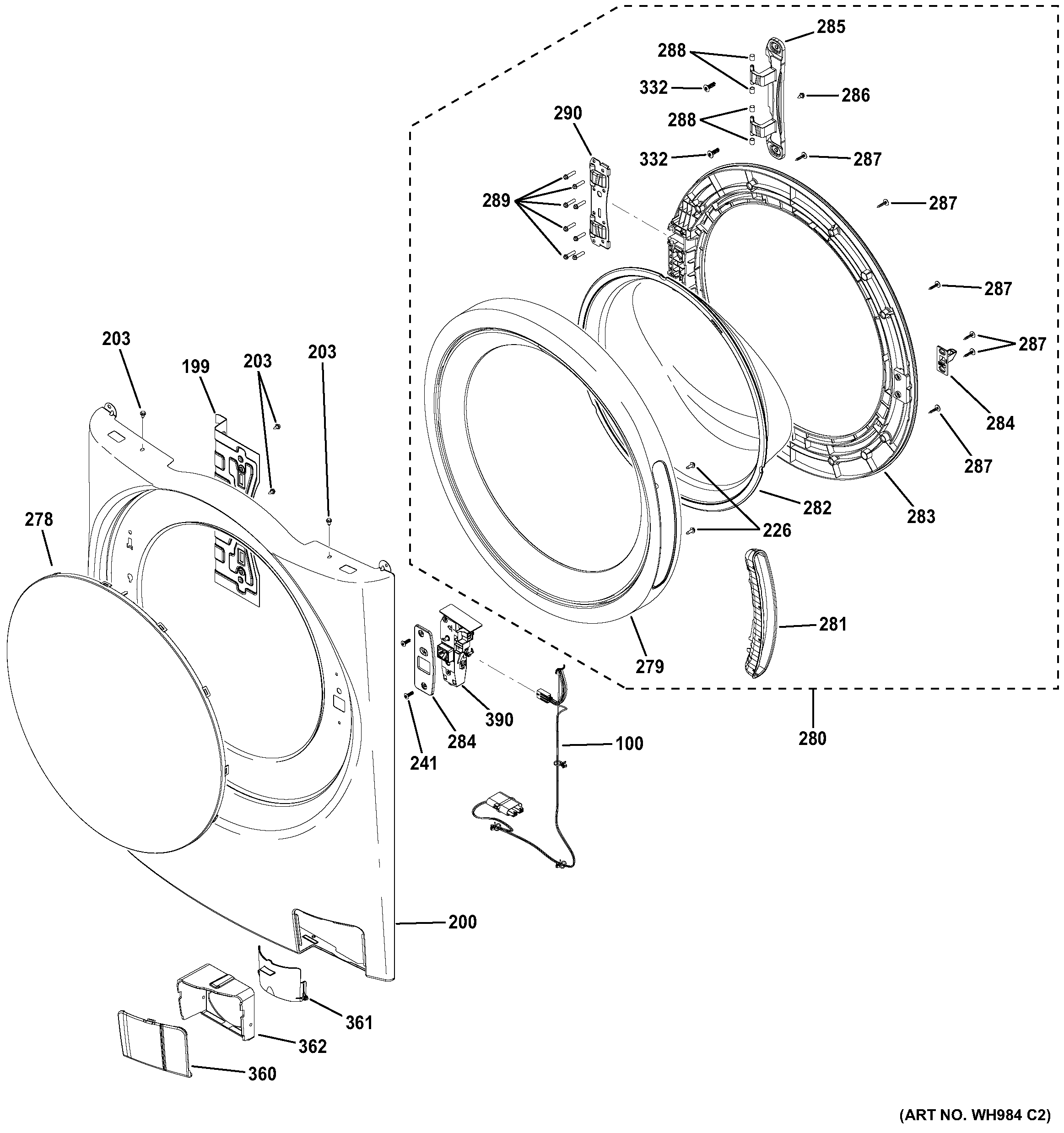

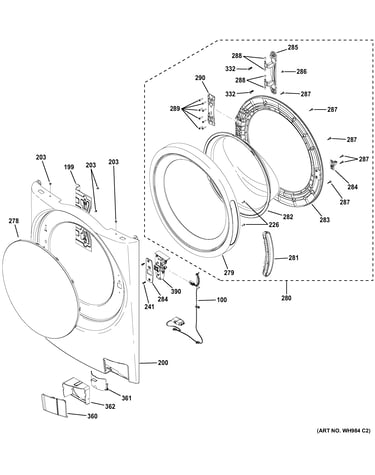

Front panel & door diagram

Hotpoint washer screw, #10-32 x 25-mm

Part #WH02X10139

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Washer Rotor Assembly WH39X10014
#630

Cabinet (1) diagram

Washer rotor assembly

Part #WH39X10014

$128.77
9% OFF Phone Price : $140.77
In Stock
Washer Door Lock Assembly WH01X10752
#390

Front panel & door diagram

Washer door lock assembly

Part #WH01X10752

In Stock
