Model # GSD2200D03 Official GE dishwasher

Here are the diagrams and repair parts for Official GE GSD2200D03 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Asm Mech WD26X74
#310

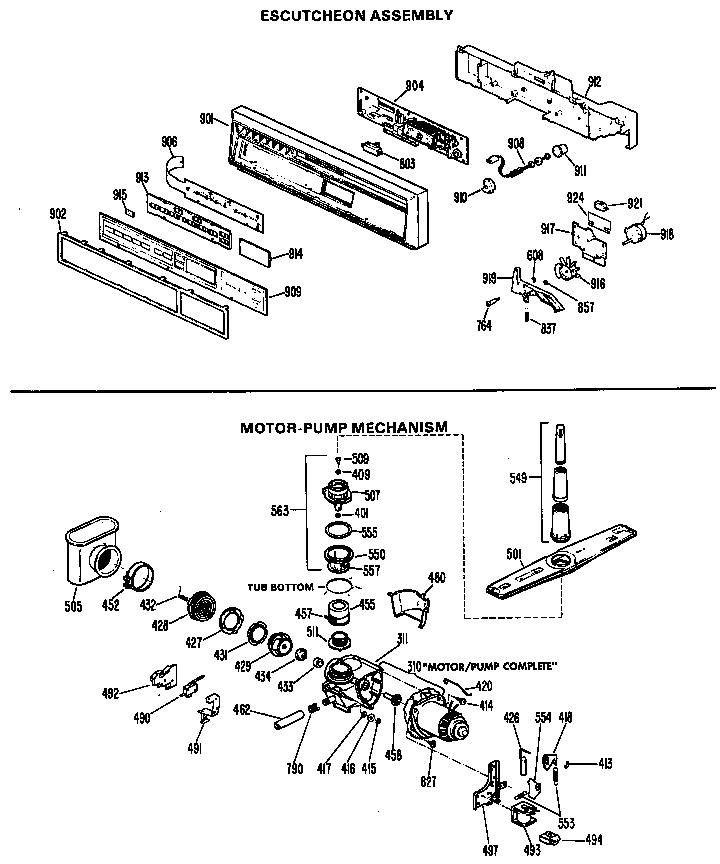

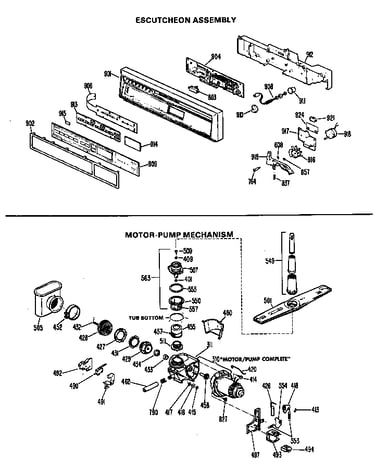

Escutcheon assembly diagram

Asm mech

Part #WD26X74

Replaced by #WD26X10013

?
Manufacturer substitution
This part replaces WD26X74. Substitute parts can look different from the original.
BEST SELLER
$148.24 |
7% OFF Phone Price : $160.24
In Stock
Baffle Rh WD8X196
#26B

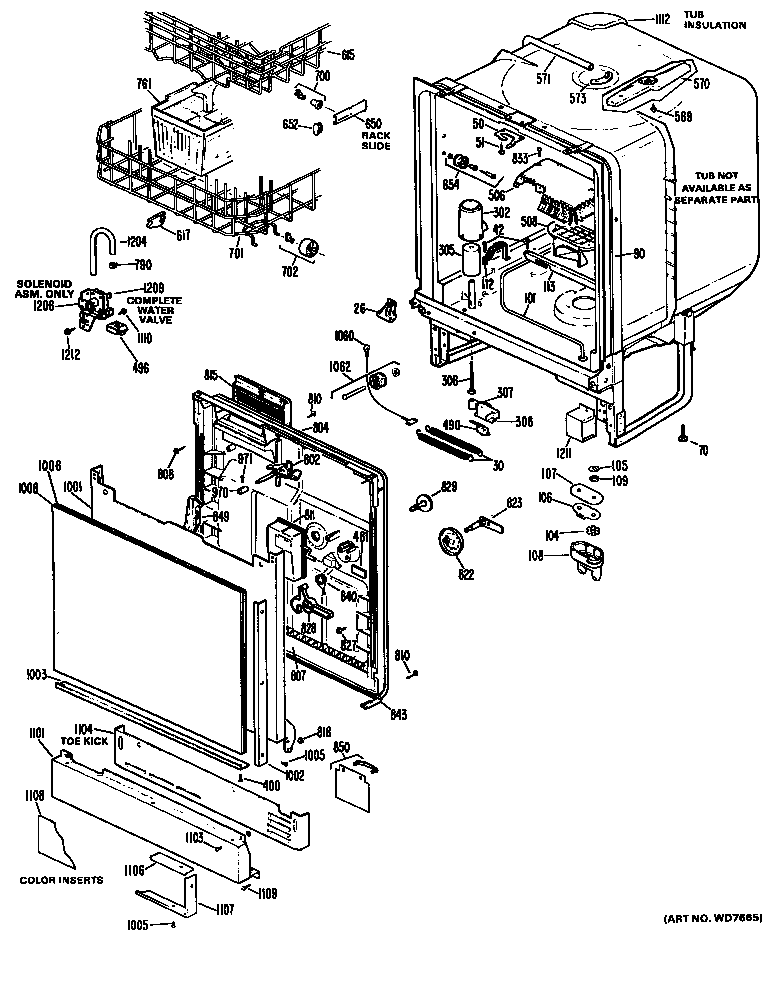

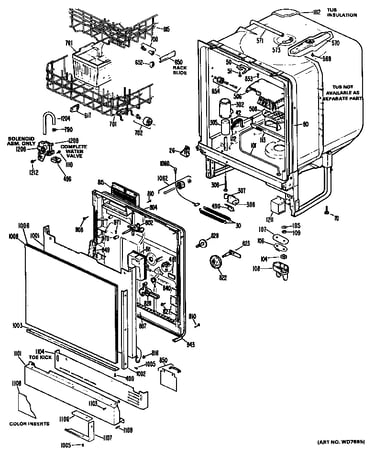

Door/tub/racks diagram

Baffle rh

Part #WD8X196

Replaced by #WD8X227

?
Manufacturer substitution
This part replaces WD8X196. Substitute parts can look different from the original.
BEST SELLER
$19.45 |
9% OFF Phone Price : $21.45
In Stock
Baffle Lh WD8X195
#26A

Door/tub/racks diagram

Baffle lh

Part #WD8X195

Replaced by #WD8X228

?
Manufacturer substitution
This part replaces WD8X195. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Rack WD28X253
#615

Door/tub/racks diagram

Rack

Part #WD28X253

Replaced by #WD28X31820

?
Manufacturer substitution
This part replaces WD28X253. Substitute parts can look different from the original.
BEST SELLER
$115.54 |
9% OFF Phone Price : $127.54
In Stock
Solenoid Assembly WD21X536
#783

Door/tub/racks diagram

Solenoid assembly

Part #WD21X536

Replaced by #WD15X93

?
Manufacturer substitution
This part replaces WD21X536. Substitute parts can look different from the original.
BEST SELLER
$29.30 |
17% OFF Phone Price : $35.30
In Stock
Door Gasket WD8X220
#843

Door/tub/racks diagram

Door gasket

Part #WD8X220

Replaced by #WD8X229

?
Manufacturer substitution
This part replaces WD8X220. Substitute parts can look different from the original.
BEST SELLER
$43.04 |
12% OFF Phone Price : $49.04
In Stock
Dishwasher Gate Shaft Seal (replaces Wd08x0181) WD8X181
#417

Escutcheon assembly diagram

Dishwasher gate shaft seal (replaces wd08x0181)

Part #WD8X181

BEST SELLER
This item is not returnable
$21.47 |
22% OFF Phone Price : $27.47
In Stock
Shaft Det Cp WD16X302
#823

Door/tub/racks diagram

Shaft det cp

Part #WD16X302

Replaced by #WD16X313

?
Manufacturer substitution
This part replaces WD16X302. Substitute parts can look different from the original.
This item is not returnable
$14.47 |
12% OFF Phone Price : $16.47
In Stock
Solenoid Kit WD21X440
#493

Escutcheon assembly diagram

Solenoid kit

Part #WD21X440

Replaced by #WD21X802

?
Manufacturer substitution
This part replaces WD21X440. Substitute parts can look different from the original.
$64.87 |
8% OFF Phone Price : $70.87
In Stock
Hose Clamp WH1X2036
Hose clamp

Part #WH1X2036

Replaced by #WH1X2036

?
Manufacturer substitution
This part replaces WH1X2036. Substitute parts can look different from the original.
$11.59 |
15% OFF Phone Price : $13.59
In Stock
