Model # 2335108911 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 2335108911 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Range Hood Light Lens 99110437
#5

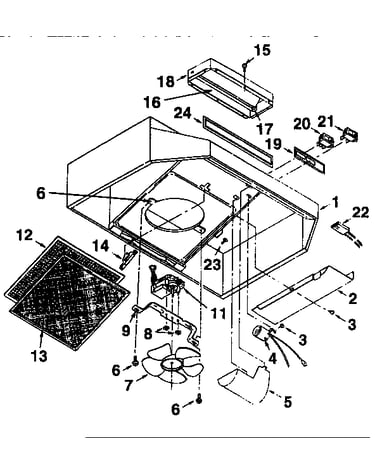

Range hood diagram

Range hood light lens

Part #99110437

Replaced by #S99110437

?
Manufacturer substitution
This part replaces 99110437. Substitute parts can look different from the original.
$20.00 |
23% OFF Phone Price : $26.00
In Stock
Range Hood Vent Damper 97005544
#18

Range hood diagram

Range hood vent damper

Part #97005544

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 99020248
#7

Range hood diagram

Fan blade

Part #99020248

Replaced by #S99020272

?
Manufacturer substitution
This part replaces 99020248. Substitute parts can look different from the original.
This item is not returnable
$6.44
In Stock
Range Hood Blower Motor Wire Harness 97005678
#22

Range hood diagram

Range hood blower motor wire harness

Part #97005678

Replaced by #S97005678

?
Manufacturer substitution
This part replaces 97005678. Substitute parts can look different from the original.
This item is not returnable
$5.63
In Stock
Switch 99030172
#20

Range hood diagram

Switch

Part #99030172

Replaced by #97016970

?
Manufacturer substitution
This part replaces 99030172. Substitute parts can look different from the original.
$37.50 |
14% OFF Phone Price : $43.50
In Stock
Range Hood Vent Damper Cover 98005221
#16

Range hood diagram

Range hood vent damper cover

Part #98005221

Replaced by #S98005221

?
Manufacturer substitution
This part replaces 98005221. Substitute parts can look different from the original.
This item is not returnable
$3.70
In Stock
Switch 99030171
#21

Range hood diagram

Switch

Part #99030171

Replaced by #97016970

?
Manufacturer substitution
This part replaces 99030171. Substitute parts can look different from the original.
$37.50 |
14% OFF Phone Price : $43.50
In Stock
Motor 97011218
#11

Range hood diagram

Motor

Part #97011218

Replaced by #S97012248

?
Manufacturer substitution
This part replaces 97011218. Substitute parts can look different from the original.
$74.03 |
7% OFF Phone Price : $80.03
In Stock
Range Hood Fan Motor Bracket 98005568
#9

Range hood diagram

Range hood fan motor bracket

Part #98005568

Replaced by #S98005568

?
Manufacturer substitution
This part replaces 98005568. Substitute parts can look different from the original.
This item is not returnable
$3.39
In Stock
Range Hood Fan Motor Lock Nut 99260428
#8

Range hood diagram

Range hood fan motor lock nut

Part #99260428

Replaced by #S99260428

?
Manufacturer substitution
This part replaces 99260428. Substitute parts can look different from the original.
This item is not returnable
$3.33
In Stock
