Kirkland
Chest Freezer

Model # SCF0710KQ03 Official Kirkland chest freezer

Here are the diagrams and repair parts for Official Kirkland SCF0710KQ03 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

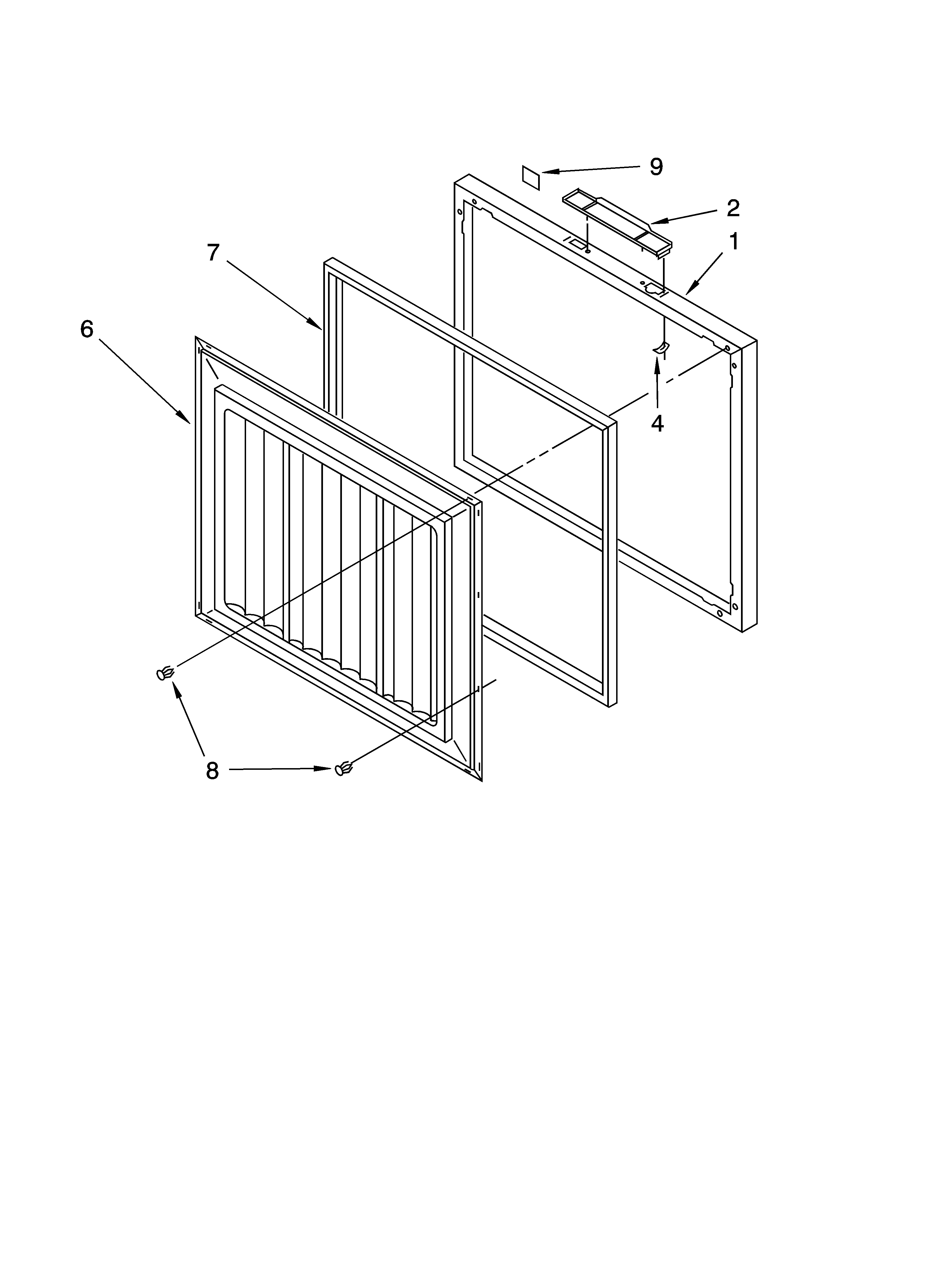

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Overload 4356717
#10

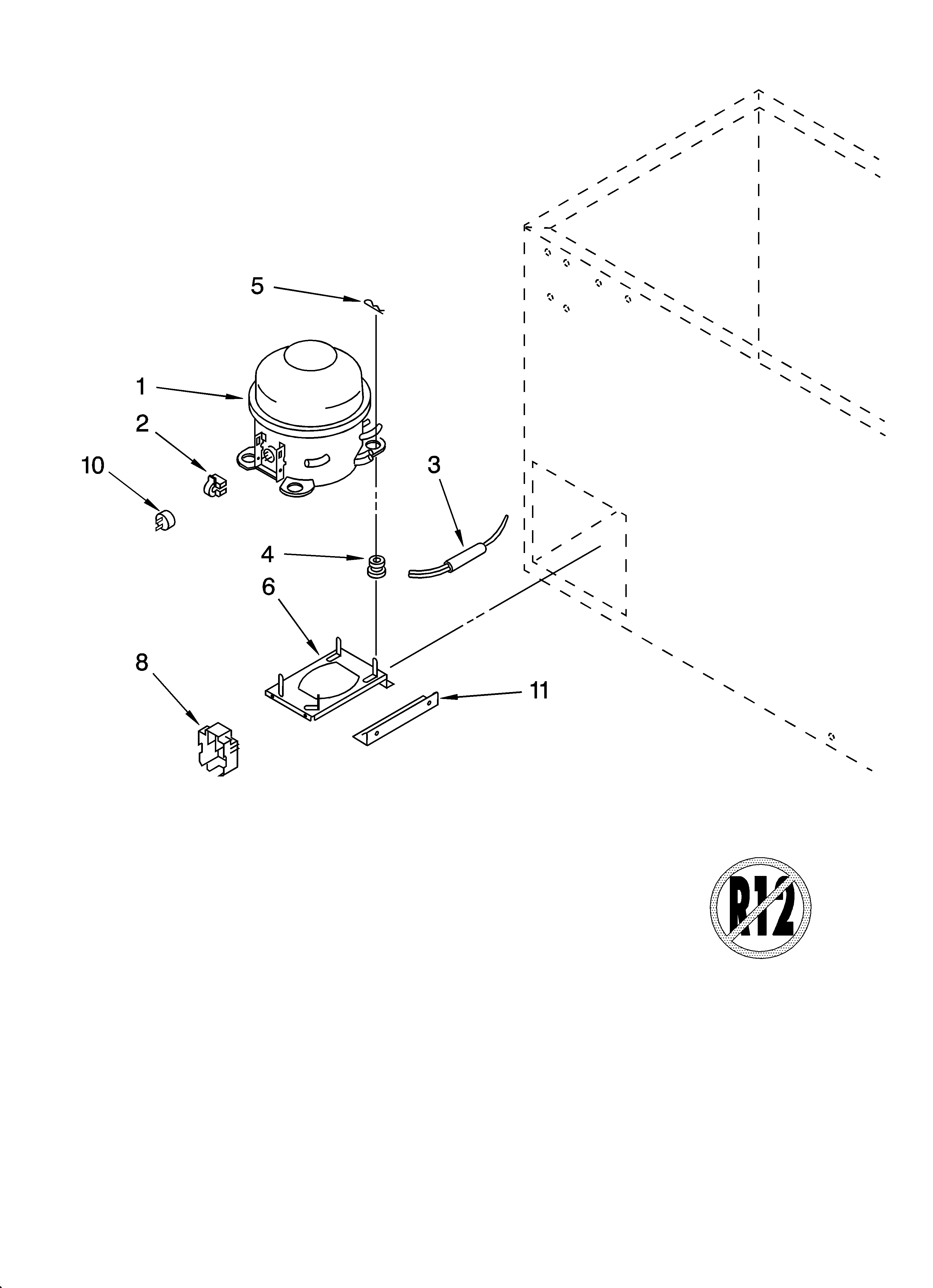

Unit parts diagram

Overload

Part #4356717

Replaced by #2264602

?
Manufacturer substitution
This part replaces 4356717. Substitute parts can look different from the original.
$71.78
In Stock
Grommet 4356321
#4

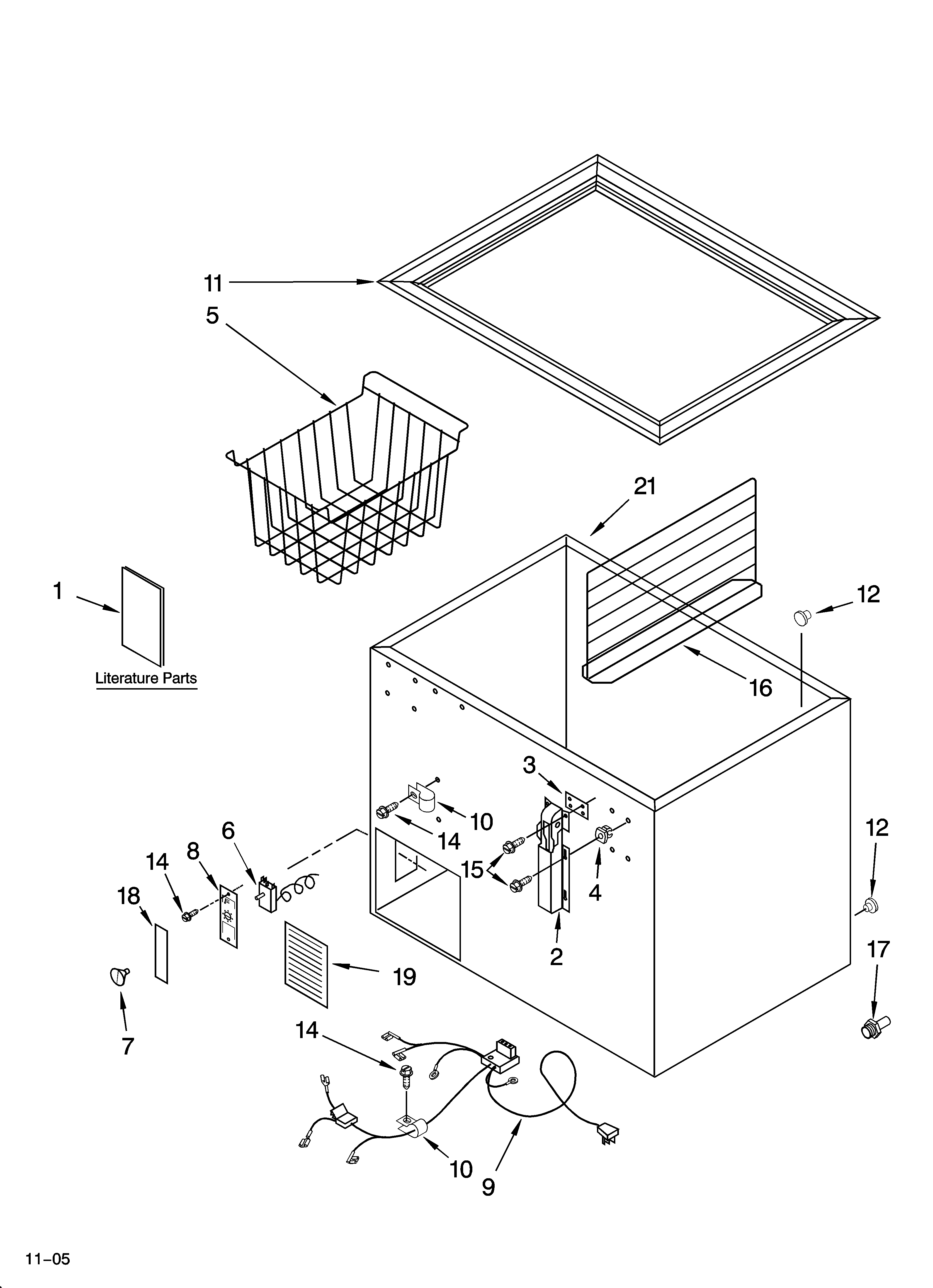

Cabinet parts diagram

Grommet

Part #4356321

$15.29 |
12% OFF Phone Price : $17.29
In Stock
Screw 4356491
#15

Cabinet parts diagram

Screw

Part #4356491

$11.59
In Stock
Panel 4356622
#19

Cabinet parts diagram

Panel

Part #4356622

$32.87
In Stock
Roper Freezer Compressor Start Relay (replaces 2-35181-006, 68001356) 4356716
#2

Unit parts diagram

Roper freezer compressor start relay (replaces 2-35181-006, 68001356)

Part #4356716

$72.29 |
8% OFF Phone Price : $78.29
In Stock
Appliance Porcelain Touch-up Paint, 1-qt (white) 799344
#NI

Cabinet parts diagram

Appliance porcelain touch-up paint, 1-qt (white)

Part #799344

$109.53 |
10% OFF Phone Price : $121.53
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Cabinet parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

$8.29 |
11% OFF Phone Price : $9.29
In Stock
Terminal Cover 4356599
#8

Unit parts diagram

Terminal cover

Part #4356599

Replaced by #WP2162358

?
Manufacturer substitution
This part replaces 4356599. Substitute parts can look different from the original.
$34.39 |
15% OFF Phone Price : $40.39
In Stock
Chest Freezer Temperature Control 8210276
#6

Cabinet parts diagram

Chest freezer temperature control

Part #8210276

Replaced by #WP4-35940-001

?
Manufacturer substitution
This part replaces 8210276. Substitute parts can look different from the original.
$118.93 |
9% OFF Phone Price : $130.93
In Stock
Cabinet Harness 4356743
#9

Cabinet parts diagram

Cabinet harness

Part #4356743

Replaced by #4-35130-004

?
Manufacturer substitution
This part replaces 4356743. Substitute parts can look different from the original.
$94.71
In Stock
