Model # 217593041 Official Craftsman 30-lb thrust electric fishing motor

Here are the diagrams and repair parts for Official Craftsman 217593041 30-lb thrust electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Rocker Switch 76341
#54

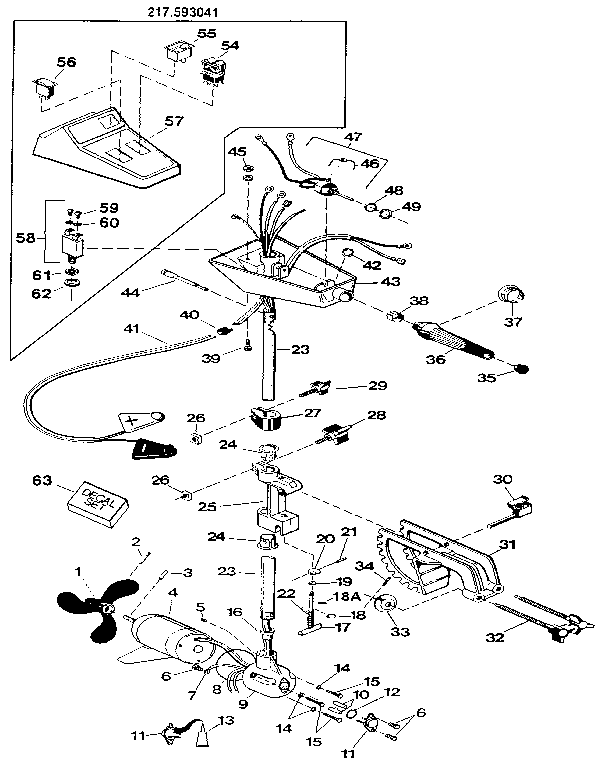

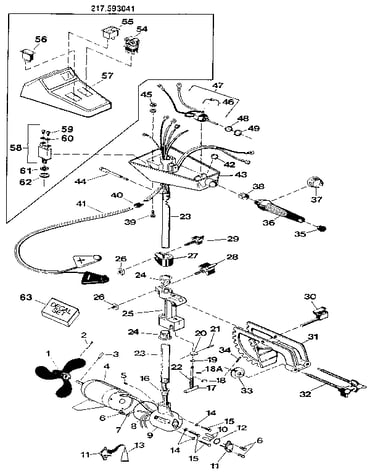

30 lb fishing motor diagram

Rocker switch

Part #76341

The manufacturer no longer makes this part, and there's no substitute part

Resistor 36571
#46

30 lb fishing motor diagram

Resistor

Part #36571

The manufacturer no longer makes this part, and there's no substitute part

Hitch Pin 6434
#18A

30 lb fishing motor diagram

Hitch pin

Part #6434

The manufacturer no longer makes this part, and there's no substitute part

Plate 36786
#8

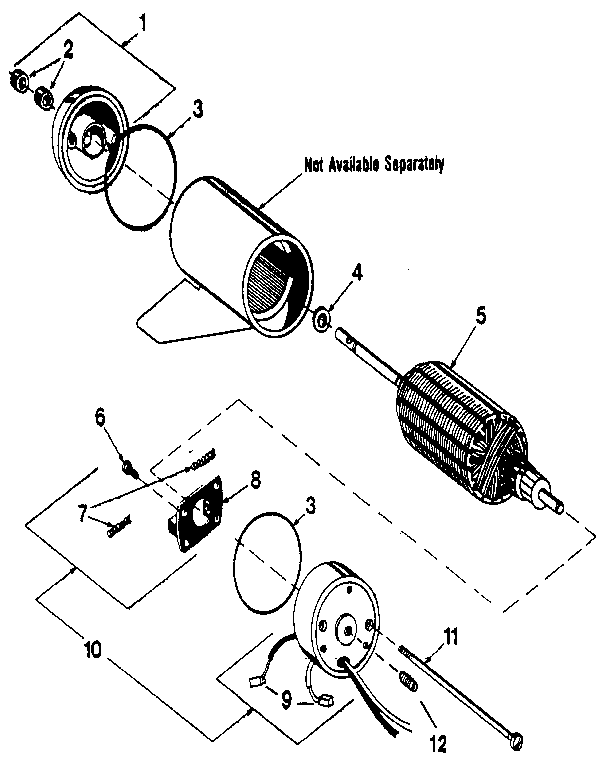

Electric motor assembly diagram

Plate

Part #36786

The manufacturer no longer makes this part, and there's no substitute part

Brush Set 36788
#9

Electric motor assembly diagram

Brush set

Part #36788

The manufacturer no longer makes this part, and there's no substitute part

Collar 36731
#28

30 lb fishing motor diagram

Collar

Part #36731

The manufacturer no longer makes this part, and there's no substitute part

Washer 4862
#48

30 lb fishing motor diagram

Washer

Part #4862

The manufacturer no longer makes this part, and there's no substitute part

Cap 66133
#35

30 lb fishing motor diagram

Cap

Part #66133

The manufacturer no longer makes this part, and there's no substitute part

Screw 286
#59

30 lb fishing motor diagram

Screw

Part #286

The manufacturer no longer makes this part, and there's no substitute part

Ret. Ring 7460
#18

30 lb fishing motor diagram

Ret. ring

Part #7460

The manufacturer no longer makes this part, and there's no substitute part
