Model # SF3000EYN5 Official Whirlpool 30" gas freestanding range

Here are the diagrams and repair parts for Official Whirlpool SF3000EYN5 30" gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

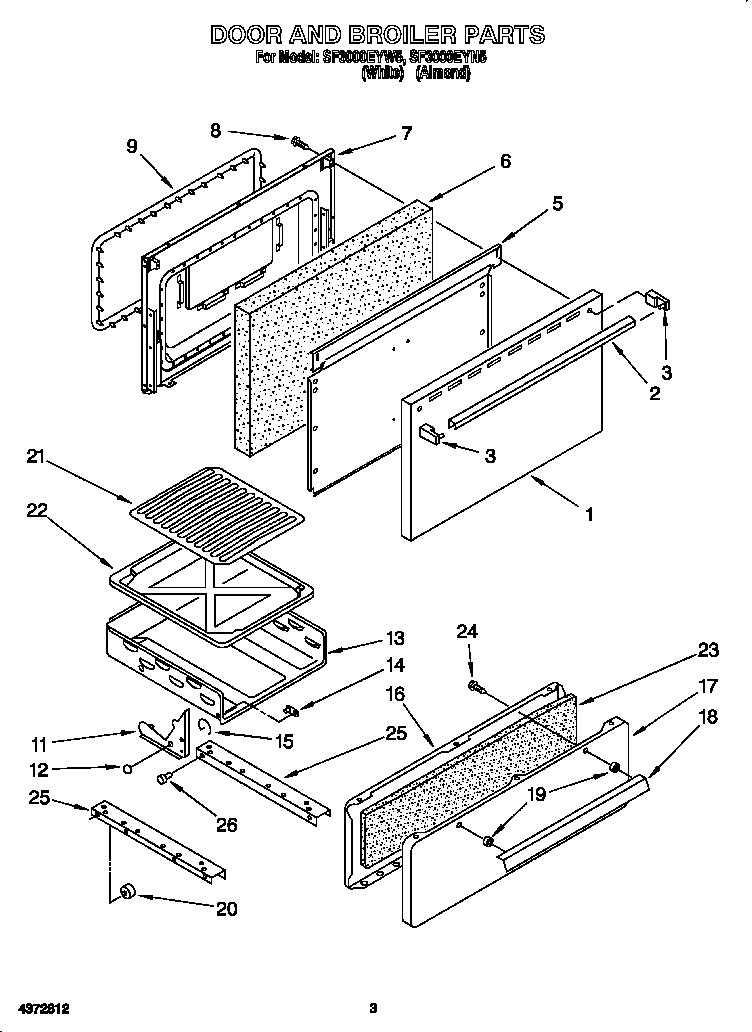

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Oven Igniter 816625
#13

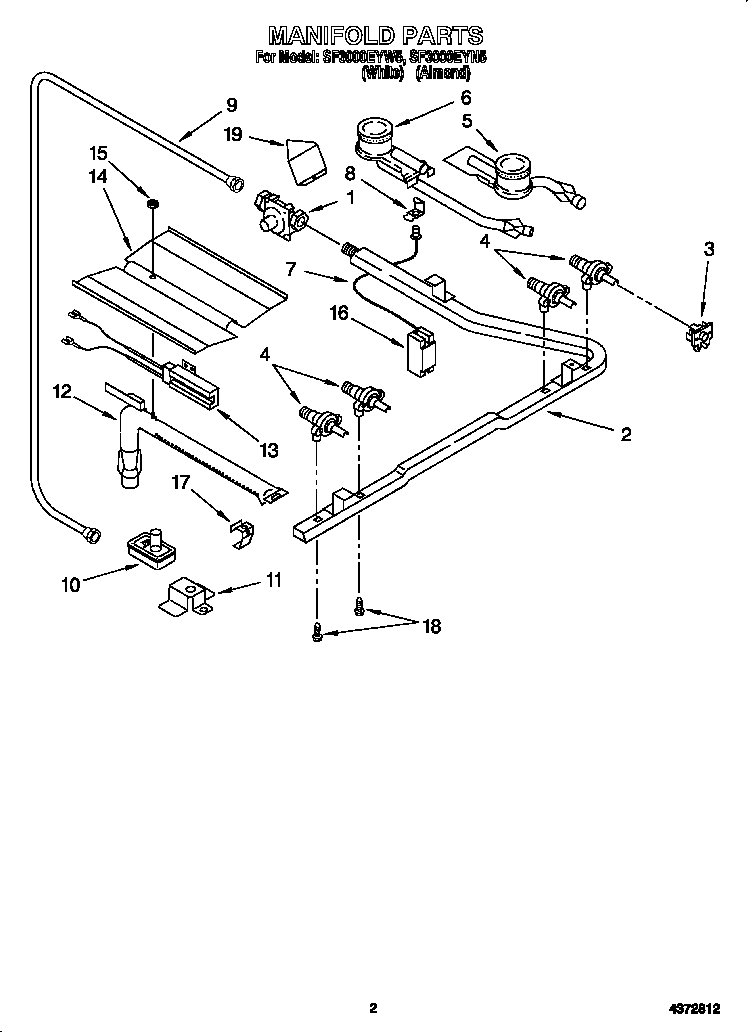

Manifold diagram

Oven igniter

Part #816625

Replaced by #814269

?
Manufacturer substitution
This part replaces 816625. Substitute parts can look different from the original.
$98.19 |
11% OFF Phone Price : $110.19
In Stock
Oven Rack 4372439
#12

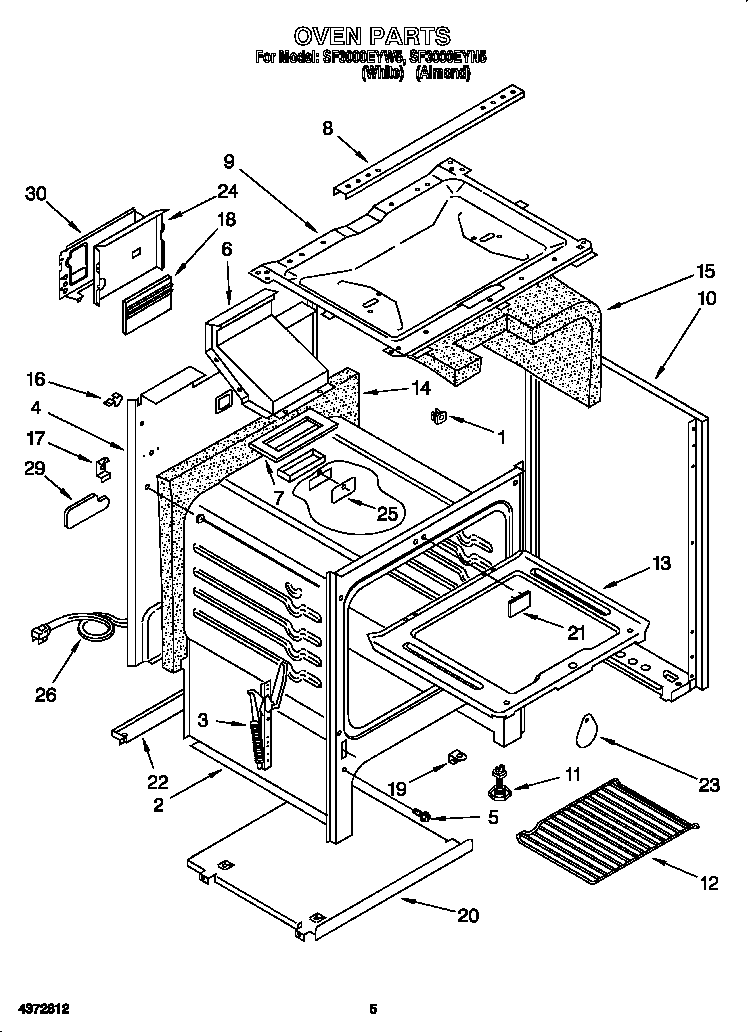

Oven diagram

Oven rack

Part #4372439

The manufacturer no longer makes this part, and there's no substitute part

Surface Knob 4371476
#3

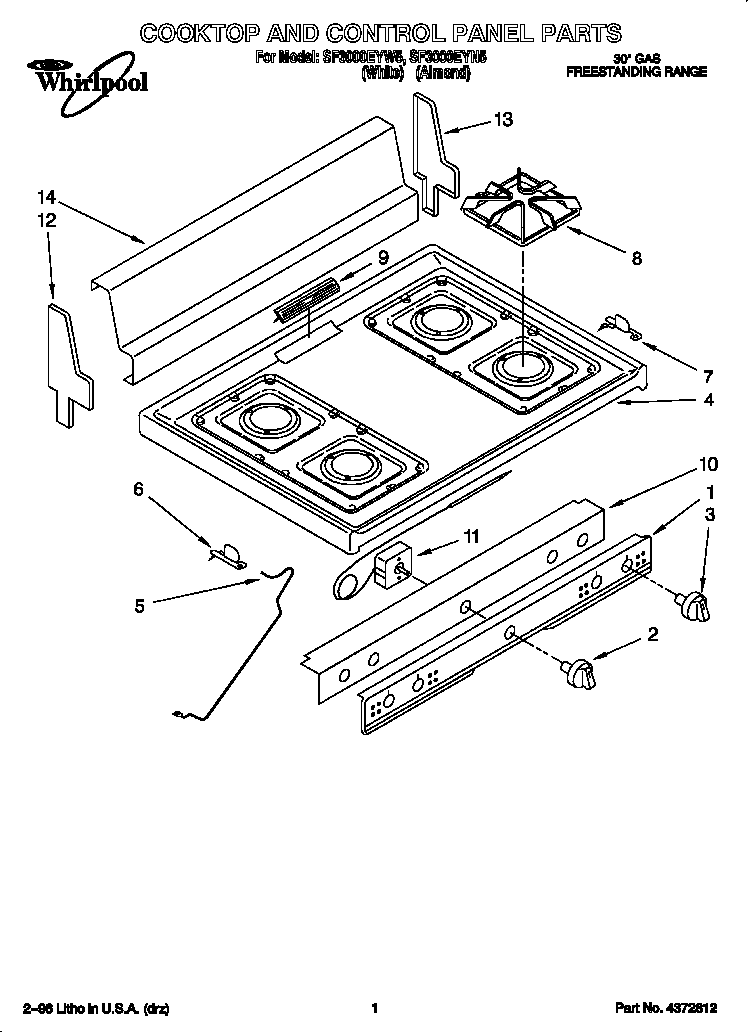

Cooktop and control panel diagram

Surface knob

Part #4371476

The manufacturer no longer makes this part, and there's no substitute part

Screw 4371027
#18

Manifold diagram

Screw

Part #4371027

Replaced by #WP3186217

?
Manufacturer substitution
This part replaces 4371027. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Burner 4371480
#5

Manifold diagram

Burner

Part #4371480

The manufacturer no longer makes this part, and there's no substitute part

Insulation 4371091
#15

Oven diagram

Insulation

Part #4371091

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4371091. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
(left W/dual) N/P
#2

Oven diagram

(left w/dual)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Tip-kit 816585
#22

Oven diagram

Tip-kit

Part #816585

The manufacturer no longer makes this part, and there's no substitute part

Regulator 4372428
#1

Manifold diagram

Regulator

Part #4372428

The manufacturer no longer makes this part, and there's no substitute part

Cover-flue 4371102
#24

Oven diagram

Cover-flue

Part #4371102

The manufacturer no longer makes this part, and there's no substitute part
