Model # 13AJ771G031 Official MTD lawn tractor
Here are the diagrams and repair parts for Official MTD 13AJ771G031 lawn tractor, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

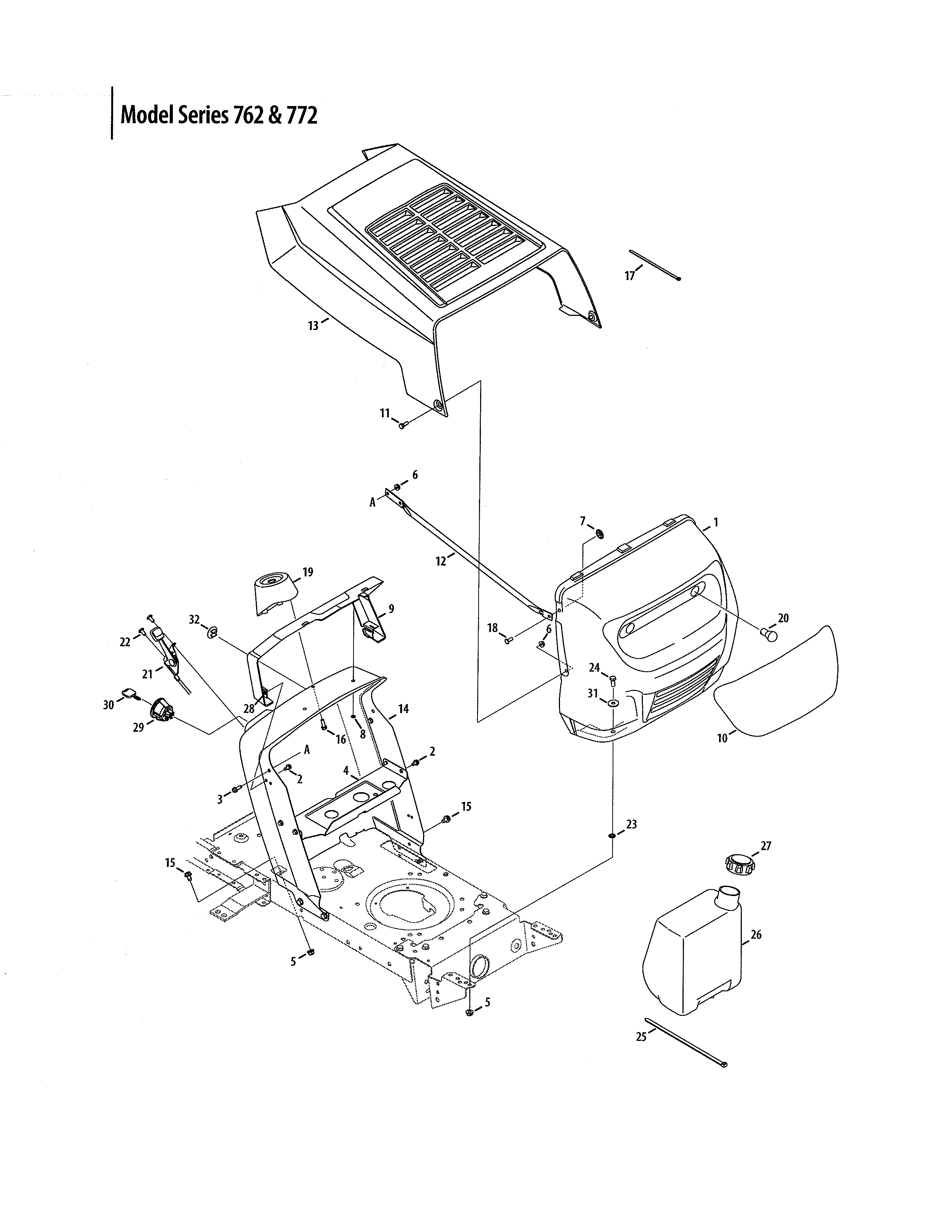

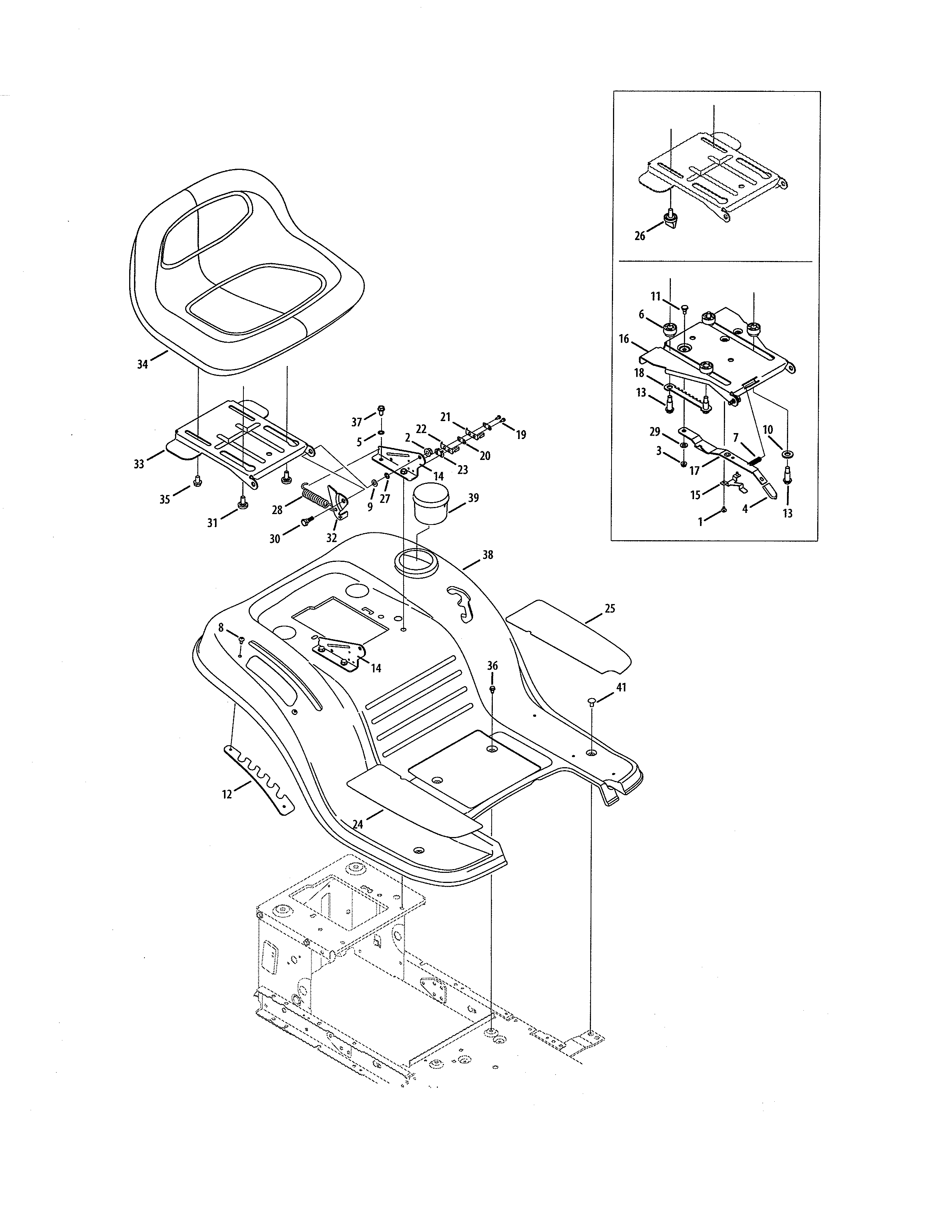

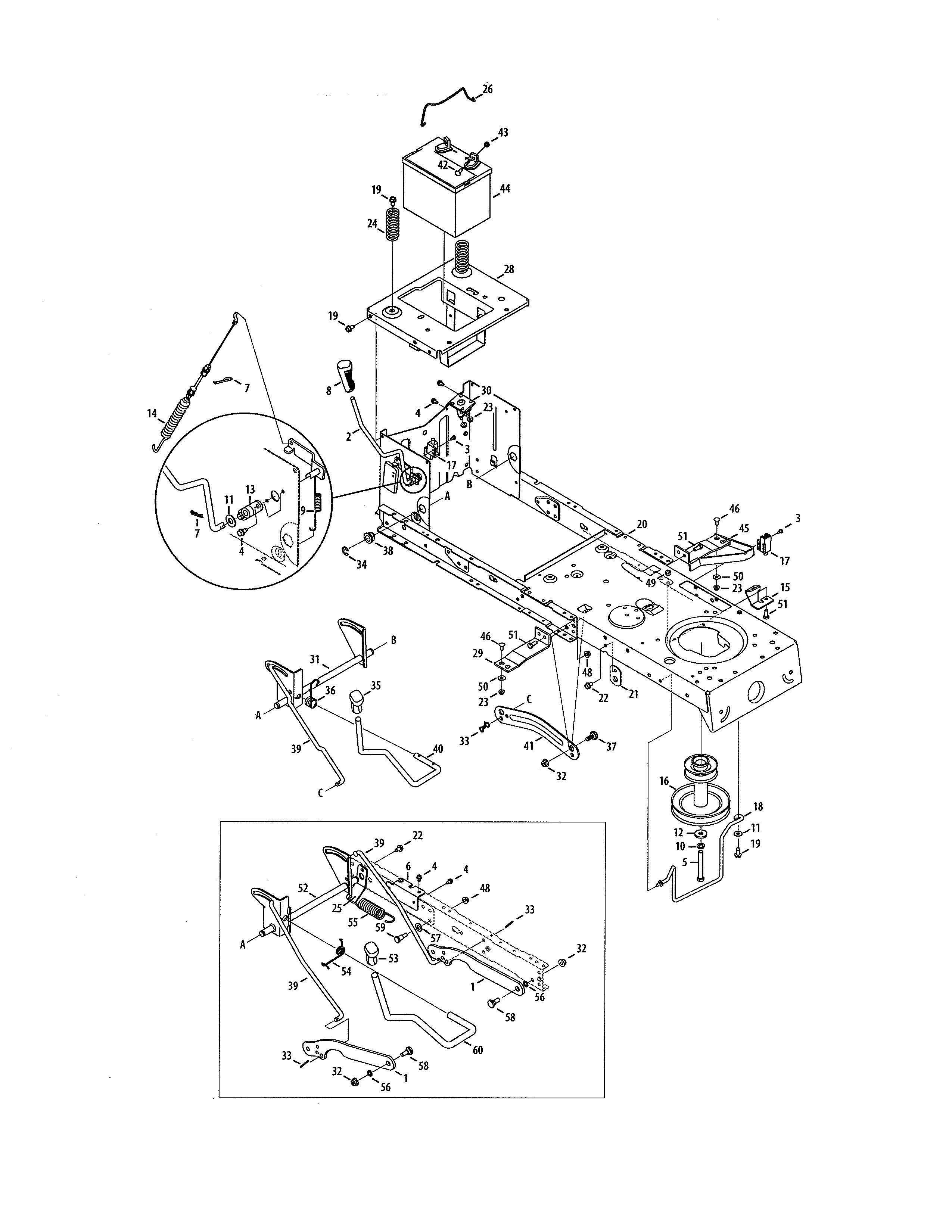

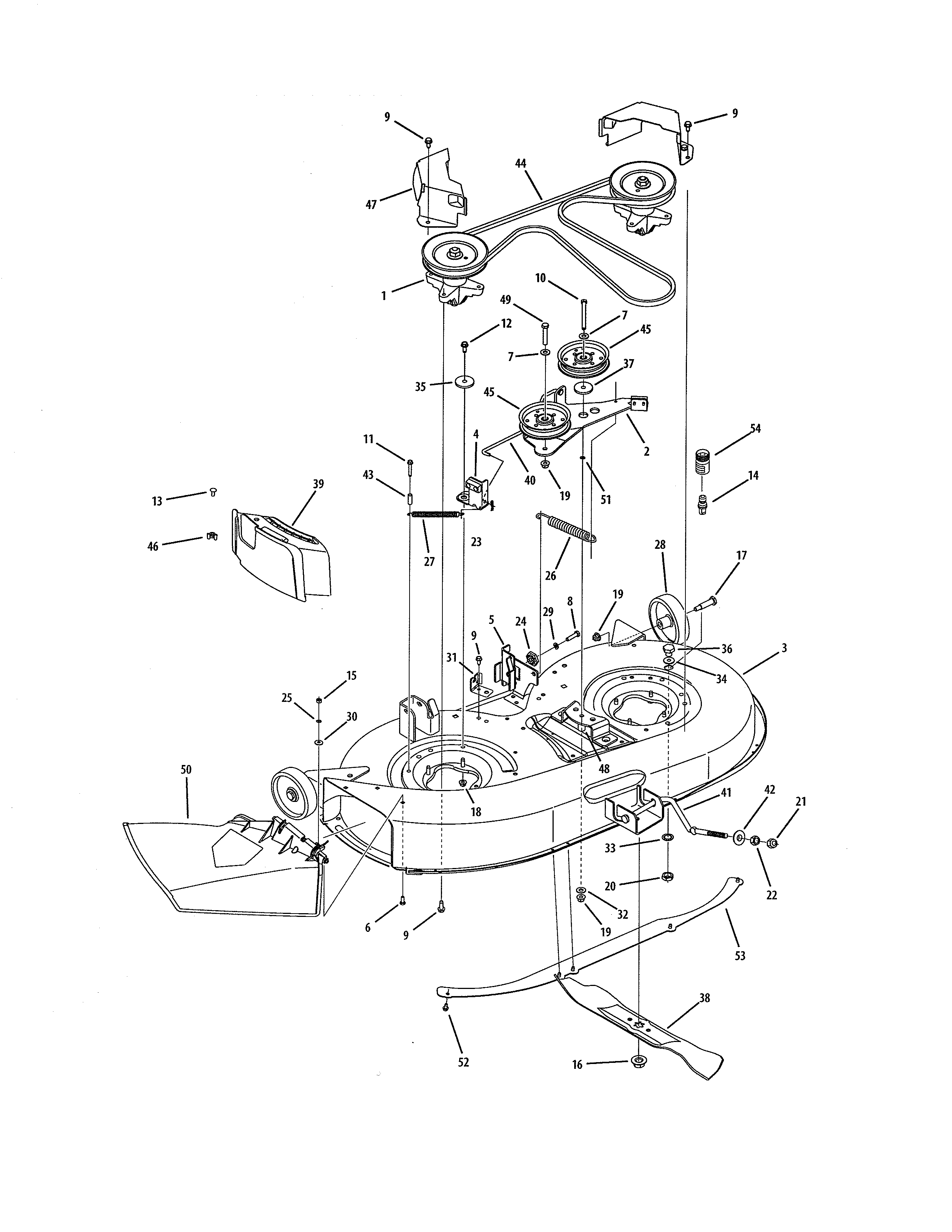

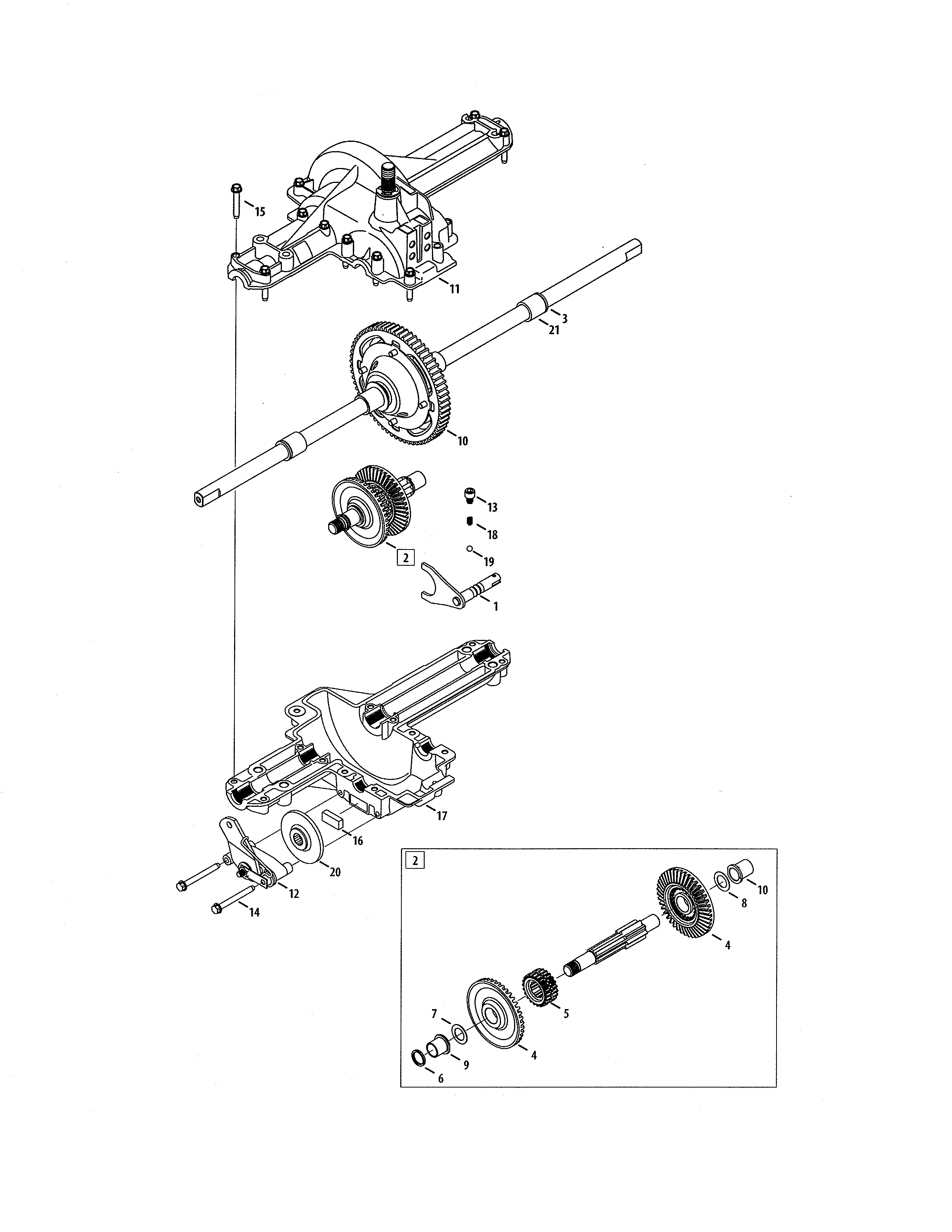

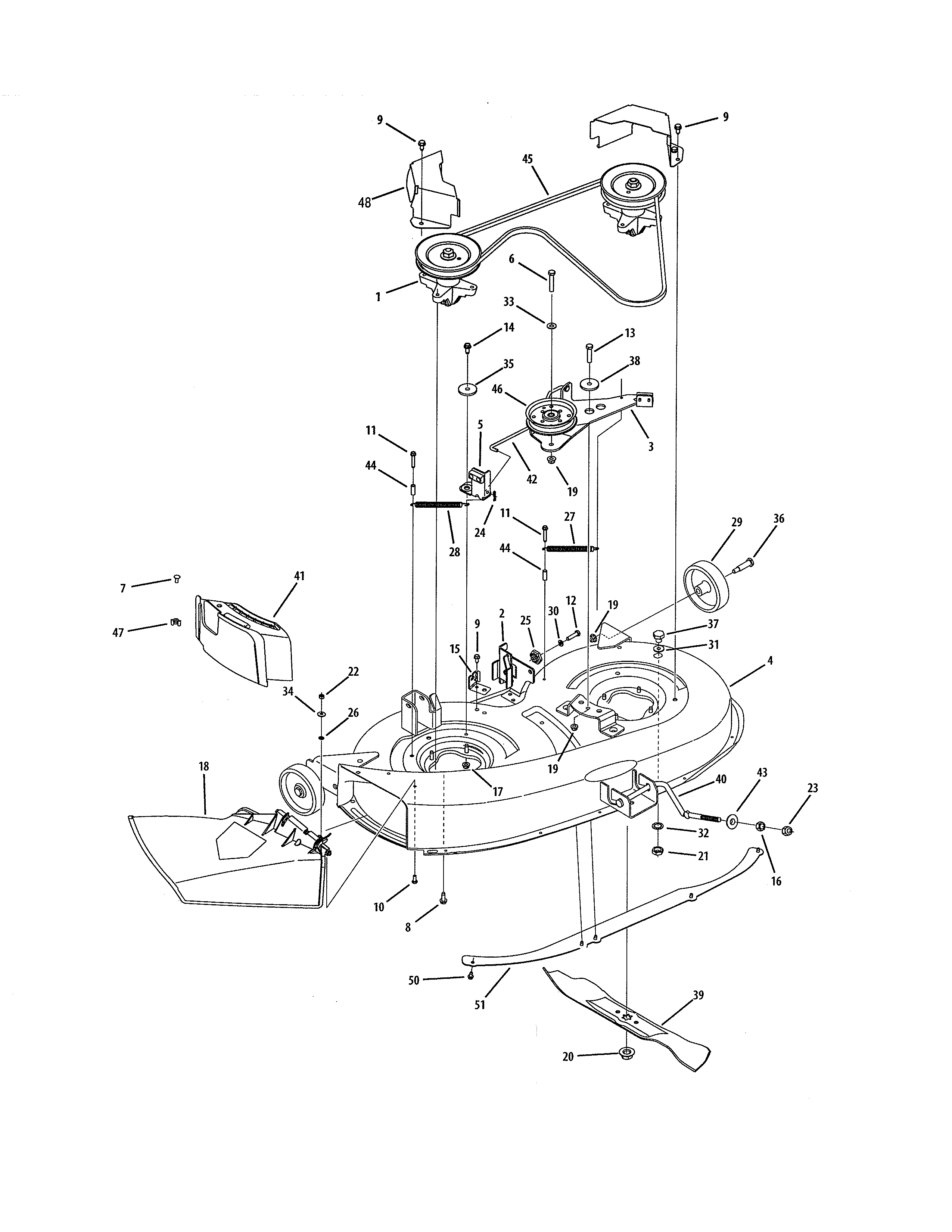

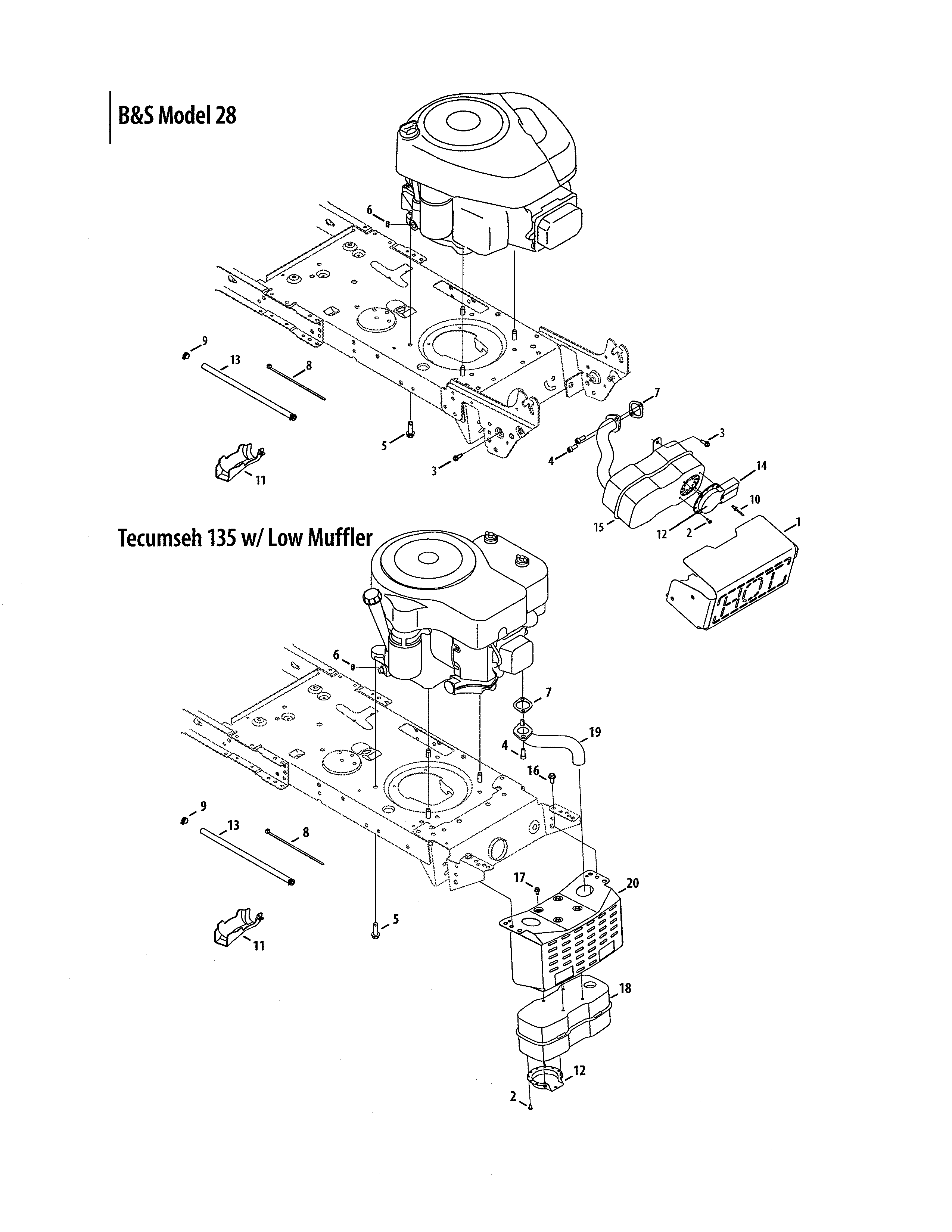

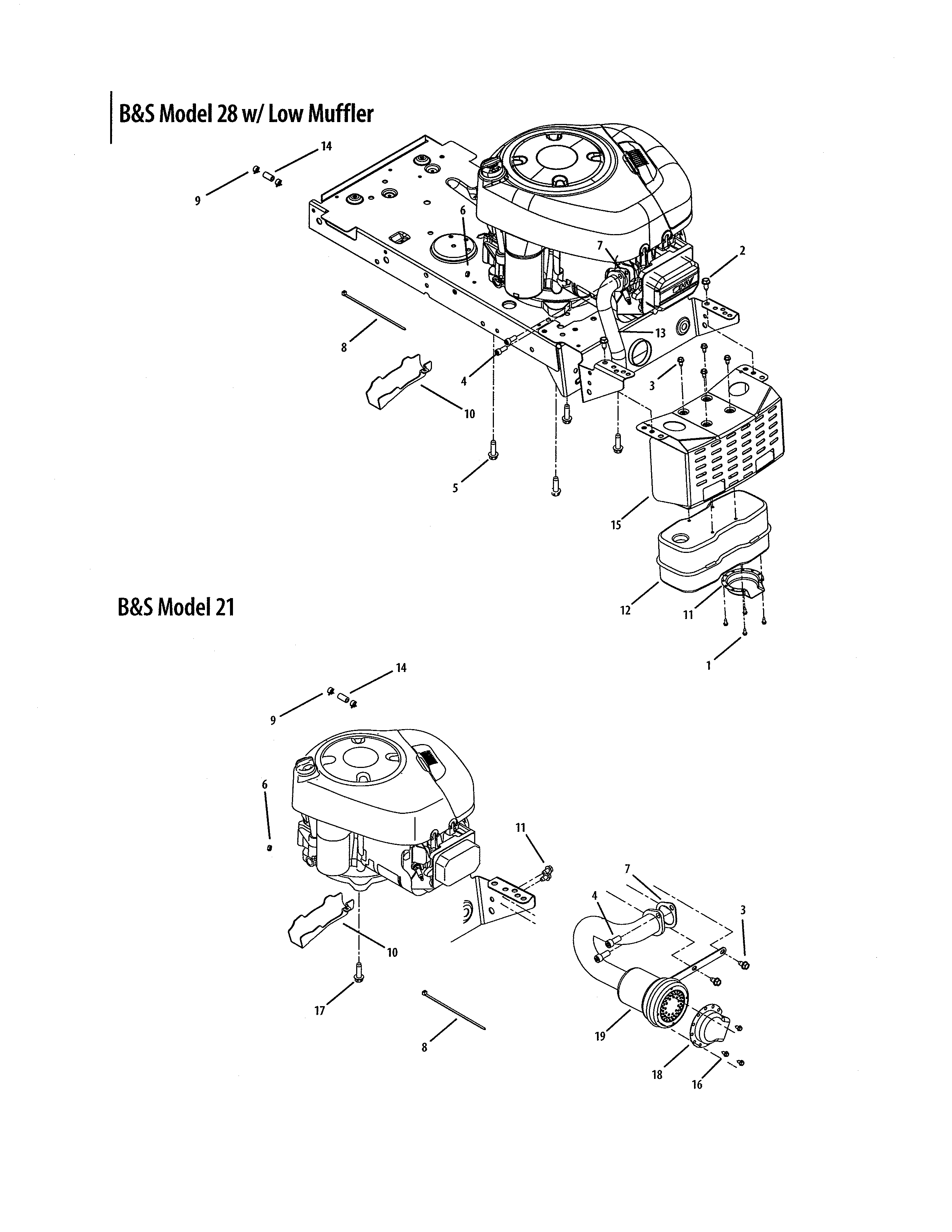

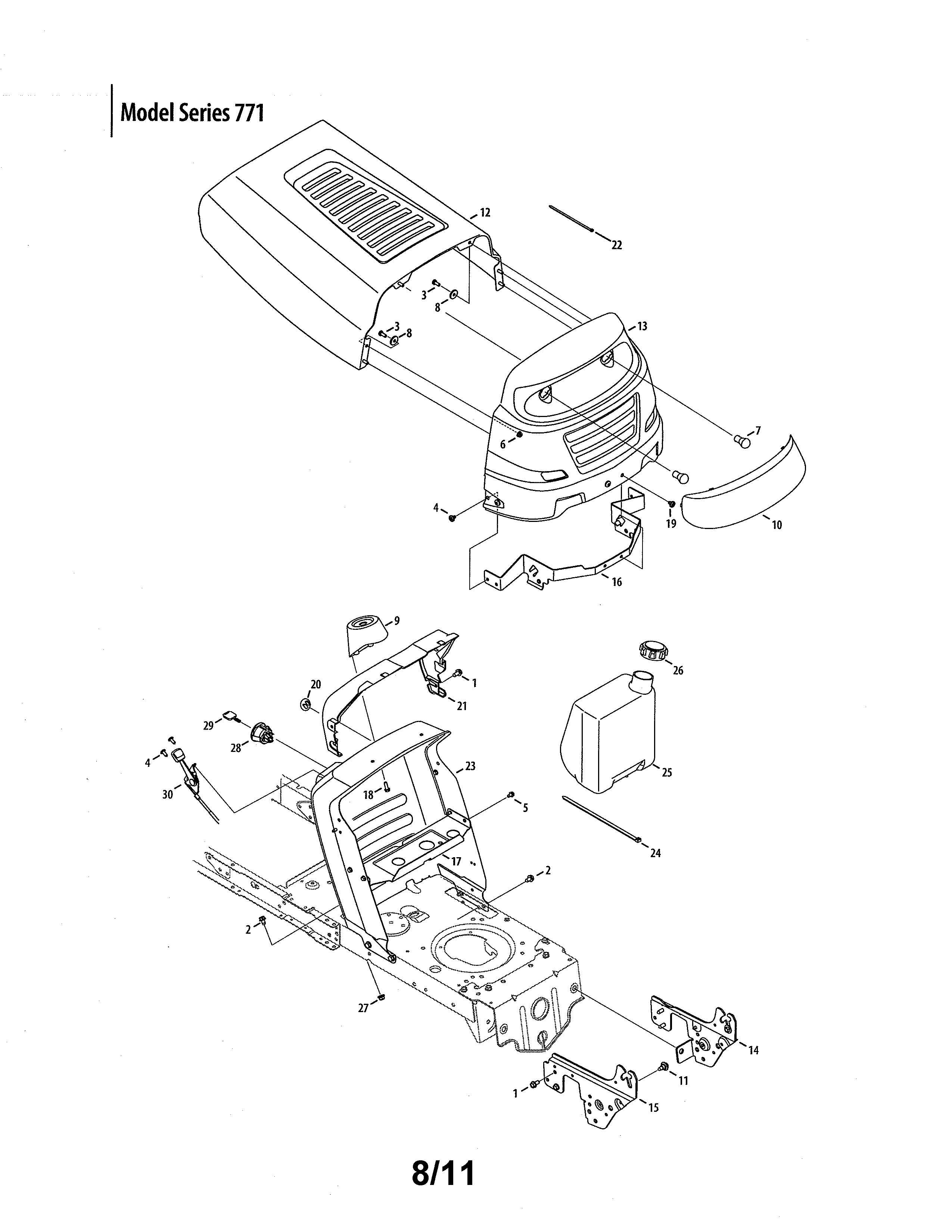

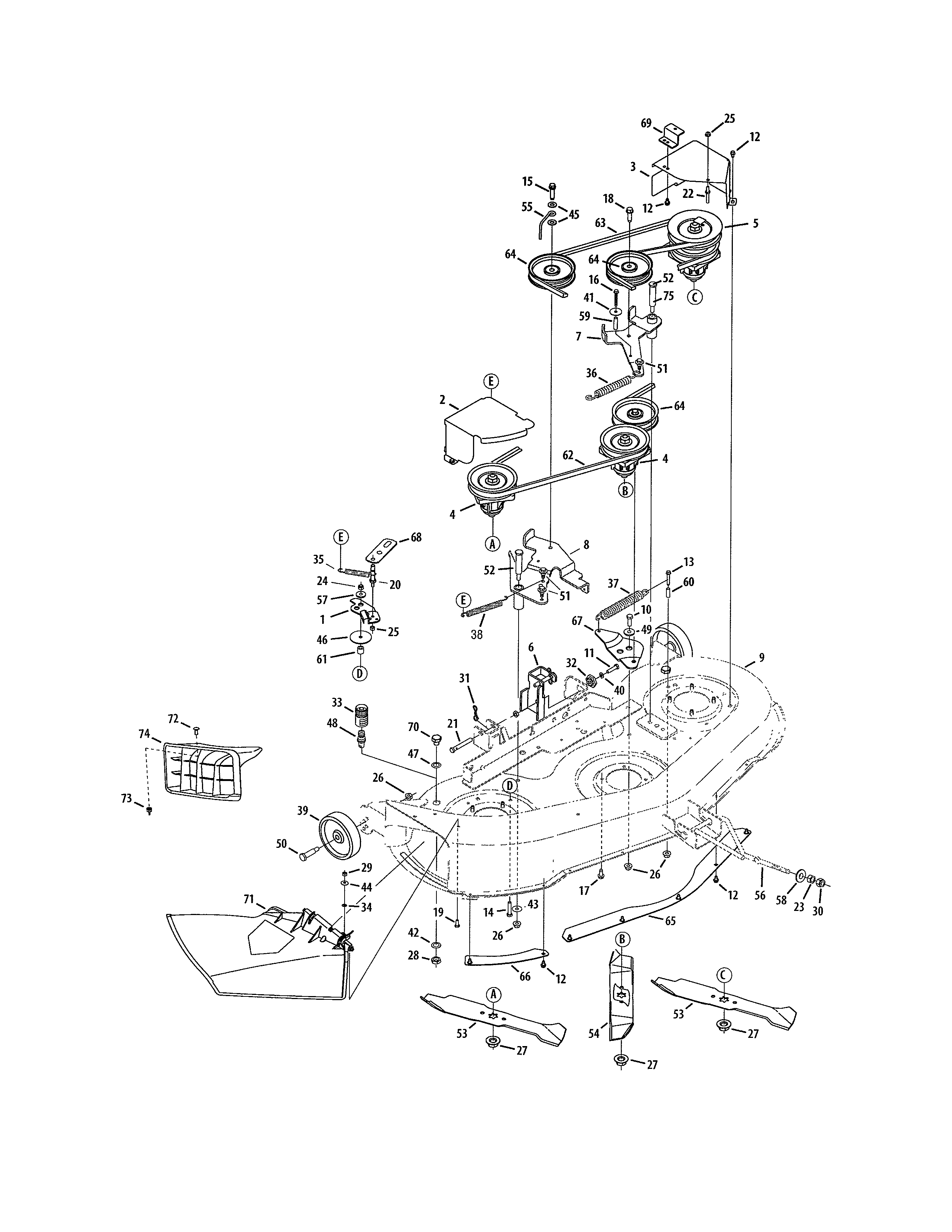

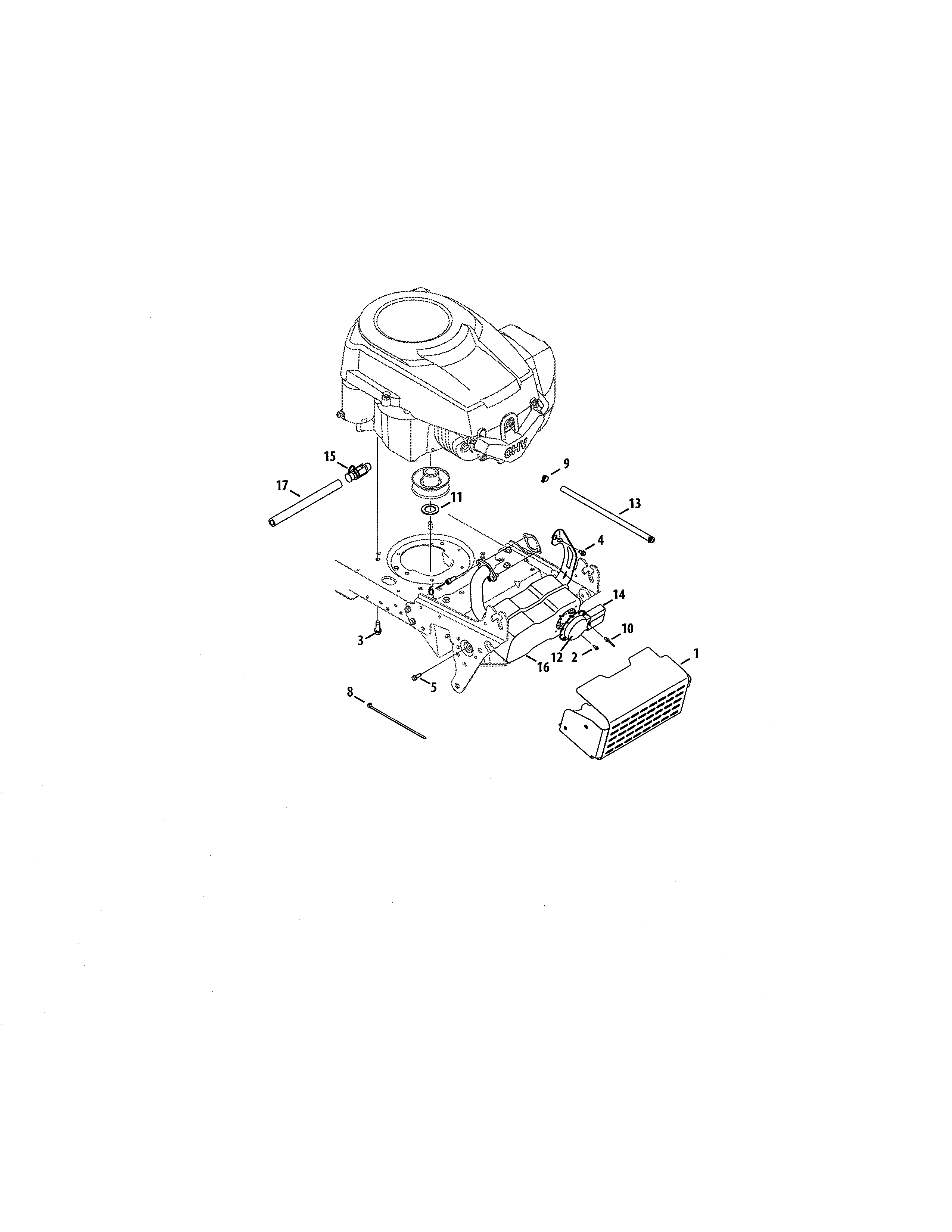

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 407 parts |
Gasket
Part #721-0208
Replaced by #692236
?
Manufacturer substitution
This part replaces 721-0208. Substitute parts can look different from the original.
This item is not returnable
$6.56 |
13% OFF Phone Price : $7.56
In Stock
Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)
Part #712-04063
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Ace lawn & garden equipment self-tapping bolt, 5/16-18 x 3/4-in (replaces 1724491, 1740496, 1909304, 910-1260a, gw-7101260)
Part #710-1260A
This item is not returnable
$4.34 |
19% OFF Phone Price : $5.34
In Stock
Yard machines lawn & garden equipment nut
Part #712-04064
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
In Stock
Pulley, idler, 4.25" dia.
Part #756-04129
Replaced by #753-08171
?
Manufacturer substitution
This part replaces 756-04129. Substitute parts can look different from the original.
$32.26 |
16% OFF Phone Price : $38.26
In Stock
#31

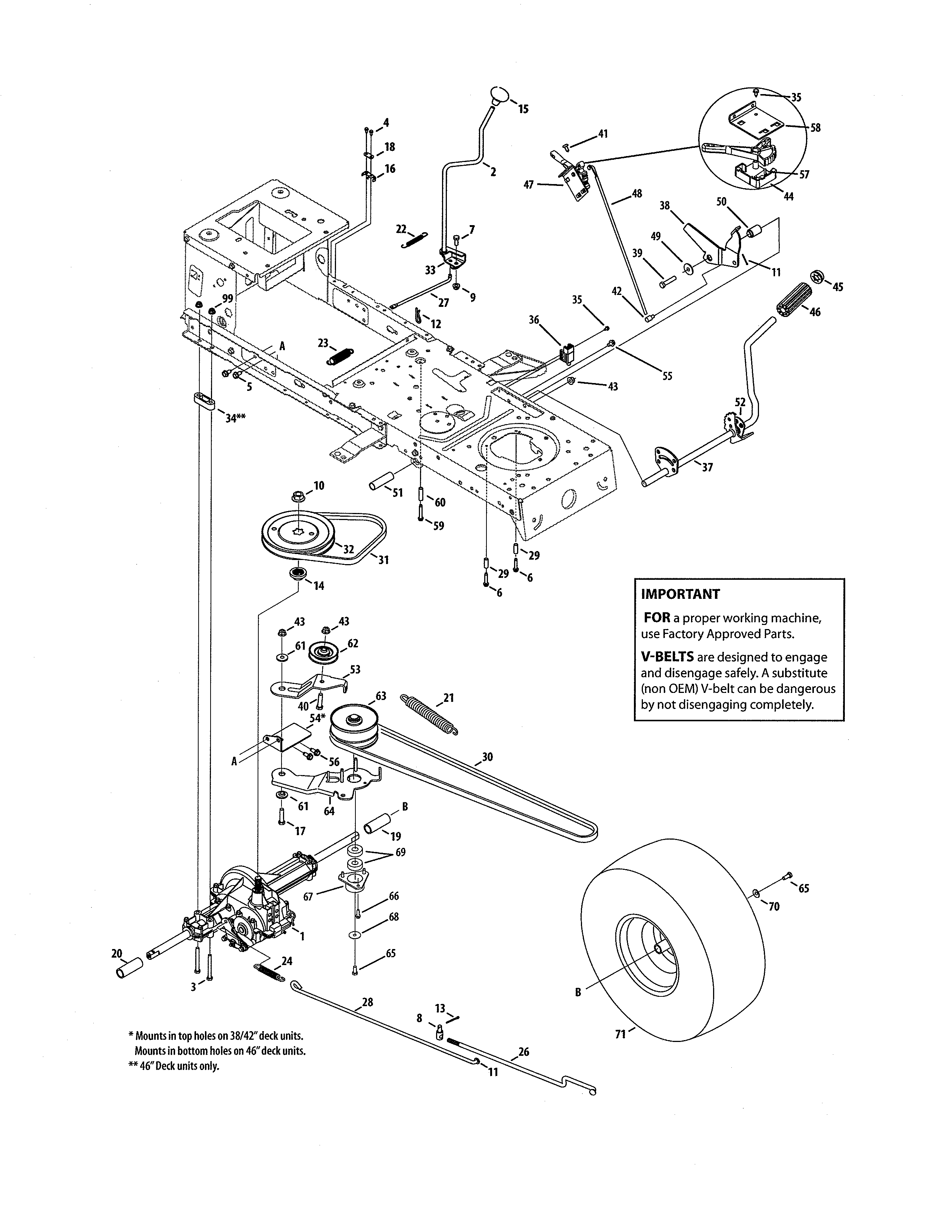

Drive diagram
Lawn mower belt
Part #754-0241A
Replaced by #490-501-Y087
?
Manufacturer substitution
This part replaces 754-0241A. Substitute parts can look different from the original.
$27.66 |
18% OFF Phone Price : $33.66
Back Order
#9

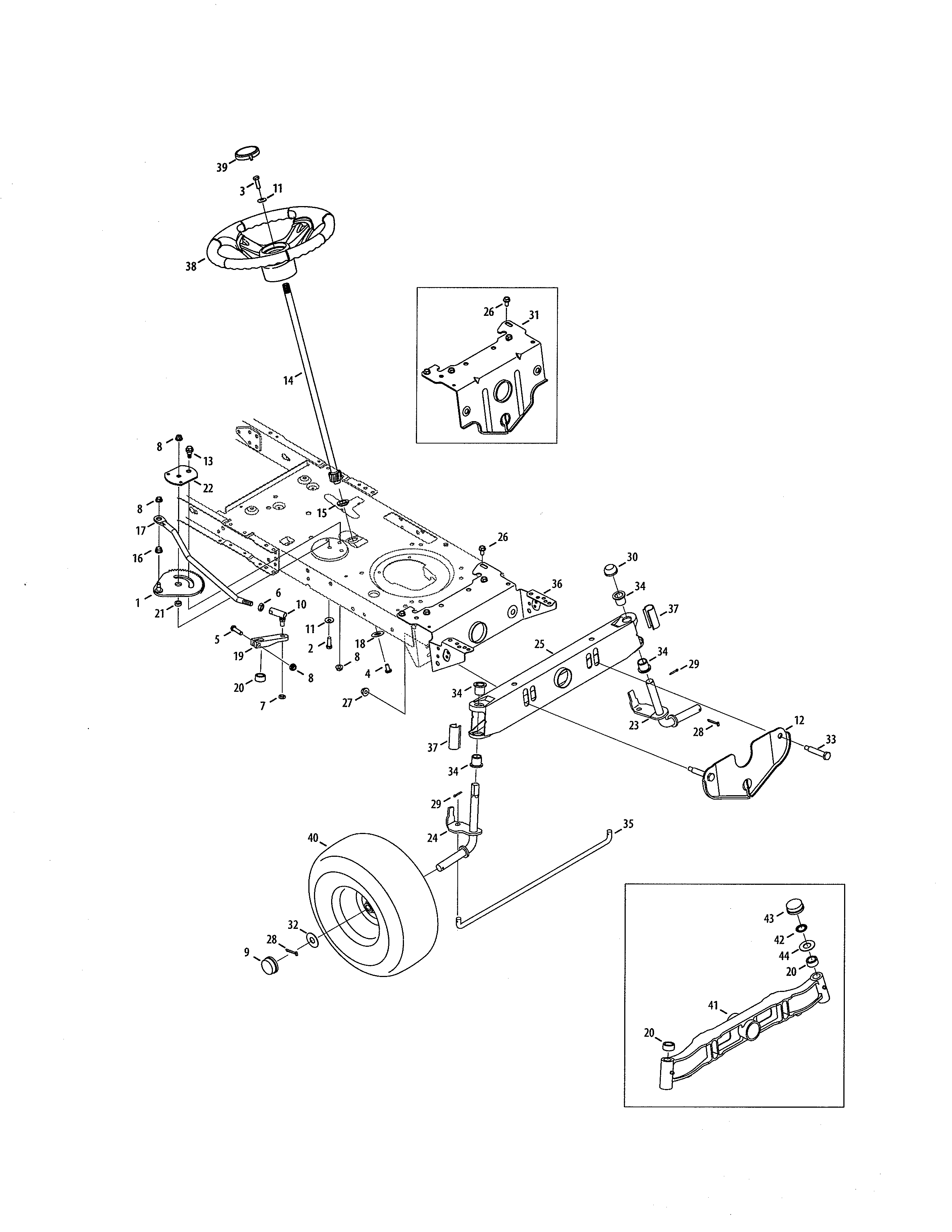

Steering diagram
Lawn mower dust cover
Part #731-0484A
Replaced by #931-0484A
?
Manufacturer substitution
This part replaces 731-0484A. Substitute parts can look different from the original.
This item is not returnable
$6.67 |
13% OFF Phone Price : $7.67
In Stock
#14
Steering diagram
Lawn tractor steering shaft
Part #738-0919A
Replaced by #738-0919B
?
Manufacturer substitution
This part replaces 738-0919A. Substitute parts can look different from the original.
$56.86 |
10% OFF Phone Price : $62.86
In Stock
Lawn tractor interlock switch
Part #725-04363
$20.99 |
22% OFF Phone Price : $26.99
In Stock
Lawn tractor self-tapping screw, 5/16-18 x 3/4-in (replaces 01008620)
Part #710-04484
This item is not returnable
$4.93 |
17% OFF Phone Price : $5.93
In Stock
