Kenmore
Chest Freezer

Model # 2539105180 Official Kenmore chest freezer

Here are the diagrams and repair parts for Official Kenmore 2539105180 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Drier 152474
#1

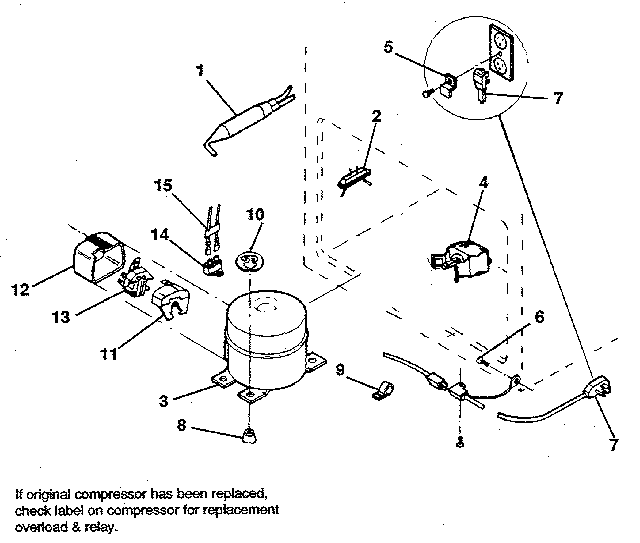

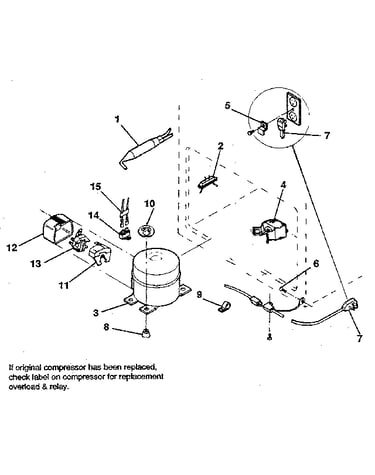

Unit diagram

Drier

Part #152474

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 152474. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 115646
#4

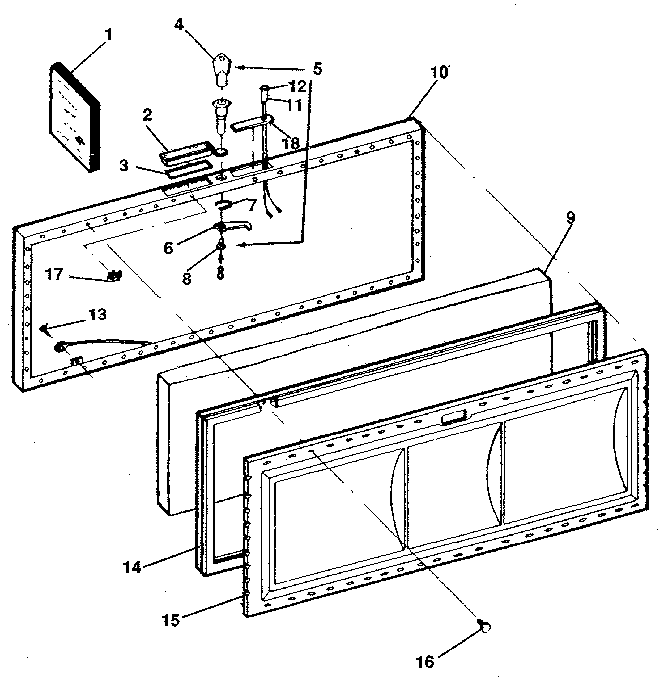

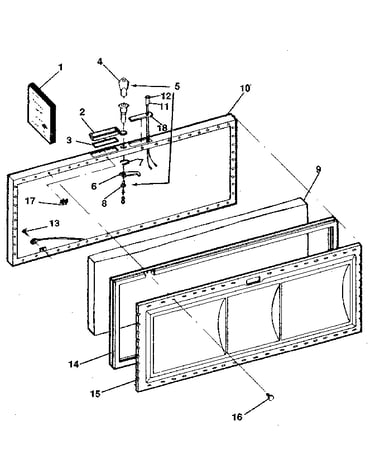

Lid diagram

Key

Part #115646

Replaced by #297147700

?
Manufacturer substitution
This part replaces 115646. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Clip 300792
#16

Lid diagram

Clip

Part #300792

Replaced by #5304406520

?
Manufacturer substitution
This part replaces 300792. Substitute parts can look different from the original.
BEST SELLER
$33.42 |
15% OFF Phone Price : $39.42
In Stock
Screw 119937
#12

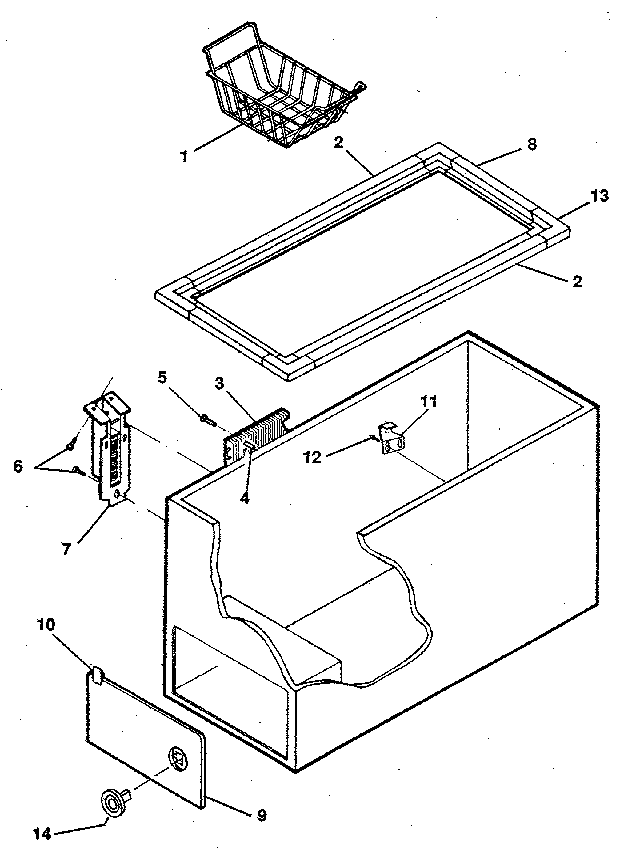

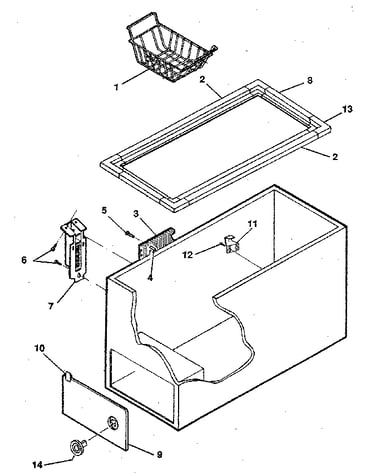

Cabinet diagram

Screw

Part #119937

Replaced by #131168200

?
Manufacturer substitution
This part replaces 119937. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Grommet 114221
#8

Unit diagram

Grommet

Part #114221

Replaced by #218513300

?
Manufacturer substitution
This part replaces 114221. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Al Enamel 94566-50

#NI

All parts diagram

Al enamel

Part #94566-50

Replaced by #350956

?
Manufacturer substitution
This part replaces 94566-50. Substitute parts can look different from the original.
This item is not returnable
$20.89 |
22% OFF Phone Price : $26.89
In Stock
Terminal Cover 5303206815
#12

Unit diagram

Terminal cover

Part #5303206815

$9.49
In Stock
Relay 3017753
#13

Unit diagram

Relay

Part #3017753

Replaced by #5303007173

?
Manufacturer substitution
This part replaces 3017753. Substitute parts can look different from the original.
$152.69 |
7% OFF Phone Price : $164.69
In Stock
Screw 53318
#5

Cabinet diagram

Screw

Part #53318

Replaced by #5300053318

?
Manufacturer substitution
This part replaces 53318. Substitute parts can look different from the original.
$14.97
In Stock
Screw 08009412
#6

Unit diagram

Screw

Part #08009412

Replaced by #216036601

?
Manufacturer substitution
This part replaces 08009412. Substitute parts can look different from the original.
$12.57
In Stock
