Model # PVM9005DJ3WW Official GE microwave/hood combo
Here are the diagrams and repair parts for Official GE PVM9005DJ3WW microwave/hood combo, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic

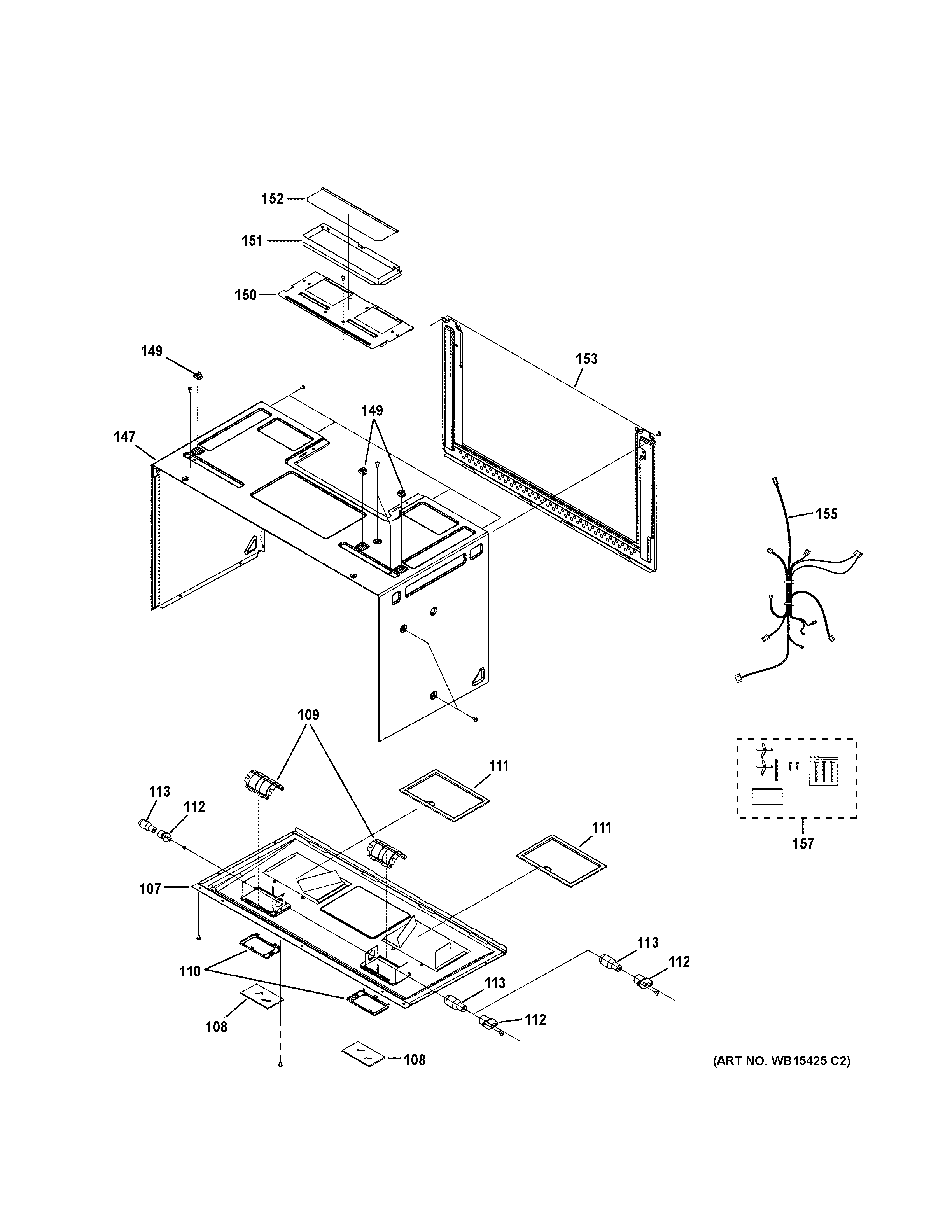

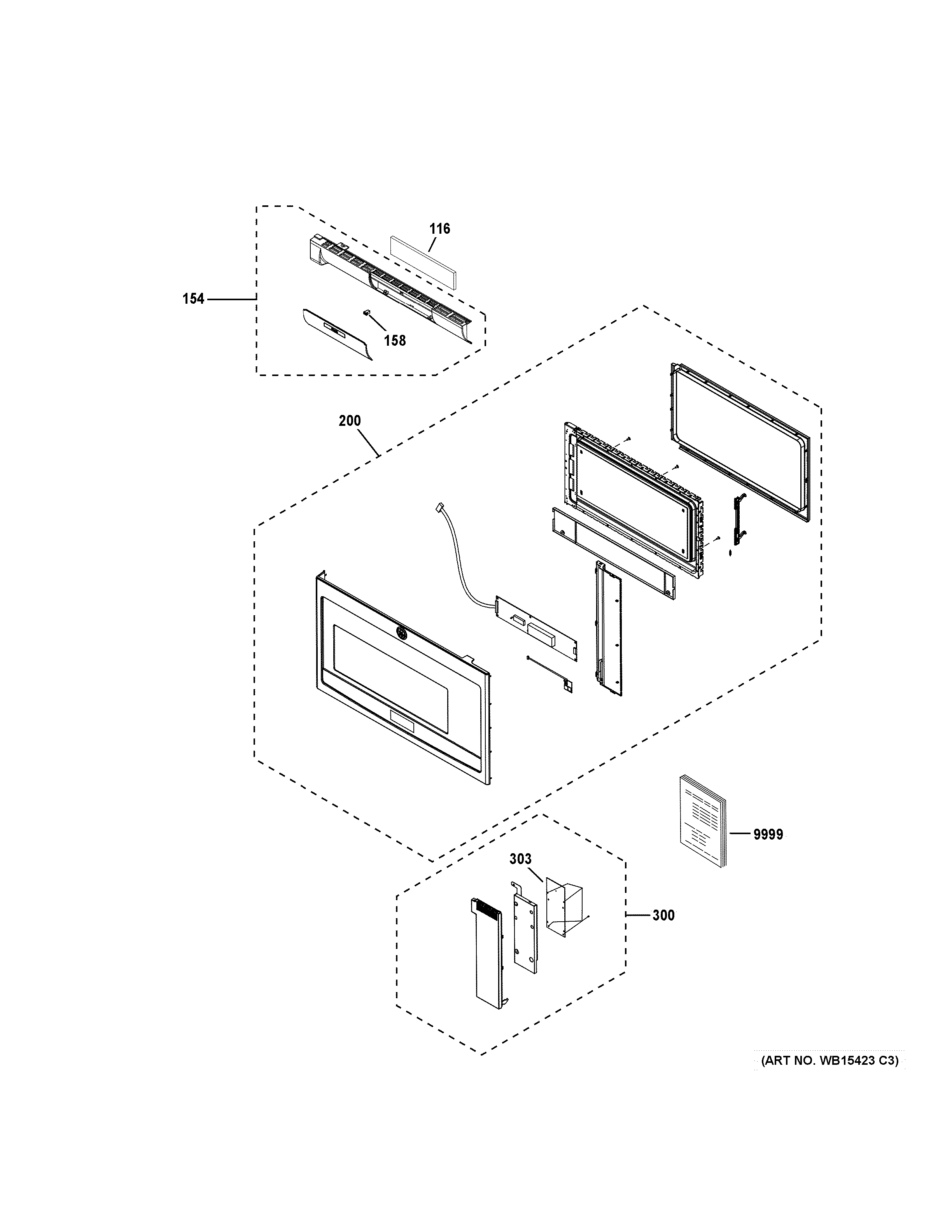

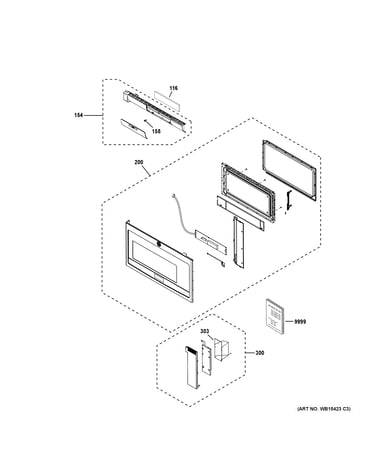

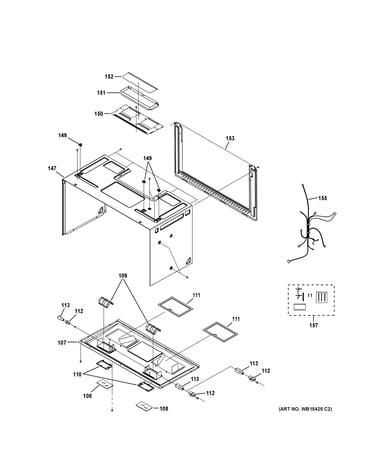

SELECT DIAGRAM
Browse Parts for
PVM9005DJ3WW Microwave/Hood Combo
#119

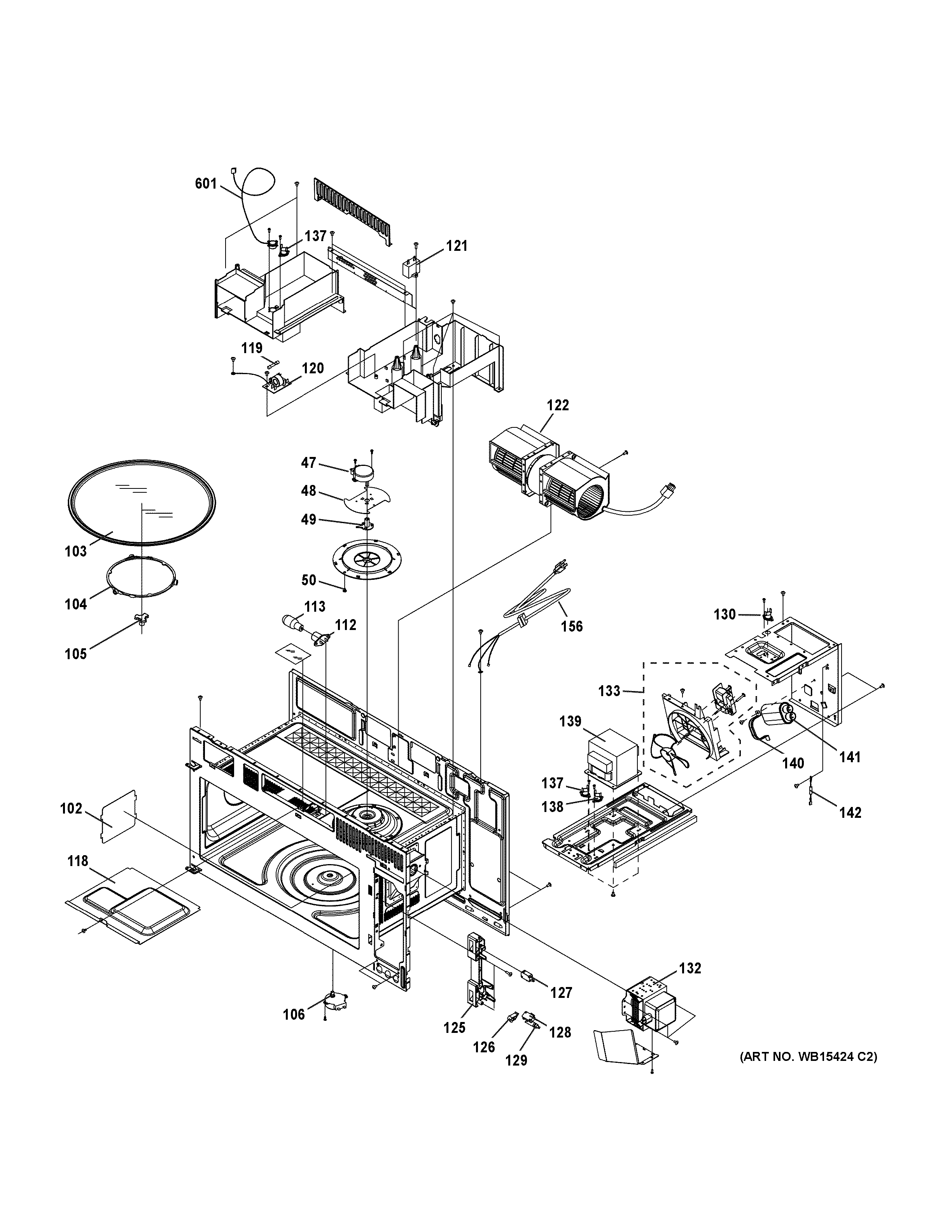

Oven cavity parts diagram
Microwave fuse
Part #WB27X11138
$50.37 |
11% OFF Phone Price : $56.37
In Stock
#129
Oven cavity parts diagram
Microwave door interlock switch (replaces wb24x28941)
Part #WB24X10146
$32.79 |
15% OFF Phone Price : $38.79
In Stock
#128
Oven cavity parts diagram
Microwave door monitor switch (replaces wb24x10147)
Part #WB24X10205
$57.39 |
9% OFF Phone Price : $63.39
In Stock
#130
Oven cavity parts diagram
Microwave thermostat
Part #WB27X11210
$69.28 |
8% OFF Phone Price : $75.28
In Stock
#106
Oven cavity parts diagram
Microwave turntable motor
Part #WB26X10176
Replaced by #WB26X32190
?
Manufacturer substitution
This part replaces WB26X10176. Substitute parts can look different from the original.
$51.05 |
11% OFF Phone Price : $57.05
In Stock
Microwave light bulb
Part #WB25X10030
This item is not returnable
$29.82 |
17% OFF Phone Price : $35.82
In Stock
#138
Oven cavity parts diagram
Microwave thermostat (replaces wb24x28950, wb27x10846)
Part #WB27X11213
This item is not returnable
$31.51 |
16% OFF Phone Price : $37.51
In Stock
Microwave light socket
Part #WB06X10929
$36.89 |
14% OFF Phone Price : $42.89
In Stock
#132
Oven cavity parts diagram
Magnetron
Part #WB27X11191
$424.06
In Stock
#141
Oven cavity parts diagram
Microwave high-voltage capacitor
Part #WB27X25625
$123.15 |
9% OFF Phone Price : $135.15
In Stock
