Model # WTA3510UC/13 Official Bosch dryer

Here are the diagrams and repair parts for Official Bosch WTA3510UC-13 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

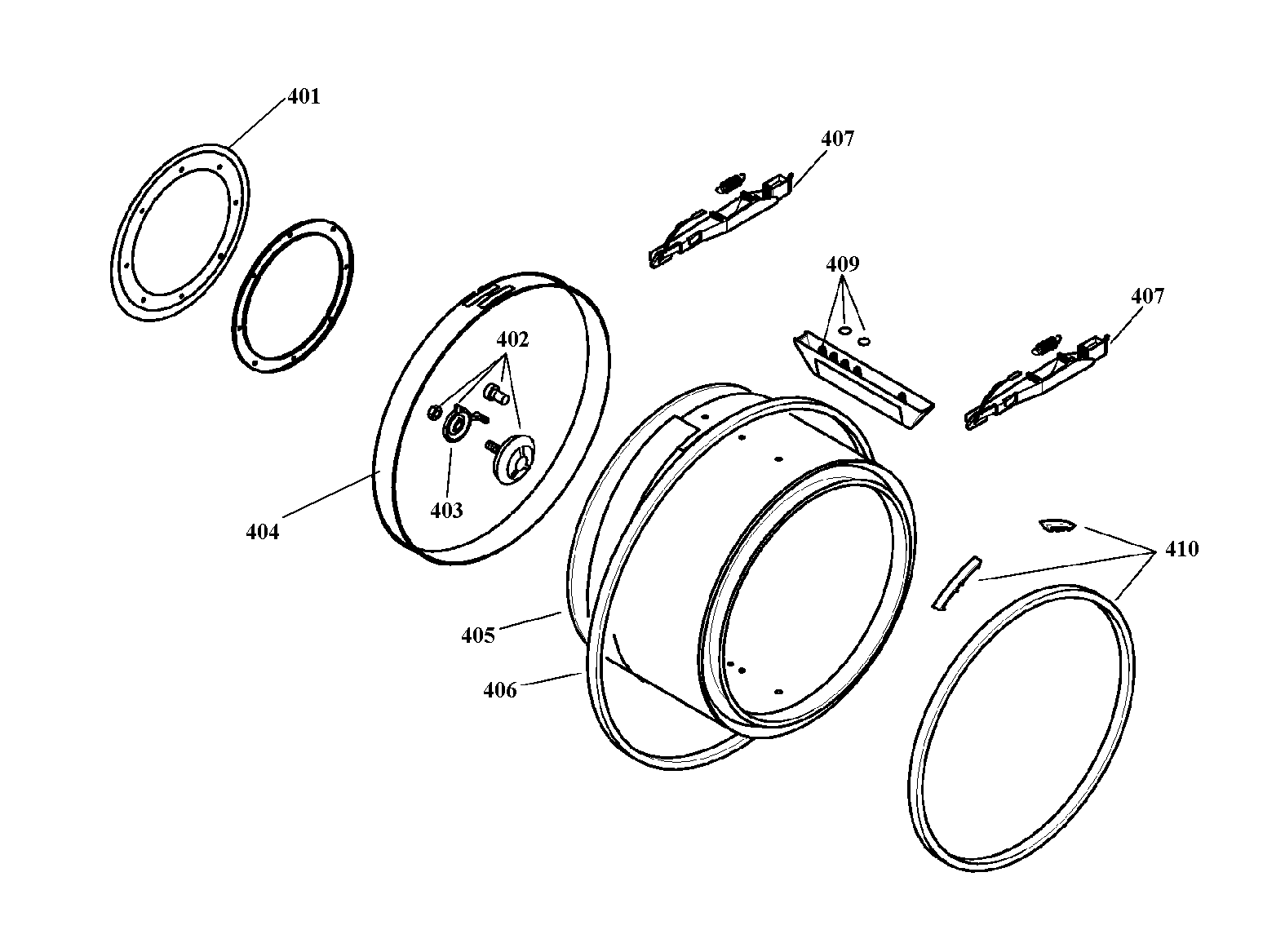

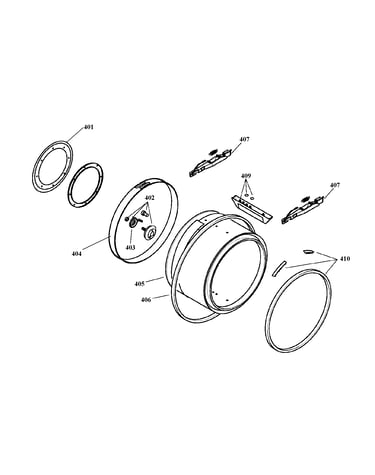

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Bosch Dryer Push-button Cap (white) 154515
#9

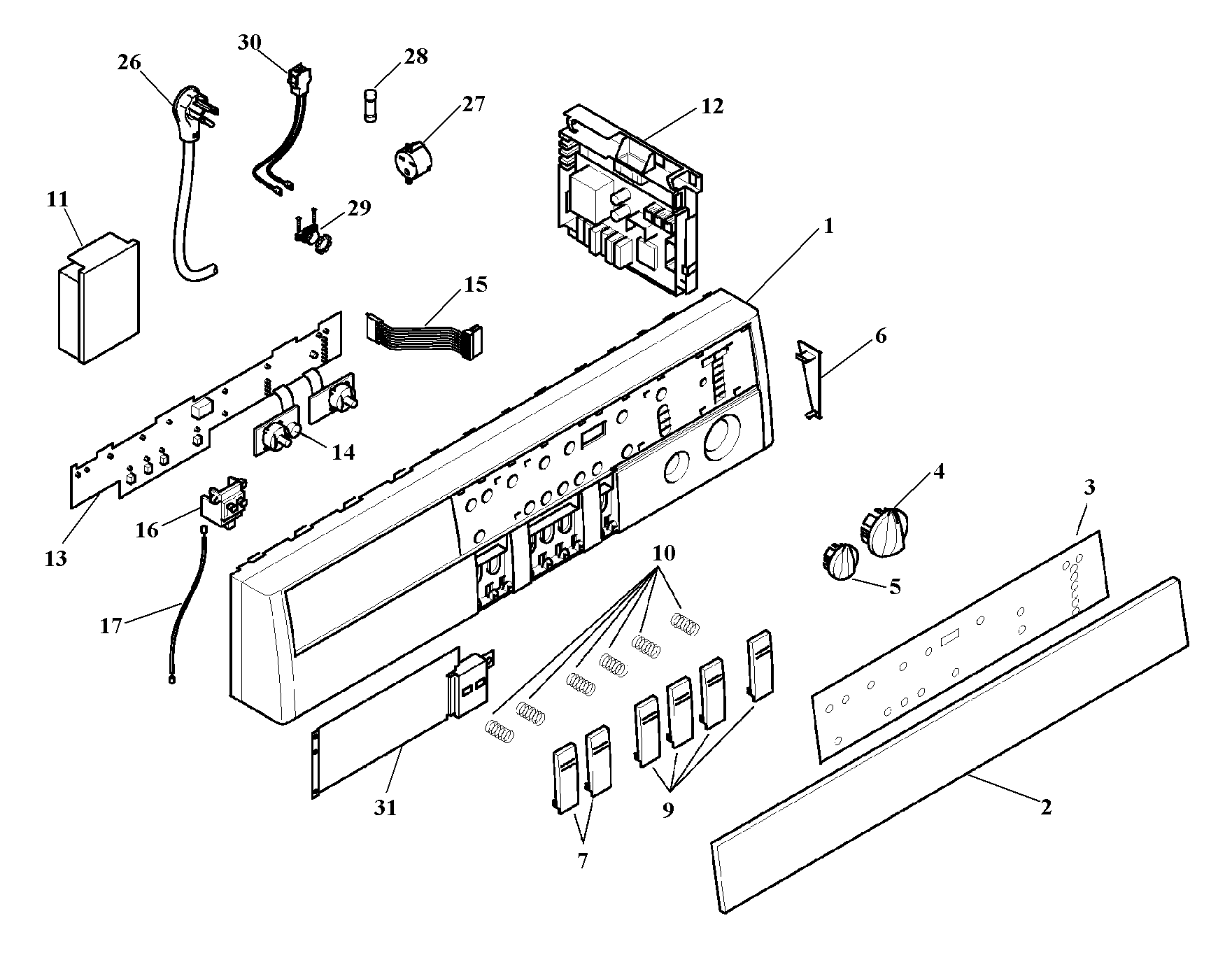

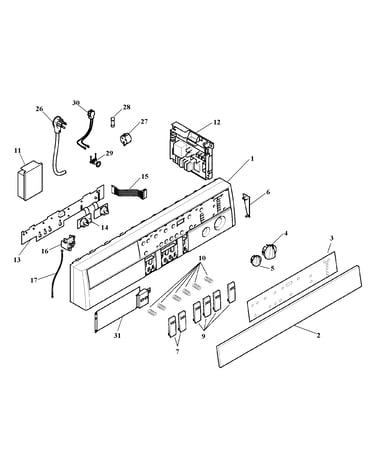

Control panel diagram

Bosch dryer push-button cap (white)

Part #154515

$13.17
In Stock
Cap 154514
#7

Control panel diagram

Cap

Part #154514

Replaced by #00154514

?
Manufacturer substitution
This part replaces 154514. Substitute parts can look different from the original.
$14.11
In Stock
Hook 154074
#304

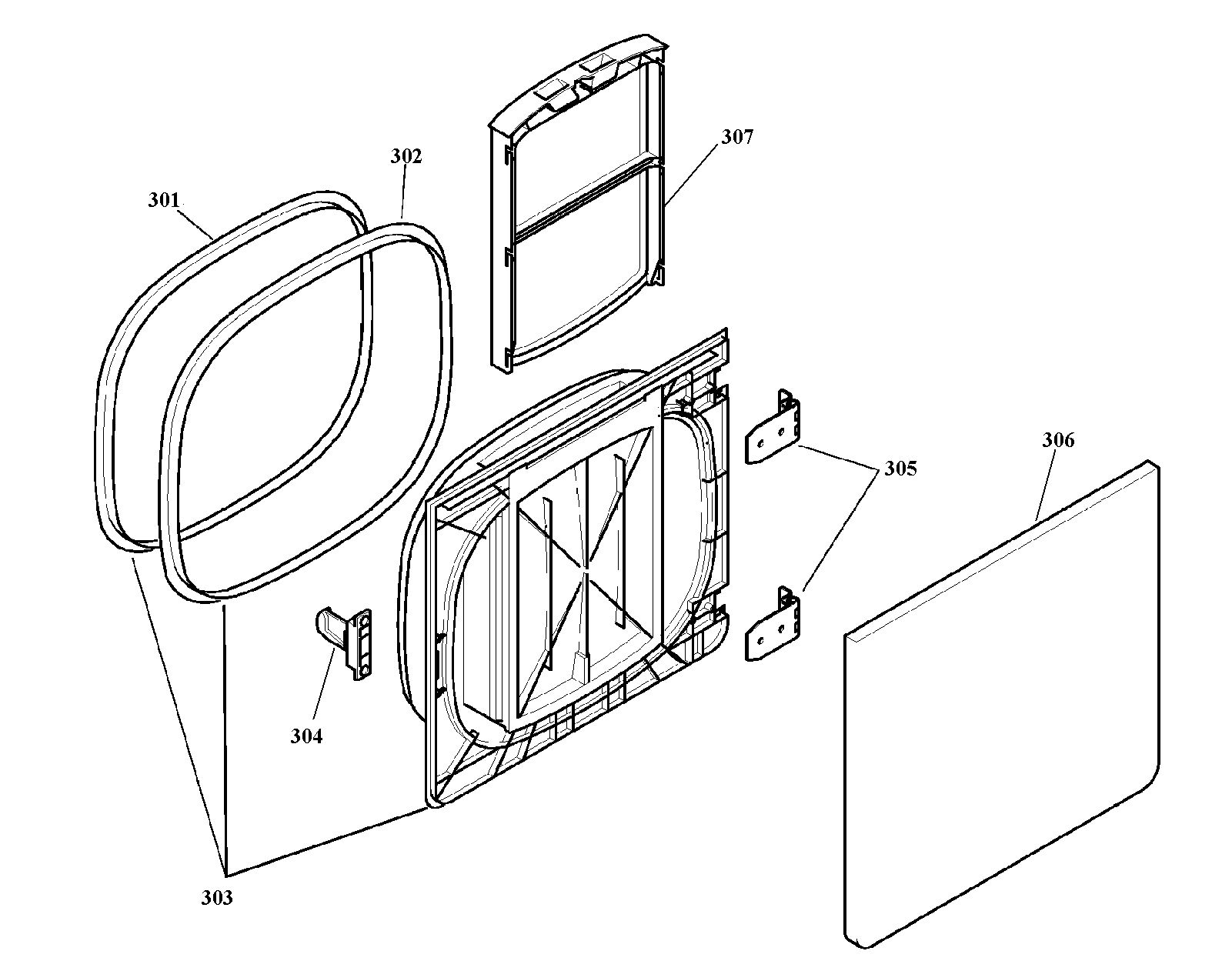

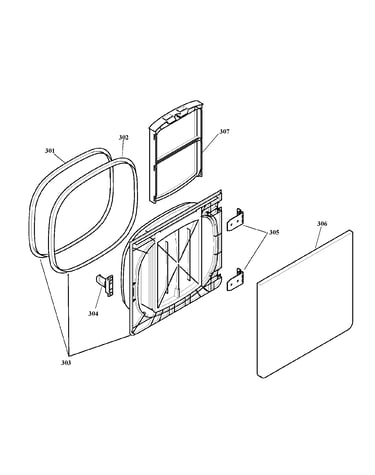

Door assy diagram

Hook

Part #154074

Replaced by #00154074

?
Manufacturer substitution
This part replaces 154074. Substitute parts can look different from the original.
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Stud 265679
#504

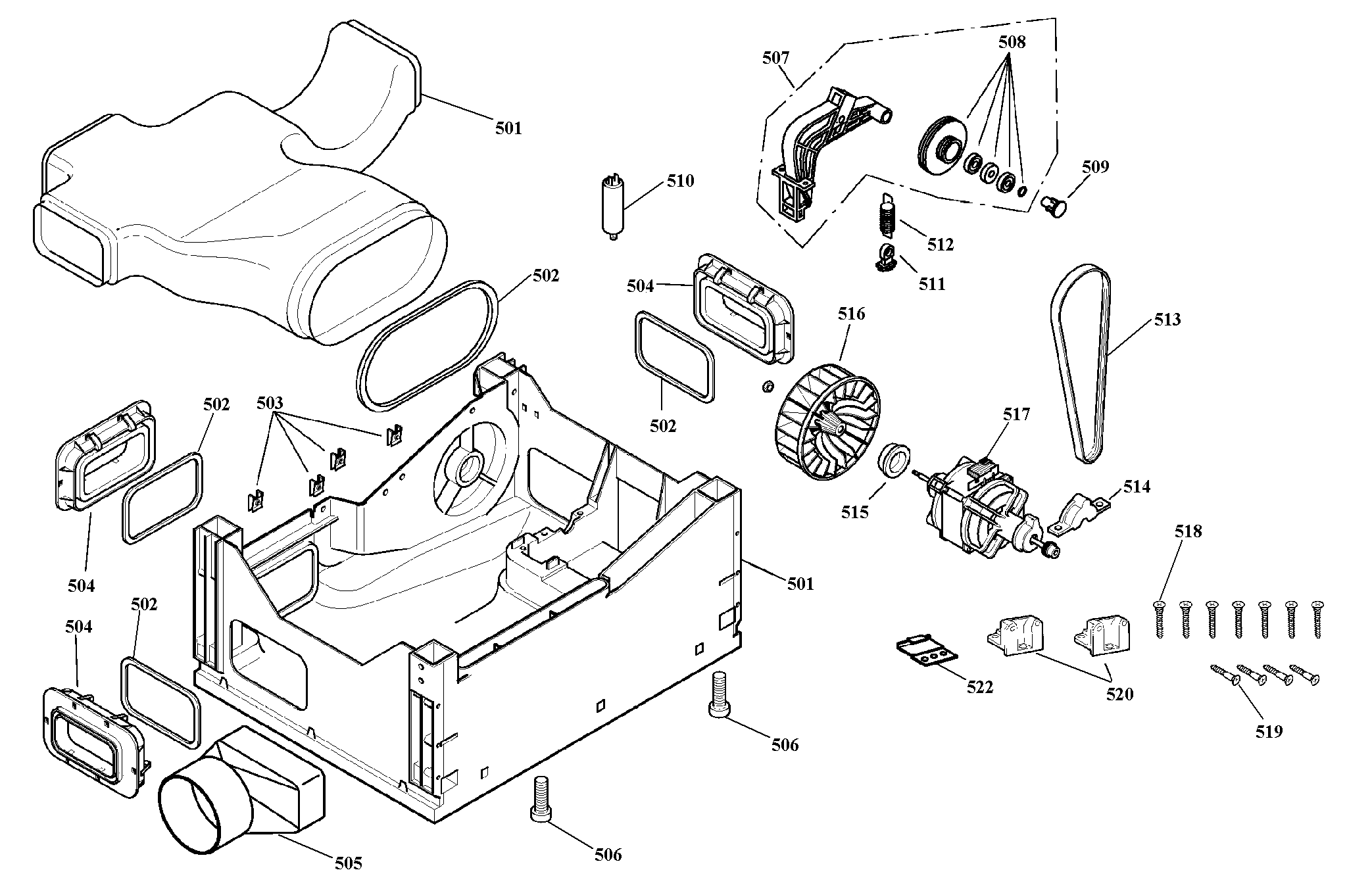

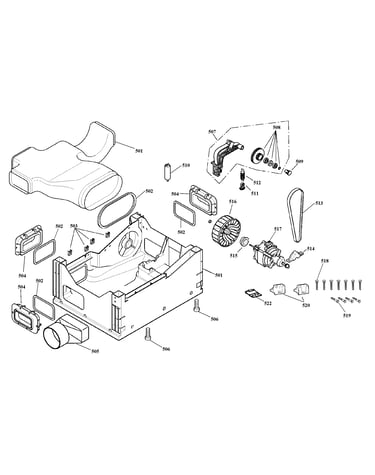

Base assy diagram

Stud

Part #265679

Replaced by #00265679

?
Manufacturer substitution
This part replaces 265679. Substitute parts can look different from the original.
$23.49
In Stock
Dryer Drive Belt 154142
#513

Base assy diagram

Dryer drive belt

Part #154142

Replaced by #00154142

?
Manufacturer substitution
This part replaces 154142. Substitute parts can look different from the original.
$35.13
In Stock
Adapter 265678
#505

Base assy diagram

Adapter

Part #265678

Replaced by #00265678

?
Manufacturer substitution
This part replaces 265678. Substitute parts can look different from the original.
$65.78
In Stock
Ntc 154166
#229

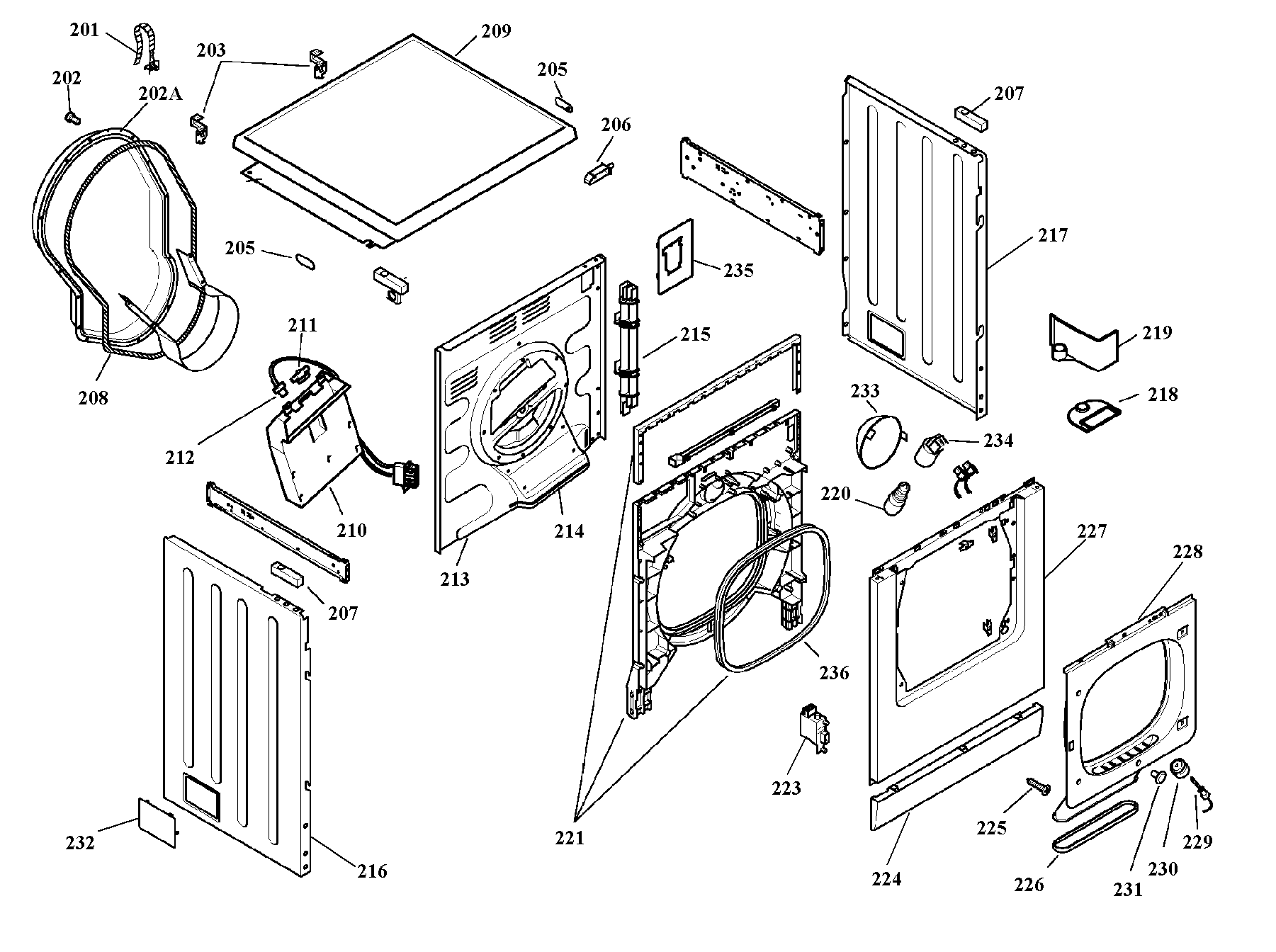

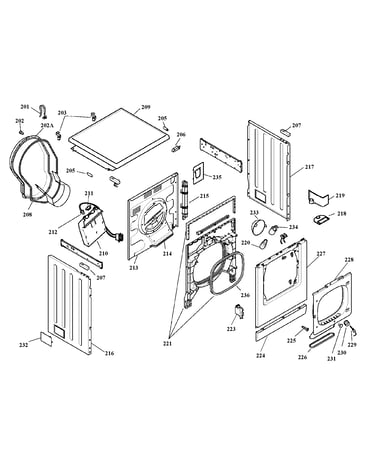

Cabinet assy diagram

Ntc

Part #154166

Replaced by #10010119

?
Manufacturer substitution
This part replaces 154166. Substitute parts can look different from the original.
$34.11
In Stock
Module 268348
#13

Control panel diagram

Module

Part #268348

Replaced by #00268348

?
Manufacturer substitution
This part replaces 268348. Substitute parts can look different from the original.
$282.04
In Stock
Lint Filter 265649
#307

Door assy diagram

Lint filter

Part #265649

Replaced by #00265649

?
Manufacturer substitution
This part replaces 265649. Substitute parts can look different from the original.
$51.96
In Stock
Foot 611942
#506

Base assy diagram

Foot

Part #611942

Replaced by #00611942

?
Manufacturer substitution
This part replaces 611942. Substitute parts can look different from the original.
$14.19 |
12% OFF Phone Price : $16.19
In Stock
