Model # 72180593402 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72180593402 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

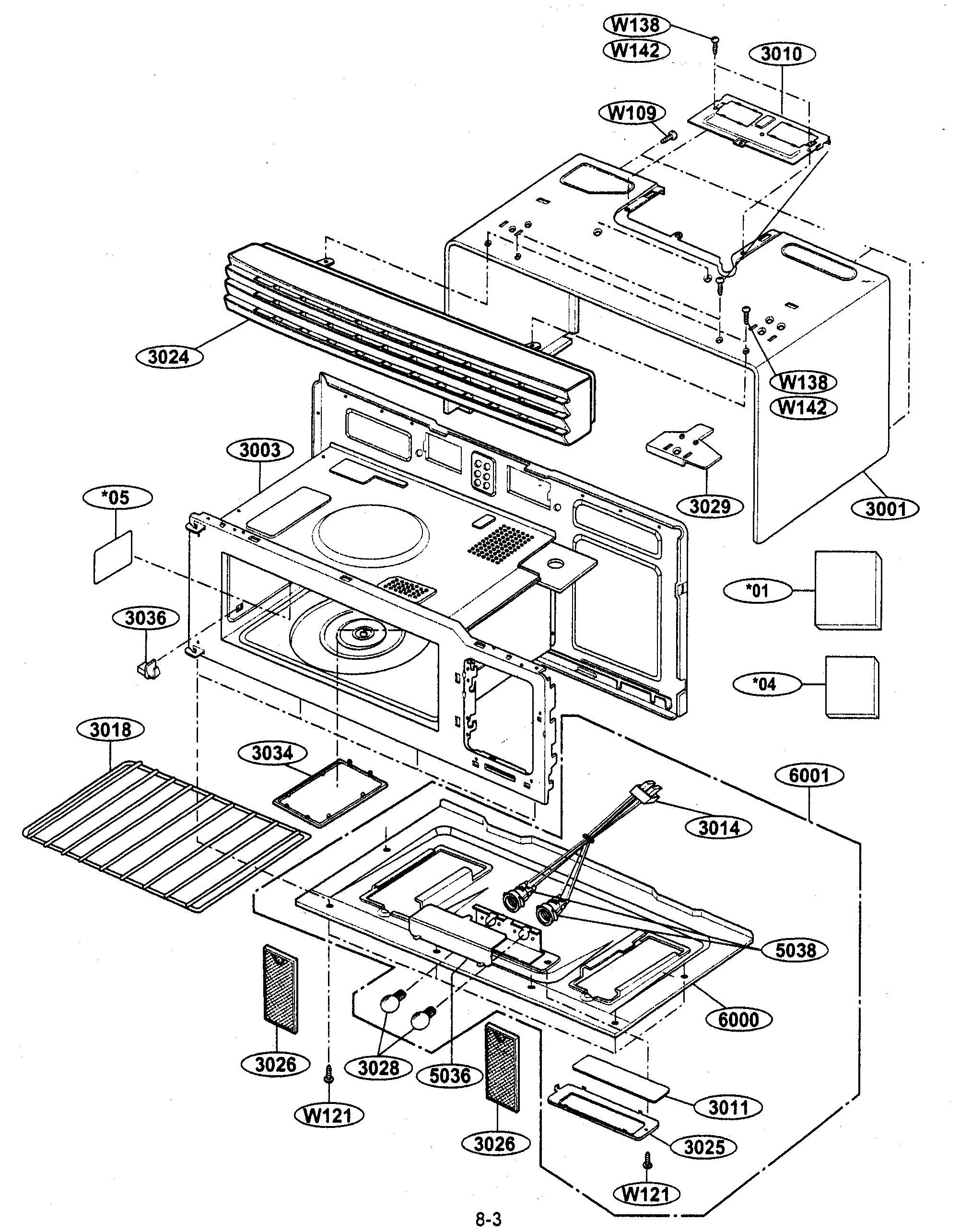

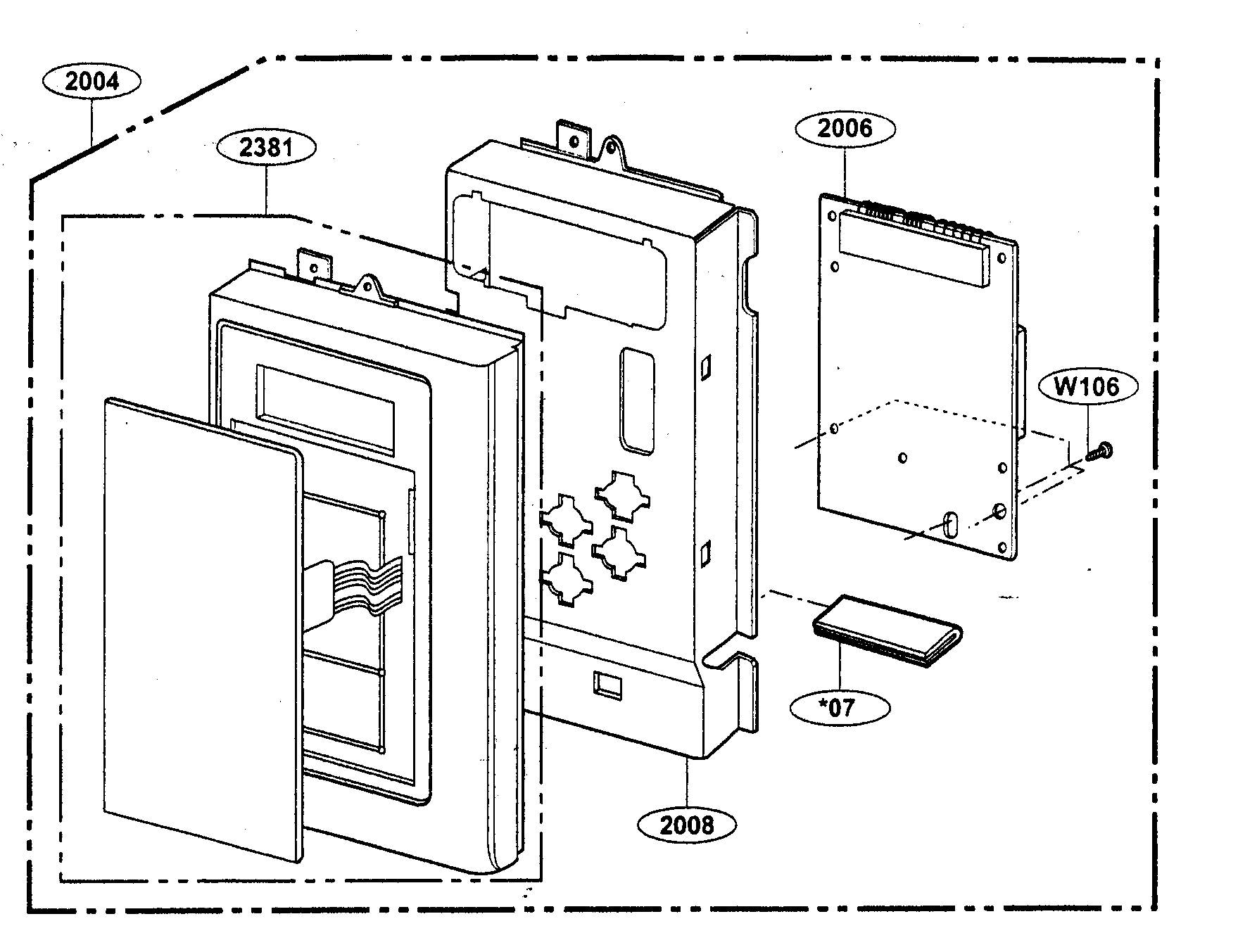

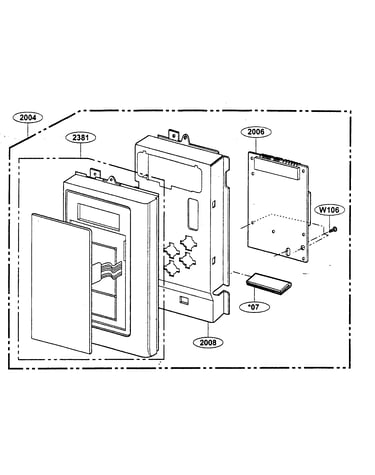

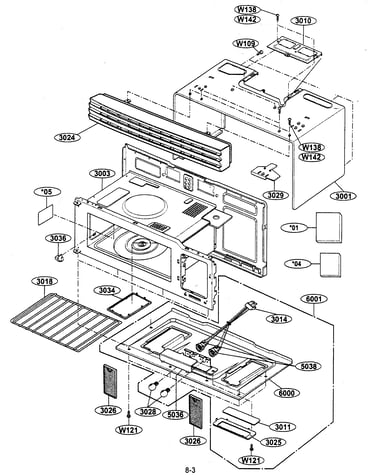

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Microwave Magnetron (replaces 2b71165l, 2b71165p) 2B71165R
#5009

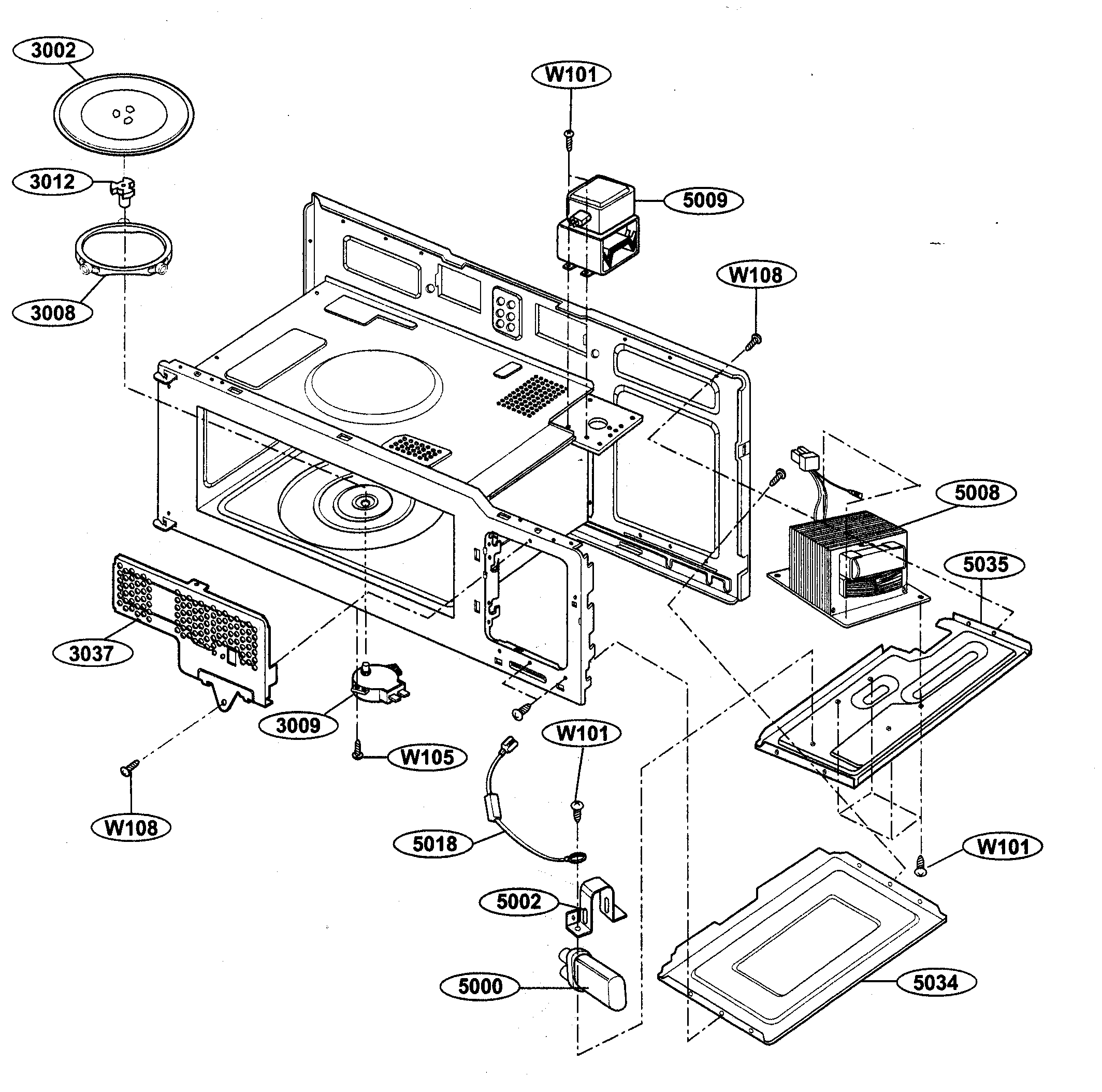

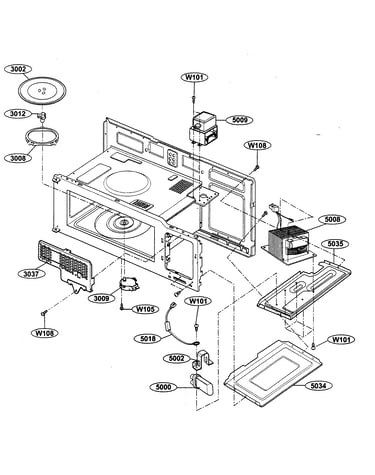

Interior parts 1 diagram

Microwave magnetron (replaces 2b71165l, 2b71165p)

Part #2B71165R

BEST SELLER
$91.94 |
6% OFF Phone Price : $97.94
In Stock
Microwave Fuse 3B74133Q
#5001

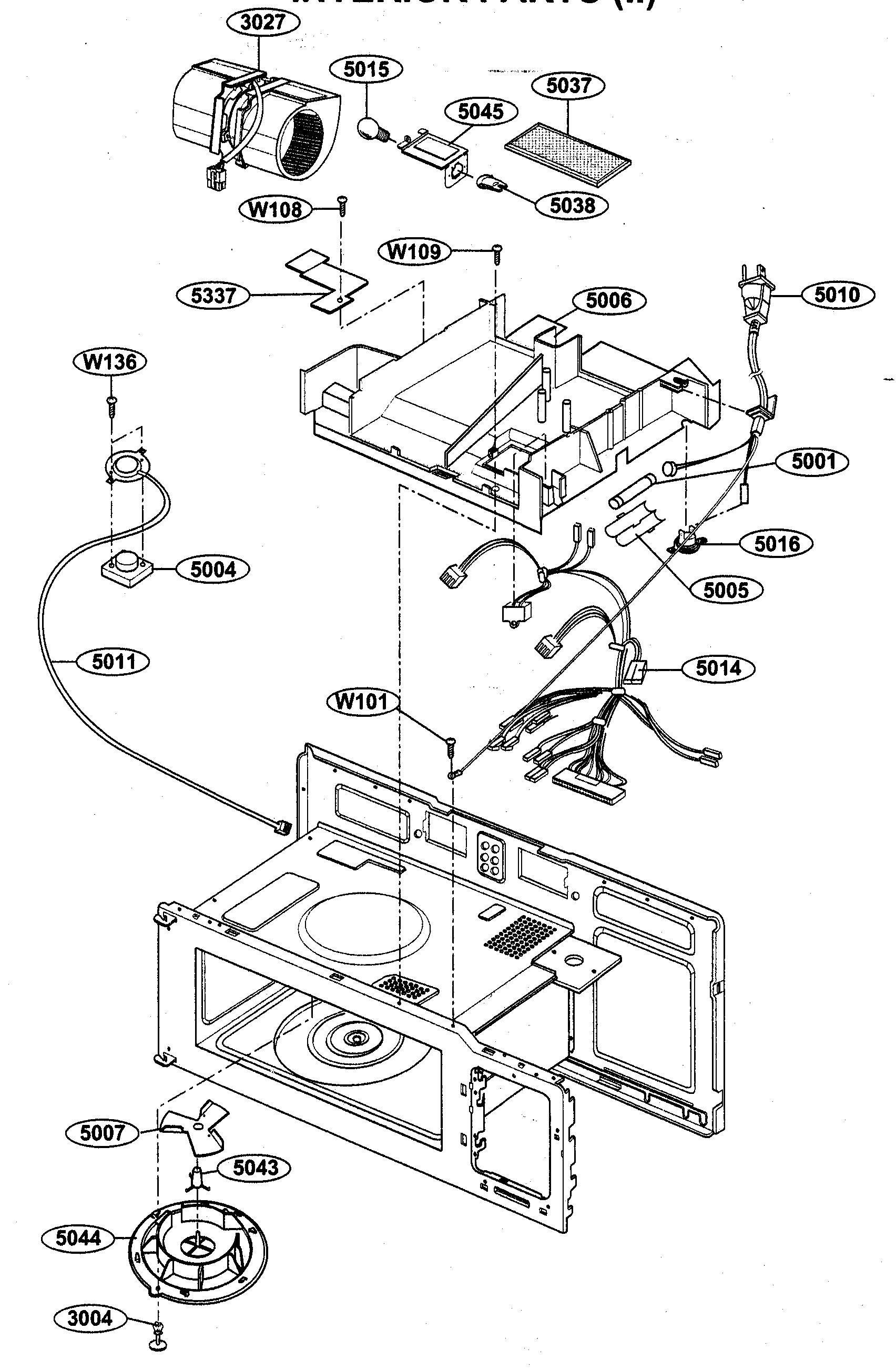

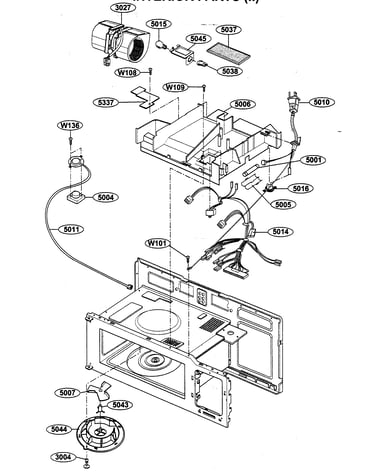

Interior parts 2 diagram

Microwave fuse

Part #3B74133Q

BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Microwave Glass Turntable Tray (replaces 1b71961f) 1B71961H
#3002

Interior parts 1 diagram

Microwave glass turntable tray (replaces 1b71961f)

Part #1B71961H

BEST SELLER
$32.53 |
16% OFF Phone Price : $38.53
In Stock
Microwave Door Latch Hook (replaces 4026w2a015a) 4026W2A019C
#1006

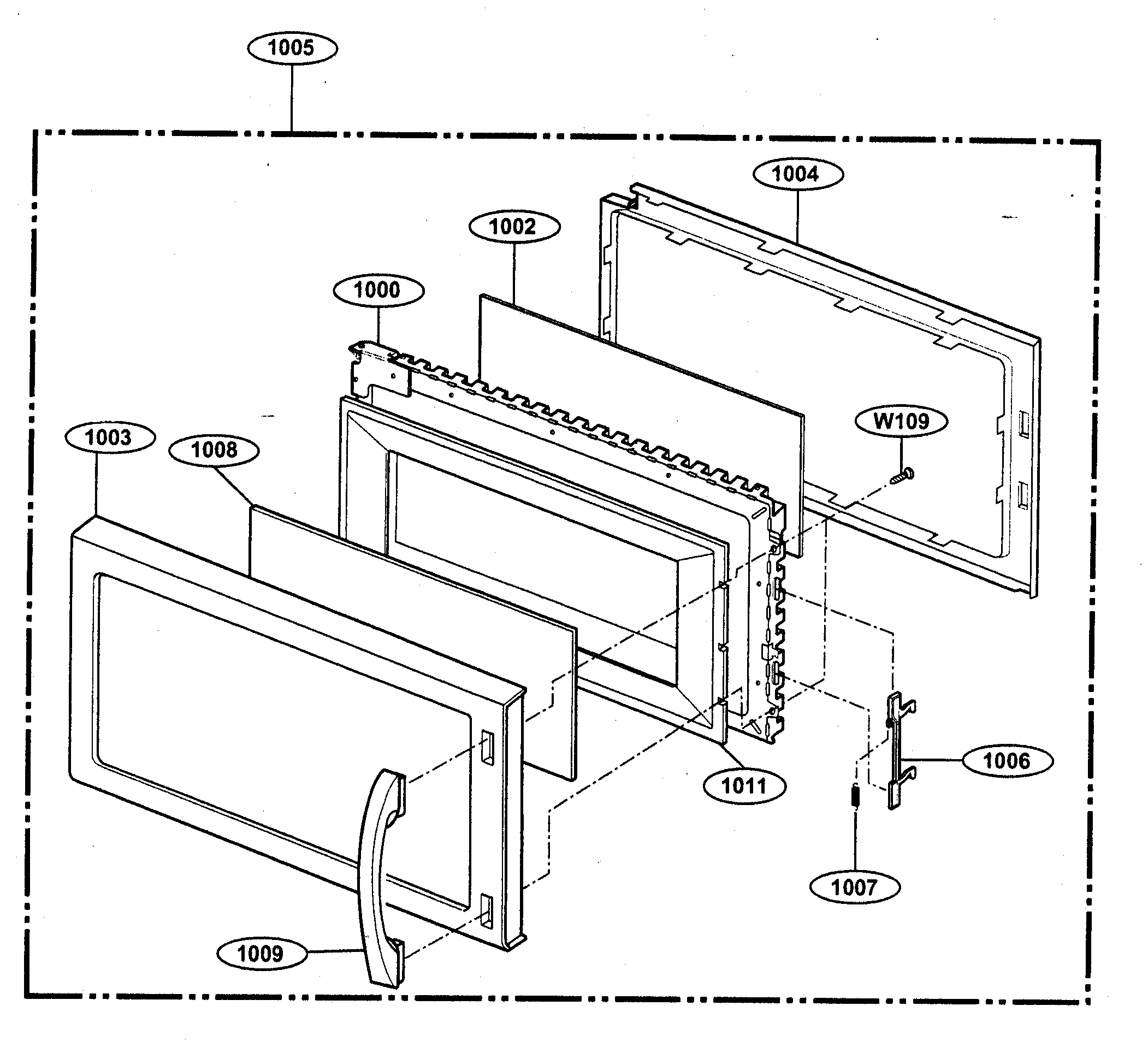

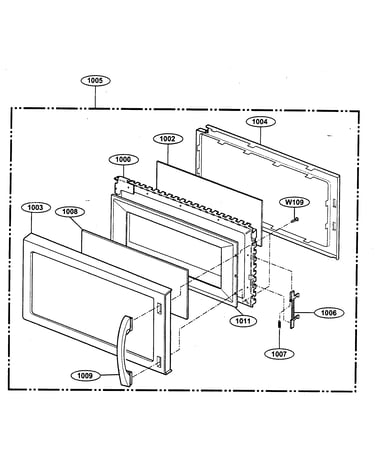

Door parts diagram

Microwave door latch hook (replaces 4026w2a015a)

Part #4026W2A019C

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Exhaust Damper Bracket (replaces 3b72144a) 4810W1A151A
#6010

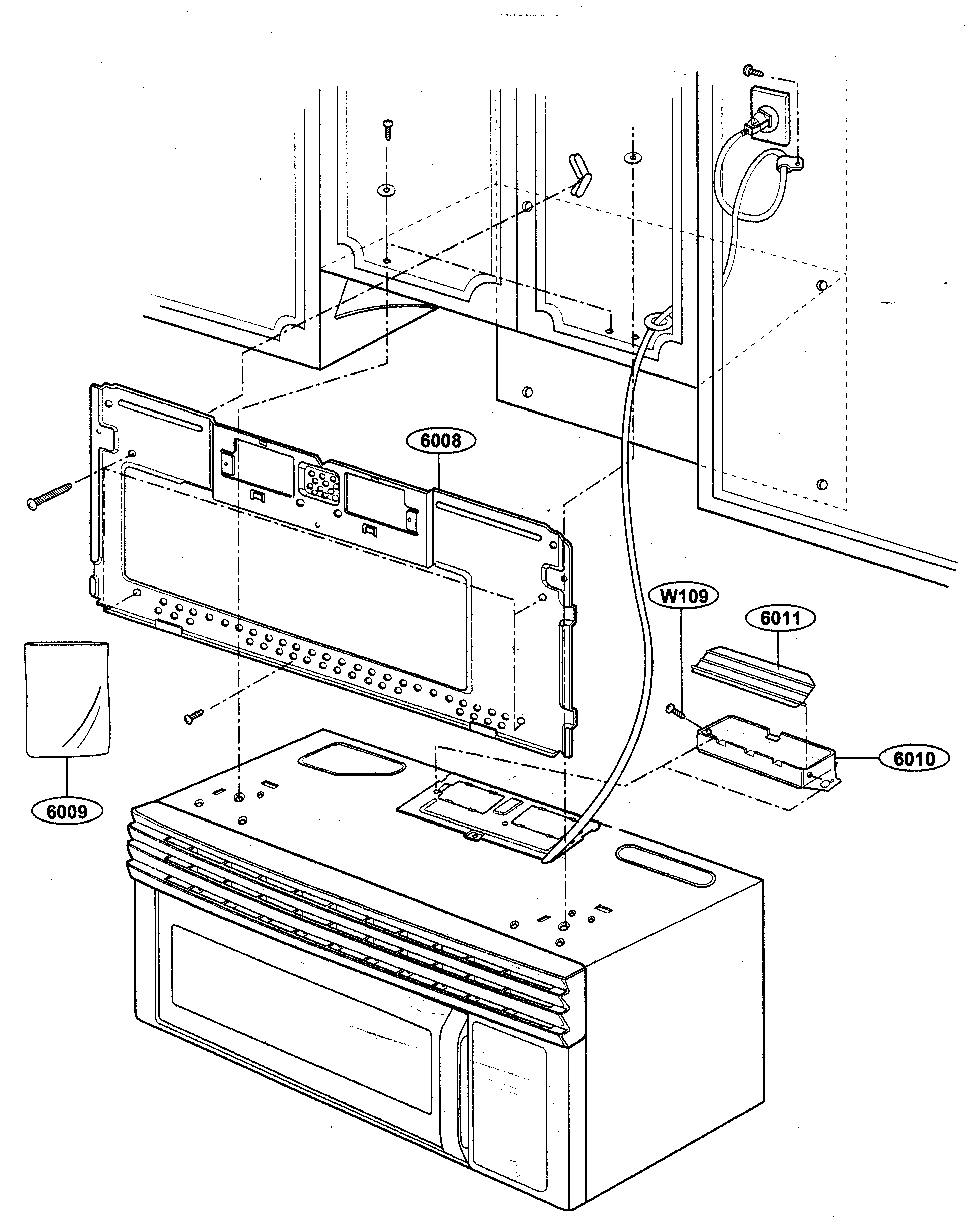

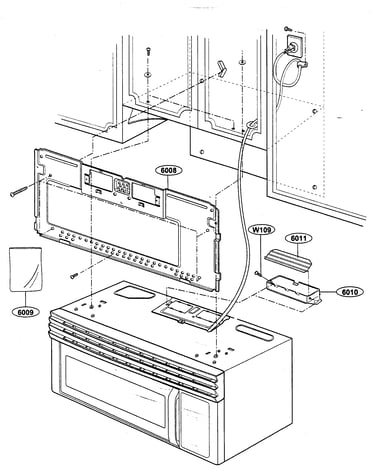

Installation parts diagram

Microwave exhaust damper bracket (replaces 3b72144a)

Part #4810W1A151A

BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Cover 3550W1A126B
#5044

Interior parts 2 diagram

Cover

Part #3550W1A126B

Replaced by #3550W1A126D

?
Manufacturer substitution
This part replaces 3550W1A126B. Substitute parts can look different from the original.
BEST SELLER
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Microwave Door Latch Spring 4970WRA001G
#1007

Door parts diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Turntable Motor Coupler (replaces 3b72373a, 3b72373d) 4370W1A006B
#3012

Interior parts 1 diagram

Microwave turntable motor coupler (replaces 3b72373a, 3b72373d)

Part #4370W1A006B

BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Microwave Thermostat 6930W1A003E
#5016

Interior parts 2 diagram

Microwave thermostat

Part #6930W1A003E

This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Latch Body (replaces 3500w1a005a) 3500W1A028B
#4000

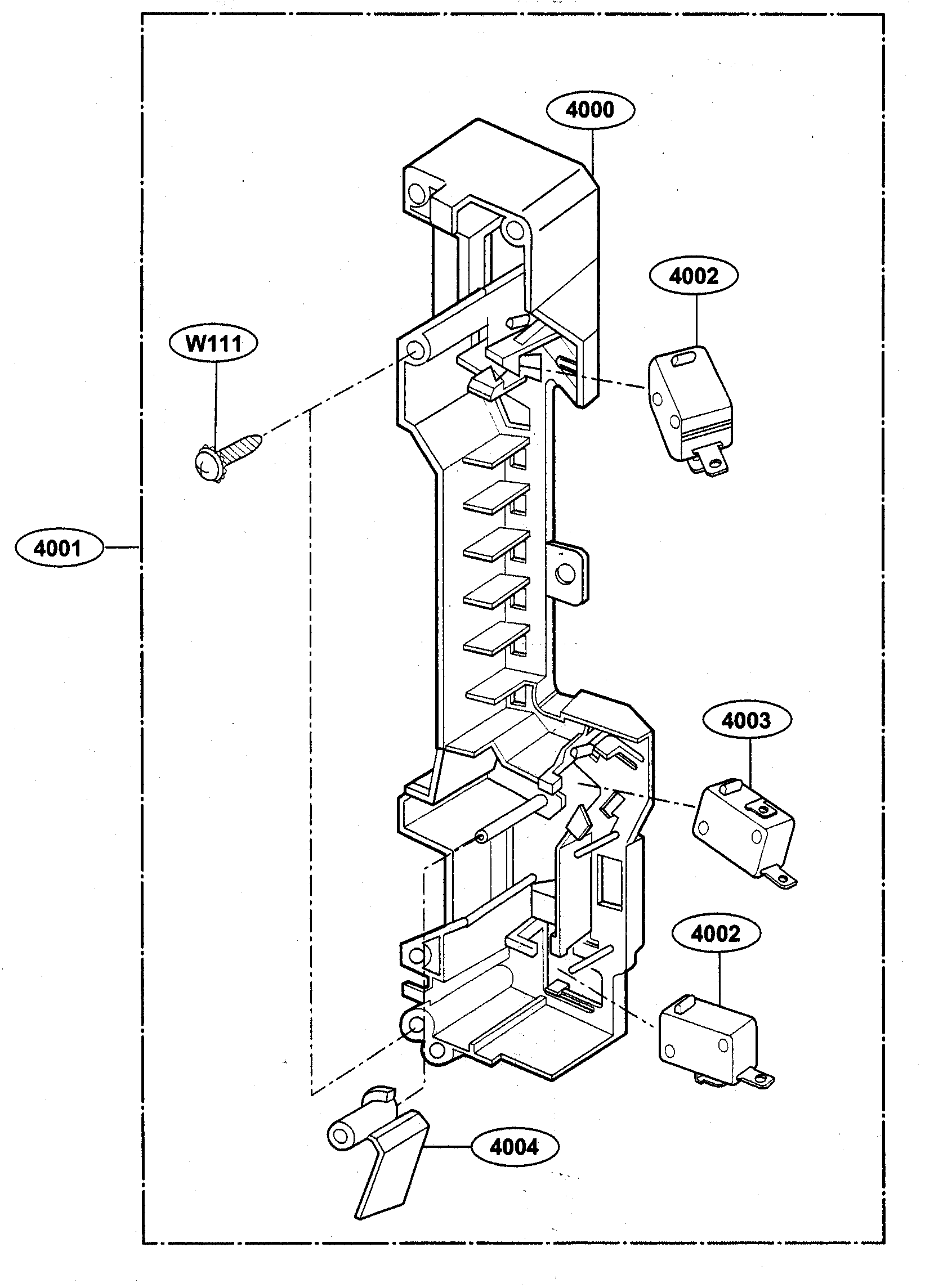

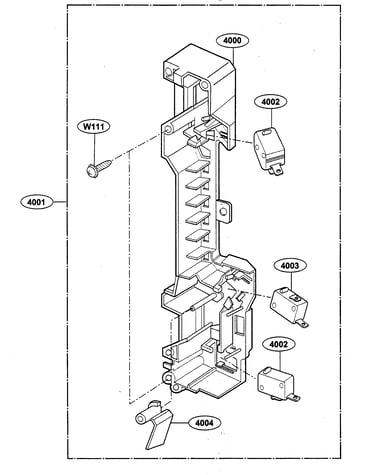

Latch board parts diagram

Microwave latch body (replaces 3500w1a005a)

Part #3500W1A028B

Replaced by #3500W1A013R

?
Manufacturer substitution
This part replaces 3500W1A028B. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
Back Order
