Gas Range

Model # 79074339315 Official Kenmore free standing gas range

Here are the diagrams and repair parts for Official Kenmore 79074339315 free standing gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
79074339315 Ranges
Bake Igniter 5304508786
#19

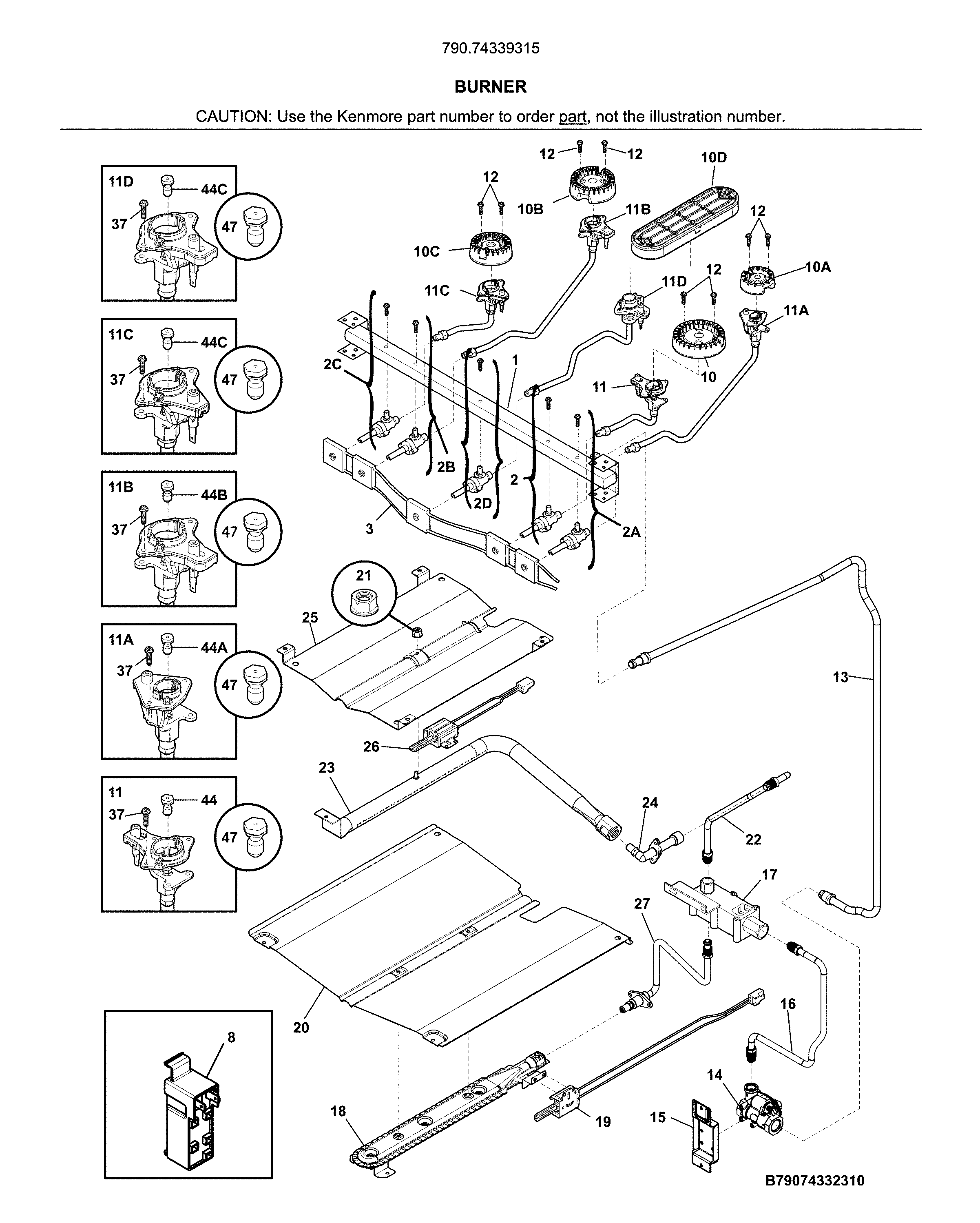

Burner diagram

Bake igniter

Part #5304508786

Replaced by #316489403

?
Manufacturer substitution
This part replaces 5304508786. Substitute parts can look different from the original.
4.15 (126)
BEST SELLER
$97.76 |
15% OFF Phone Price : $114.91
In Stock
Range Oven Temperature Sensor 316490003
#37

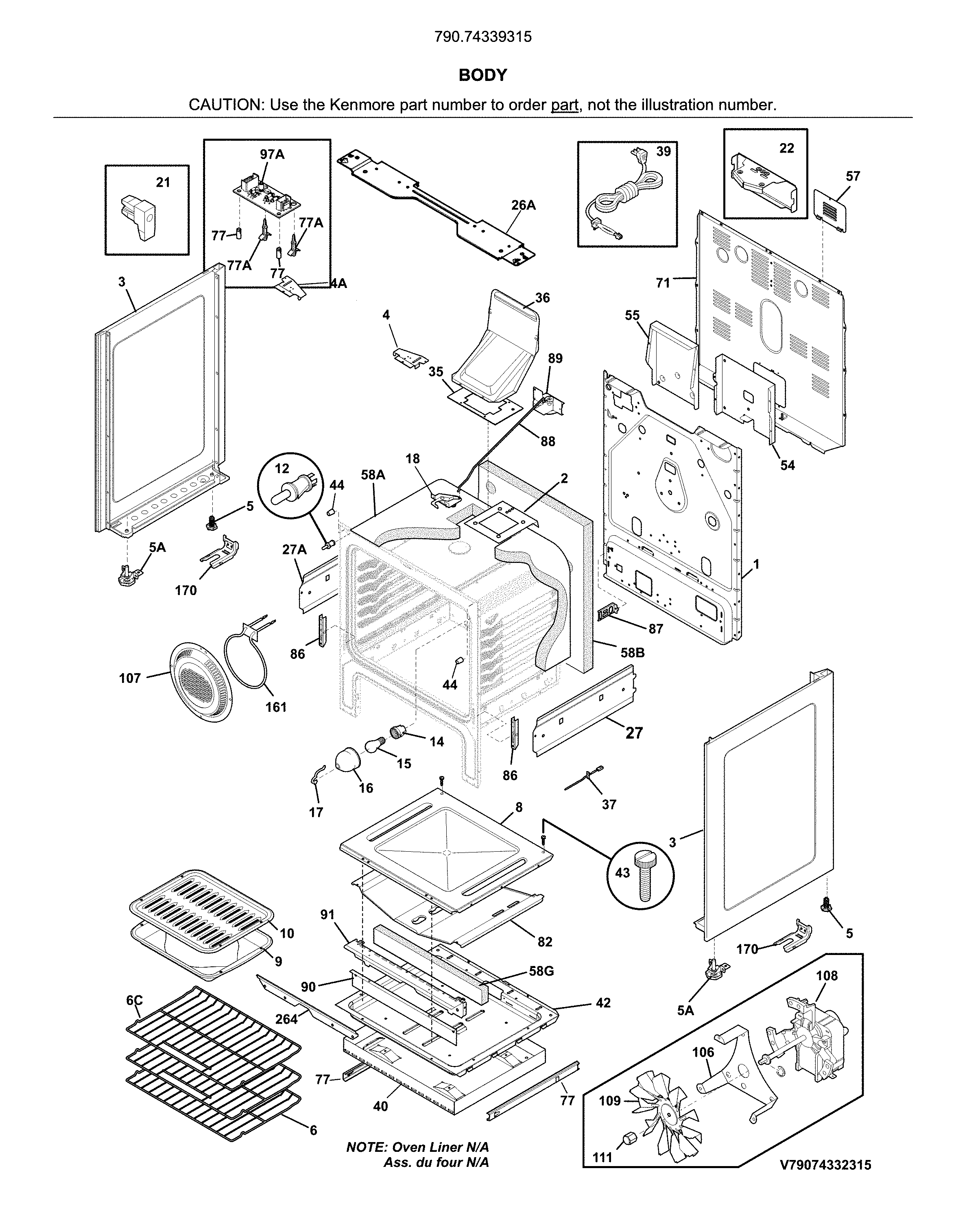

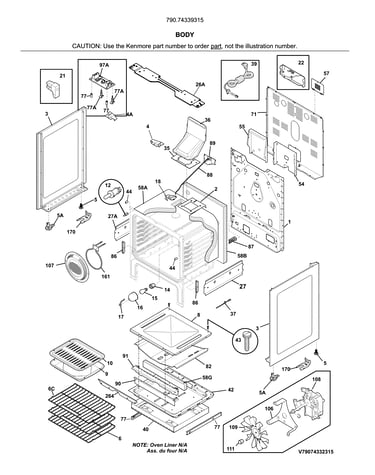

Body diagram

Range oven temperature sensor

Part #316490003

Replaced by #316490000

?
Manufacturer substitution
This part replaces 316490003. Substitute parts can look different from the original.
3.8 (35)
BEST SELLER
$39.93 |
13% OFF Phone Price : $45.93
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
5 (2)
BEST SELLER
$16.96 |
11% OFF Phone Price : $18.96
In Stock
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

4.5 (2)
BEST SELLER
$10.22 |
16% OFF Phone Price : $12.22
In Stock
Range Screw (replaces 316518100, 7316540900) 316540900
#12

Burner diagram

Range screw (replaces 316518100, 7316540900)

Part #316540900

3 (4)
BEST SELLER
$13.46 |
17% OFF Phone Price : $16.17
In Stock
Range Oven Door Inner Glass 316117502
#8

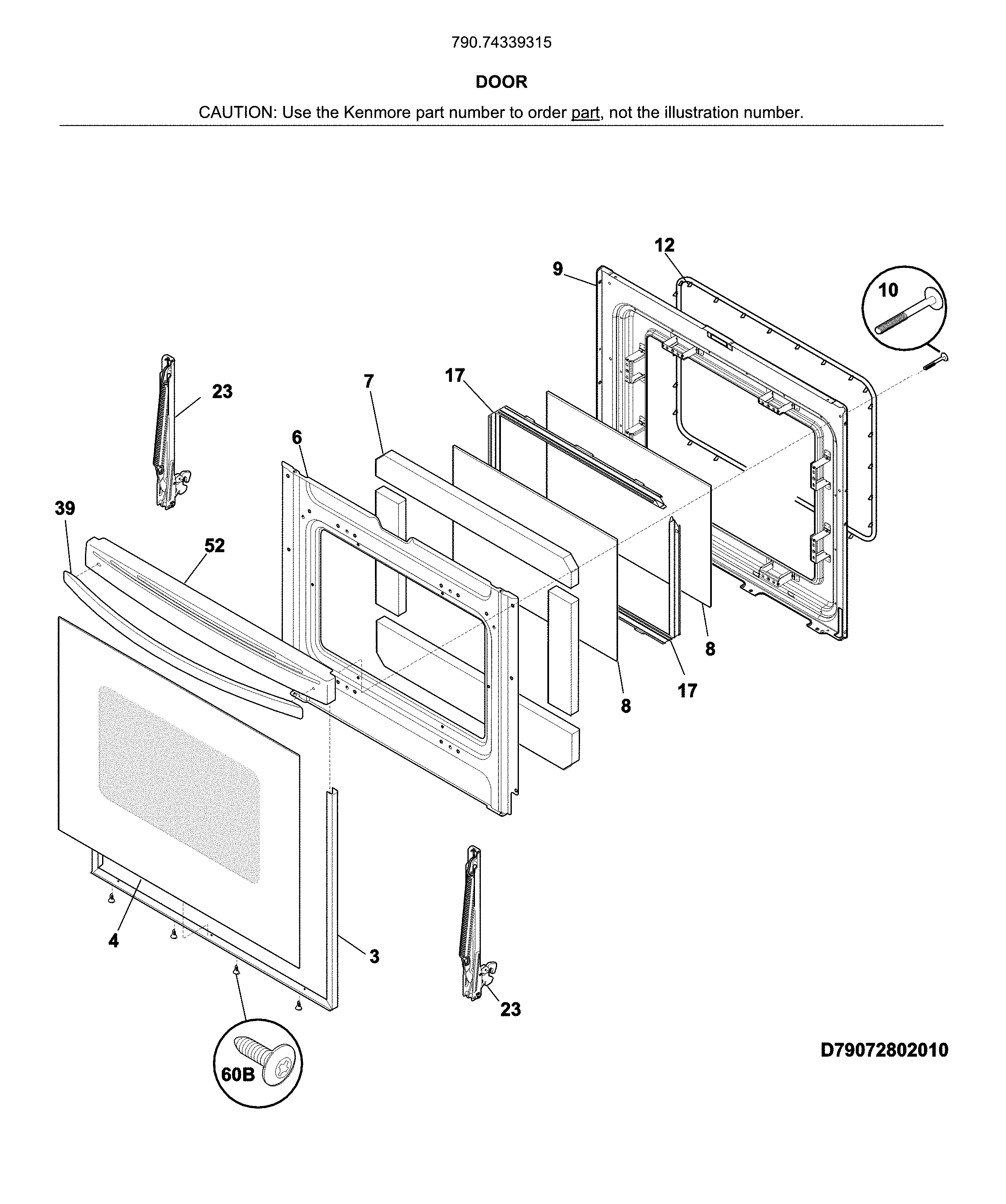

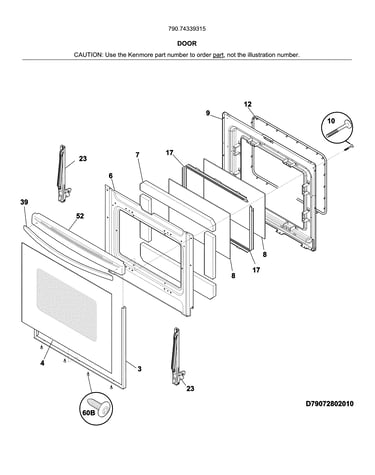

Door diagram

Range oven door inner glass

Part #316117502

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117502. Substitute parts can look different from the original.
5 (8)
BEST SELLER
$72.95 |
8% OFF Phone Price : $78.95
In Stock
Range Oven Control Overlay 316655001
#20A

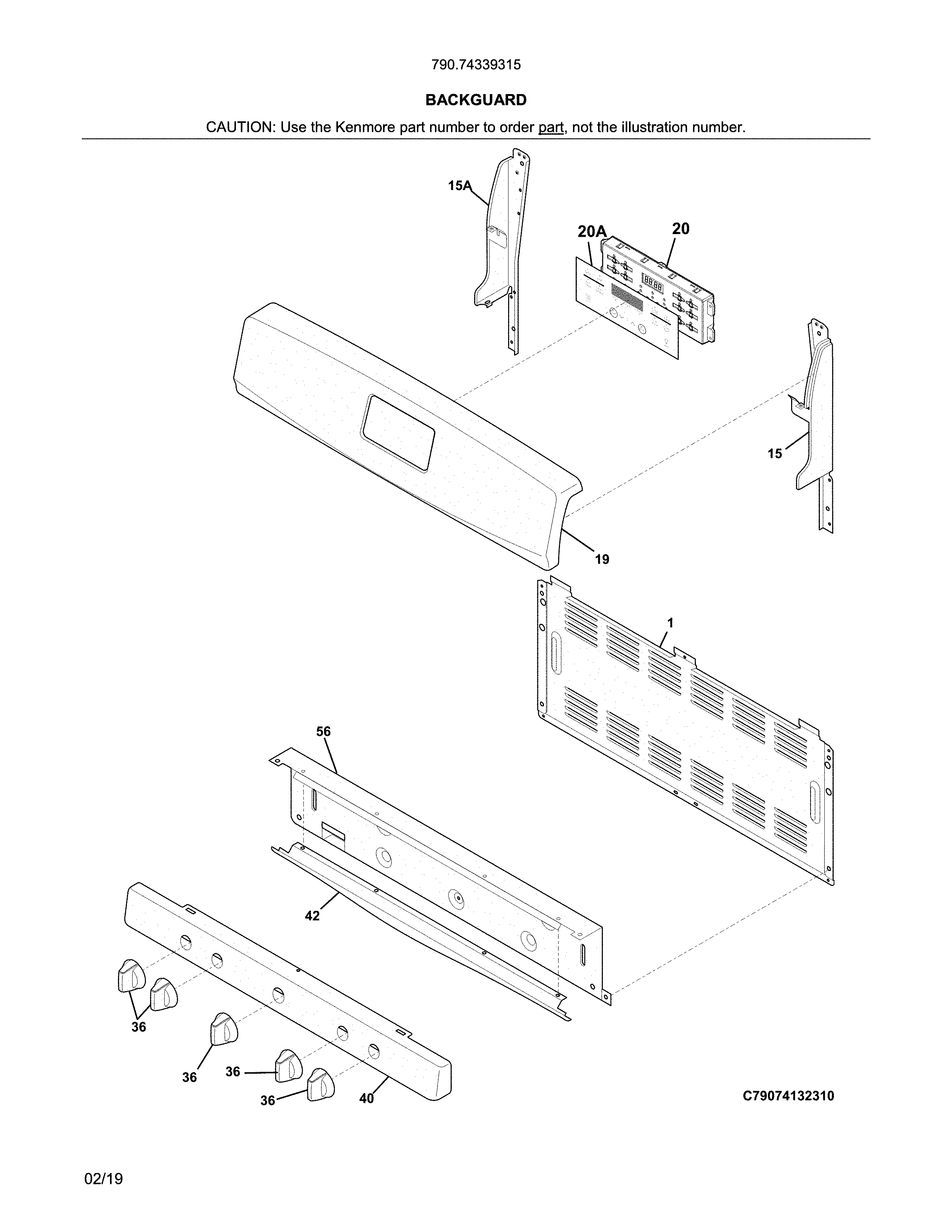

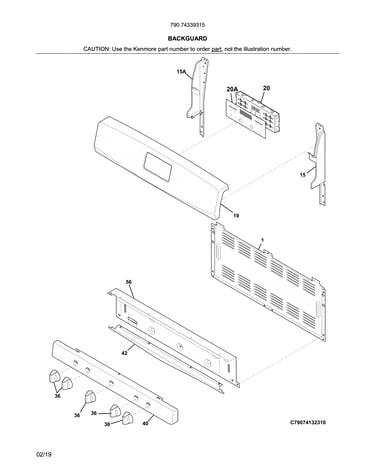

Backguard diagram

Range oven control overlay

Part #316655001

4.67 (6)
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22C

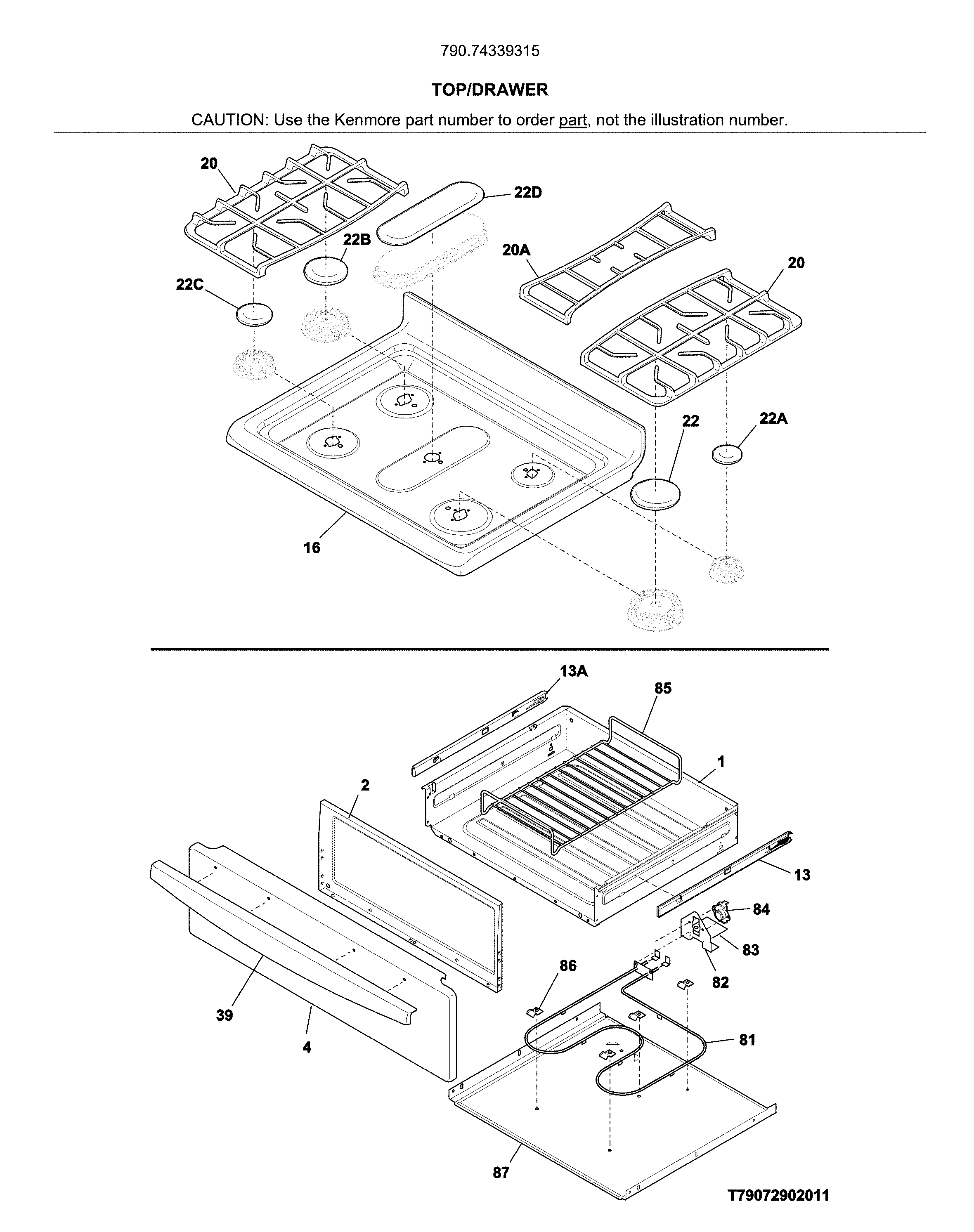

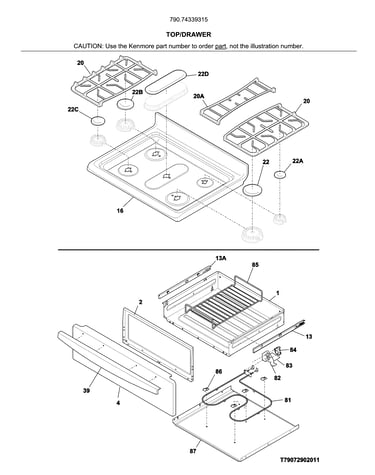

Top/drawer diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
3 (2)
BEST SELLER
$30.02 |
17% OFF Phone Price : $36.02
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10C

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

5 (1)
BEST SELLER
$38.68 |
17% OFF Phone Price : $46.72
In Stock
Tappan Range Surface Burner Igniter And Orifice Holder (replaces 316449500) 316536610
#11A

Burner diagram

Tappan range surface burner igniter and orifice holder (replaces 316449500)

Part #316536610

5 (1)
BEST SELLER
$73.52 |
8% OFF Phone Price : $79.52
In Stock
