Craftsman
Lawn Tractor Attachment

Model # 486245092 Official Craftsman remote hose kit

Here are the diagrams and repair parts for Official Craftsman 486245092 remote hose kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |

Lawn & Garden Equipment Nut 47189
#3

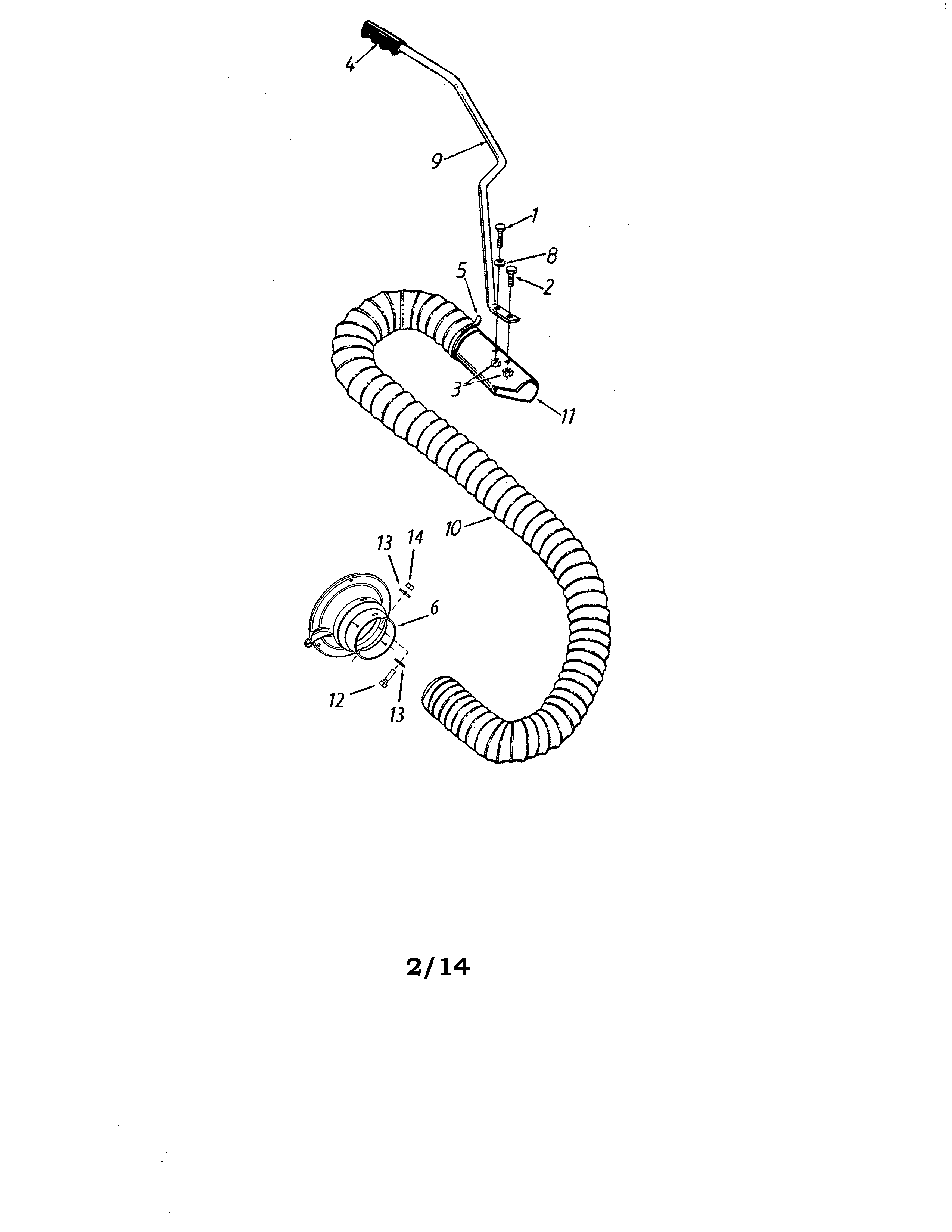

Remote hose kit diagram

Lawn & garden equipment nut

Part #47189

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Agri-fab Lawn Tractor Snow Blade Grip Handle 46471
#4

Remote hose kit diagram

Agri-fab lawn tractor snow blade grip handle

Part #46471

This item is not returnable
In Stock
Craftsman Lawn Tractor Lawn Vacuum Attachment Hose Nozzle Tube 731-01524
#11

Remote hose kit diagram

Craftsman lawn tractor lawn vacuum attachment hose nozzle tube

Part #731-01524

$25.39
19% OFF Phone Price : $31.39
In Stock
Lawn Tractor Lawn Vacuum Attachment Hose Handle 749-0005
#9

Remote hose kit diagram

Lawn tractor lawn vacuum attachment hose handle

Part #749-0005

Replaced by #749-0005BL3

?
Manufacturer substitution
This part replaces 749-0005. Substitute parts can look different from the original.
In Stock
Hex Bolt 43866
#2

Remote hose kit diagram

Hex bolt

Part #43866

This item is not returnable
Back Order
Craftsman Lawn Vacuum Hose Adapter 27720
#6

Remote hose kit diagram

Craftsman lawn vacuum hose adapter

Part #27720

$31.99
16% OFF Phone Price : $37.99
In Stock
Lawn & Garden Equipment Bowed Washer 44695
#8

Remote hose kit diagram

Lawn & garden equipment bowed washer

Part #44695

This item is not returnable
In Stock
Craftsman Lawn & Garden Equipment Washer 42977
#13

Remote hose kit diagram

Craftsman lawn & garden equipment washer

Part #42977

This item is not returnable
In Stock
Lawn & Garden Equipment Hex Bolt 43661
#12

Remote hose kit diagram

Lawn & garden equipment hex bolt

Part #43661

This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Nut, 1/4 X 20-in 43013
#14

Remote hose kit diagram

Lawn & garden equipment nut, 1/4 x 20-in

Part #43013

This item is not returnable
Back Order
