Kenmore
Mechanical Sewing Machine

Model # 14812182 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 14812182 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 184 parts  |
Kenmore Screw 202243
#16

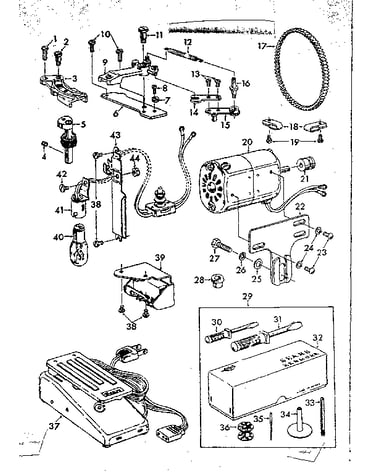

Motor assembly diagram

Kenmore screw

Part #202243

The manufacturer no longer makes this part, and there's no substitute part

Cord Holder 202067
#13

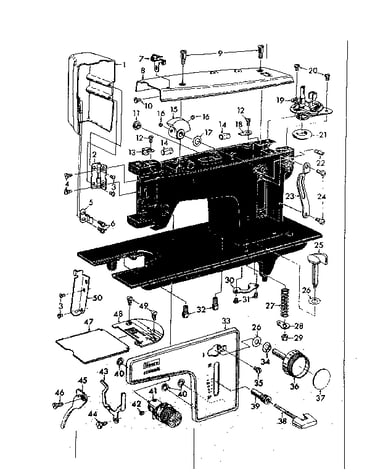

Base assembly diagram

Cord holder

Part #202067

The manufacturer no longer makes this part, and there's no substitute part

Feed Regulator 202184
#13

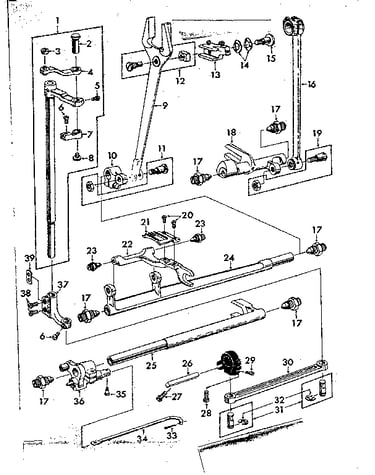

Unit parts diagram

Feed regulator

Part #202184

The manufacturer no longer makes this part, and there's no substitute part

Balance 202179
#21

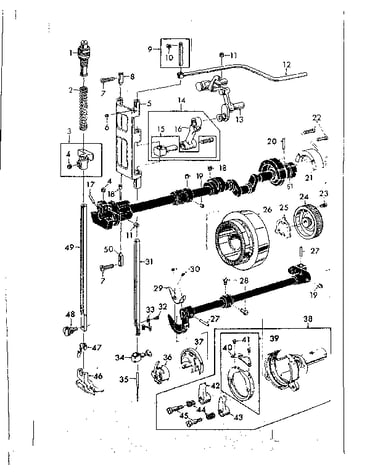

Connecting rod assembly diagram

Balance

Part #202179

The manufacturer no longer makes this part, and there's no substitute part

Cord Holder 202070
#18

Base assembly diagram

Cord holder

Part #202070

The manufacturer no longer makes this part, and there's no substitute part

Lever 202117
#14

Motor assembly diagram

Lever

Part #202117

The manufacturer no longer makes this part, and there's no substitute part

Supportr 202098
#5

Connecting rod assembly diagram

Supportr

Part #202098

The manufacturer no longer makes this part, and there's no substitute part

Rod 200341
#34

Unit parts diagram

Rod

Part #200341

The manufacturer no longer makes this part, and there's no substitute part

Washer 200753
#39

Unit parts diagram

Washer

Part #200753

The manufacturer no longer makes this part, and there's no substitute part

Screw 202143
#8

Unit parts diagram

Screw

Part #202143

The manufacturer no longer makes this part, and there's no substitute part
