Maytag
Electric Wall Oven

Model # CWE4800ACS Official Maytag electric wall oven

Here are the diagrams and repair parts for Official Maytag CWE4800ACS electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

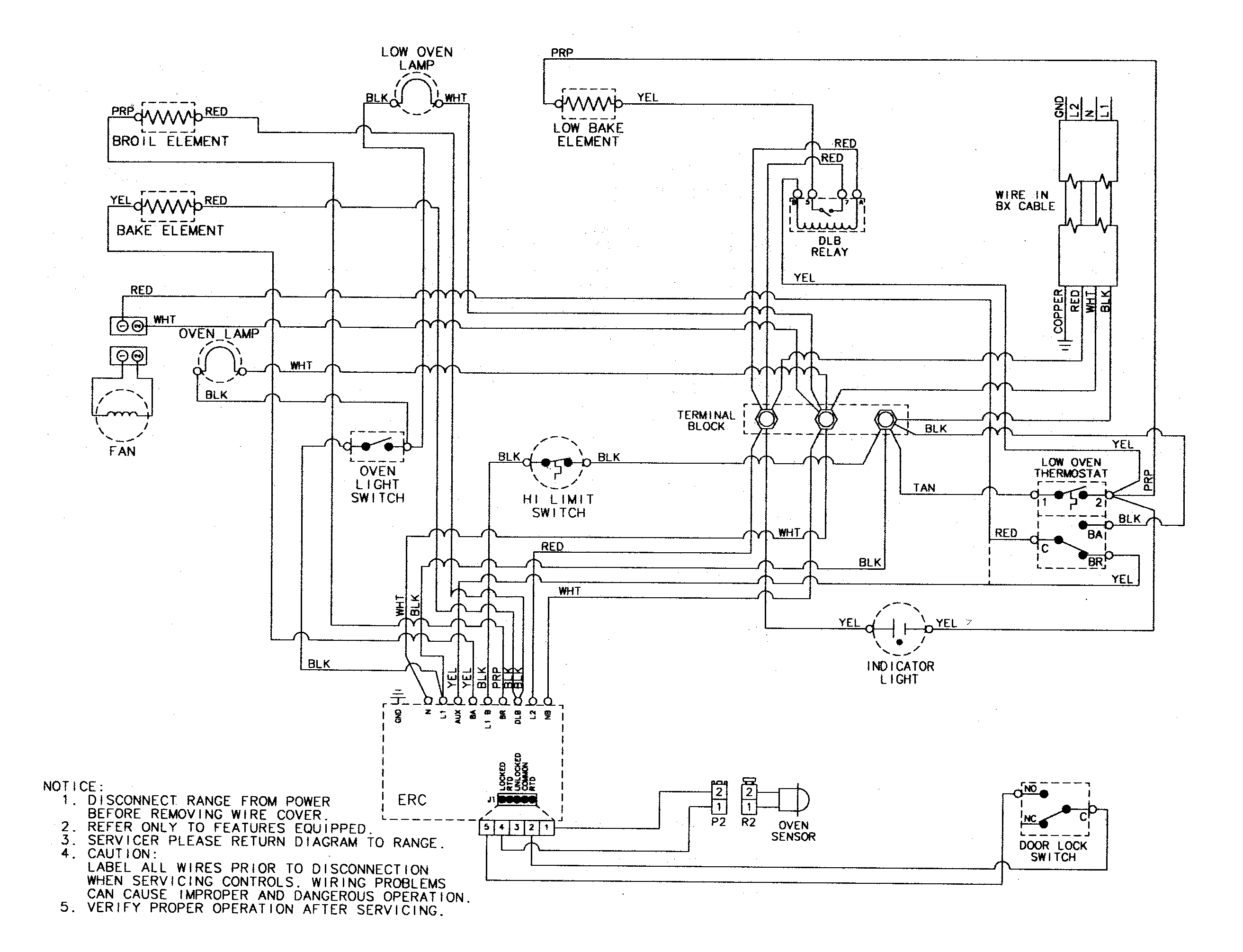

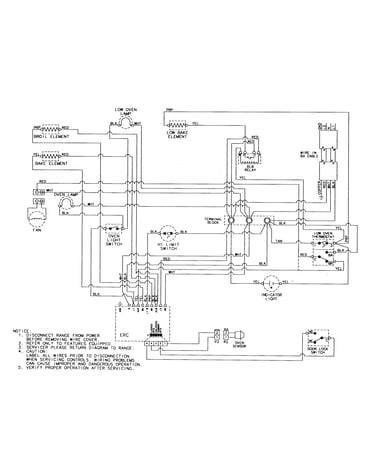

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Oven Bulb 7407P103-60
#8

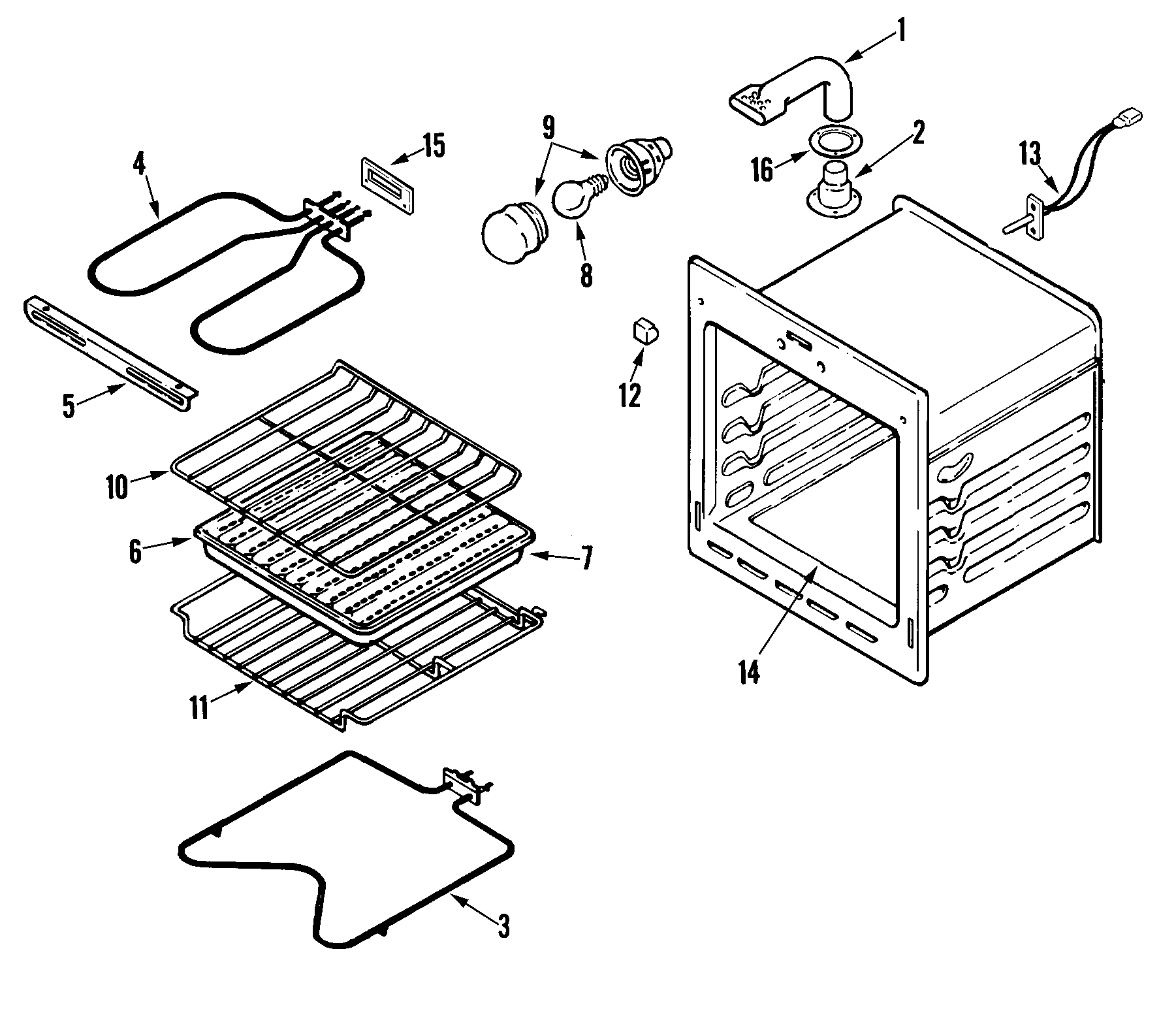

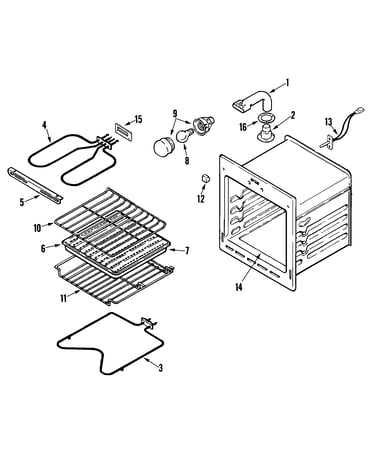

Oven (cwe4800acs) diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Terminal Block 7401P039-60
#14

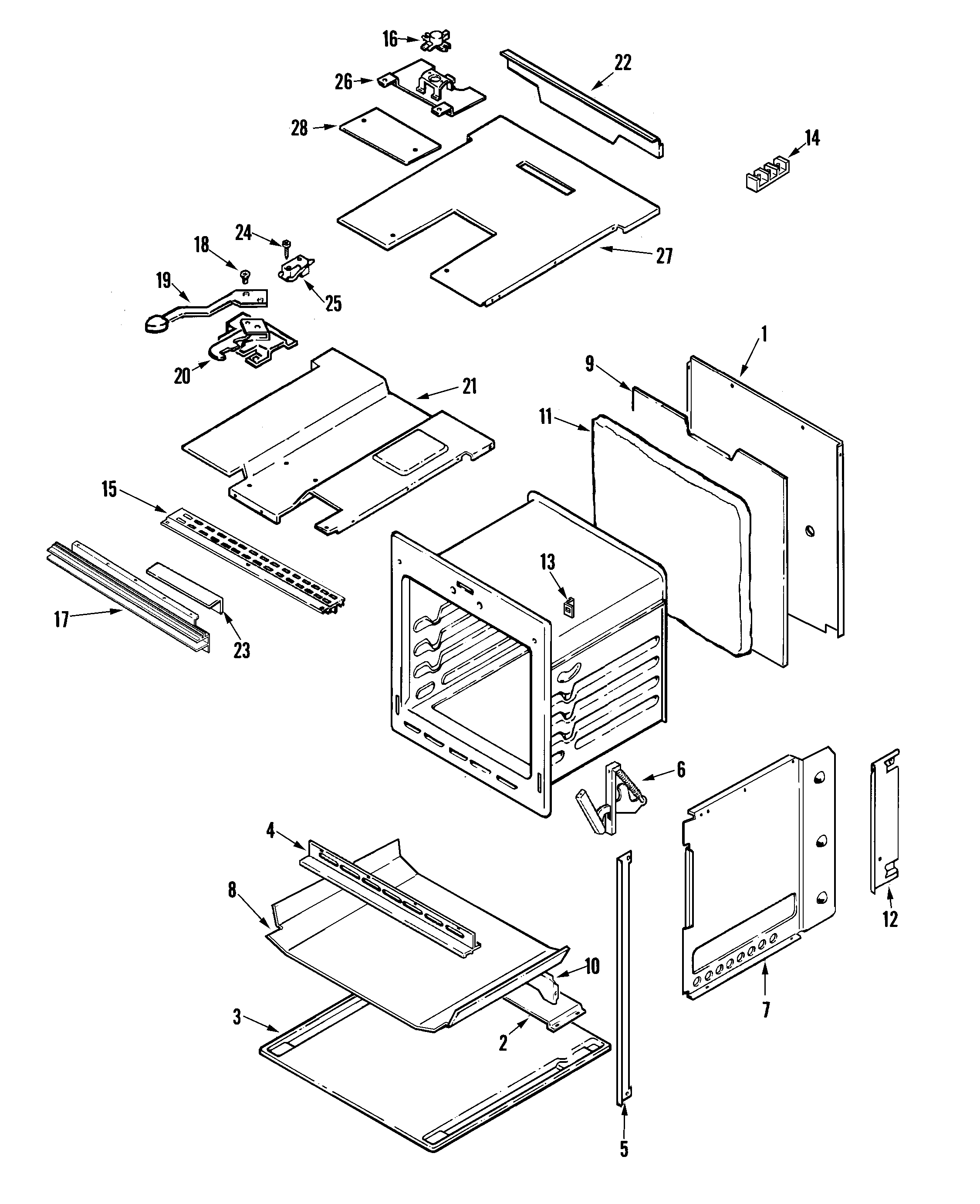

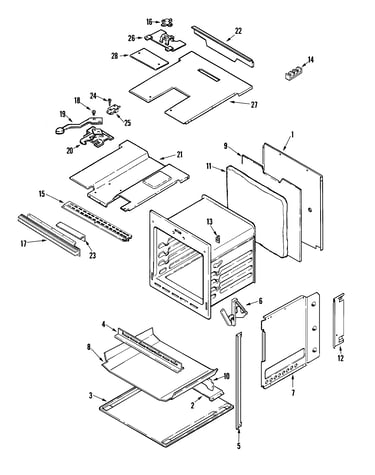

Body (cwe4800acs) diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 74010385
#13

Oven (cwe4800acs) diagram

Oven sensor

Part #74010385

Replaced by #WP7430P044-60

?
Manufacturer substitution
This part replaces 74010385. Substitute parts can look different from the original.
BEST SELLER
$90.48 |
6% OFF Phone Price : $96.48
In Stock
Screw 7101P282-60
#6A

Body (cwe4800acs) diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Oven Broiler Element 74001234
#4

Oven (cwe4800acs) diagram

Oven broiler element

Part #74001234

Replaced by #WP7406P203-60

?
Manufacturer substitution
This part replaces 74001234. Substitute parts can look different from the original.
$69.32 |
8% OFF Phone Price : $75.32
In Stock
Range Oven Door Seal 7212P006-60
#10

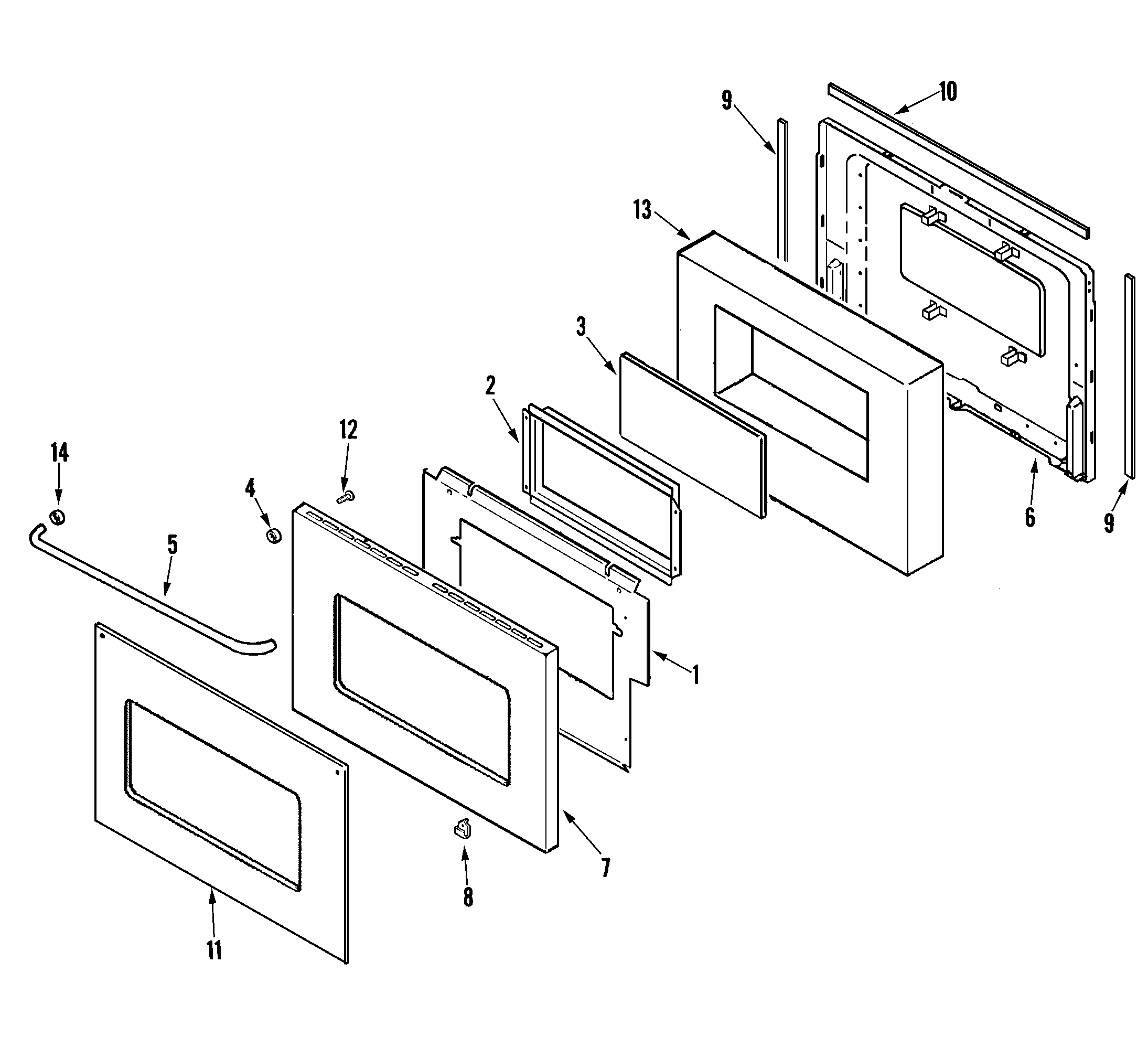

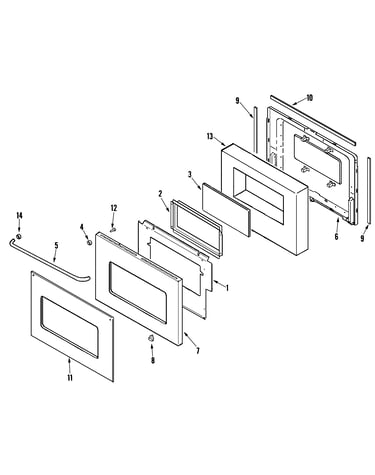

Door-lower (cwe4800acs/cwe5800acs) diagram

Range oven door seal

Part #7212P006-60

Replaced by #WP7212P006-60

?
Manufacturer substitution
This part replaces 7212P006-60. Substitute parts can look different from the original.
$47.20 |
11% OFF Phone Price : $53.20
In Stock
Oven Light 71002427
#9

Oven (cwe4800acs) diagram

Oven light

Part #71002427

Replaced by #WP74011278

?
Manufacturer substitution
This part replaces 71002427. Substitute parts can look different from the original.
$71.99 |
8% OFF Phone Price : $77.99
In Stock
Indicator Lens 7730P011-60
#14

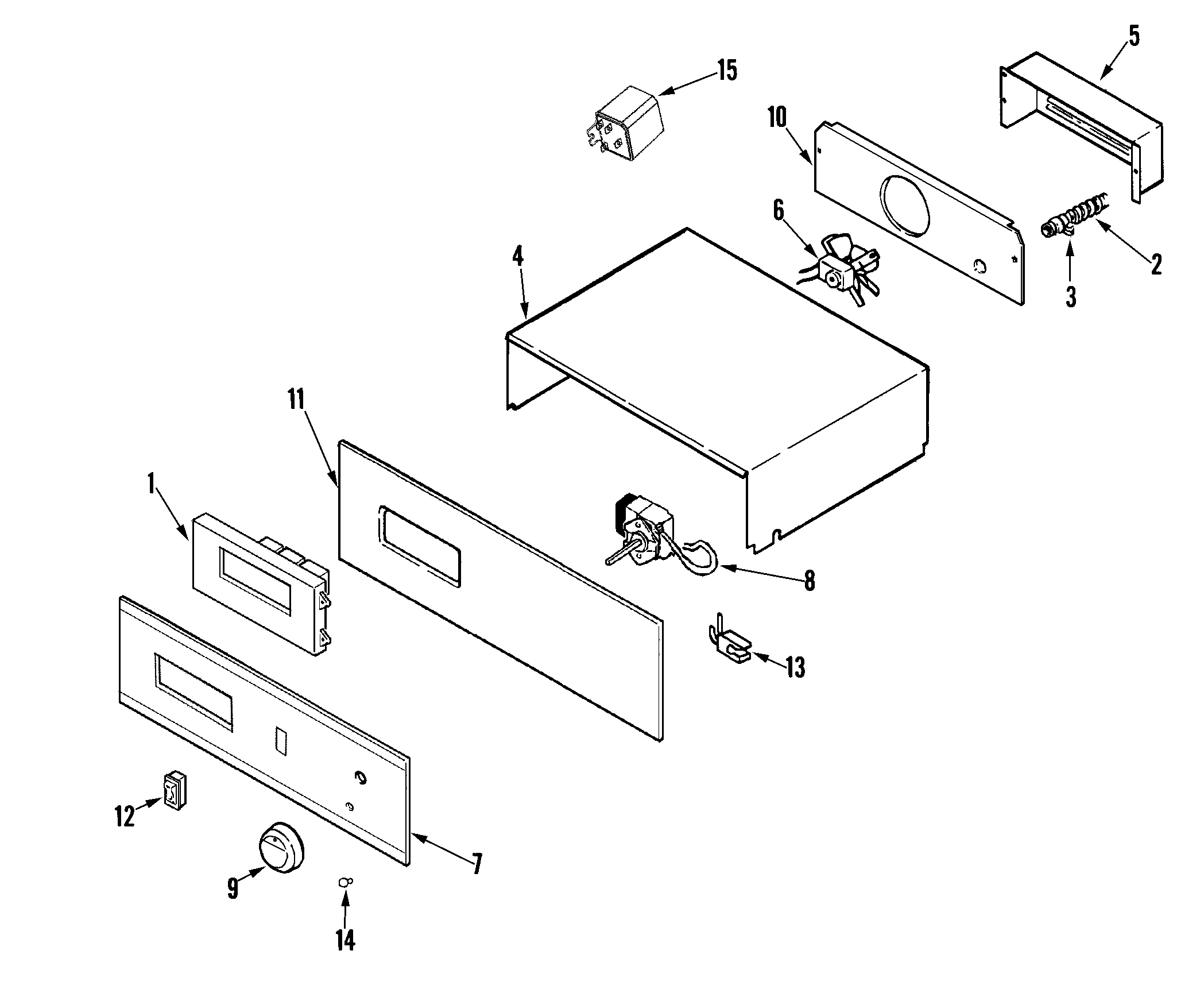

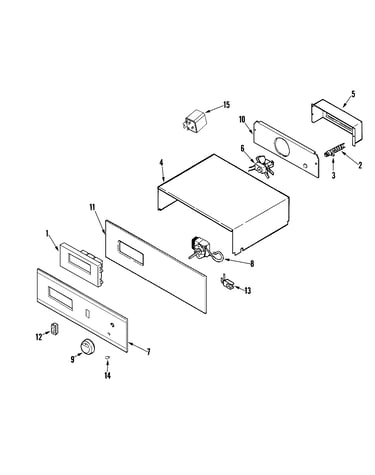

Control panel (cwe4800acs/cwe5800acs) diagram

Indicator lens

Part #7730P011-60

Replaced by #WP7730P011-60

?
Manufacturer substitution
This part replaces 7730P011-60. Substitute parts can look different from the original.
This item is not returnable
$4.99 |
17% OFF Phone Price : $5.99
In Stock
Wall Oven High-limit Thermostat (replaces 1832411, 551174, 7403e063, 7403p002-60, 790265, Y0s03010799) 7403P063-60
#16

Body (cwe4800acs) diagram

Wall oven high-limit thermostat (replaces 1832411, 551174, 7403e063, 7403p002-60, 790265, y0s03010799)

Part #7403P063-60

$87.49 |
6% OFF Phone Price : $93.49
In Stock
Screw 7101P356-60
Screw

Part #7101P356-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P356-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
