Model # 315175500 Official Craftsman detail biscuit joiner

Here are the diagrams and repair parts for Official Craftsman 315175500 detail biscuit joiner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for315175500 Detail Biscuit Joiner

  • Screw 612284-002
    #17

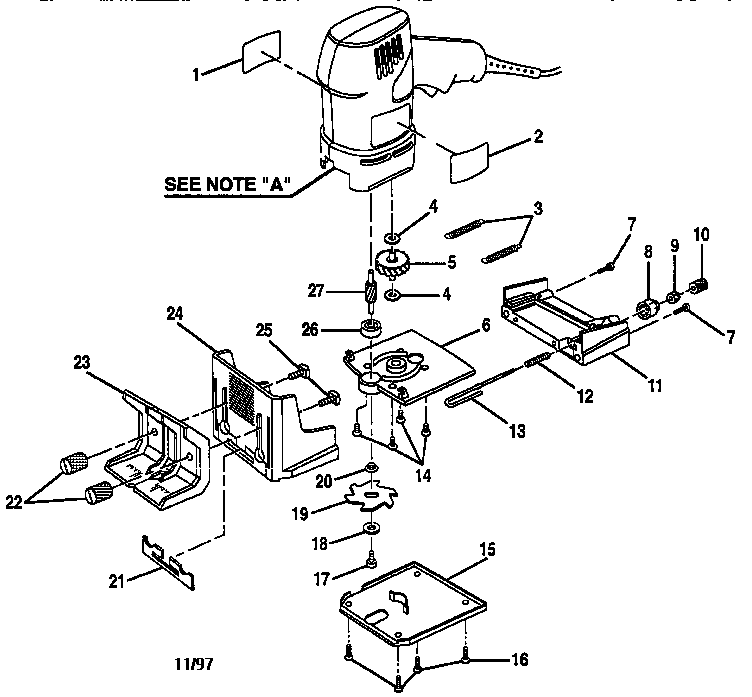

    Biscuit joiner diagram

    Screw

    Part #612284-002

    The manufacturer no longer makes this part, and there's no substitute part

  • Housing 975174-001
    #1

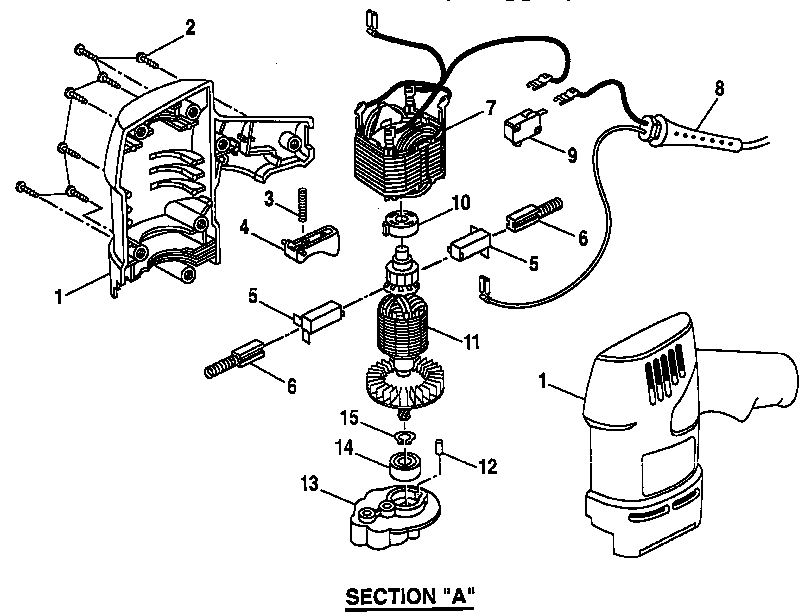

    Field and armature assembly diagram

    Housing

    Part #975174-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Ring 623111-004
    #15

    Field and armature assembly diagram

    Ring

    Part #623111-004

    The manufacturer no longer makes this part, and there's no substitute part

  • Bearing 990133-002
    #10

    Field and armature assembly diagram

    Bearing

    Part #990133-002

    The manufacturer no longer makes this part, and there's no substitute part

  • Knob 974220-001
    #22

    Biscuit joiner diagram

    Knob

    Part #974220-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Shoe 974212-001
    #15

    Biscuit joiner diagram

    Shoe

    Part #974212-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Blade 975797-001
    #28

    Biscuit joiner diagram

    Blade

    Part #975797-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Pad 974217-001
    #21

    Biscuit joiner diagram

    Pad

    Part #974217-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Trigger Switch 663702-002
    #4

    Field and armature assembly diagram

    Trigger switch

    Part #663702-002

    The manufacturer no longer makes this part, and there's no substitute part

  • Neoprne Plug 623019-002
    #12

    Field and armature assembly diagram

    Neoprne plug

    Part #623019-002

    The manufacturer no longer makes this part, and there's no substitute part
