Model # 106627461 Official Kenmore 17.1 cubic foot coldspot freezer
Here are the diagrams and repair parts for Official Kenmore 106627461 17.1 cubic foot coldspot freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for106627461 Freestanding Freezers
- #6
Freezer unit parts diagram
DrierPart #480017
Replaced by #W10843121
?Manufacturer substitutionThis part replaces 480017. Substitute parts can look different from the original.$30.82 |16% OFF Phone Price : $36.82In Stock - #60
Freezer unit parts diagram
Drier kitPart #480095
Replaced by #W10843121
?Manufacturer substitutionThis part replaces 480095. Substitute parts can look different from the original.$30.82 |16% OFF Phone Price : $36.82In Stock - #26

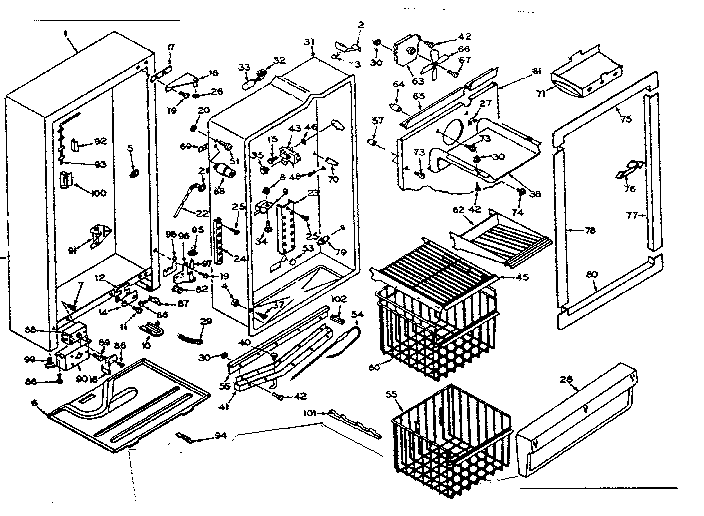

Freezer cabinet parts diagram
Refrigerator washerPart #487576
Replaced by #WP487576
?Manufacturer substitutionThis part replaces 487576. Substitute parts can look different from the original.This item is not returnable$6.53 |13% OFF Phone Price : $7.53In Stock - #72
Freezer unit parts diagram
ScrewPart #486993
Replaced by #WP488729
?Manufacturer substitutionThis part replaces 486993. Substitute parts can look different from the original.This item is not returnable$4.17 |19% OFF Phone Price : $5.17In Stock - #3
Freezer door parts diagram
ScrewPart #487909
Replaced by #WP488729
?Manufacturer substitutionThis part replaces 487909. Substitute parts can look different from the original.This item is not returnable$4.17 |19% OFF Phone Price : $5.17In Stock #NI
All parts diagram
Touch-up paint (white)Part #799343
Replaced by #350930
?Manufacturer substitutionThis part replaces 799343. Substitute parts can look different from the original.This item is not returnable$15.69 |11% OFF Phone Price : $17.69In Stock- #43
Freezer cabinet parts diagram
ThermostatPart #530759
Replaced by #4389248
?Manufacturer substitutionThis part replaces 530759. Substitute parts can look different from the original.$106.40 |10% OFF Phone Price : $118.40In Stock - #2
Freezer unit parts diagram
ControlPart #531668
Replaced by #WP4387489
?Manufacturer substitutionThis part replaces 531668. Substitute parts can look different from the original.$32.31 |16% OFF Phone Price : $38.31In Stock - #2A
Freezer unit parts diagram
ControlPart #531669
Replaced by #WP4387489
?Manufacturer substitutionThis part replaces 531669. Substitute parts can look different from the original.$32.31 |16% OFF Phone Price : $38.31In Stock #NI
All parts diagram
Sears refrigerator permagum sealerPart #212643
This item is not returnable$47.59 |11% OFF Phone Price : $53.59In Stock
