Yamaha
Receiver

Model # RX-V673 Official Yamaha audio receiver

Here are the diagrams and repair parts for Official Yamaha RX-V673 audio receiver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Battery Cover AAX82380
#2001

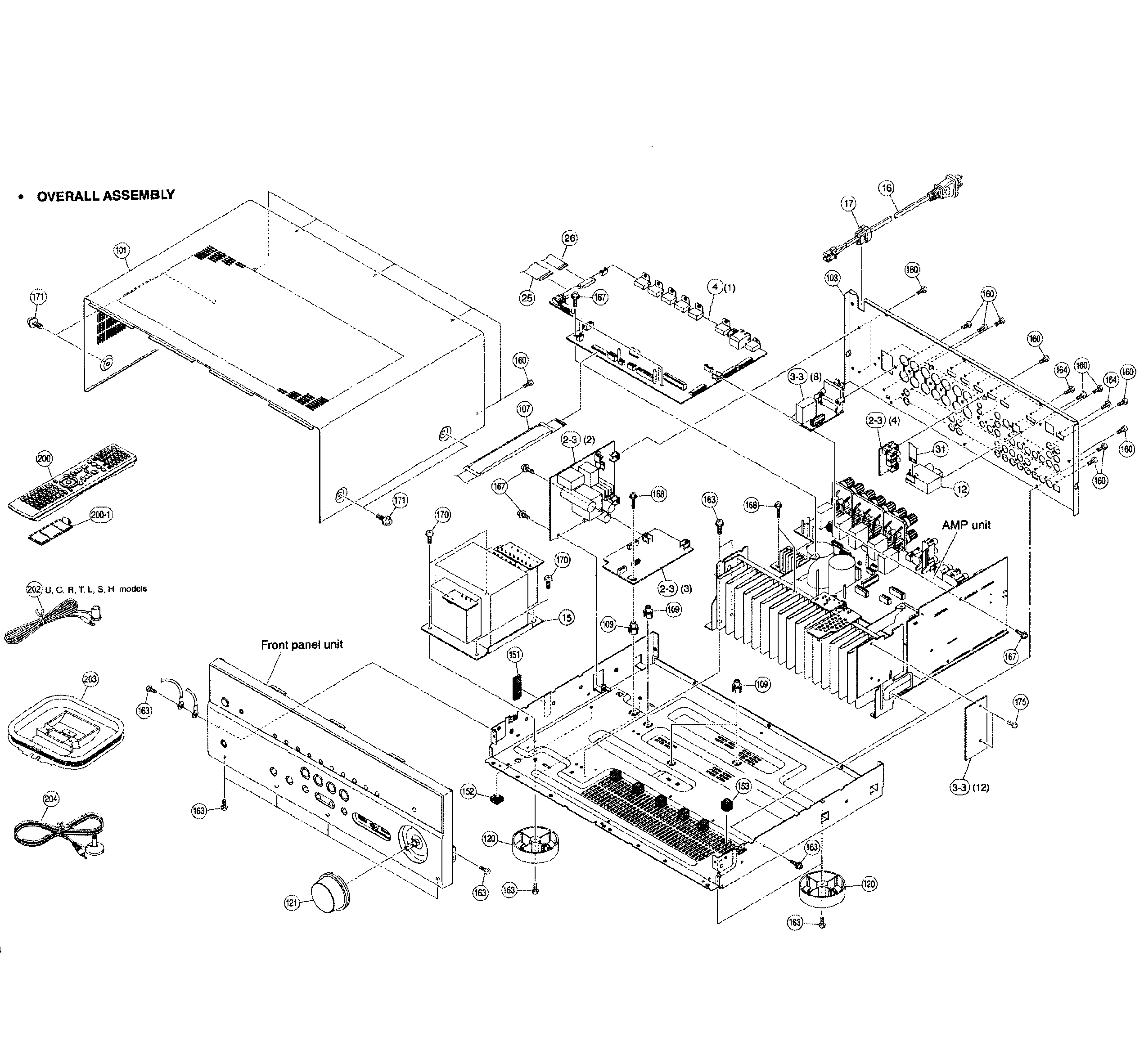

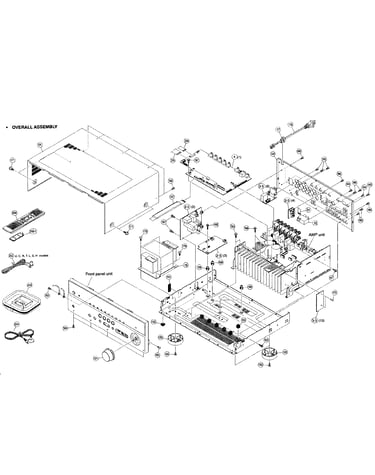

Cabinet parts diagram

Battery cover

Part #AAX82380

The manufacturer no longer makes this part, and there's no substitute part

Transistor VR355900
#NI

Cabinet parts diagram

Transistor

Part #VR355900

The manufacturer no longer makes this part, and there's no substitute part

Ic153,ic YA361B00
#NI

Cabinet parts diagram

Ic153,ic

Part #YA361B00

The manufacturer no longer makes this part, and there's no substitute part

Cable,26p WY194500
#3-15

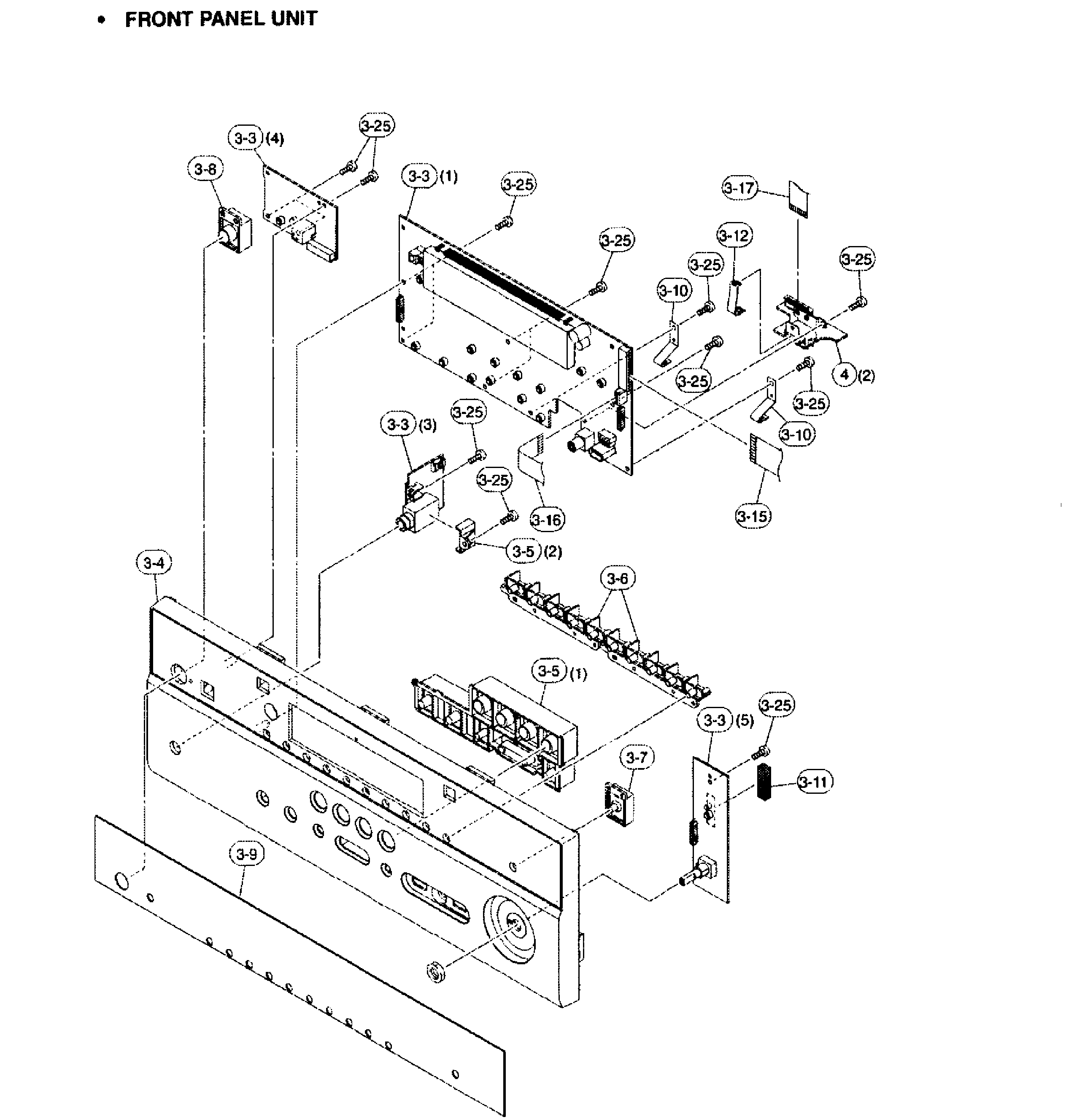

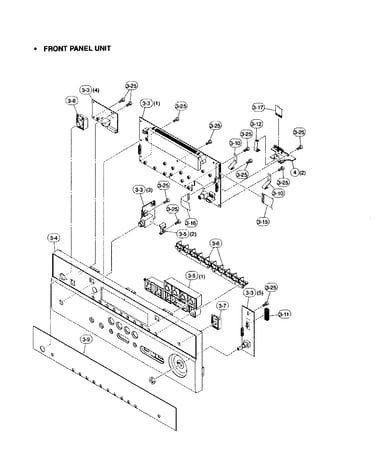

Front panel diagram

Cable,26p

Part #WY194500

The manufacturer no longer makes this part, and there's no substitute part

Flex Cable ZC038600
#25

Cabinet parts diagram

Flex cable

Part #ZC038600

The manufacturer no longer makes this part, and there's no substitute part

Transistor V4096100
#NI

Cabinet parts diagram

Transistor

Part #V4096100

The manufacturer no longer makes this part, and there's no substitute part

Transistor WC398400
#NI

Cabinet parts diagram

Transistor

Part #WC398400

The manufacturer no longer makes this part, and there's no substitute part

Ic X8136A00
#NI

Cabinet parts diagram

Ic

Part #X8136A00

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit XY549A00
#NI

Cabinet parts diagram

Integrated circuit

Part #XY549A00

The manufacturer no longer makes this part, and there's no substitute part

Spacer WS000800
#2-20

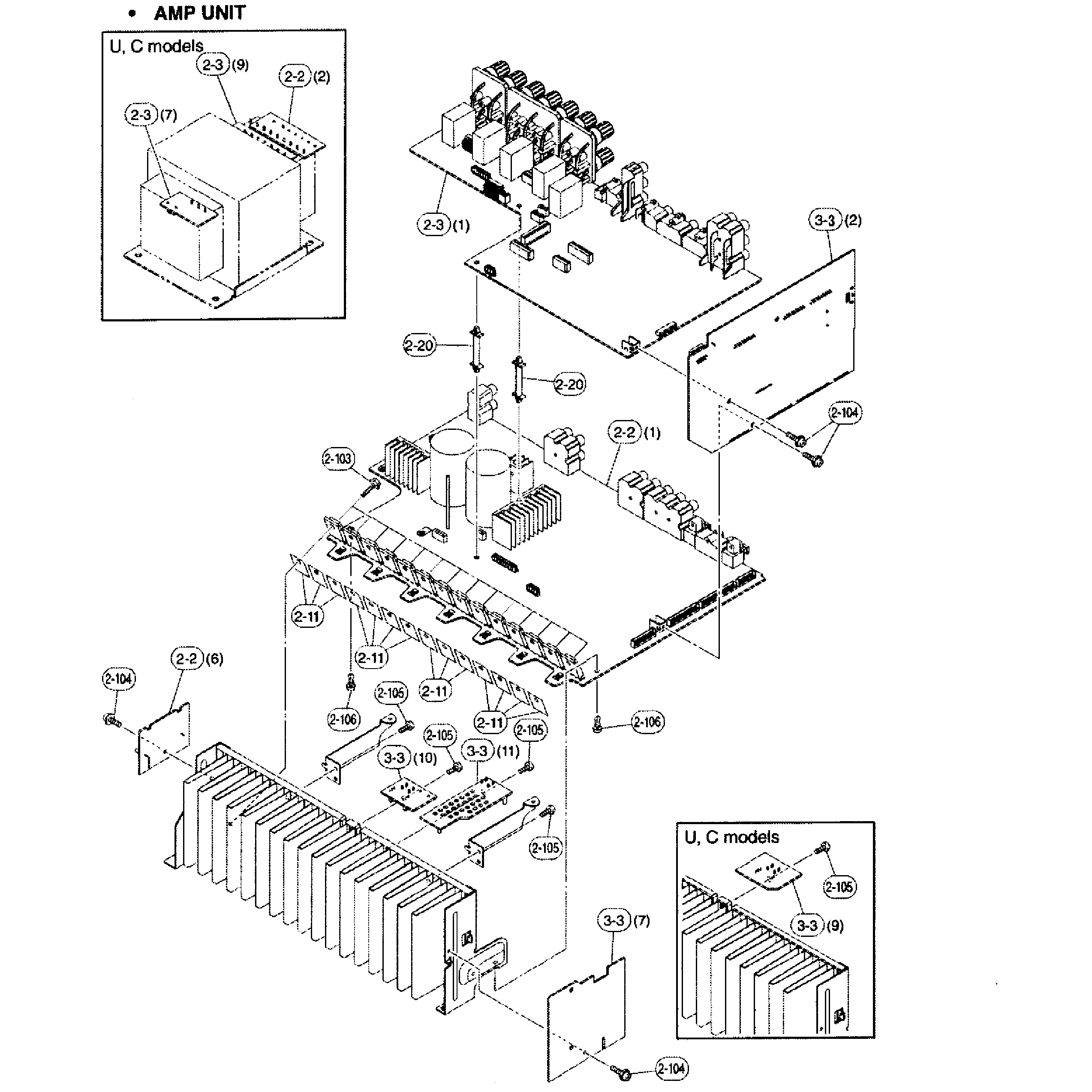

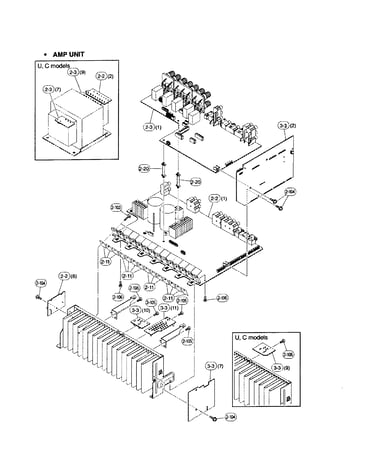

Amp unit diagram

Spacer

Part #WS000800

The manufacturer no longer makes this part, and there's no substitute part
