Frigidaire
Chest Freezer

Model # FFFC04M1LW Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFFC04M1LW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
Cover 5304481320
#26

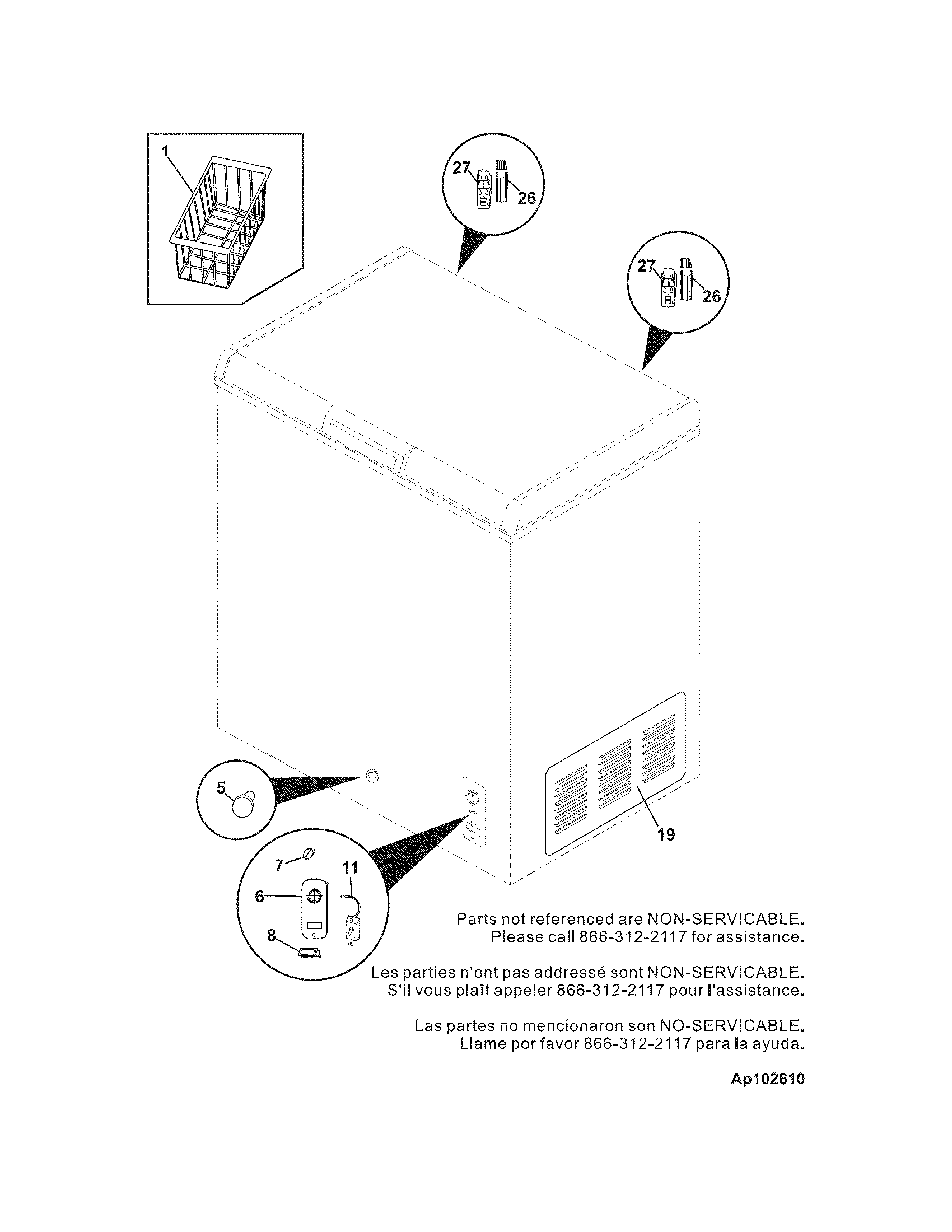

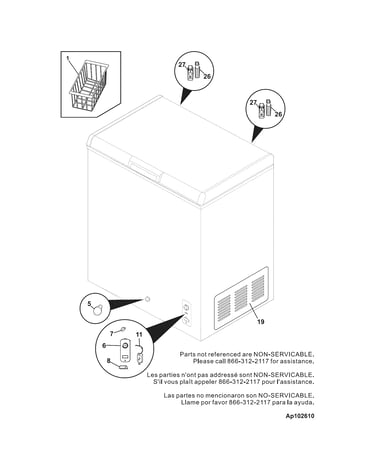

Replacement parts list diagram

Cover

Part #5304481320

The manufacturer no longer makes this part, and there's no substitute part

Hinge 5304481321
#27

Replacement parts list diagram

Hinge

Part #5304481321

The manufacturer no longer makes this part, and there's no substitute part

Power Indicator 5304481317
#8

Replacement parts list diagram

Power indicator

Part #5304481317

The manufacturer no longer makes this part, and there's no substitute part

Basket 5304481313
#1

Replacement parts list diagram

Basket

Part #5304481313

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 5304481318
#11

Replacement parts list diagram

Thermostat

Part #5304481318

The manufacturer no longer makes this part, and there's no substitute part

Dial 5304481316
#7

Replacement parts list diagram

Dial

Part #5304481316

The manufacturer no longer makes this part, and there's no substitute part

Panel 5304481319
#19

Replacement parts list diagram

Panel

Part #5304481319

The manufacturer no longer makes this part, and there's no substitute part

Plug 5304481314
#5

Replacement parts list diagram

Plug

Part #5304481314

The manufacturer no longer makes this part, and there's no substitute part

Panel 5304481315
#6

Replacement parts list diagram

Panel

Part #5304481315

The manufacturer no longer makes this part, and there's no substitute part
