Samsung
Bottom-Mount Refrigerator

Model # RF32FMQDBSR/AA-07 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF32FMQDBSR-AA-07 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 274 parts  |
Refrigerator Ice Maker Assembly DA97-12317A
#26

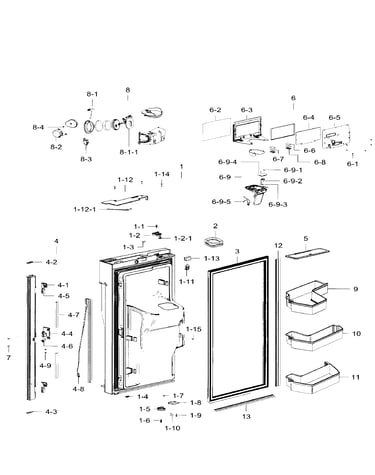

Fridge diagram

Refrigerator ice maker assembly

Part #DA97-12317A

Replaced by #DA97-15217D

?
Manufacturer substitution
This part replaces DA97-12317A. Substitute parts can look different from the original.
BEST SELLER
$106.30 |
10% OFF Phone Price : $118.30
In Stock
Refrigerator Temperature Sensor DA32-10104N
Refrigerator temperature sensor

Part #DA32-10104N

BEST SELLER
$24.24 |
20% OFF Phone Price : $30.24
In Stock
Refrigerator Ice Container DA97-14474A
#30

Fridge diagram

Refrigerator ice container

Part #DA97-14474A

Replaced by #DA97-14474C

?
Manufacturer substitution
This part replaces DA97-14474A. Substitute parts can look different from the original.
BEST SELLER
$167.77 |
7% OFF Phone Price : $179.77
In Stock
Filtr Dryr DA62-04309B
#2

Cycle diagram

Filtr dryr

Part #DA62-04309B

Replaced by #DA81-06006B

?
Manufacturer substitution
This part replaces DA62-04309B. Substitute parts can look different from the original.
BEST SELLER
$90.27 |
6% OFF Phone Price : $96.27
In Stock
Refrigerator Water Inlet Valve DA62-04027A
#11-6

Fridge diagram

Refrigerator water inlet valve

Part #DA62-04027A

BEST SELLER
$120.24 |
9% OFF Phone Price : $132.24
In Stock
Refrigerator Ice Room Fan Motor Assembly DA31-00070E
#27-2

Fridge diagram

Refrigerator ice room fan motor assembly

Part #DA31-00070E

BEST SELLER
$72.14 |
8% OFF Phone Price : $78.14
In Stock
Refrigerator Door Hinge DA97-12573A
#25

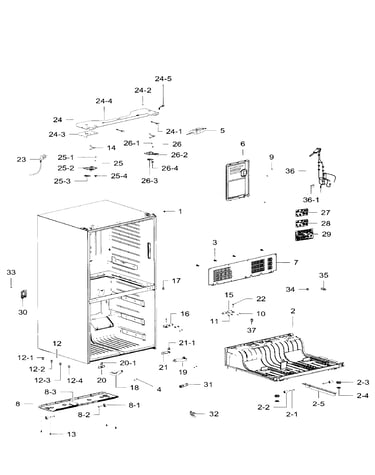

Cabinet diagram

Refrigerator door hinge

Part #DA97-12573A

BEST SELLER
$52.08 |
10% OFF Phone Price : $58.08
In Stock
Refrigerator Door Closer DA97-12625A
Refrigerator door closer

Part #DA97-12625A

BEST SELLER
This item is not returnable
$19.72 |
9% OFF Phone Price : $21.72
In Stock
Refrigerator Evaporator Fan Motor DA31-00334A
Refrigerator evaporator fan motor

Part #DA31-00334A

Replaced by #DA31-00334C

?
Manufacturer substitution
This part replaces DA31-00334A. Substitute parts can look different from the original.
BEST SELLER
$105.52 |
10% OFF Phone Price : $117.52
In Stock
Refrigerator Door Reed Switch DA34-00043A
Refrigerator door reed switch

Part #DA34-00043A

Replaced by #DA34-00043J

?
Manufacturer substitution
This part replaces DA34-00043A. Substitute parts can look different from the original.
$22.11 |
21% OFF Phone Price : $28.11
In Stock
