Model # 536250922 Official Craftsman 36" lawn tractor
Here are the diagrams and repair parts for Official Craftsman 536250922 36" lawn tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part

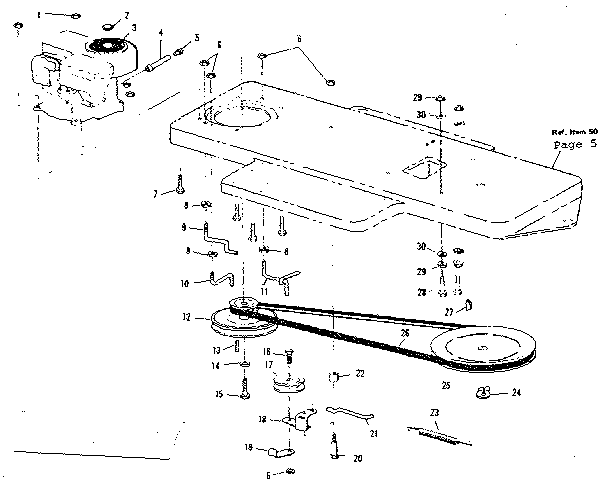

SELECT DIAGRAM
Browse Parts for
536250922 Riding Mowers & Tractors
#24

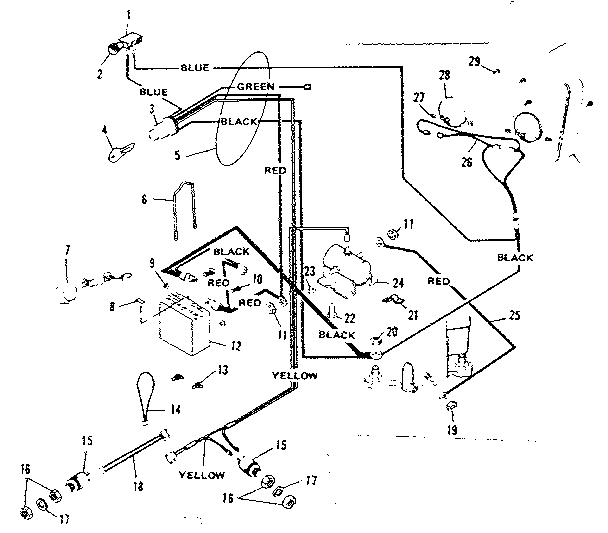

Wiring diagram diagram
Solenoid
Part #44429
Replaced by #532146154
?
Manufacturer substitution
This part replaces 44429. Substitute parts can look different from the original.
$28.30 |
17% OFF Phone Price : $34.30
In Stock
#33

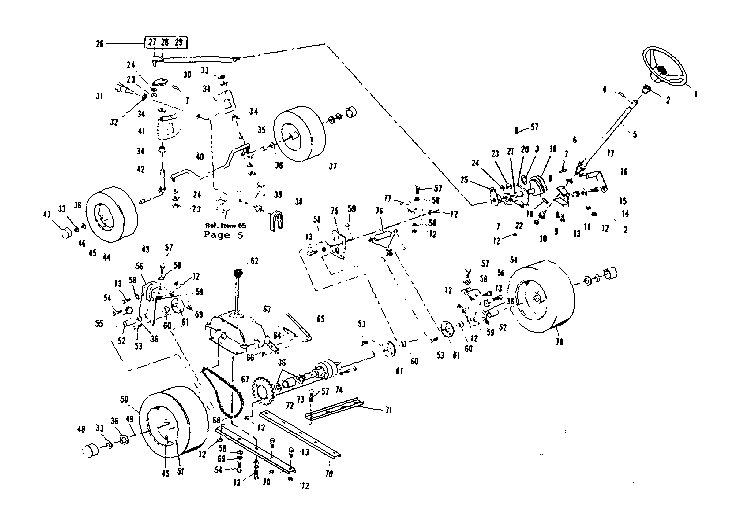

Steering and front axle diagram
Retaining ring
Part #36625
Replaced by #812000029
?
Manufacturer substitution
This part replaces 36625. Substitute parts can look different from the original.
This item is not returnable
$4.51 |
18% OFF Phone Price : $5.51
In Stock
Lock nut
Part #9424215
Replaced by #703251
?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07 |
11% OFF Phone Price : $9.07
In Stock
#8

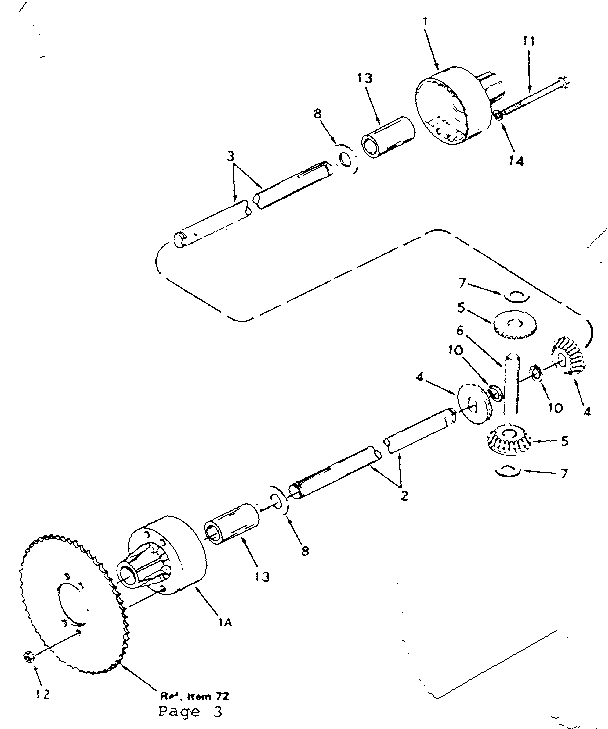

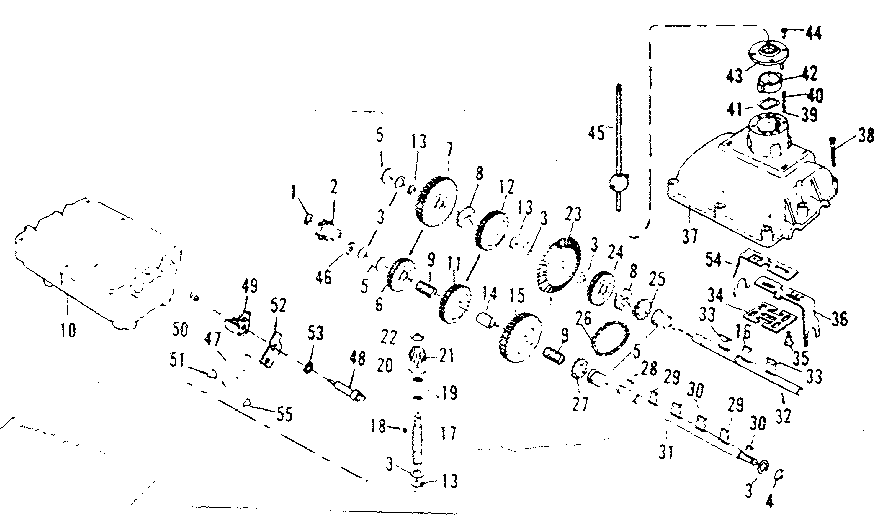

Differential no. 794134 diagram
Washer
Part #78001
Replaced by #780001
?
Manufacturer substitution
This part replaces 78001. Substitute parts can look different from the original.
This item is not returnable
$4.34
In Stock
#5
Differential no. 794134 diagram
Gear
Part #778068
Replaced by #778131
?
Manufacturer substitution
This part replaces 778068. Substitute parts can look different from the original.
$32.71 |
15% OFF Phone Price : $38.71
In Stock
#39

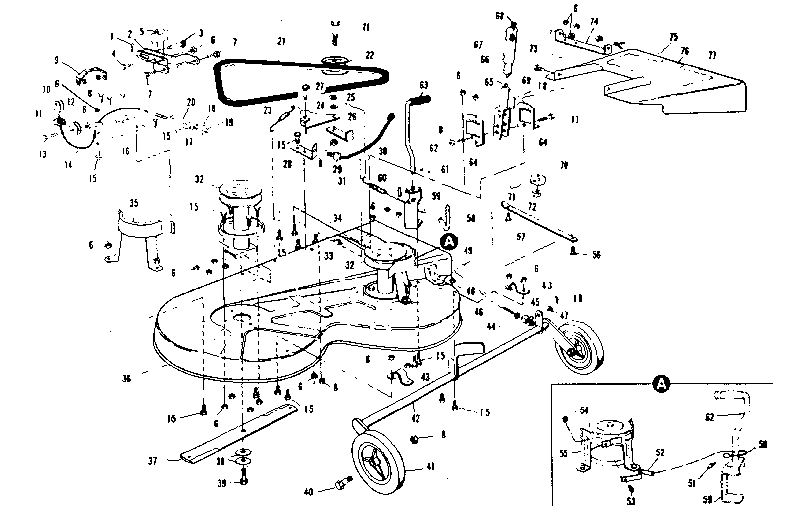

Mower deck diagram
Screw
Part #39573
Replaced by #1X20MA
?
Manufacturer substitution
This part replaces 39573. Substitute parts can look different from the original.
$7.57
In Stock
Car bolt
Part #126211
Replaced by #703159
?
Manufacturer substitution
This part replaces 126211. Substitute parts can look different from the original.
This item is not returnable
$6.69
In Stock
Washer
Part #845
Replaced by #17X168ZMA
?
Manufacturer substitution
This part replaces 845. Substitute parts can look different from the original.
$11.26
In Stock
#84

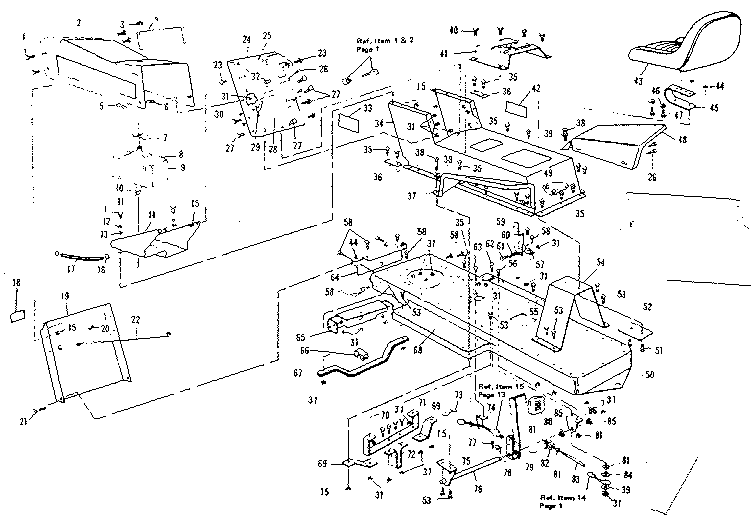

Top half diagram
Washer
Part #8728
Replaced by #783000MA
?
Manufacturer substitution
This part replaces 8728. Substitute parts can look different from the original.
This item is not returnable
$9.34
In Stock
#4
Differential no. 794134 diagram
Gear
Part #778067
Replaced by #778132
?
Manufacturer substitution
This part replaces 778067. Substitute parts can look different from the original.
$28.44
In Stock
Most common symptoms to help you fix your riding mowers & tractors
Choose a symptom to see related riding mower and lawn tractor repairs.
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged ma…
Main causes: faulty battery, bad alternator…
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim…
Main causes: dead battery, stale fuel, bad starter solenoid, ignition system problem, bad ignition interlock switch, clo…
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly…
Main causes: shift lever needs adjustment, neutral control needs adjustment…
Main causes: clogged carburetor, damaged flywheel key, dirty spark plug, stale fuel, improper valve lash, engine needs a…
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, …
Main causes: unlevel mower deck, dull or damaged cutting blades, worn mandrel pulleys, bent mower deck, engine needs tun…
Most common repair guides to help fix your riding mowers & tractors
These step-by-step repair guides will help you safely fix what’s broken on your riding mower or lawn tractor.
How to replace a mandrel assembly on a riding lawn mower
Replace the mandrel assembly if the blade shaft vibrates or doesn't spin.…
Repair difficulty
Time required
30 minutes or less
How to replace the flywheel key on a riding lawn mower
If the engine won't restart after hitting a stump or rock, the problem could be a sheared flywheel key. Follow these ste…
Repair difficulty
Time required
60 minutes or less
How to replace a riding lawn mower ignition coil
If you're not getting spark from a good spark plug, the problem could be the ignition coil. Follow these step-by-step in…
Repair difficulty
Time required
30 minutes or less
Effective articles & videos to help repair your riding mowers & tractors
Use the advice and tips in these articles and videos to get the most out of your riding mower or lawn tractor.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Check the starter solenoid, starter motor, wiring, battery and engine.…
