Model # 919154210 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919154210 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 55 parts |

#NI

All parts diagram

Owner's manual

Part #M-154210-310

The manufacturer no longer makes this part, and there's no substitute part

#36

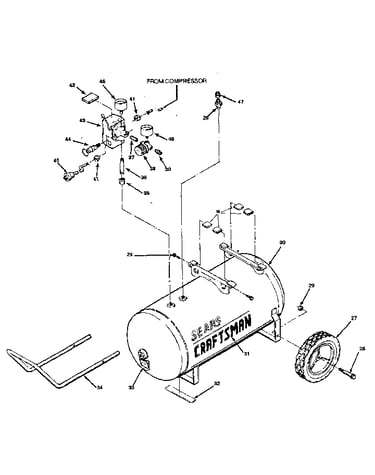

Compressor pump diagram

Nipple

Part #SS-2104

The manufacturer no longer makes this part, and there's no substitute part

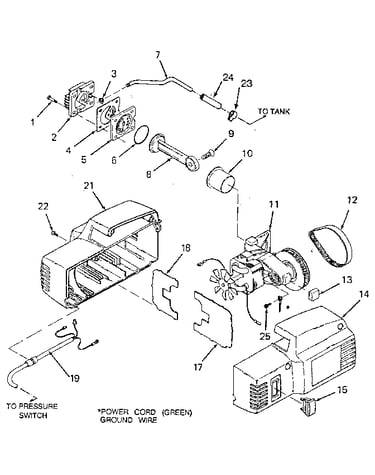

Air compressor diagram

Porter cable air compressor cylinder head cover screw

Part #SSF-995

The manufacturer no longer makes this part, and there's no substitute part

#15

Air compressor diagram

Switch cover

Part #CAC-1283

The manufacturer no longer makes this part, and there's no substitute part

#16

Air compressor diagram

Air compressor pump isolator

Part #CAC-1254

The manufacturer no longer makes this part, and there's no substitute part

#26

Compressor pump diagram

Companion air compressor screw

Part #CAC-60

The manufacturer no longer makes this part, and there's no substitute part

Air compressor diagram

Air compressor cylinder head

Part #CAC-1196

The manufacturer no longer makes this part, and there's no substitute part

#44

Compressor pump diagram

Unknown brand name #696 air compressor safety valve

Part #TIA-4150

The manufacturer no longer makes this part, and there's no substitute part

#38

Compressor pump diagram

Regulator

Part #CAC-4296

The manufacturer no longer makes this part, and there's no substitute part

Air compressor diagram

Head gasket

Part #CAC-1199

The manufacturer no longer makes this part, and there's no substitute part
