Model # DC821B TYPE 1 Official DeWalt wrench

Here are the diagrams and repair parts for Official DeWalt DC821B-TYPE-1 wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Batteries

ALL PARTS

Showing 10 of 26 parts |

Black & Decker Power Tool Battery Pack, 18-volt DC9096

#NI

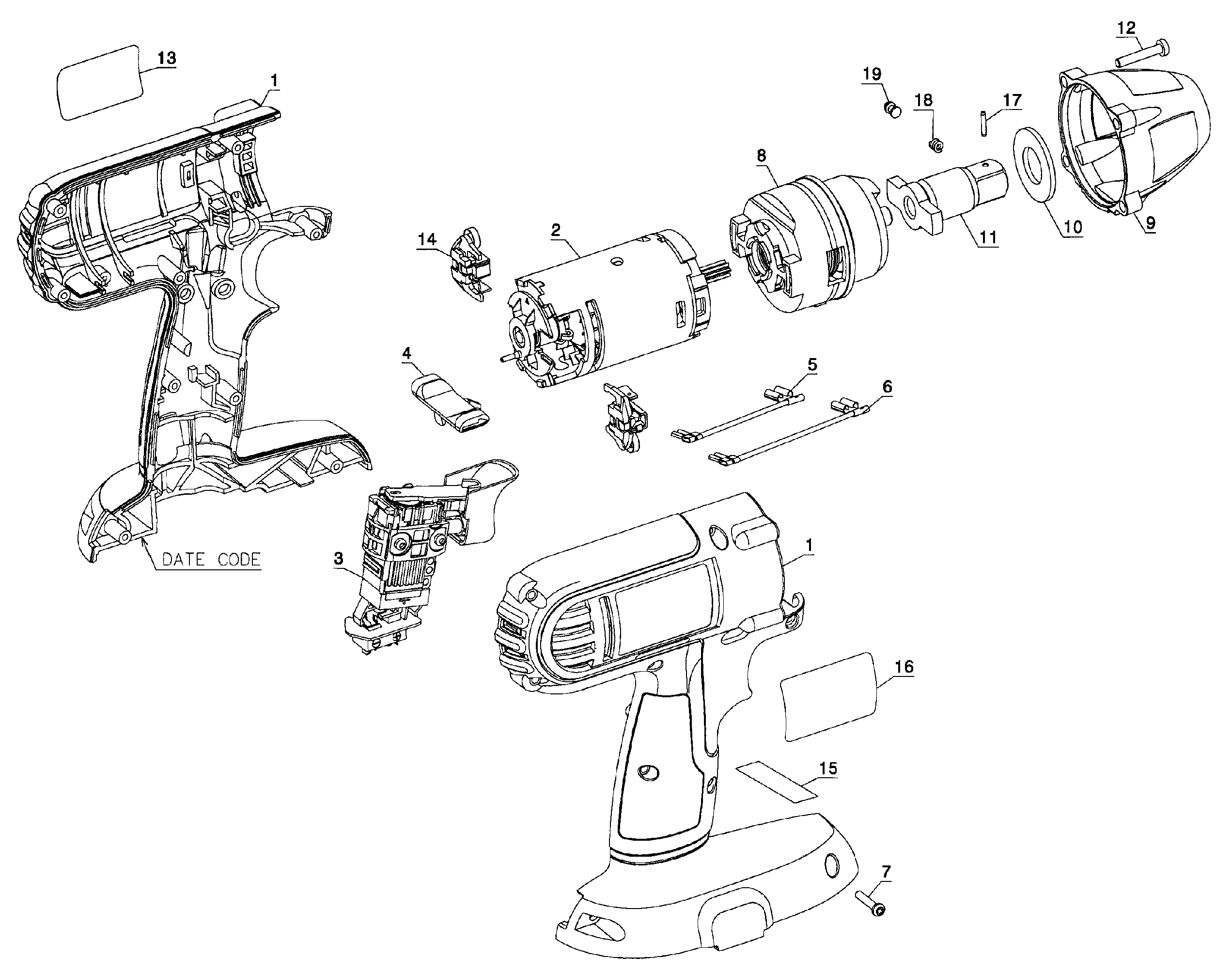

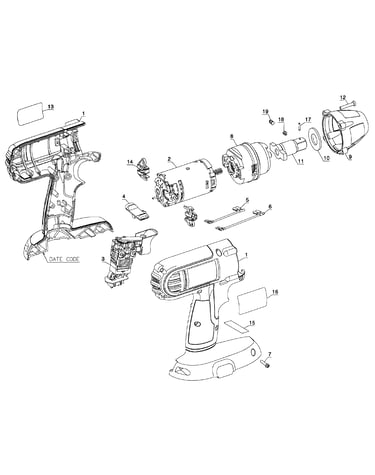

Wrench assy diagram

Black & decker power tool battery pack, 18-volt

Part #DC9096

The manufacturer no longer makes this part, and there's no substitute part

#NI

Wrench assy diagram

Black & decker battry cap

Part #645221-00

The manufacturer no longer makes this part, and there's no substitute part

#NI

Wrench assy diagram

Drill battery charger

Part #388683-12

The manufacturer no longer makes this part, and there's no substitute part

#NI

Wrench assy diagram

Kit box

Part #652211-00

The manufacturer no longer makes this part, and there's no substitute part

#18

Wrench assy diagram

Spring

Part #038769-00

The manufacturer no longer makes this part, and there's no substitute part

Wrench assy diagram

Lead wire

Part #398978-00

The manufacturer no longer makes this part, and there's no substitute part

#14

Wrench assy diagram

Brush

Part #389025-04

The manufacturer no longer makes this part, and there's no substitute part

#10

Wrench assy diagram

Washer

Part #605854-01

The manufacturer no longer makes this part, and there's no substitute part

#12

Wrench assy diagram

Screw

Part #330019-52

The manufacturer no longer makes this part, and there's no substitute part

Wrench assy diagram

Motor

Part #640641-00SV

The manufacturer no longer makes this part, and there's no substitute part
