Model # NE59J3420SS/AA-02 Official Samsung electric freestanding range

Here are the diagrams and repair parts for Official Samsung NE59J3420SS/AA-02 electric freestanding range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
NE59J3420SS/AA-02 Ranges
Samsung Range Oven Temperature Sensor (replaces Dg32-00002a) DG32-00002B
#36

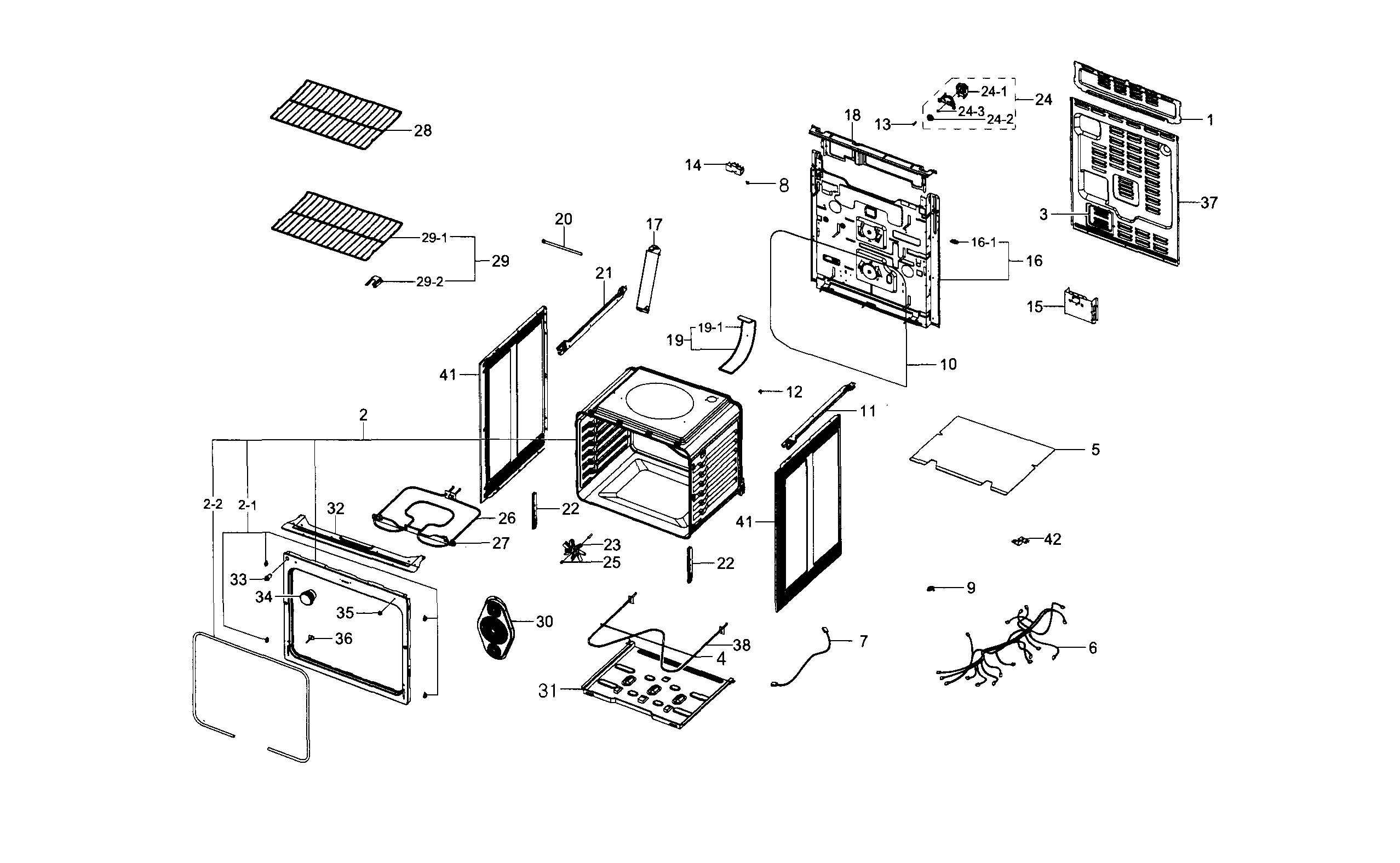

Main asy diagram

Samsung range oven temperature sensor (replaces dg32-00002a)

Part #DG32-00002B

5 (4)
BEST SELLER
$111.44 |
10% OFF Phone Price : $123.44
In Stock
Samsung Range Surface Element Control Switch DG44-01002A
#1-7

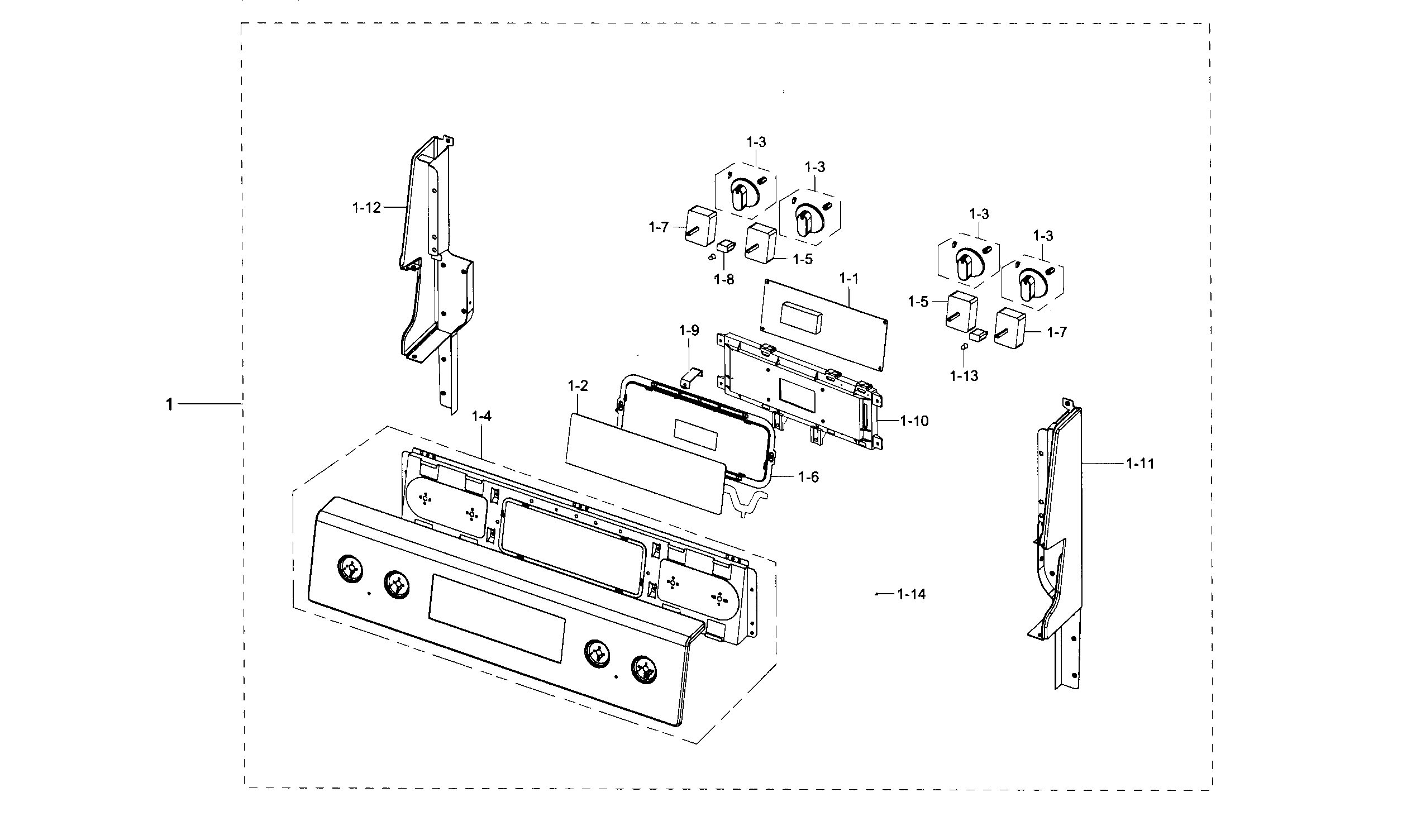

Control diagram

Samsung range surface element control switch

Part #DG44-01002A

4.1 (20)
BEST SELLER
$131.33 |
8% OFF Phone Price : $143.33
Back Order
Range Bake Element (replaces Dg47-00038a) DG47-00038B
#38

Main asy diagram

Range bake element (replaces dg47-00038a)

Part #DG47-00038B

5 (1)
BEST SELLER
$134.99 |
8% OFF Phone Price : $146.99
In Stock
Samsung Range Convection Fan Motor Assembly (replaces Dg96-00110a) DG96-00110E
#24

Main asy diagram

Samsung range convection fan motor assembly (replaces dg96-00110a)

Part #DG96-00110E

3.36 (11)
BEST SELLER
$129.16 |
9% OFF Phone Price : $141.16
Back Order
Range Oven Door Switch DG34-00006A
#33

Main asy diagram

Range oven door switch

Part #DG34-00006A

BEST SELLER
This item is not returnable
$44.78 |
12% OFF Phone Price : $50.78
In Stock
Range Terminal Block (replaces Dg65-00003a) DG96-00173A
#14

Main asy diagram

Range terminal block (replaces dg65-00003a)

Part #DG96-00173A

BEST SELLER
$60.47 |
9% OFF Phone Price : $66.47
Back Order
Range Indicator Light DG64-00131A
#1-8

Control diagram

Range indicator light

Part #DG64-00131A

BEST SELLER
$35.06 |
15% OFF Phone Price : $41.06
In Stock
Range Dual Radiant Surface Element DG47-00043B
#1-3

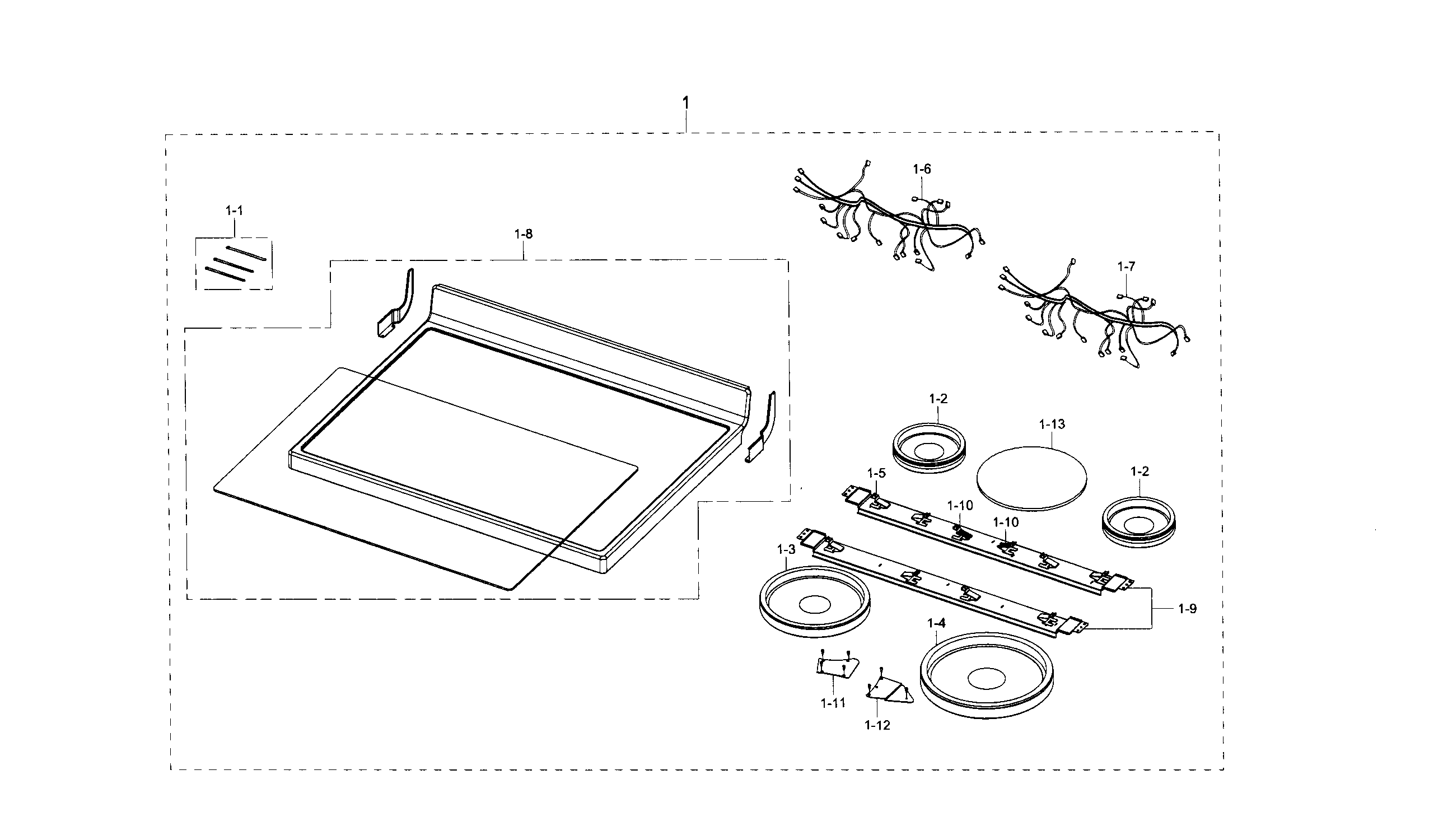

Cooktop diagram

Range dual radiant surface element

Part #DG47-00043B

BEST SELLER
$223.56 |
5% OFF Phone Price : $235.56
In Stock
Cooktop Indicator Light Lens DG67-00022A
#1-13

Control diagram

Cooktop indicator light lens

Part #DG67-00022A

This item is not returnable
$36.52
In Stock
Range Convection Fan Blade Nut 6021-001211
#25

Main asy diagram

Range convection fan blade nut

Part #6021-001211

2 (1)
$9.69 |
9% OFF Phone Price : $10.69
In Stock
