Whirlpool
Dryer

Model # WED4900XW0 Official Whirlpool dryer

Here are the diagrams and repair parts for Official Whirlpool WED4900XW0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Belt W10131364
#32

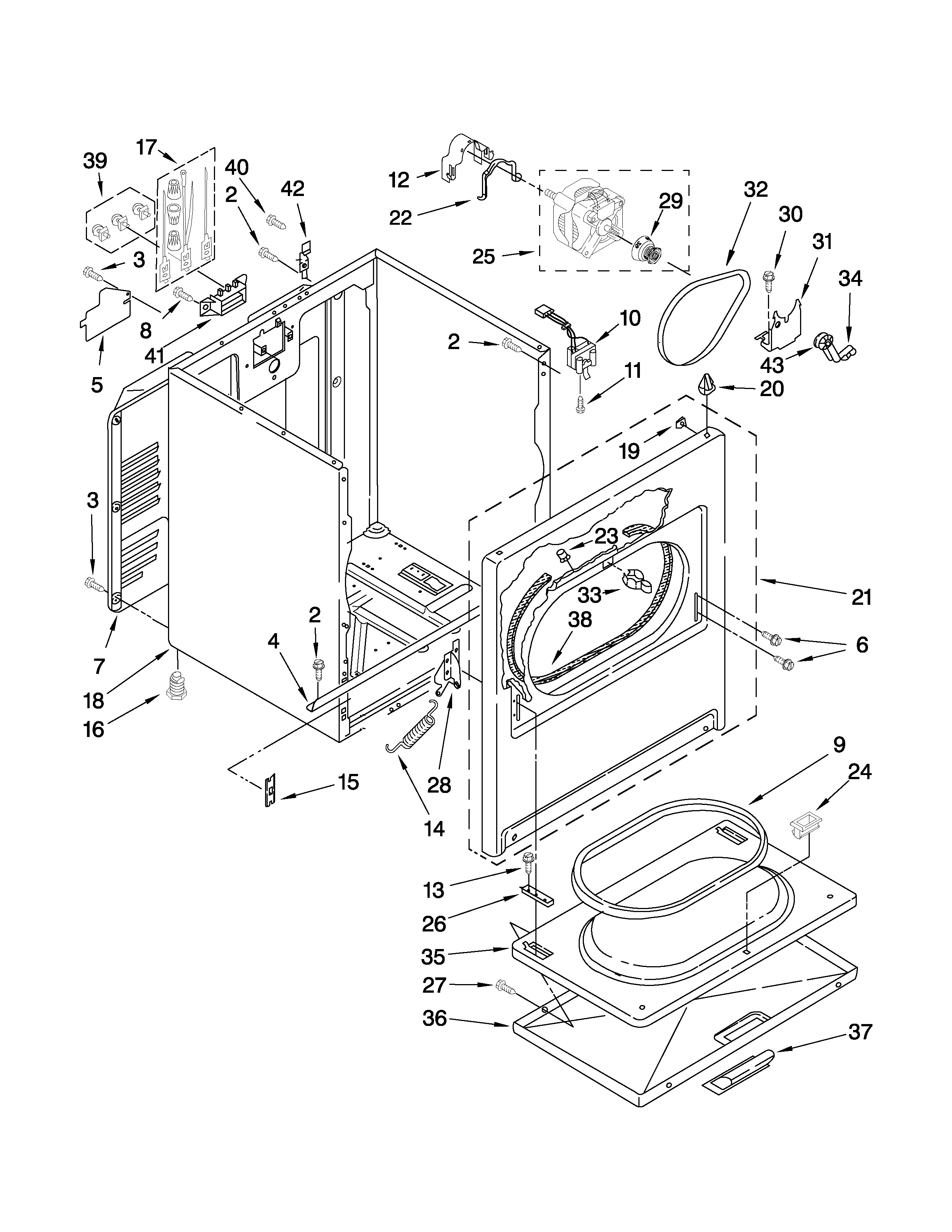

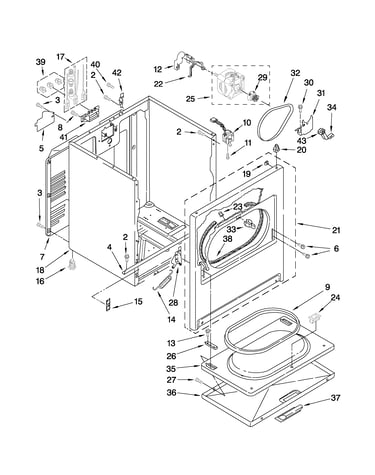

Cabinet parts diagram

Belt

Part #W10131364

Replaced by #341241

?
Manufacturer substitution
This part replaces W10131364. Substitute parts can look different from the original.
BEST SELLER
$12.18 |
14% OFF Phone Price : $14.18
In Stock
Dryer Thermal Fuse 3392519
#7

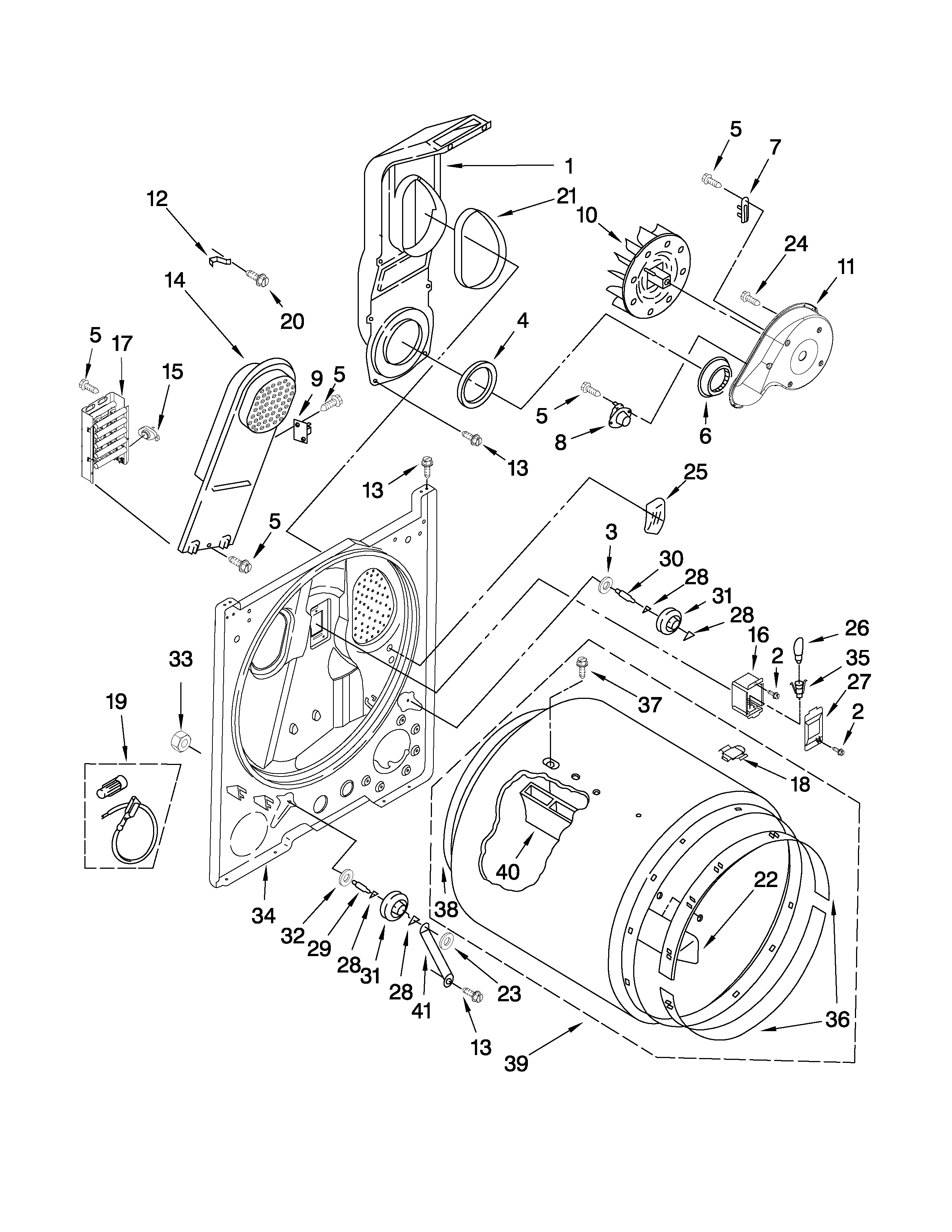

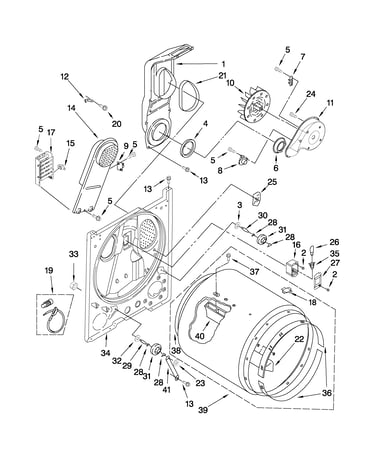

Bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$19.12 |
9% OFF Phone Price : $21.12
In Stock
Dryer Element 3403585
#17

Bulkhead parts diagram

Dryer element

Part #3403585

Replaced by #279838

?
Manufacturer substitution
This part replaces 3403585. Substitute parts can look different from the original.
BEST SELLER
$50.08 |
11% OFF Phone Price : $56.08
In Stock
Dryer Idler Pulley 691366
#34

Cabinet parts diagram

Dryer idler pulley

Part #691366

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
BEST SELLER
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Dryer Thermal Cut-off Fuse Kit 3977393
#9

Bulkhead parts diagram

Dryer thermal cut-off fuse kit

Part #3977393

Replaced by #279816

?
Manufacturer substitution
This part replaces 3977393. Substitute parts can look different from the original.
BEST SELLER
$39.37 |
13% OFF Phone Price : $45.37
In Stock
Dryer Repair Kit 279948
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #279948

Replaced by #4392065

?
Manufacturer substitution
This part replaces 279948. Substitute parts can look different from the original.
BEST SELLER
$30.64 |
16% OFF Phone Price : $36.64
In Stock
Drive Motor W10194250
#25

Cabinet parts diagram

Drive motor

Part #W10194250

Replaced by #279827

?
Manufacturer substitution
This part replaces W10194250. Substitute parts can look different from the original.
BEST SELLER
$96.62 |
11% OFF Phone Price : $108.62
In Stock
Dryer Blower Wheel 694089
#10

Bulkhead parts diagram

Dryer blower wheel

Part #694089

Replaced by #WP694089

?
Manufacturer substitution
This part replaces 694089. Substitute parts can look different from the original.
BEST SELLER
$27.43 |
18% OFF Phone Price : $33.43
In Stock
Strike 696144
#33

Cabinet parts diagram

Strike

Part #696144

Replaced by #279570

?
Manufacturer substitution
This part replaces 696144. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Screen (white) 8557857
#10

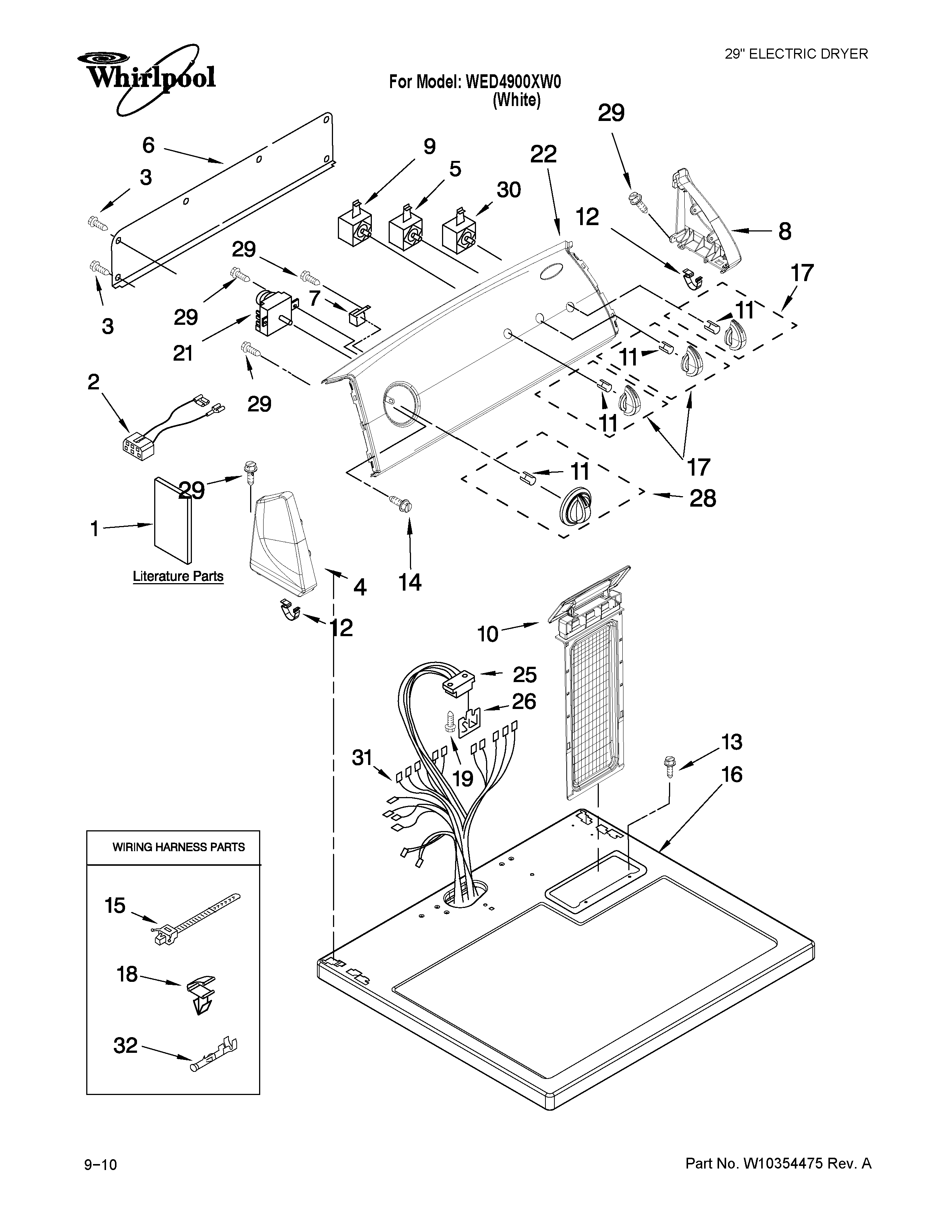

Top and console parts diagram

Screen (white)

Part #8557857

Replaced by #WPW10717210

?
Manufacturer substitution
This part replaces 8557857. Substitute parts can look different from the original.
BEST SELLER
$32.94 |
15% OFF Phone Price : $38.94
In Stock
