Model # FP21SXARWH Official GE freezer - x series
Here are the diagrams and repair parts for Official GE FP21SXARWH freezer - x series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
FP21SXARWH Freestanding Freezers
#740

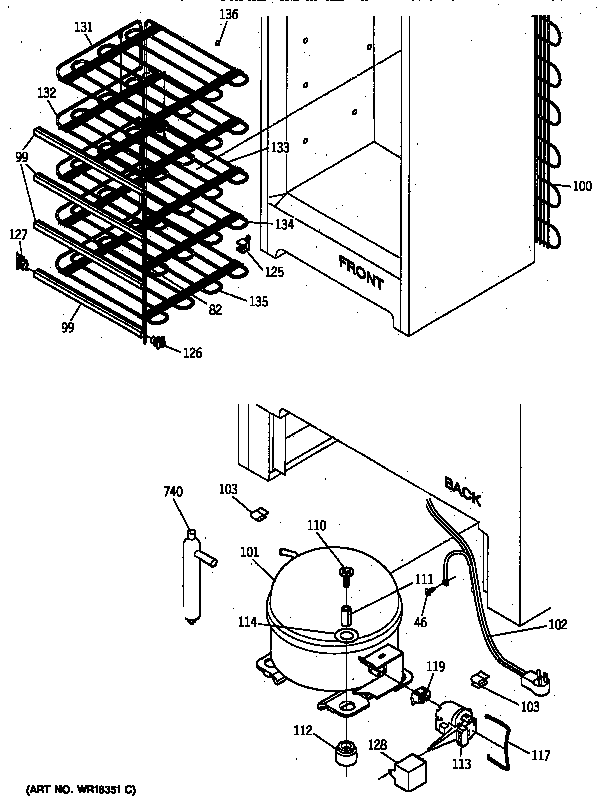

Unit parts diagram
Dryer filter
Part #WR86X0096
Replaced by #WR86X25269
?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
$78.01 |
7% OFF Phone Price : $84.01
In Stock
#41

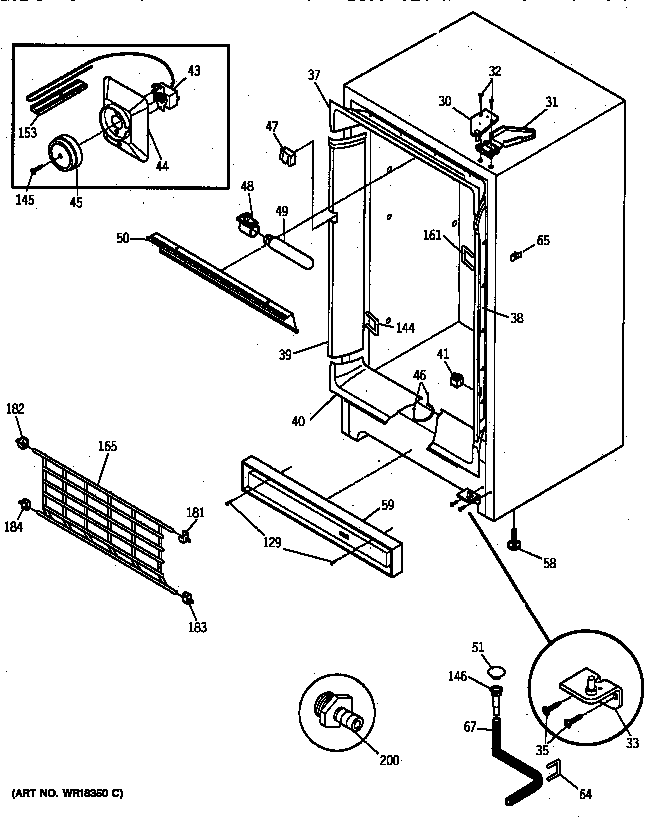

Cabinet, controls & shelves diagram
Light switch
Part #WR23X5160
Replaced by #WR23X37285
?
Manufacturer substitution
This part replaces WR23X5160. Substitute parts can look different from the original.
$63.20
In Stock
#102

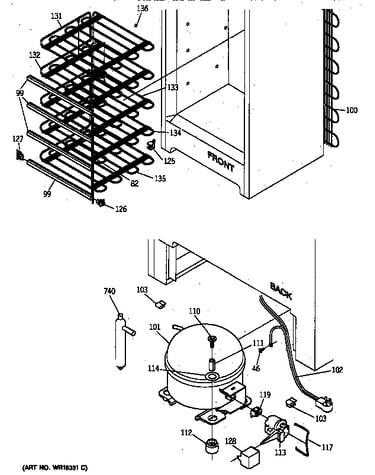

Unit parts diagram
Power cord
Part #WR23X0108
Replaced by #WR23X10300
?
Manufacturer substitution
This part replaces WR23X0108. Substitute parts can look different from the original.
$24.93 |
19% OFF Phone Price : $30.93
Back Order
#58

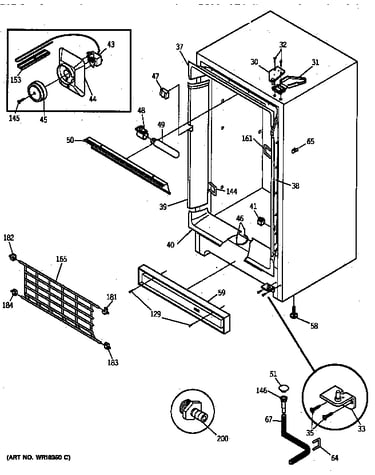

Cabinet, controls & shelves diagram
Adjustment foot
Part #WR02X9485
Replaced by #WR2X9485
?
Manufacturer substitution
This part replaces WR02X9485. Substitute parts can look different from the original.
$28.96 |
17% OFF Phone Price : $34.96
In Stock
#1A

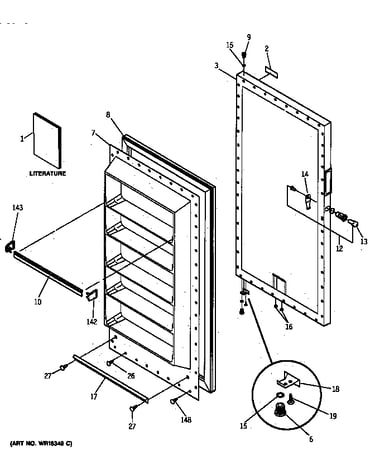

Door parts diagram
Owner's use and care guide
Part #49-6786
$10.71
In Stock
#100
Unit parts diagram
Condenser
Part #WR84X5007
$213.20
In Stock
#26
Door parts diagram
Shoulder screw
Part #WR01X5405
Replaced by #WR01X10623
?
Manufacturer substitution
This part replaces WR01X5405. Substitute parts can look different from the original.
$9.51
In Stock
#136
Unit parts diagram
Grommet spacer
Part #WR01X2182
Replaced by #WR1X2182
?
Manufacturer substitution
This part replaces WR01X2182. Substitute parts can look different from the original.
$12.40
In Stock
#200
Cabinet, controls & shelves diagram
Hose adapter
Part #WR01X1965
Replaced by #WR1X1965
?
Manufacturer substitution
This part replaces WR01X1965. Substitute parts can look different from the original.
$32.84 |
15% OFF Phone Price : $38.84
In Stock
#99
Unit parts diagram
Shelf trim
Part #WR38X2012
Replaced by #WR38X32250
?
Manufacturer substitution
This part replaces WR38X2012. Substitute parts can look different from the original.
$79.67
In Stock
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Repair guides for upright freezers
How to replace a freezer control panel
A freezer control panel that doesn’t show the temperature or respond when you press the buttons could be broken. This DI…
Repair difficulty
Time required
15 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair difficulty
Time required
15 minutes or less
How to replace a freezer thermistor
When the thermistor can’t sense the freezer temperature, the freezer is colder or warmer than the set temperature. Follo…
Repair difficulty
Time required
45 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn how to repair broken, frayed or damaged wires in your appliances.…
