Washer

Model # 41744052401 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 41744052401 washer, as well as links to manuals and error code tables, if available.

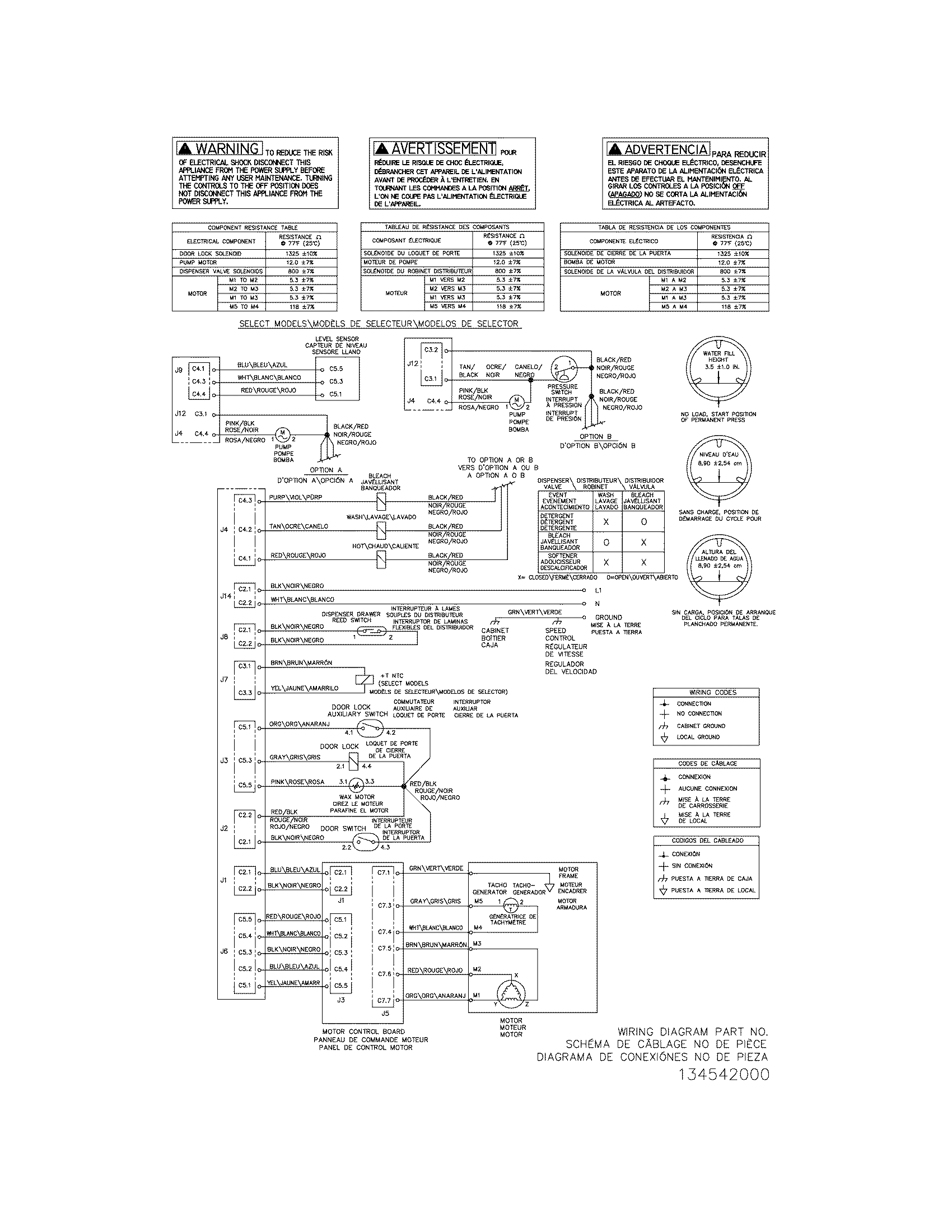

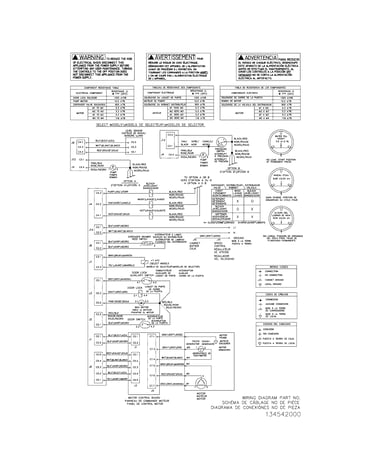

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for41744052401 Washer

  • Door Catch 131763200
    #8

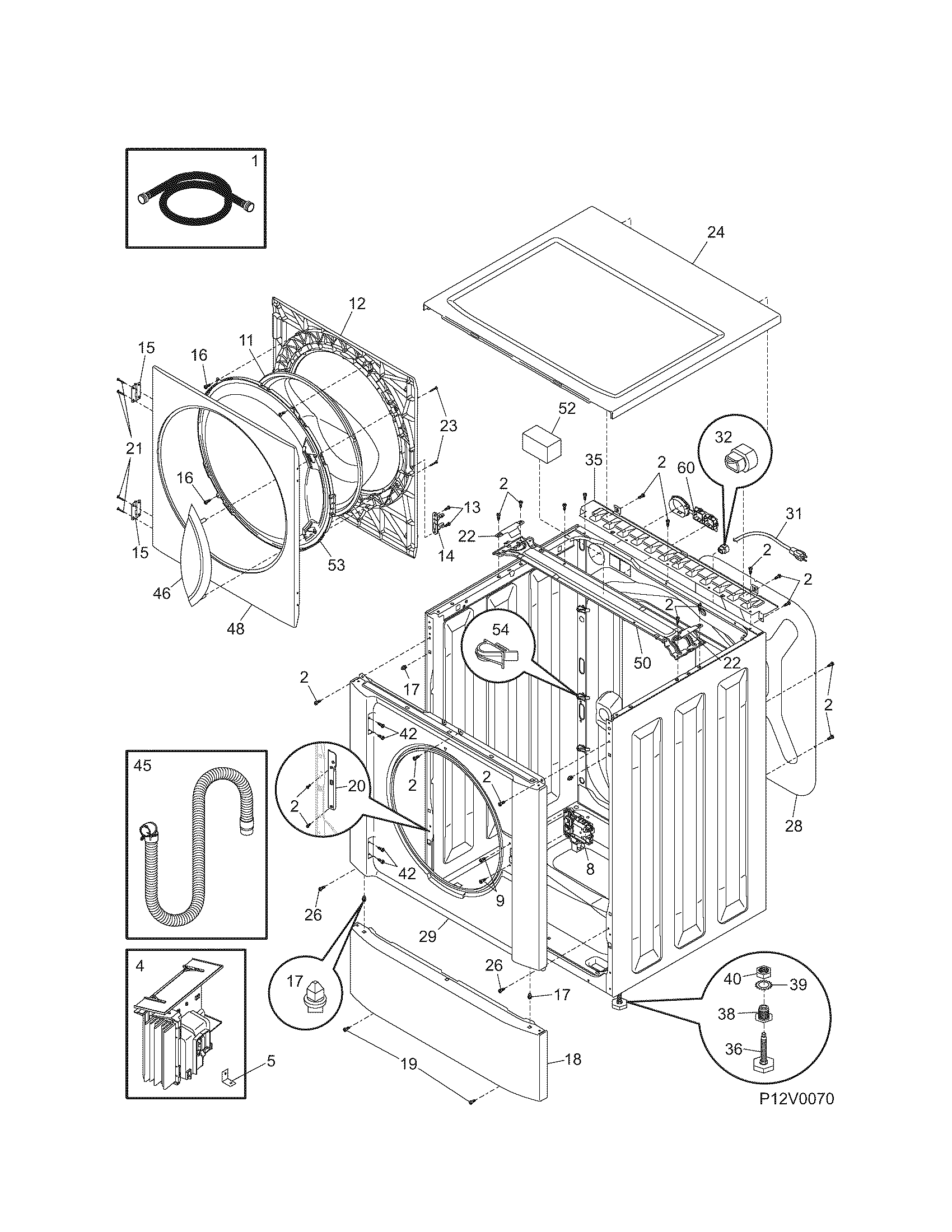

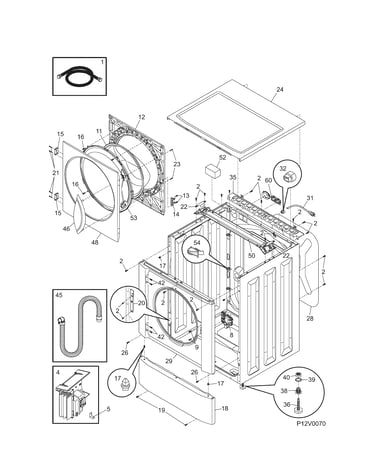

    Cabinet/top diagram

    Door catch

    Part #131763200

    Replaced by #131763256

    ?
    Manufacturer substitution
    This part replaces 131763200. Substitute parts can look different from the original.
    BEST SELLER
    $115.18
    9% OFF Phone Price : $127.18
    In Stock
  • Washer Drain Pump 134051200
    #35

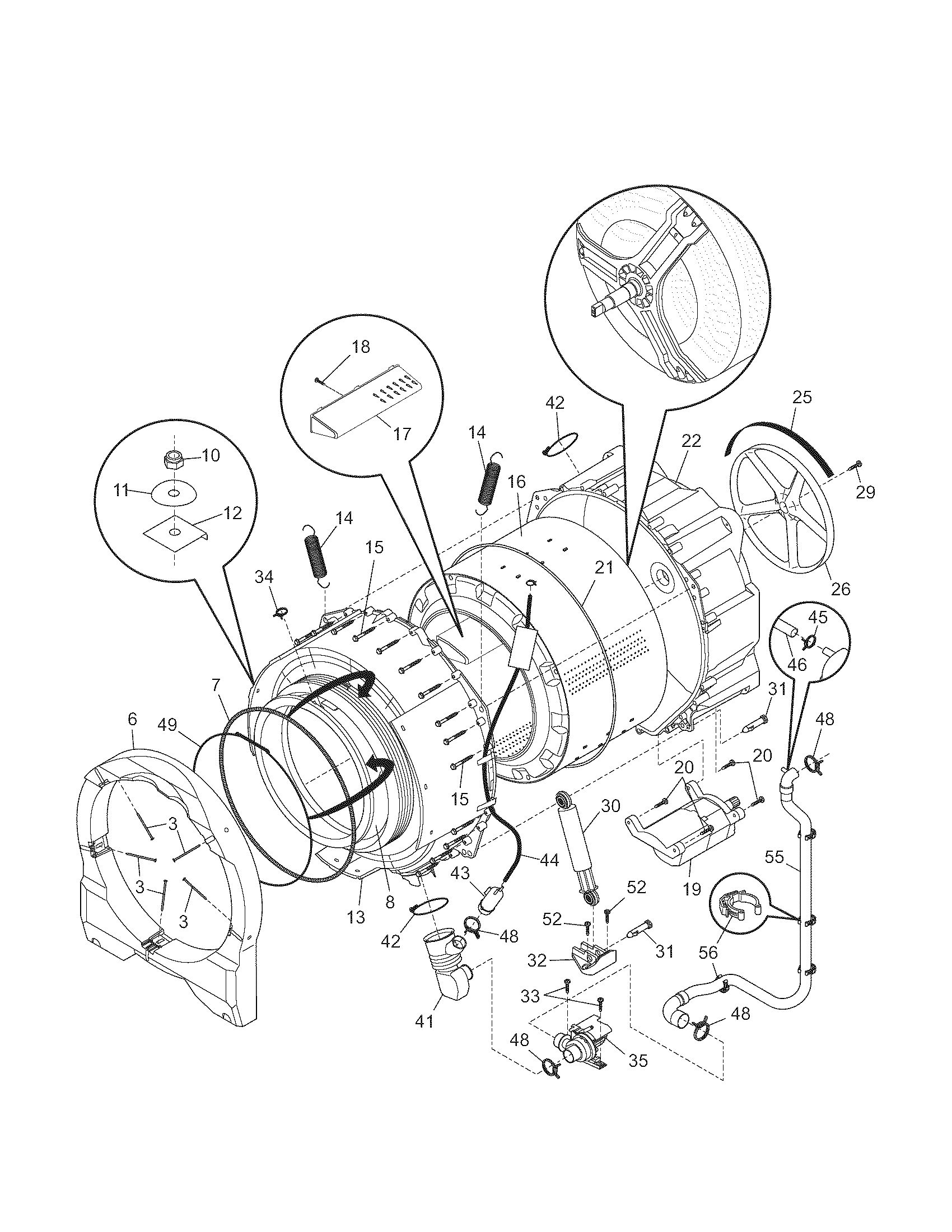

    Motor/tub diagram

    Washer drain pump

    Part #134051200

    Replaced by #137221600

    ?
    Manufacturer substitution
    This part replaces 134051200. Substitute parts can look different from the original.
    BEST SELLER
    $144.72
    8% OFF Phone Price : $156.72
    In Stock
  • Laundry Appliance Screw, #8-18 X 31/100-in 131168200
    Laundry appliance screw, #8-18 x 31/100-in

    Part #131168200

    BEST SELLER
    $12.76
    14% OFF Phone Price : $14.76
    In Stock
  • Washer Dispenser Drawer 134370000
    #45

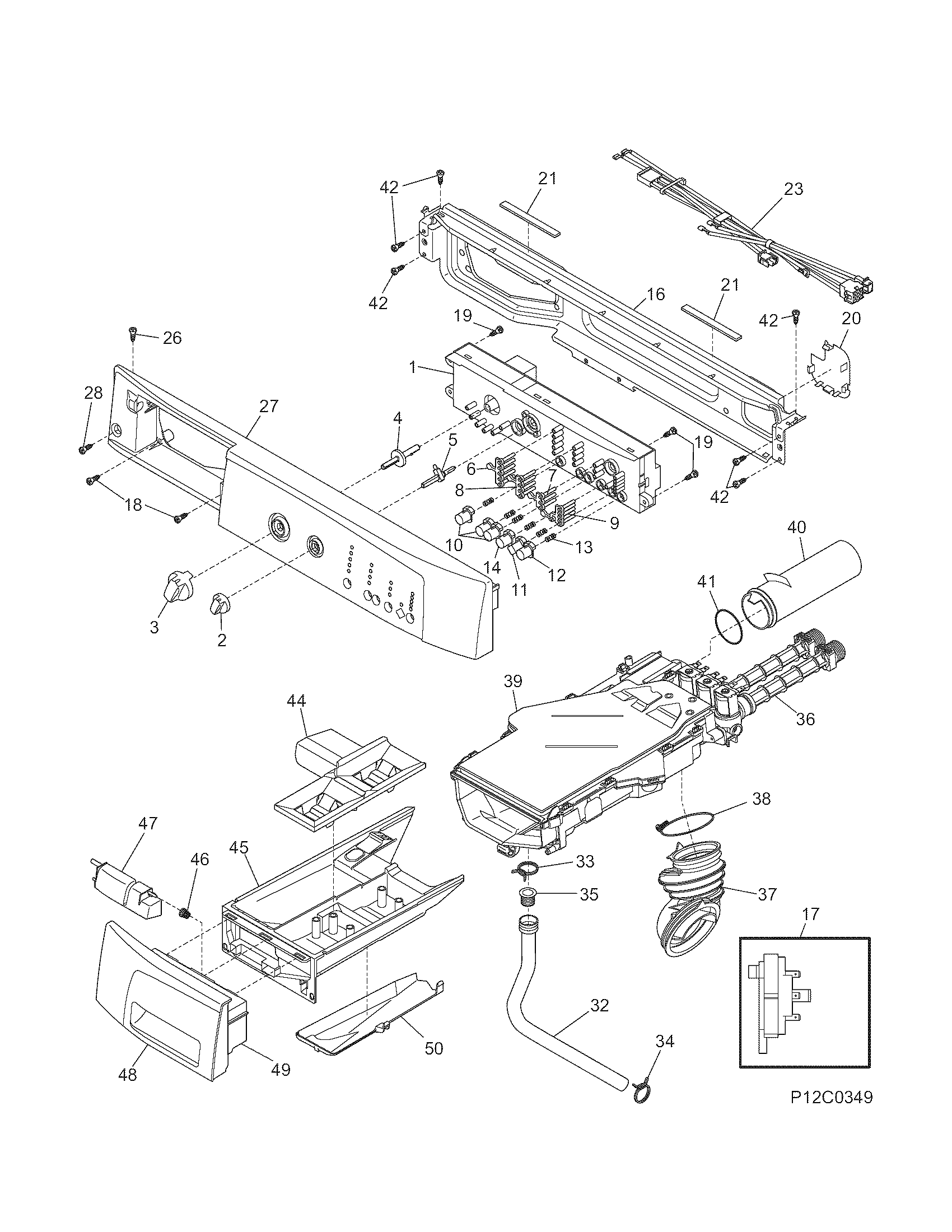

    Control panel diagram

    Washer dispenser drawer

    Part #134370000

    BEST SELLER
    $43.24
    12% OFF Phone Price : $49.24
    In Stock
  • Scu Assembly 134409902
    #4

    Cabinet/top diagram

    Scu assembly

    Part #134409902

    Replaced by #134743500

    ?
    Manufacturer substitution
    This part replaces 134409902. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $187.19
    6% OFF Phone Price : $199.19
    In Stock
  • Bellows 134365200
    #8

    Motor/tub diagram

    Bellows

    Part #134365200

    Replaced by #134515300

    ?
    Manufacturer substitution
    This part replaces 134365200. Substitute parts can look different from the original.
    BEST SELLER
    $229.69
    5% OFF Phone Price : $241.69
    In Stock
  • Washer Dispenser Inlet Gasket 134371300
    #NI

    Control panel diagram

    Washer dispenser inlet gasket

    Part #134371300

    This item is not returnable
    $31.62
    16% OFF Phone Price : $37.62
    In Stock
  • Washer Baffle Screw 131302800
    Washer baffle screw

    Part #131302800

    $13.69
    13% OFF Phone Price : $15.69
    In Stock
  • Screw 131258400
    #19

    Cabinet/top diagram

    Screw

    Part #131258400

    Replaced by #131302800

    ?
    Manufacturer substitution
    This part replaces 131258400. Substitute parts can look different from the original.
    $13.69
    13% OFF Phone Price : $15.69
    In Stock
  • Siphon Screw 131303300
    #9

    Cabinet/top diagram

    Siphon screw

    Part #131303300

    Replaced by #131302800

    ?
    Manufacturer substitution
    This part replaces 131303300. Substitute parts can look different from the original.
    $13.69
    13% OFF Phone Price : $15.69
    In Stock
