Model # 315212040 Official Craftsman 10" compound miter saw

Here are the diagrams and repair parts for Official Craftsman 315212040 10" compound miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

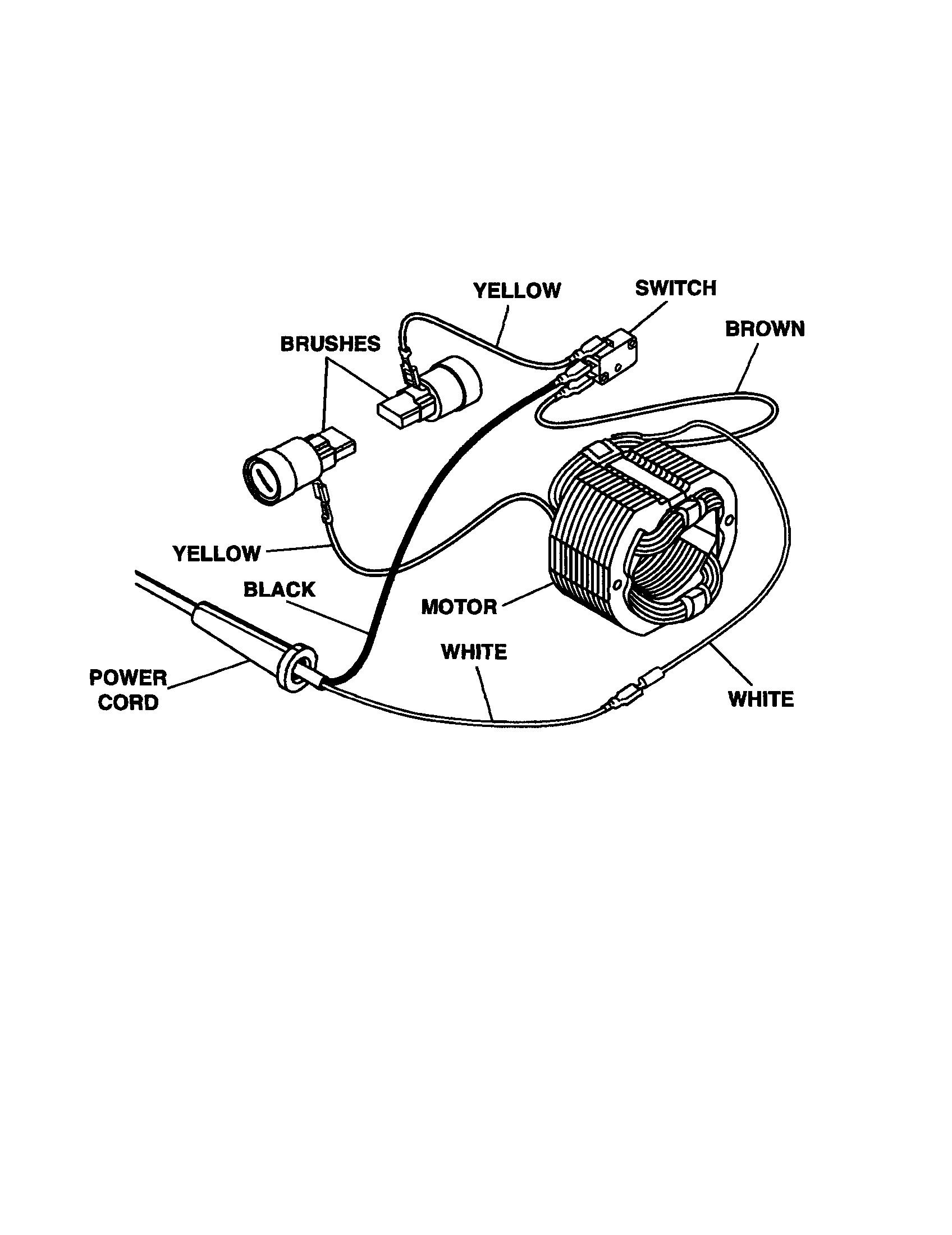

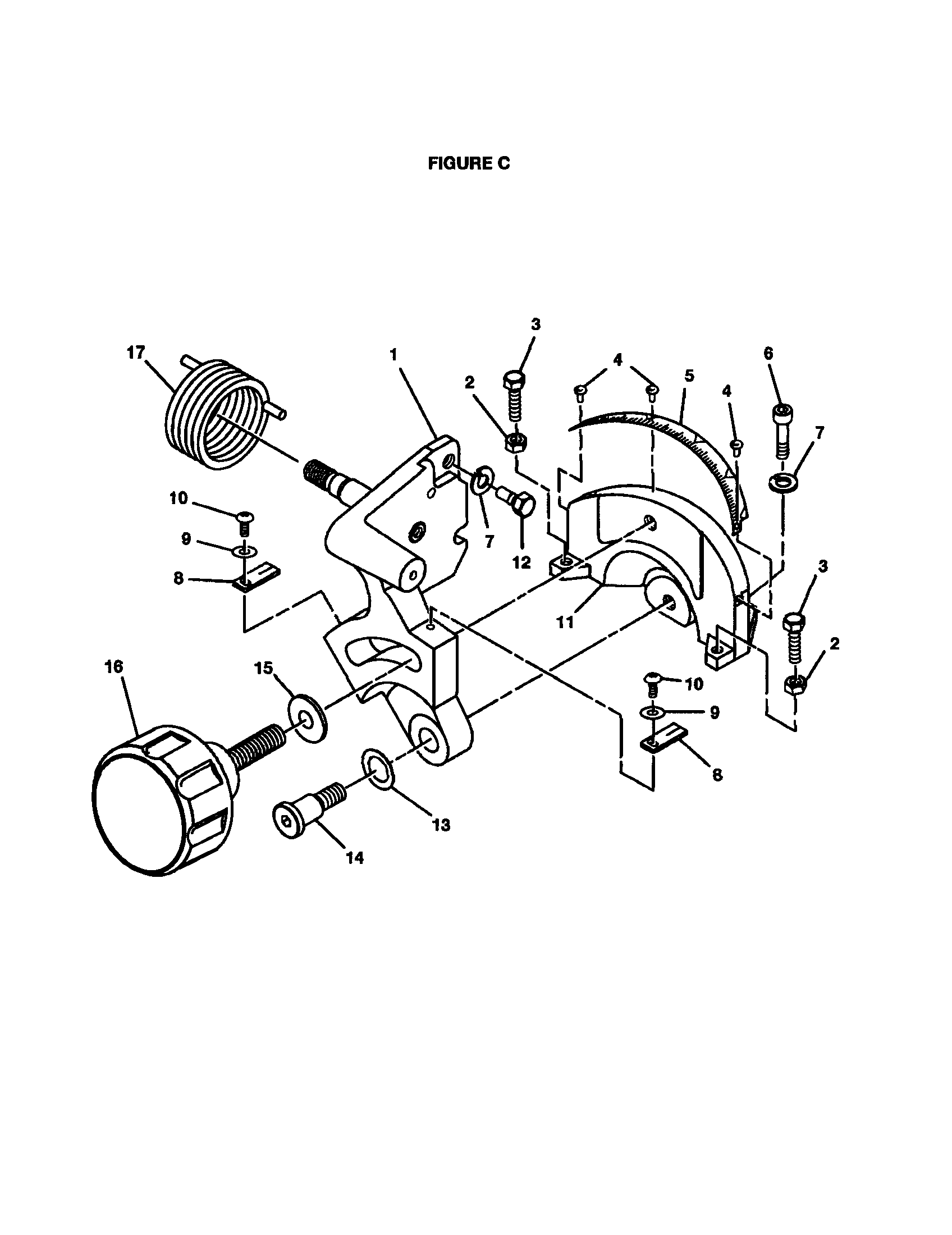

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Logo Plate 595015001
#17

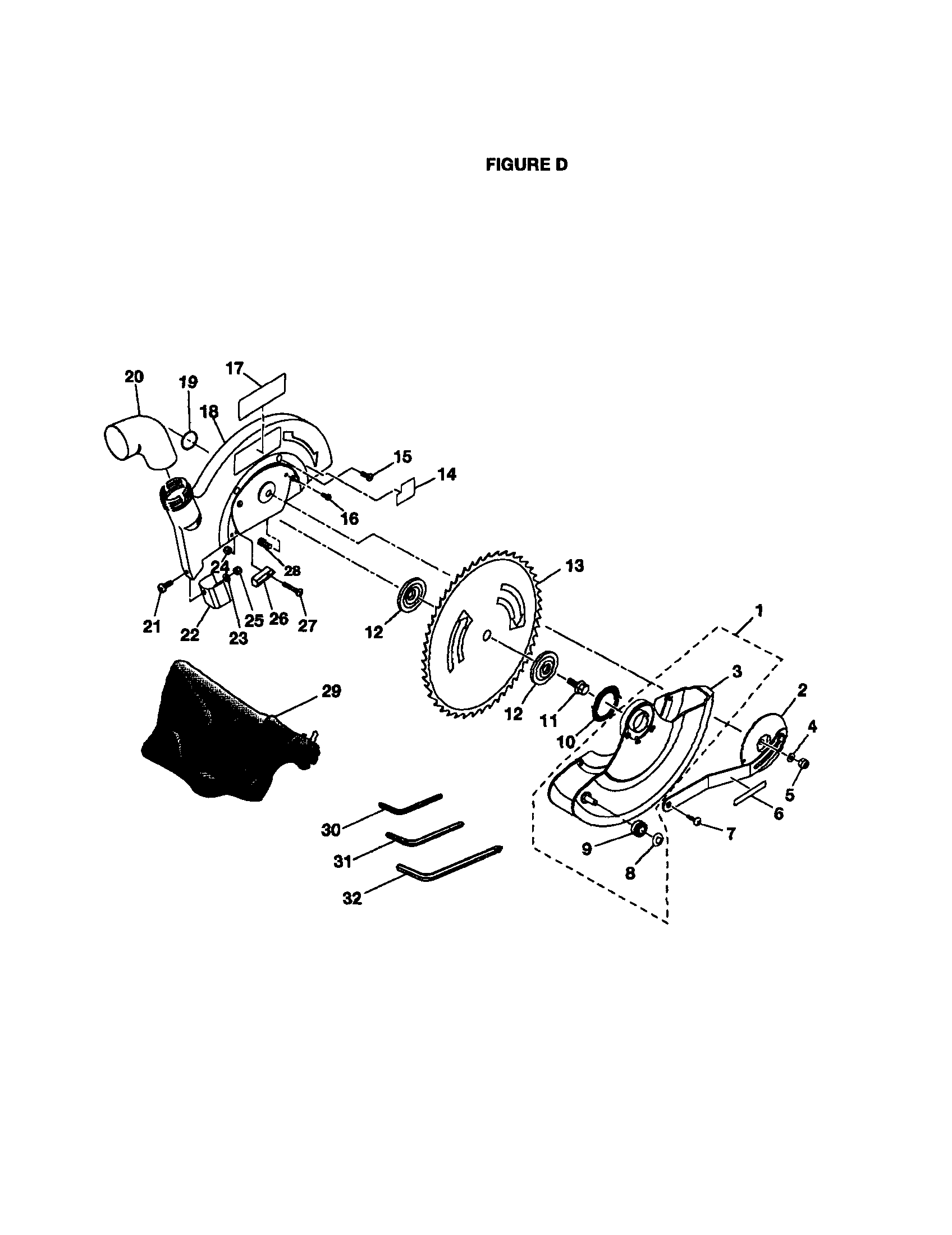

Blade/lower guard diagram

Logo plate

Part #595015001

The manufacturer no longer makes this part, and there's no substitute part

Washer,8pk A36030814204
#3

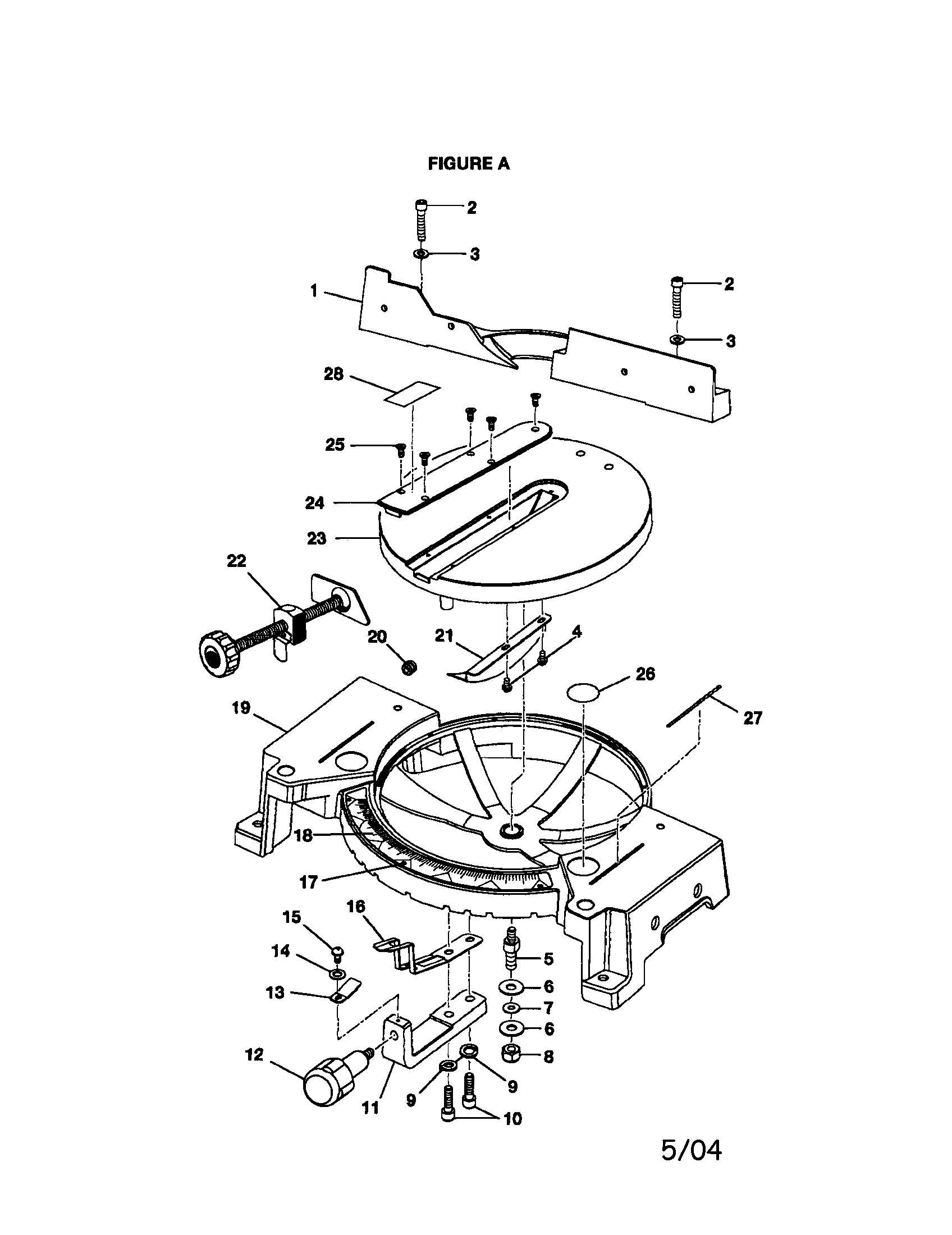

Base and table assembly diagram

Washer,8pk

Part #A36030814204

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw A07103080457
#2

Base and table assembly diagram

Cap screw

Part #A07103080457

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Lock Washer 538417000
#8

Blade/lower guard diagram

Miter saw lock washer

Part #538417000

The manufacturer no longer makes this part, and there's no substitute part

Spring 589021300
#10

Blade/lower guard diagram

Spring

Part #589021300

The manufacturer no longer makes this part, and there's no substitute part

Table Assembly S51100300
#0

Base and table assembly diagram

Table assembly

Part #S51100300

The manufacturer no longer makes this part, and there's no substitute part

Screw A90101050603
#16

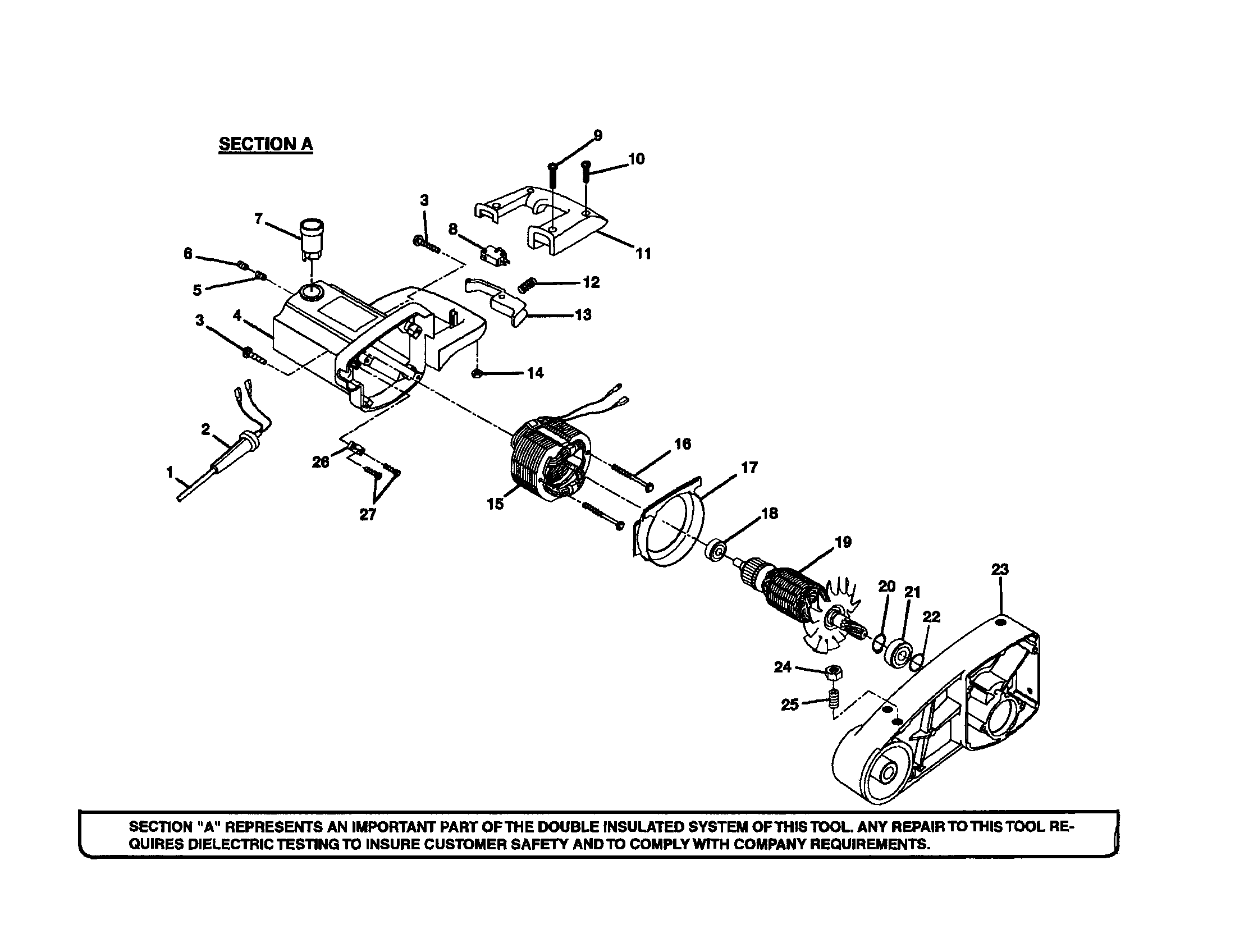

Motor and motor housing diagram

Screw

Part #A90101050603

The manufacturer no longer makes this part, and there's no substitute part

Label 578310008
#6

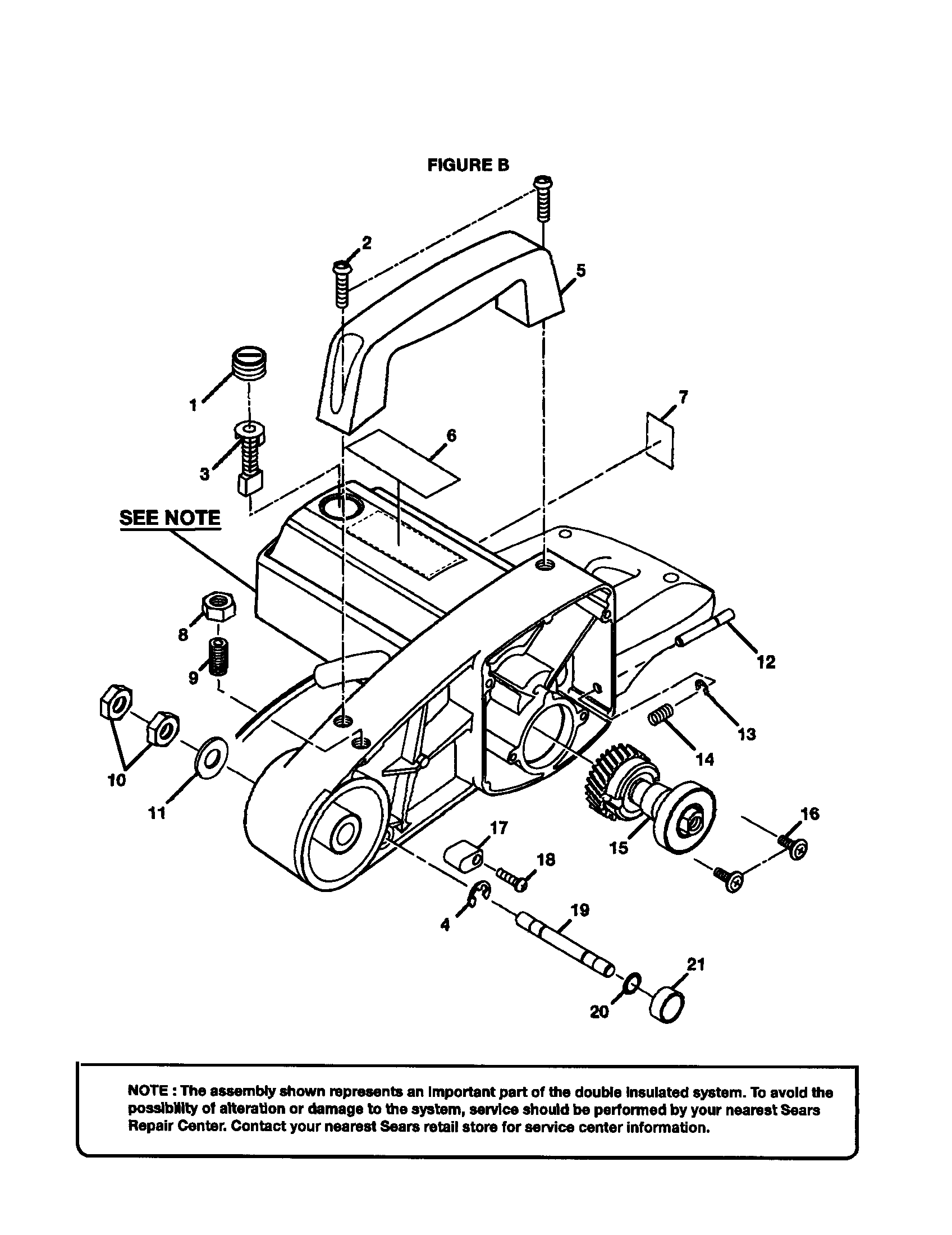

Handle/brush/arbor diagram

Label

Part #578310008

The manufacturer no longer makes this part, and there's no substitute part

Fan Case 511324000
#17

Motor and motor housing diagram

Fan case

Part #511324000

The manufacturer no longer makes this part, and there's no substitute part

Screw A95001050060
#6

Motor and motor housing diagram

Screw

Part #A95001050060

The manufacturer no longer makes this part, and there's no substitute part
