Gas Walk-Behind Mower

Model # 247887761 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 247887761 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

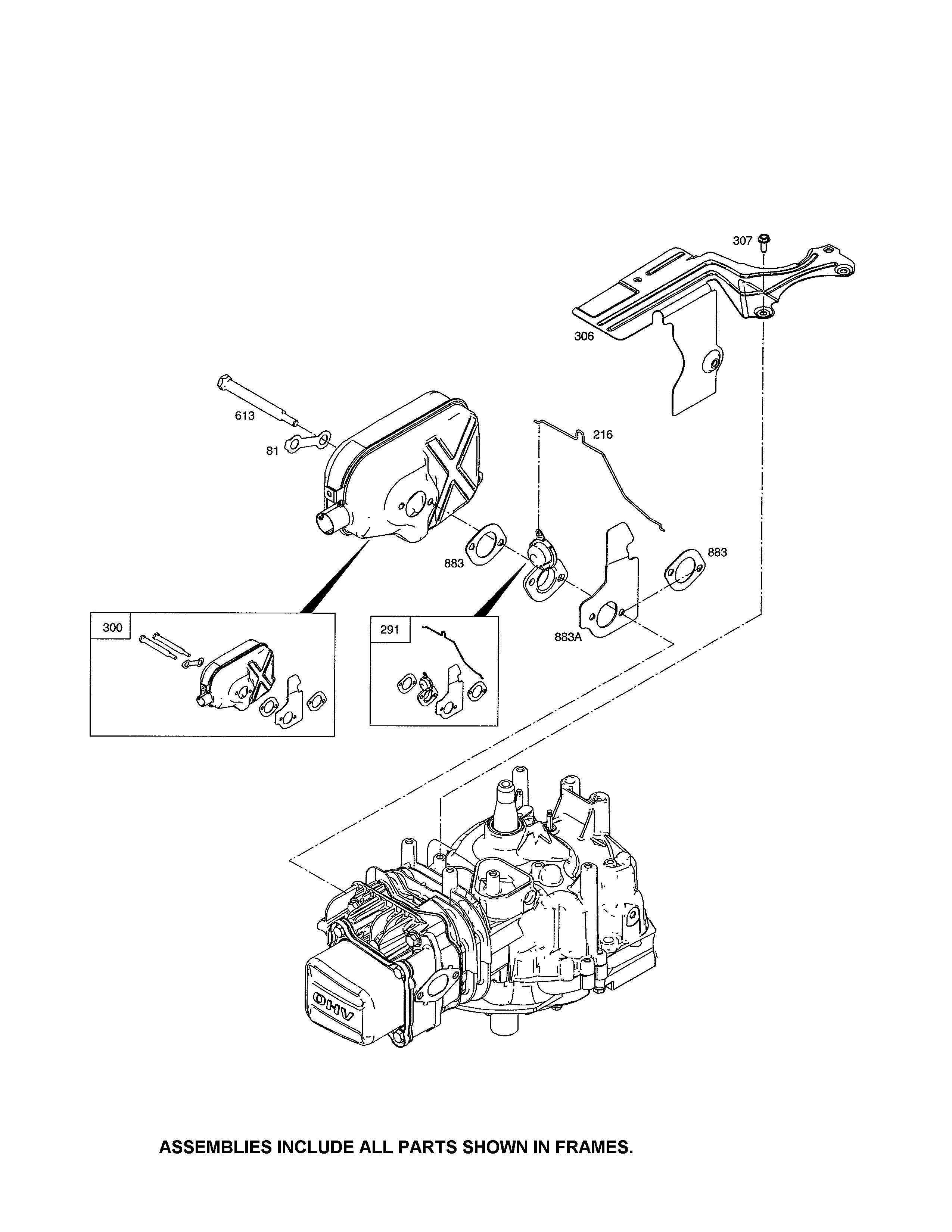

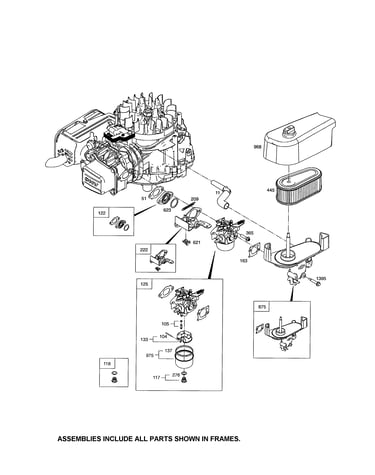

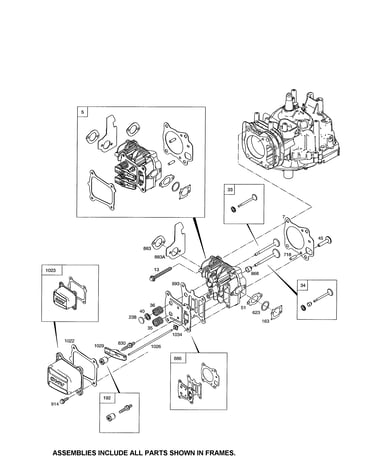

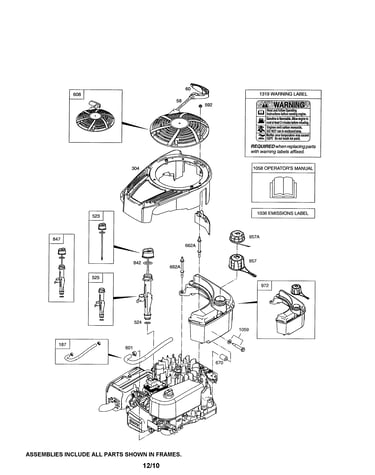

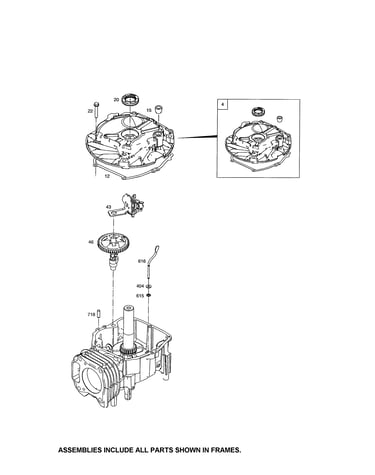

  View engine

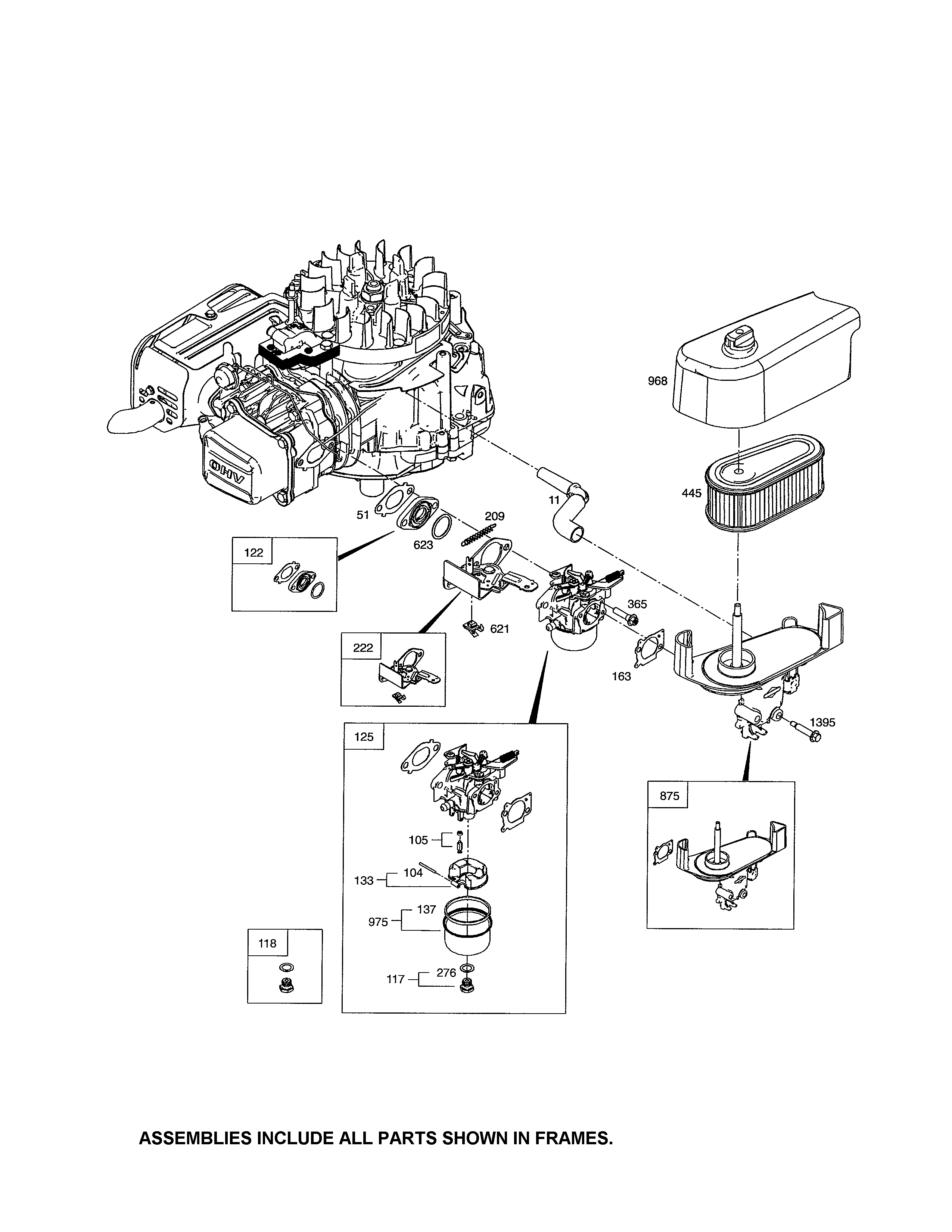

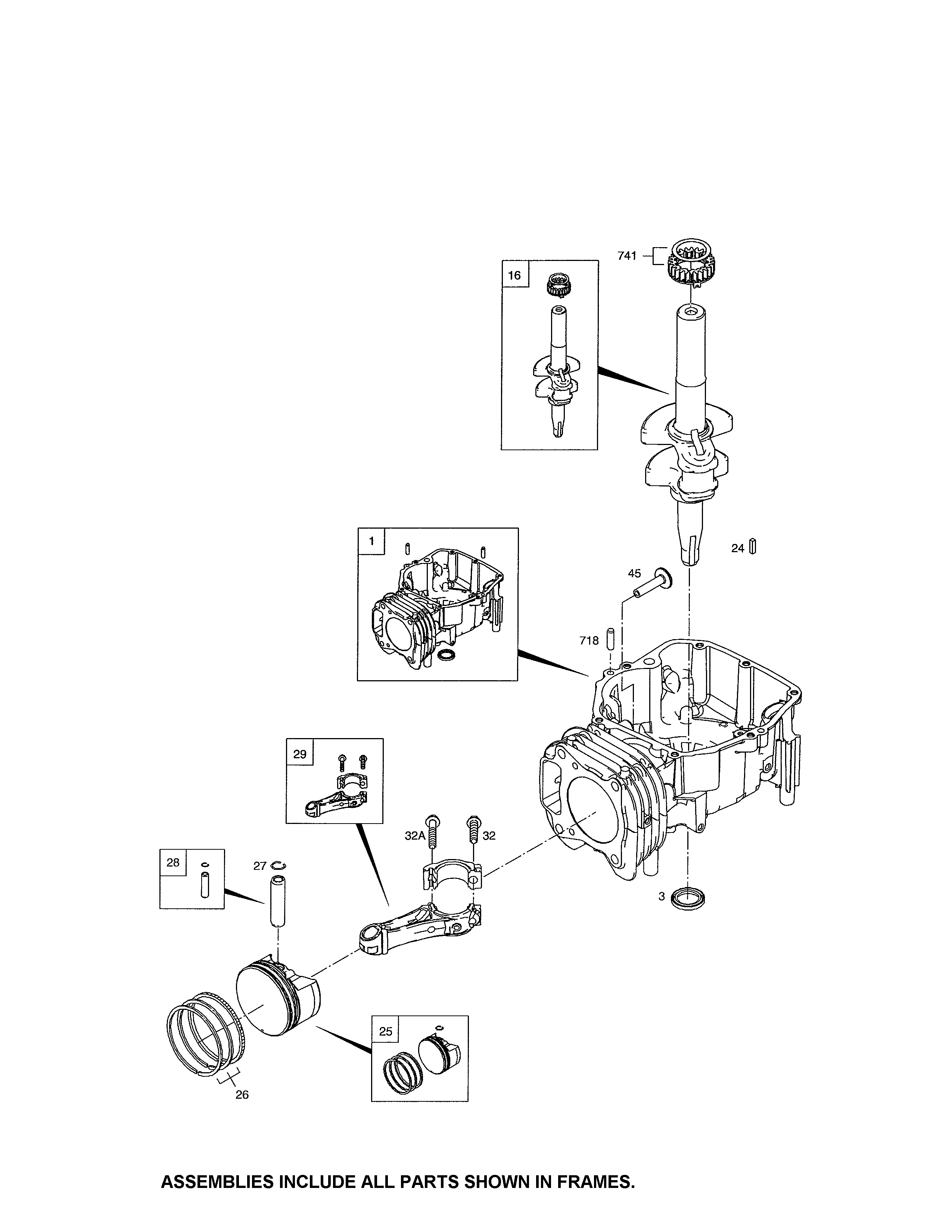

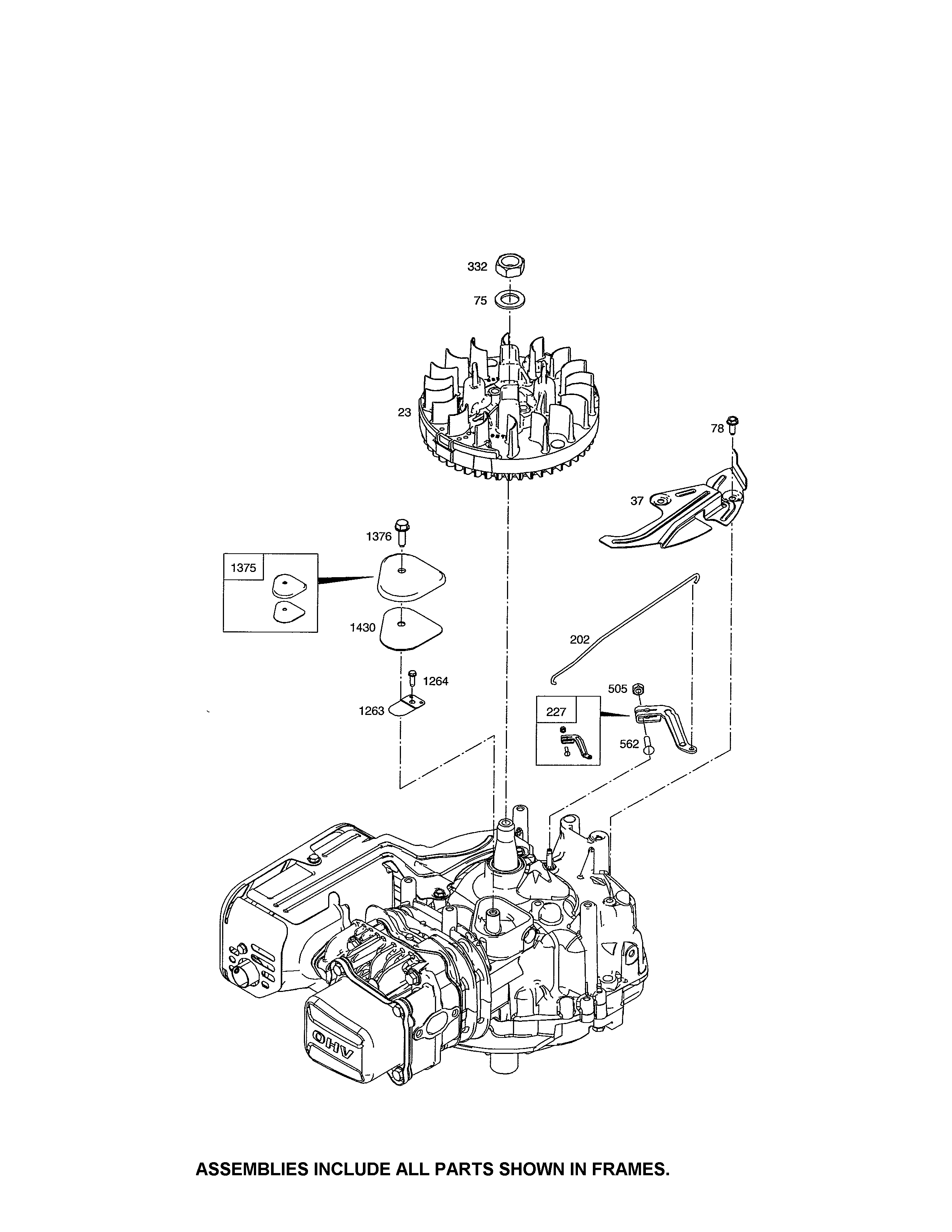

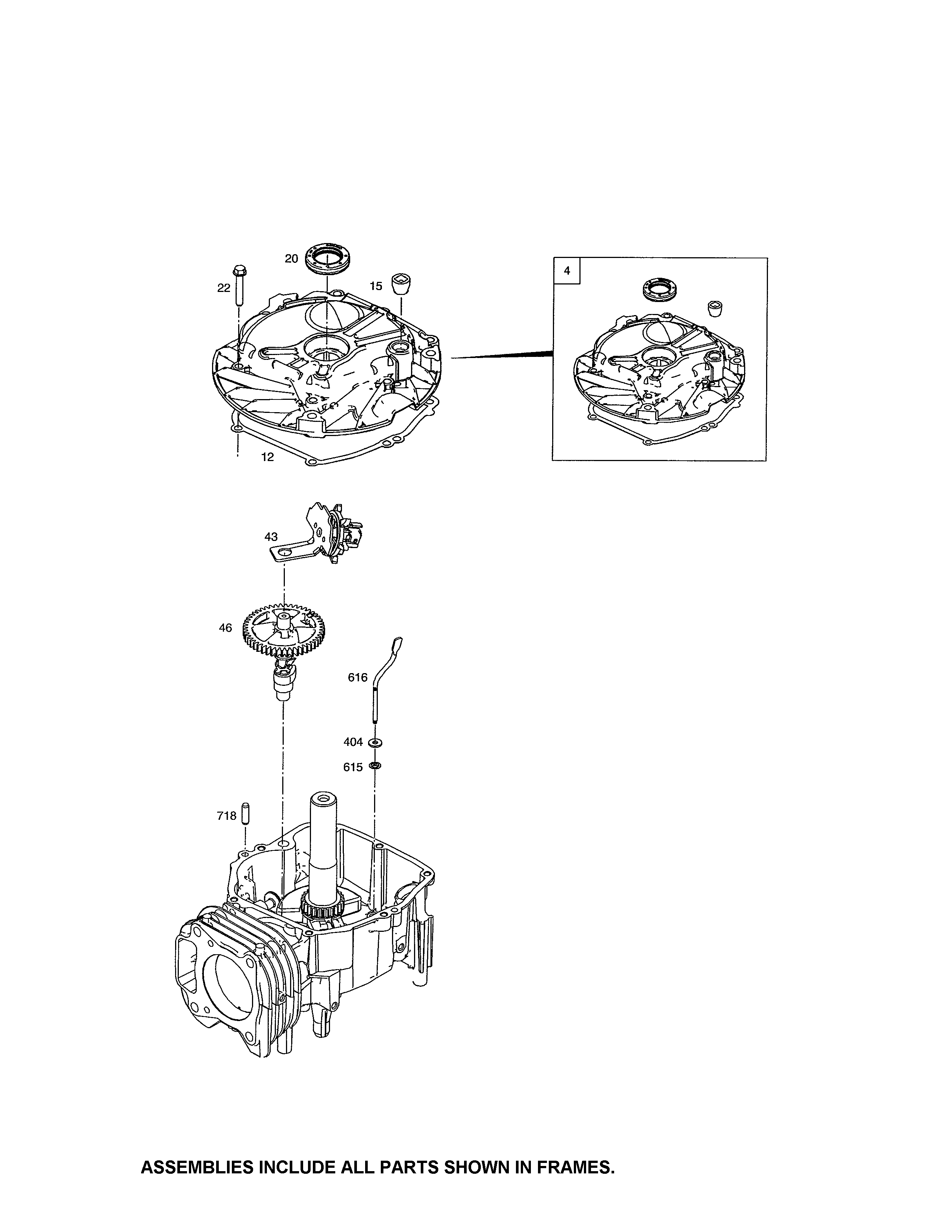

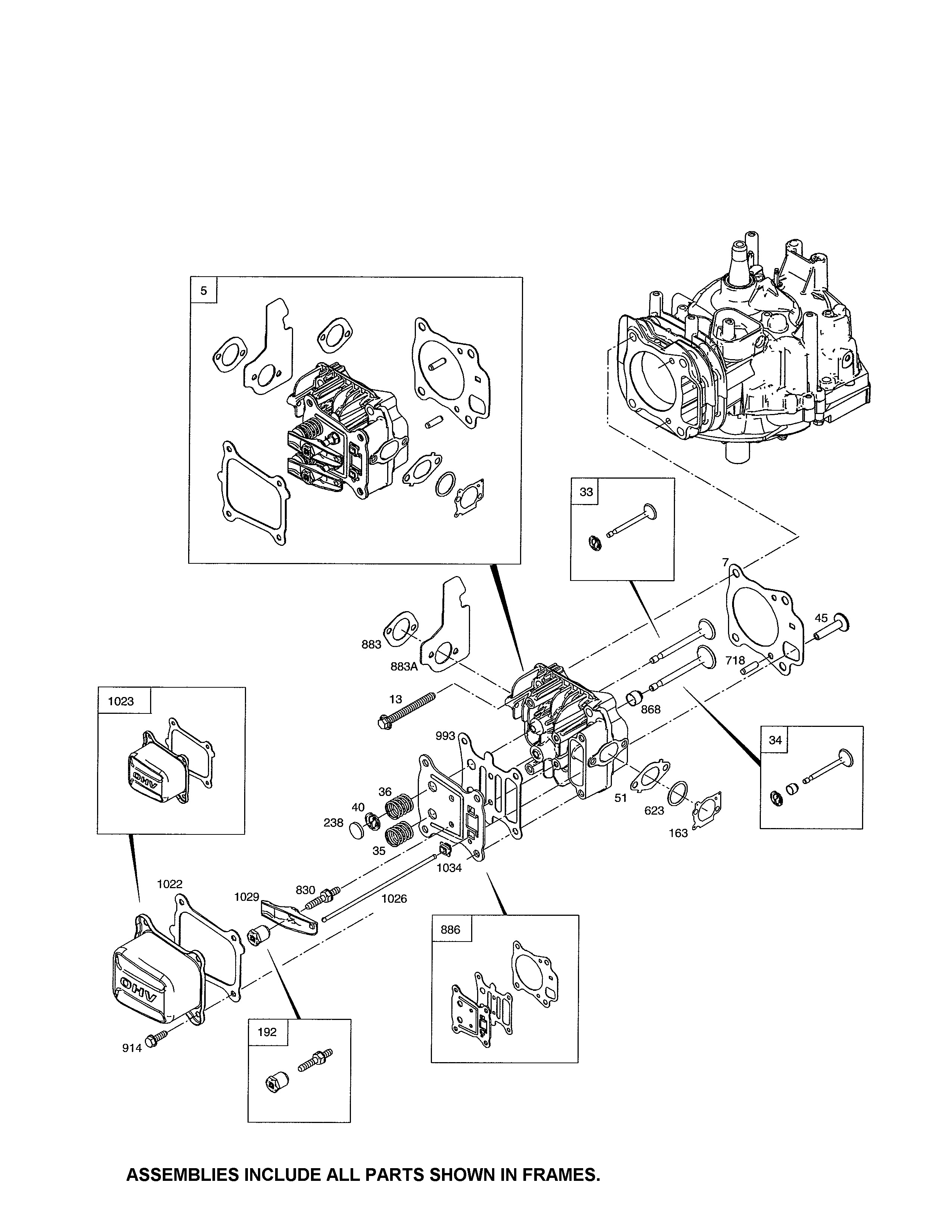

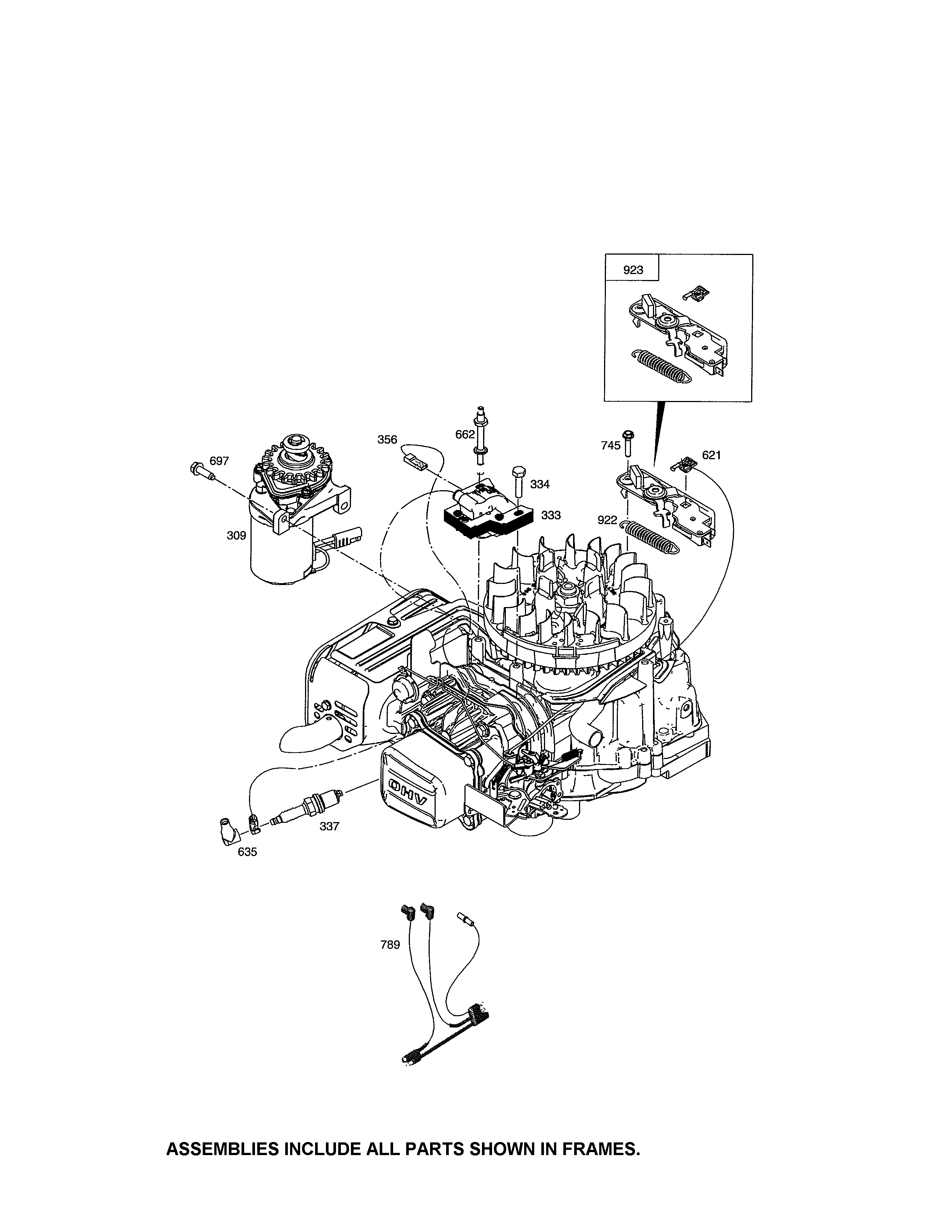

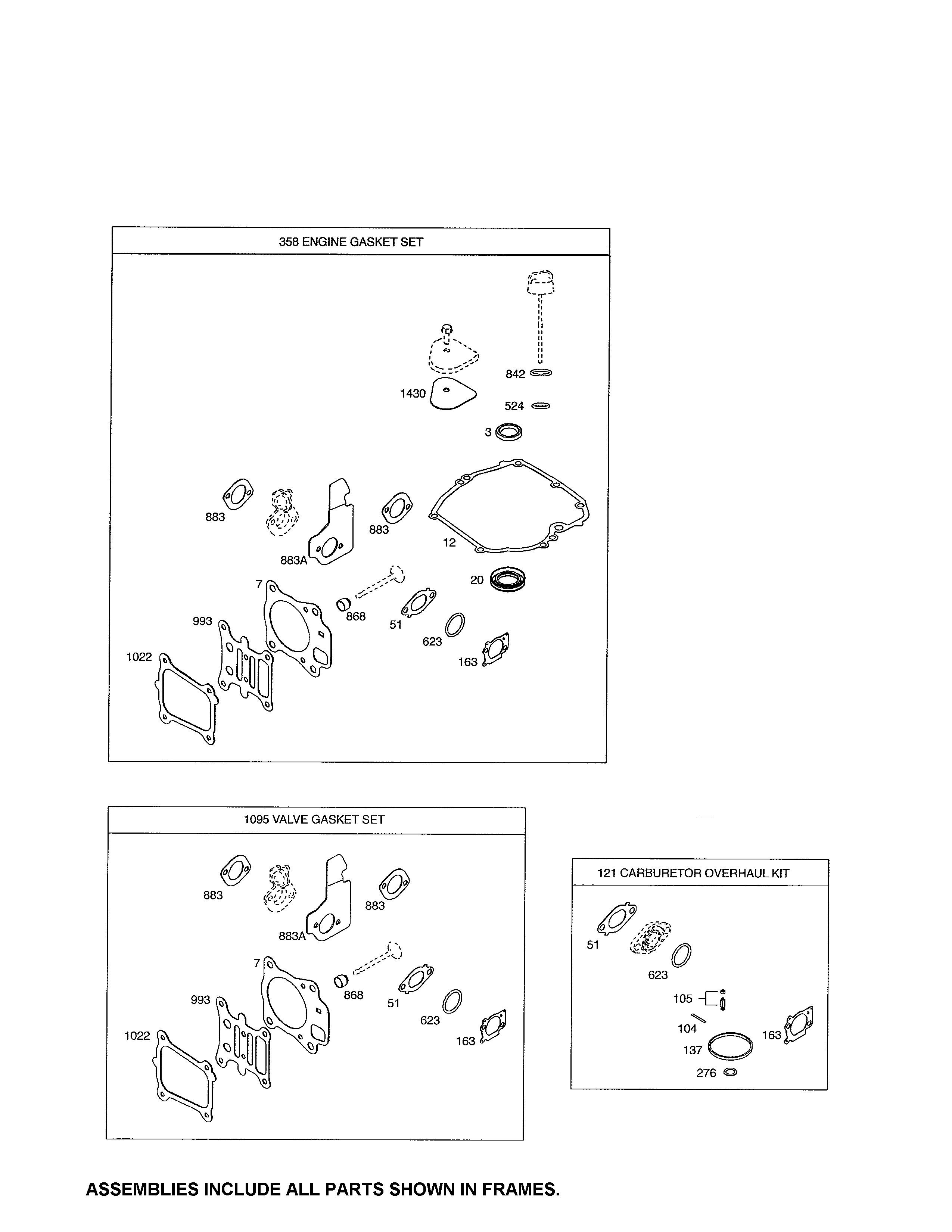

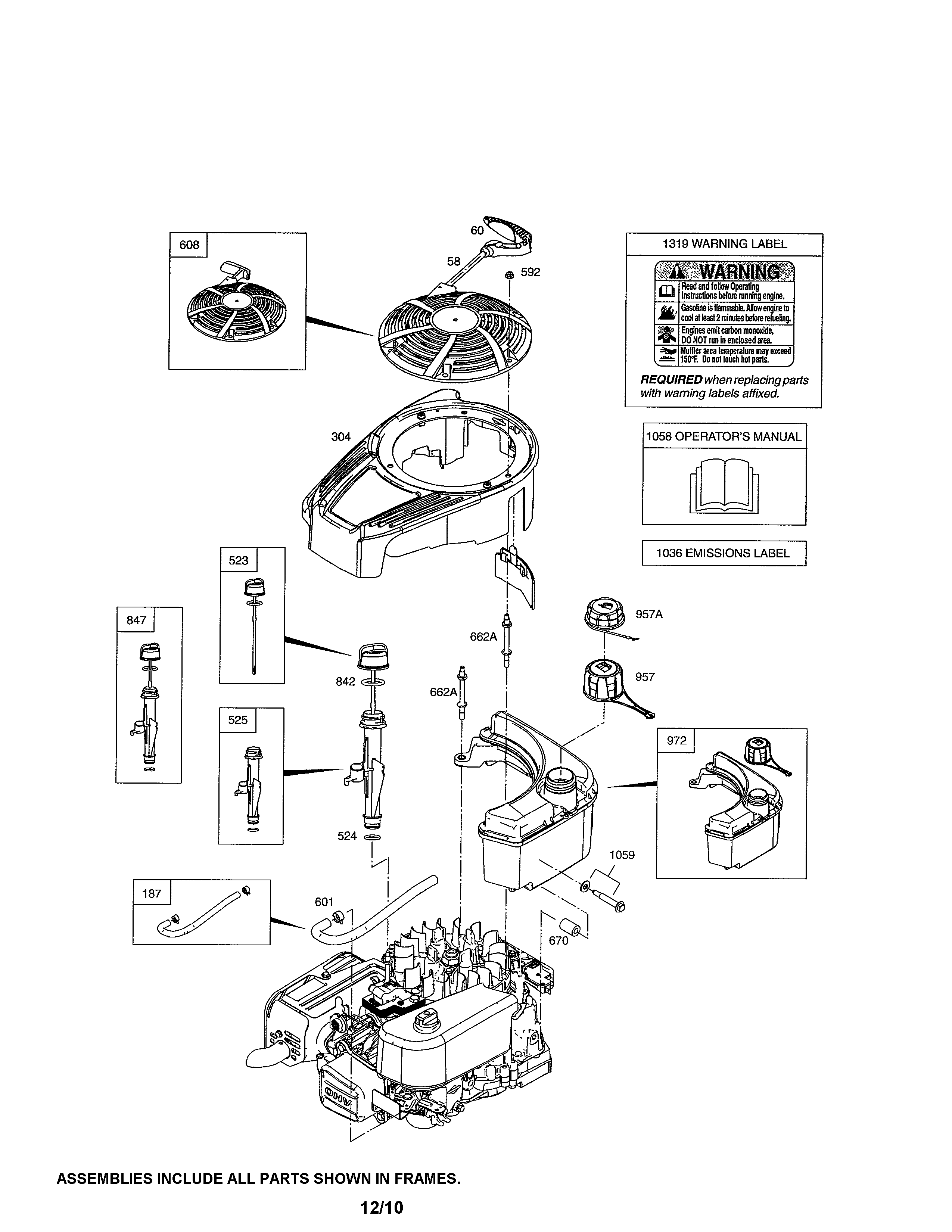

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 257 parts  |
Troybilt Lawn Mower 21-in Deck Mulching Blade (replaces 01002810, 742-0741a, 942-04276, 942-0741) 942-0741A
#34

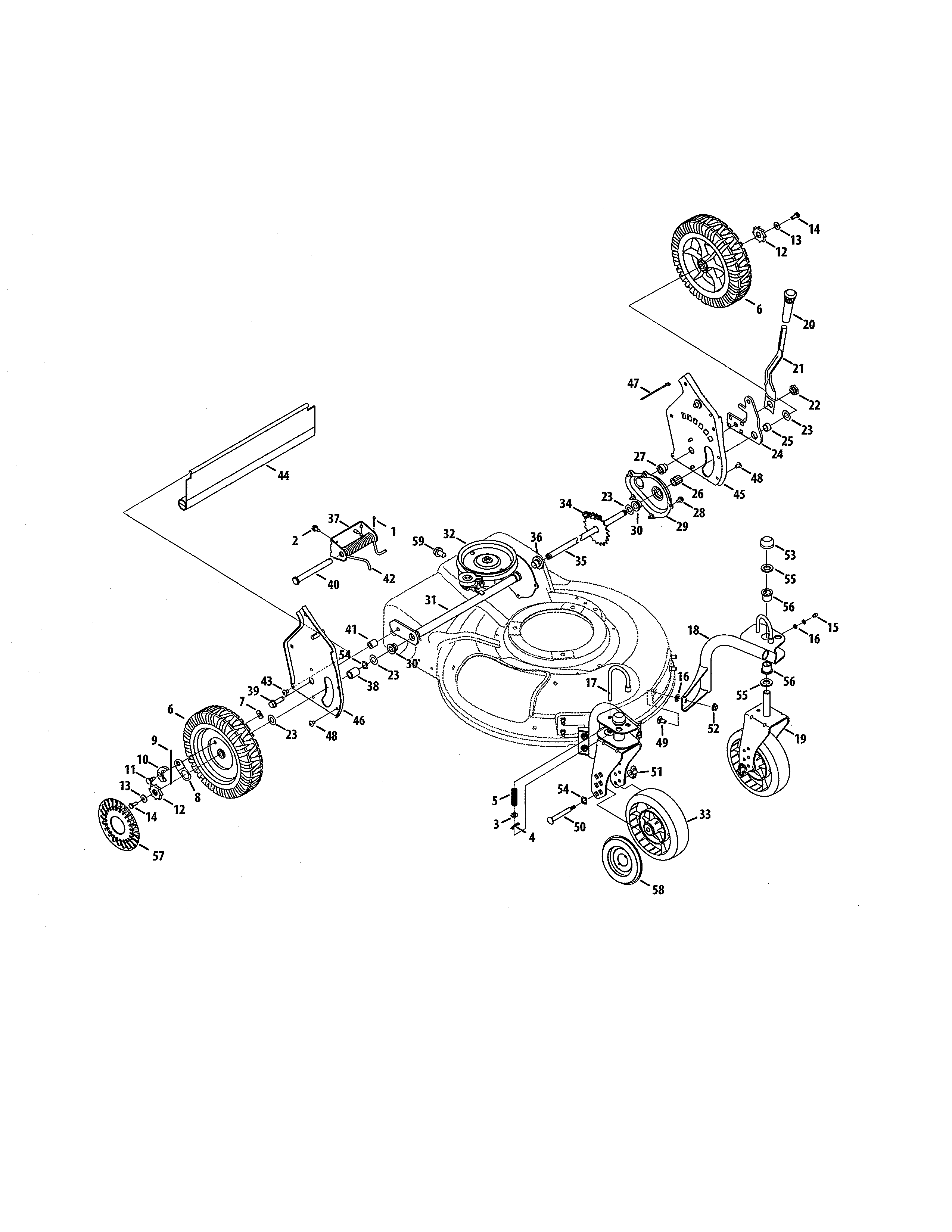

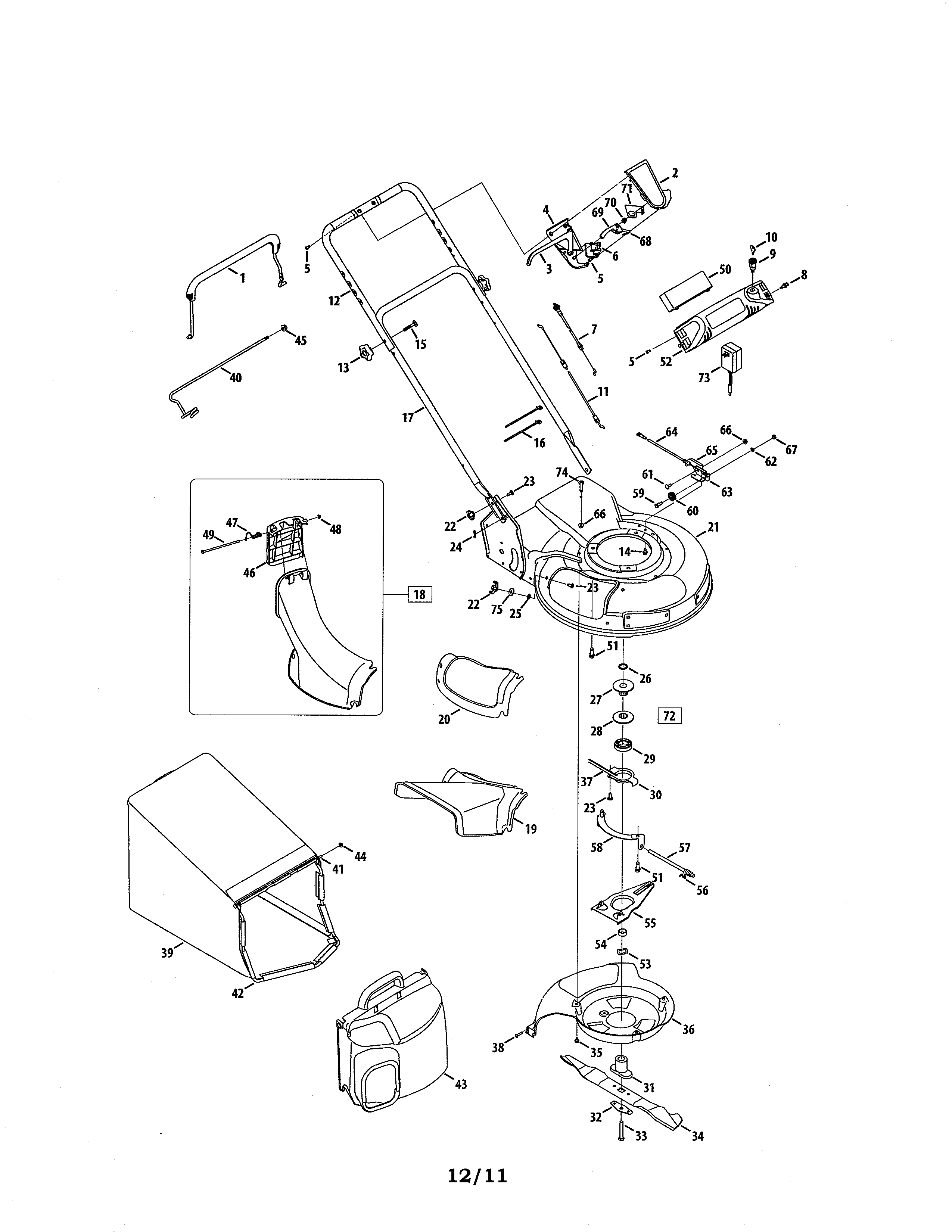

Handle/deck/chute diagram

Troybilt lawn mower 21-in deck mulching blade (replaces 01002810, 742-0741a, 942-04276, 942-0741)

Part #942-0741A

BEST SELLER

Get free shipping with Automatic Reorder

$29.10 |
17% OFF Phone Price : $35.10
In Stock
Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.40 |
19% OFF Phone Price : $5.40
In Stock
Yard Machines Lawn & Garden Equipment Nut 712-04064
#66

Handle/deck/chute diagram

Yard machines lawn & garden equipment nut

Part #712-04064

BEST SELLER
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
In Stock
Yard Machines Lawn Mower Handle Knob (replaces 01000382, 113589, 720-04072, 720-04125) 720-04072A
#13

Handle/deck/chute diagram

Yard machines lawn mower handle knob (replaces 01000382, 113589, 720-04072, 720-04125)

Part #720-04072A

BEST SELLER
$9.33 |
10% OFF Phone Price : $10.33
In Stock
Lawn Tractor Screw, 1/4-20 X 5/8-in (replaces 910-1652) 710-1652
Lawn tractor screw, 1/4-20 x 5/8-in (replaces 910-1652)

Part #710-1652

BEST SELLER
This item is not returnable
$5.44 |
16% OFF Phone Price : $6.44
In Stock
Lawn & Garden Equipment Wing Nut (replaces 01000203, 912-0397) 712-0397A
#22

Handle/deck/chute diagram

Lawn & garden equipment wing nut (replaces 01000203, 912-0397)

Part #712-0397A

This item is not returnable
$5.22 |
16% OFF Phone Price : $6.22
In Stock
Lawn & Garden Equipment Wing Nut 912-0397
#51

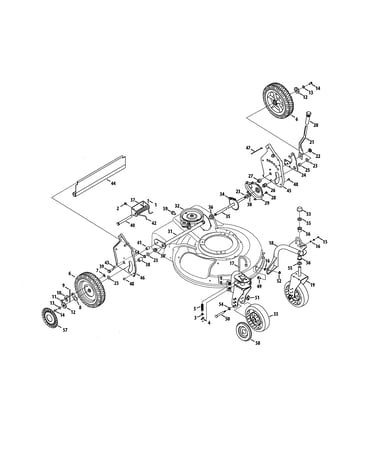

Drive diagram

Lawn & garden equipment wing nut

Part #912-0397

Replaced by #712-0397A

?
Manufacturer substitution
This part replaces 912-0397. Substitute parts can look different from the original.
This item is not returnable
$5.22 |
16% OFF Phone Price : $6.22
In Stock
Lawn & Garden Equipment Hex Cap Screw 710-0751
#14

Drive diagram

Lawn & garden equipment hex cap screw

Part #710-0751

This item is not returnable
$5.12 |
16% OFF Phone Price : $6.12
In Stock
Sears Lawn Mower Roller Wheel 756-0625
#60

Handle/deck/chute diagram

Sears lawn mower roller wheel

Part #756-0625

This item is not returnable
$12.00 |
14% OFF Phone Price : $14.00
In Stock
Lawn & Garden Equipment Cable Tie 725-0157
#47

Drive diagram

Lawn & garden equipment cable tie

Part #725-0157

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 725-0157. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
