Model # 13953491SRT Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 13953491SRT garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 49 parts |

Garage Door Opener Motor Pulley, 28-tooth 144B42

#8B

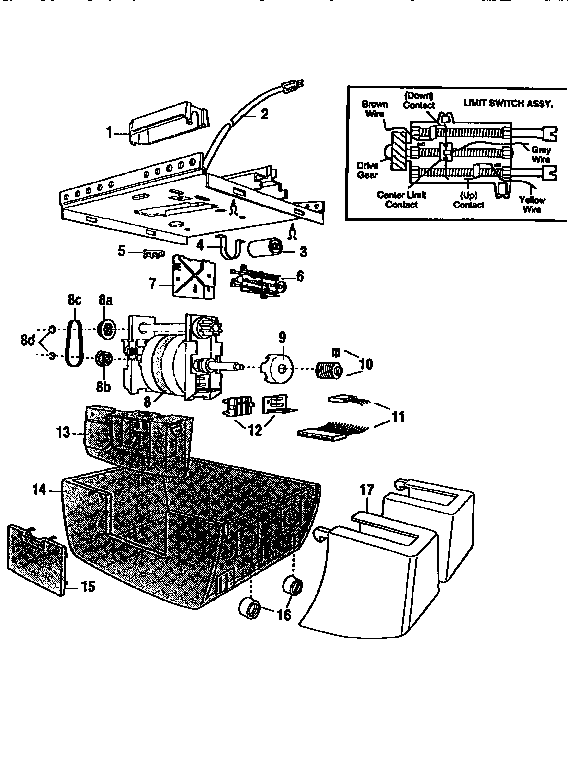

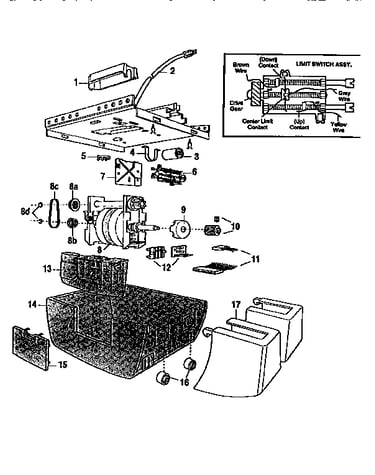

Opener assembly diagram

Garage door opener motor pulley, 28-tooth

Part #144B42

The manufacturer no longer makes this part, and there's no substitute part

#15

Opener assembly diagram

Cntrl cntr

Part #1C4840-6

The manufacturer no longer makes this part, and there's no substitute part

#11

Opener assembly diagram

Wire harness

Part #41C4669

The manufacturer no longer makes this part, and there's no substitute part

Opener assembly diagram

Limit sw bkt

Part #12D554

The manufacturer no longer makes this part, and there's no substitute part

Installation diagram

Garage door opener door bracket

Part #41A5047

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Retaining Clip 158A69

#8D

Opener assembly diagram

Garage door opener retaining clip

Part #158A69

The manufacturer no longer makes this part, and there's no substitute part

Rail assembly diagram

Garage door opener hardware bag

Part #41A4796

The manufacturer no longer makes this part, and there's no substitute part

Rail assembly diagram

Garage door opener trolley rack

Part #81C168

The manufacturer no longer makes this part, and there's no substitute part

Rail assembly diagram

Garage door opener trolley assembly

Part #41C4677

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Rpm Sensor Assembly 41C4672

#12

Opener assembly diagram

Garage door opener rpm sensor assembly

Part #41C4672

The manufacturer no longer makes this part, and there's no substitute part
