Model # 919152120 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919152120 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 53 parts |

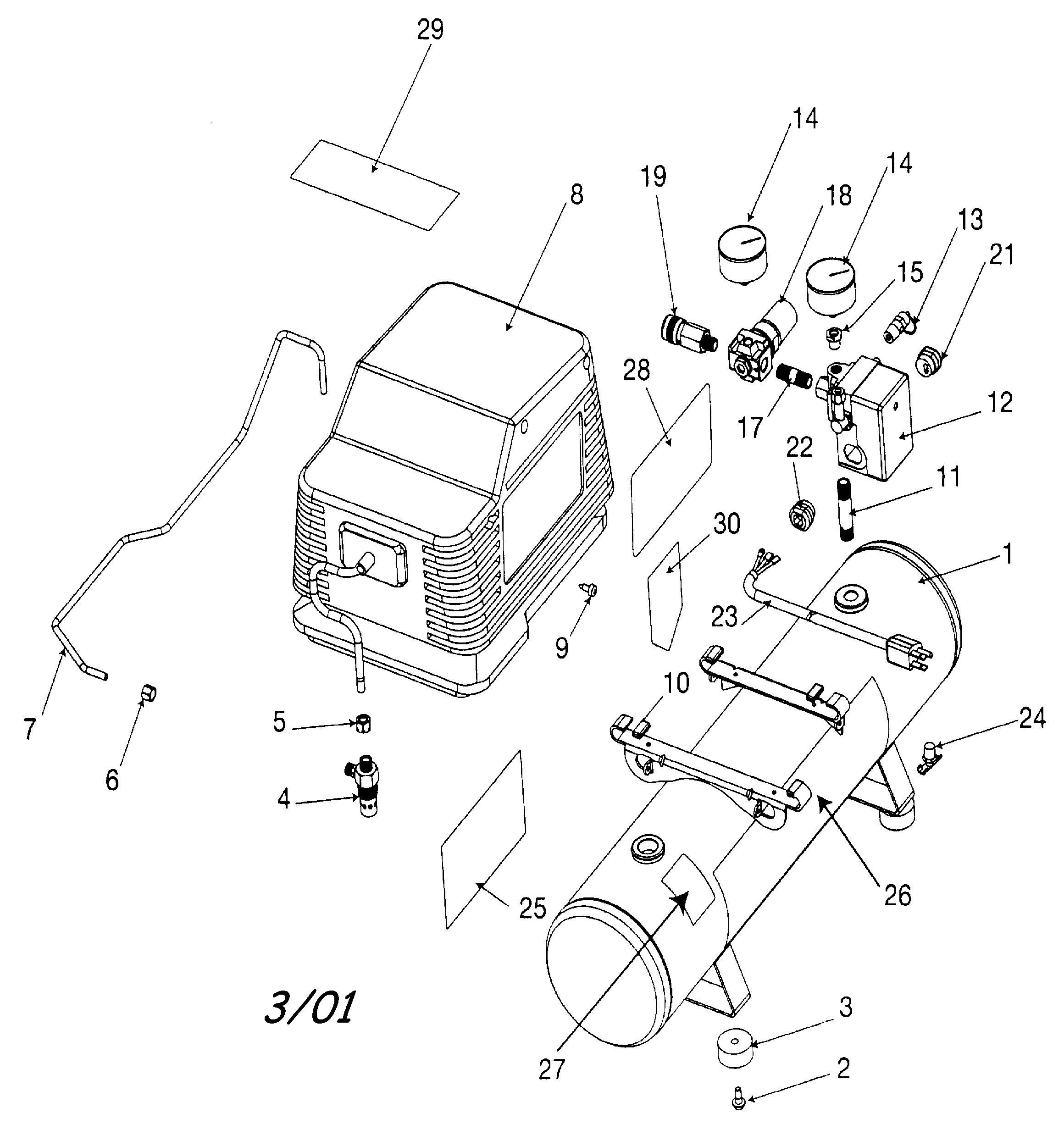

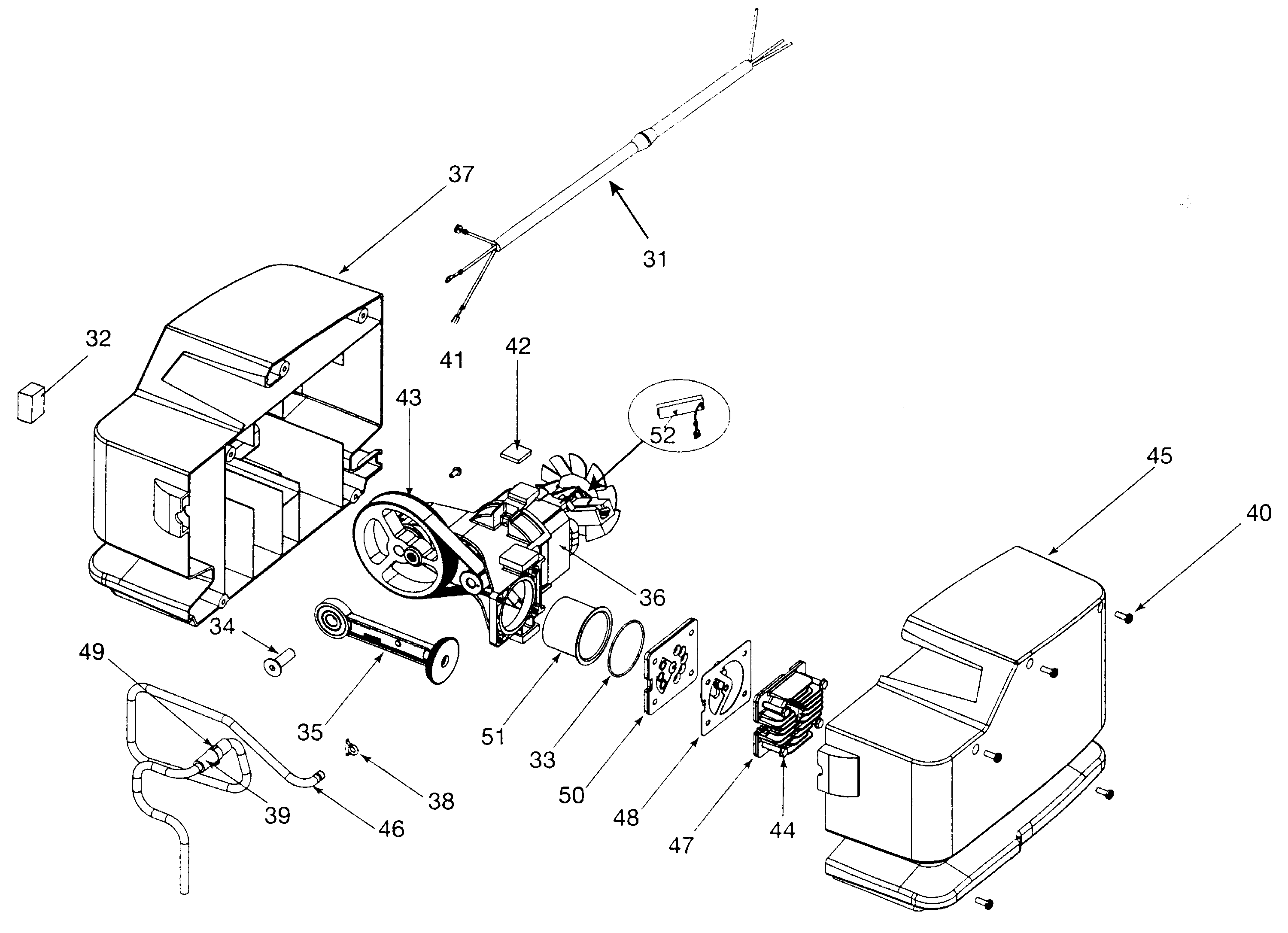

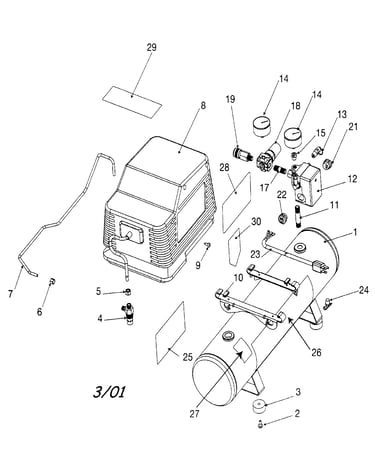

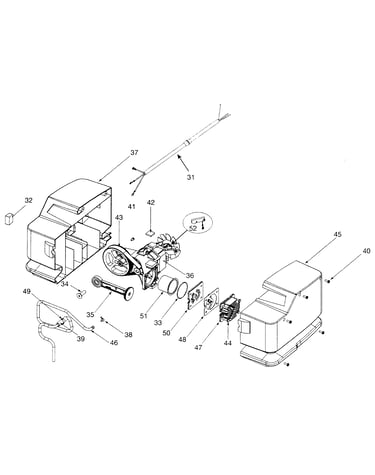

Cabinet parts diagram

Air compressor base bumper

Part #SST-5314-1

The manufacturer no longer makes this part, and there's no substitute part

#41

Cabinet parts diagram

Screw

Part #SUDL-9-1

The manufacturer no longer makes this part, and there's no substitute part

#12

Cabinet parts diagram

Pressure switch

Part #Z-D21892

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Outlet Tube Isolator AC-0206

#39

Cabinet parts diagram

Air compressor outlet tube isolator

Part #AC-0206

The manufacturer no longer makes this part, and there's no substitute part

#26

Cabinet parts diagram

Air compressor nameplate

Part #LA-3069

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Air Hose Clamp CAC-1206-1

#49

Cabinet parts diagram

Air compressor air hose clamp

Part #CAC-1206-1

The manufacturer no longer makes this part, and there's no substitute part

#NI

Cabinet parts diagram

Air compressor hardware kit

Part #KK-4929

The manufacturer no longer makes this part, and there's no substitute part

Cabinet parts diagram

Porter cable air compressor screw, 1/4-14 x 5-in

Part #SSF-621

The manufacturer no longer makes this part, and there's no substitute part

#27

Cabinet parts diagram

Label

Part #LA-3108

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Air Compressor Shroud Screw SSF-3156

#40

Cabinet parts diagram

Porter cable air compressor shroud screw

Part #SSF-3156

The manufacturer no longer makes this part, and there's no substitute part
