Model # 11177106810 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 11177106810 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Air Exhaust Wind Wheel BA018-S00011
#16

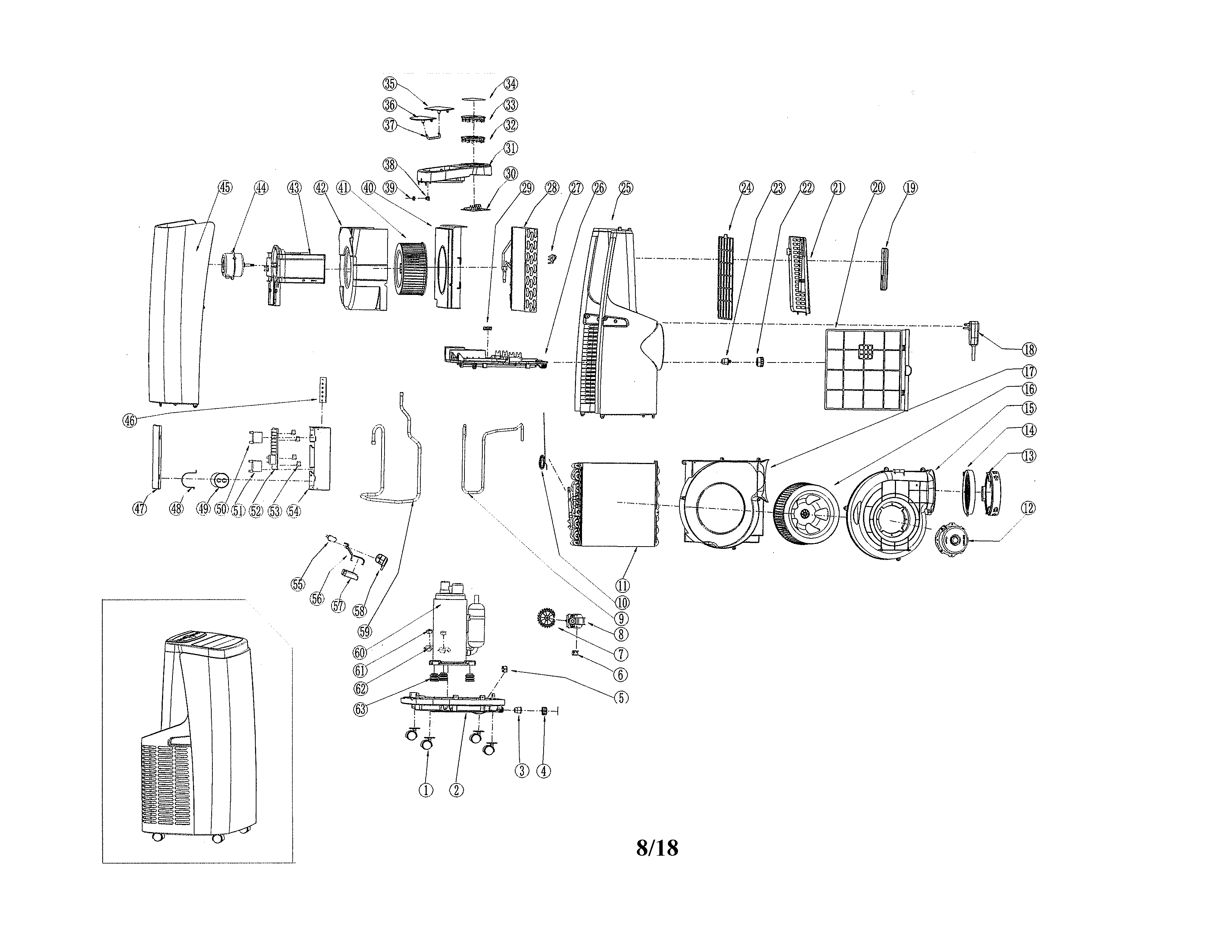

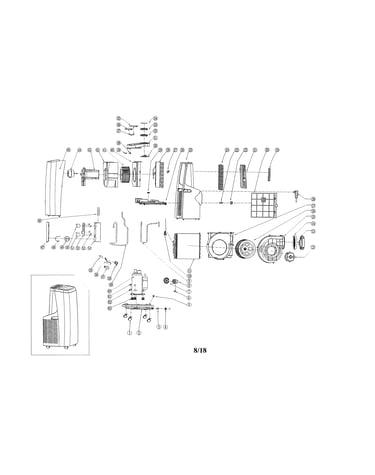

Room a/c diagram

Air exhaust wind wheel

Part #BA018-S00011

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Pipe Joint BA018-S00045
#13

Room a/c diagram

Exhaust pipe joint

Part #BA018-S00045

The manufacturer no longer makes this part, and there's no substitute part

After The Upper Air Duct BA018-S00102
After the upper air duct

Part #BA018-S00102

The manufacturer no longer makes this part, and there's no substitute part

Lower Air Duct BA018-S00103
#17

Room a/c diagram

Lower air duct

Part #BA018-S00103

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor BA018-M00004
#12

Room a/c diagram

Blower motor

Part #BA018-M00004

The manufacturer no longer makes this part, and there's no substitute part

Power Cord T06-DY-00130
#18

Room a/c diagram

Power cord

Part #T06-DY-00130

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Hose, N/a T10-F5-01256
Exhaust hose, n/a

Part #T10-F5-01256

The manufacturer no longer makes this part, and there's no substitute part

Safety Net BA018-S00093
#14

Room a/c diagram

Safety net

Part #BA018-S00093

The manufacturer no longer makes this part, and there's no substitute part

Main Control Electric Board TA018-D00024
#52

Room a/c diagram

Main control electric board

Part #TA018-D00024

The manufacturer no longer makes this part, and there's no substitute part

Button Type Panel BA018-S00143
#32

Room a/c diagram

Button type panel

Part #BA018-S00143

The manufacturer no longer makes this part, and there's no substitute part
