Model # 315275060 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315275060 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

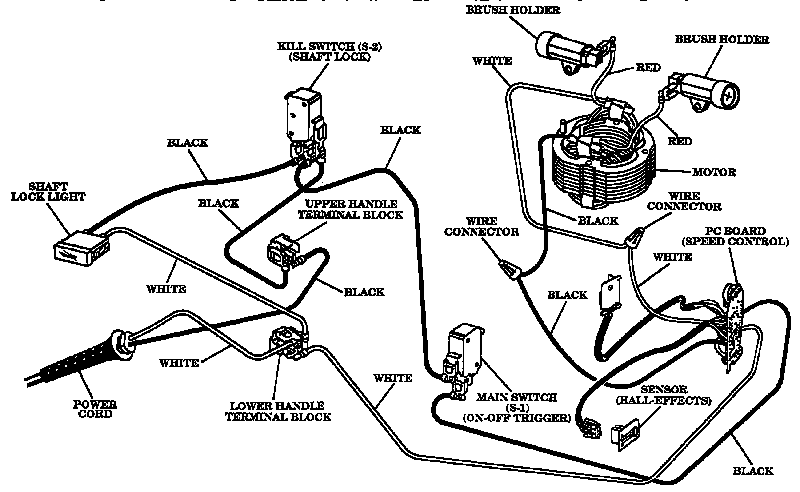

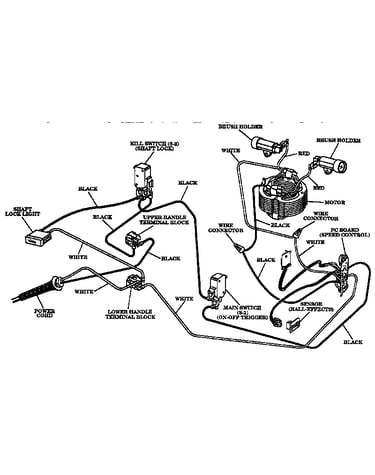

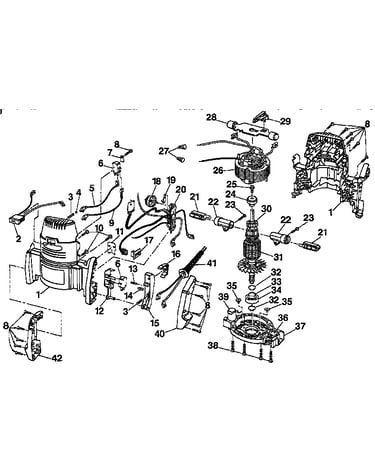

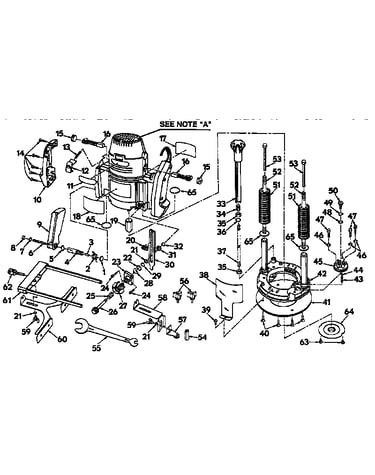

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |

Frame W/brgs 970759-203
#37

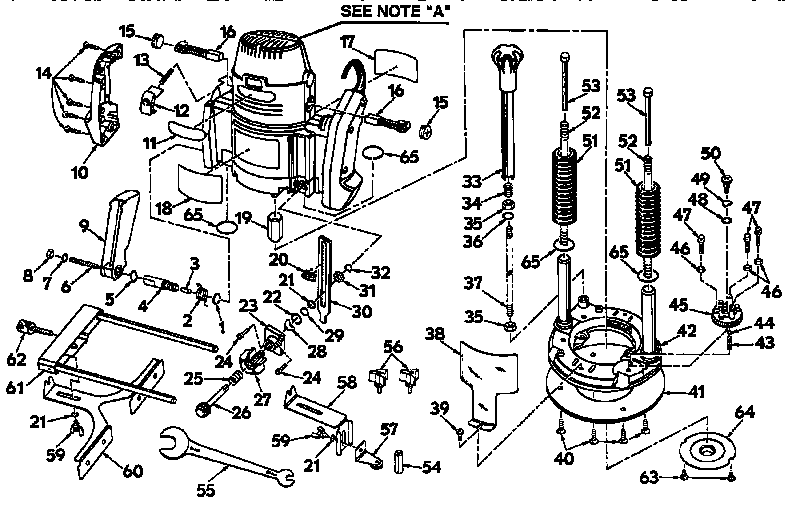

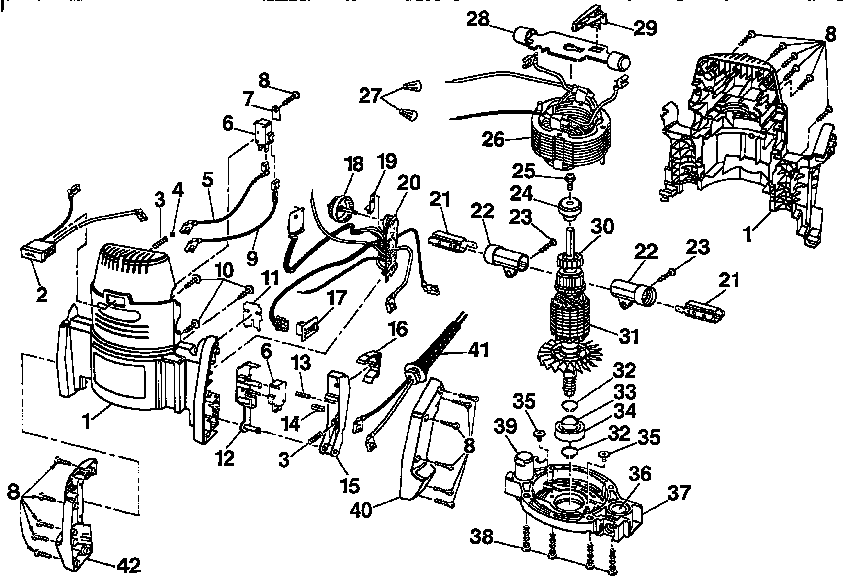

Router diagram

Frame w/brgs

Part #970759-203

The manufacturer no longer makes this part, and there's no substitute part

Holder 972421-000
#73

Router diagram

Holder

Part #972421-000

The manufacturer no longer makes this part, and there's no substitute part

Comp. Spring 970772-001
#43

Router diagram

Comp. spring

Part #970772-001

The manufacturer no longer makes this part, and there's no substitute part

Ht Sink W/b 970721-003
#30

Router diagram

Ht sink w/b

Part #970721-003

The manufacturer no longer makes this part, and there's no substitute part

Armature 970870-001
#31

Router diagram

Armature

Part #970870-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 967439-002
#38

Router diagram

Screw

Part #967439-002

The manufacturer no longer makes this part, and there's no substitute part

Adapter 969359-001
#71

Router diagram

Adapter

Part #969359-001

The manufacturer no longer makes this part, and there's no substitute part

Sensor 970724-001
#17

Router diagram

Sensor

Part #970724-001

The manufacturer no longer makes this part, and there's no substitute part

Router Depth Adjustment Knob 970729-001
#56

Router diagram

Router depth adjustment knob

Part #970729-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 970712-001
#50

Router diagram

Screw

Part #970712-001

The manufacturer no longer makes this part, and there's no substitute part
