Model # WHDRR418G1WW Official GE washer
Here are the diagrams and repair parts for Official GE WHDRR418G1WW washer, as well as links to manuals and error code tables, if available.
Installation guide
Error CodesBy Schematic
By Part

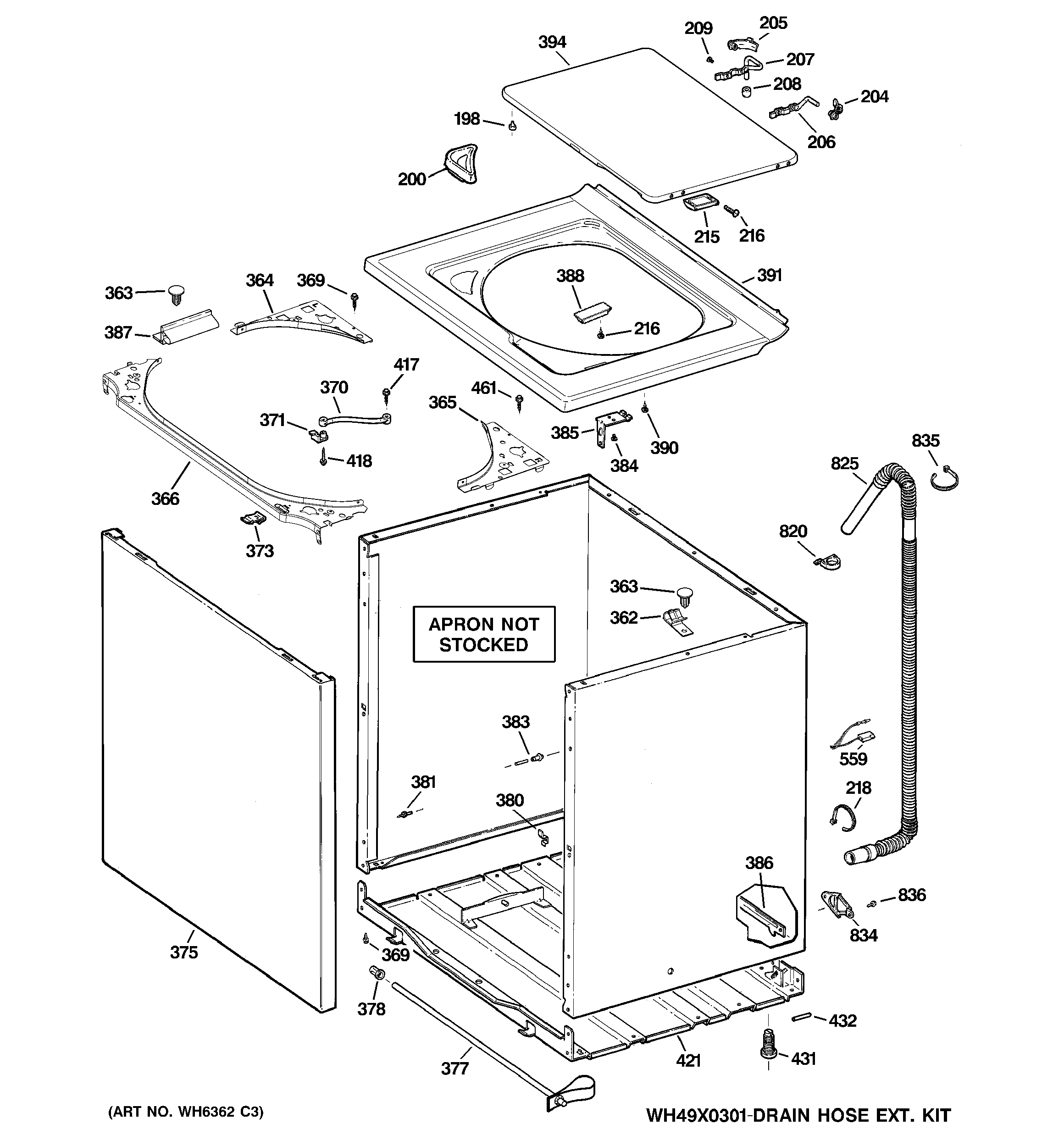

SELECT DIAGRAM
Browse Parts for
WHDRR418G1WW Washer
#325

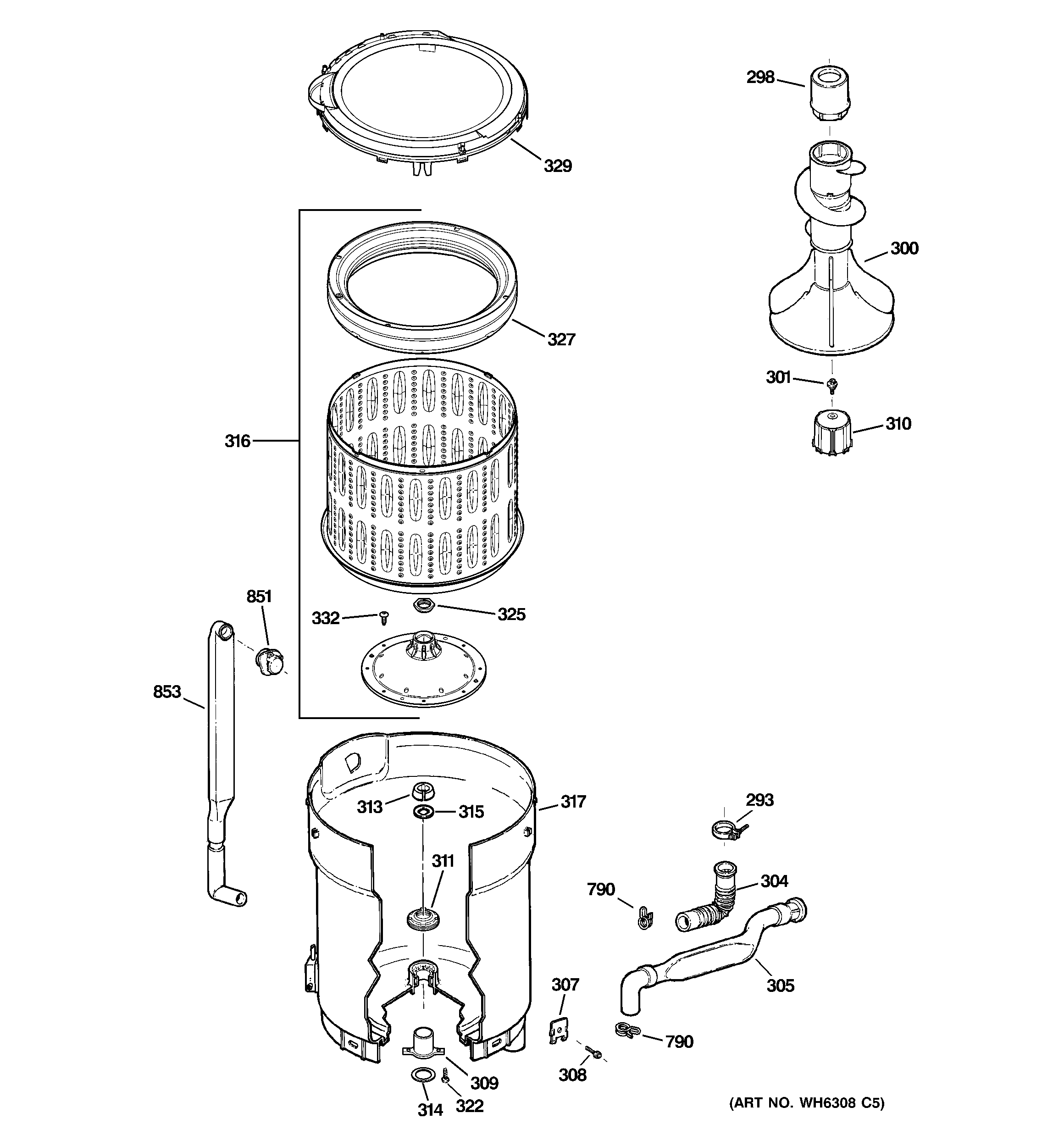

Tub, basket & agitator diagram
Hub nut
Part #WH02X1193
Replaced by #WH2X1193
?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
$14.47 |
12% OFF Phone Price : $16.47
In Stock
#311
Tub, basket & agitator diagram
Washer tub seal
Part #WH02X10032
Replaced by #WH02X10383
?
Manufacturer substitution
This part replaces WH02X10032. Substitute parts can look different from the original.
$11.72 |
15% OFF Phone Price : $13.72
In Stock
#309
Tub, basket & agitator diagram
Tub bearing
Part #WH02X1198
Replaced by #WH2X1198
?
Manufacturer substitution
This part replaces WH02X1198. Substitute parts can look different from the original.
$33.19 |
15% OFF Phone Price : $39.19
In Stock
#315
Tub, basket & agitator diagram
Hub washer
Part #WH02X1199
Replaced by #WH2X1199
?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
$7.64 |
12% OFF Phone Price : $8.64
In Stock
#603
Suspension, pump & drive components diagram
Washer drive belt (replaces wh01x10353)
Part #WH01X10302
$22.69 |
21% OFF Phone Price : $28.69
In Stock
#320
Suspension, pump & drive components diagram
Shaft
Part #WH38X10015
Replaced by #WH38X10017
?
Manufacturer substitution
This part replaces WH38X10015. Substitute parts can look different from the original.
$182.96 |
6% OFF Phone Price : $194.96
In Stock
#8

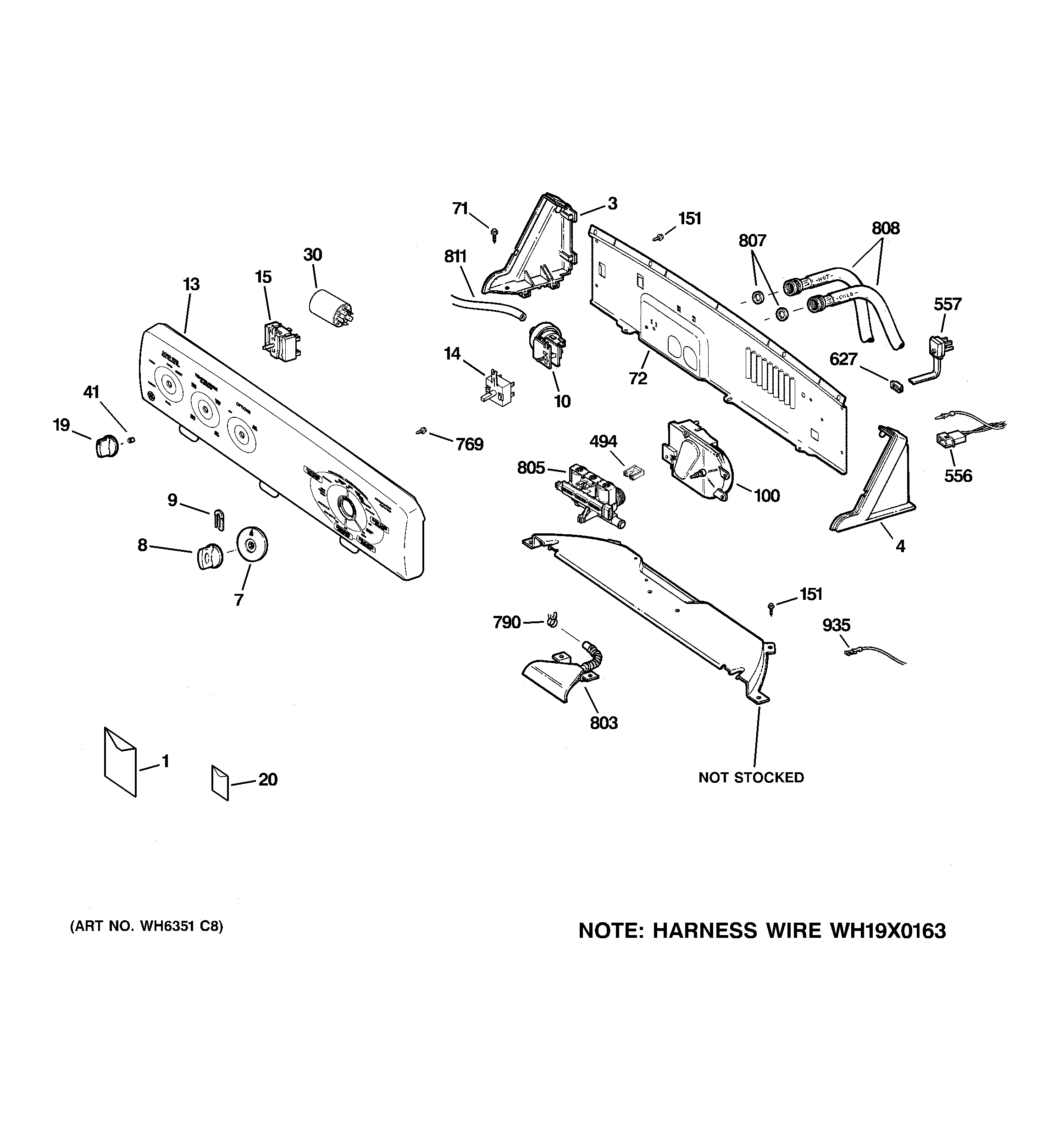

Controls & backsplash diagram
Washer timer knob (replaces wh01x10061)
Part #WH01X10310
$8.67 |
10% OFF Phone Price : $9.67
In Stock
#19
Controls & backsplash diagram
Knob and cli
Part #WH01X10307
Replaced by #WE01X20378
?
Manufacturer substitution
This part replaces WH01X10307. Substitute parts can look different from the original.
$29.89 |
17% OFF Phone Price : $35.89
In Stock
#314
Tub, basket & agitator diagram
Tub bearing
Part #WH02X1197
Replaced by #WH2X1197
?
Manufacturer substitution
This part replaces WH02X1197. Substitute parts can look different from the original.
$8.49 |
11% OFF Phone Price : $9.49
In Stock
#300
Tub, basket & agitator diagram
Washer agitator (replaces wh43x25442)
Part #WH43X10034
$55.29 |
10% OFF Phone Price : $61.29
In Stock
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
