Model # GF770HXD5 Official White-Westinghouse gas range - 5995200903

Here are the diagrams and repair parts for Official White-Westinghouse GF770HXD5 gas range - 5995200903, as well as links to manuals and error code tables, if available.

By Schematic
By Part

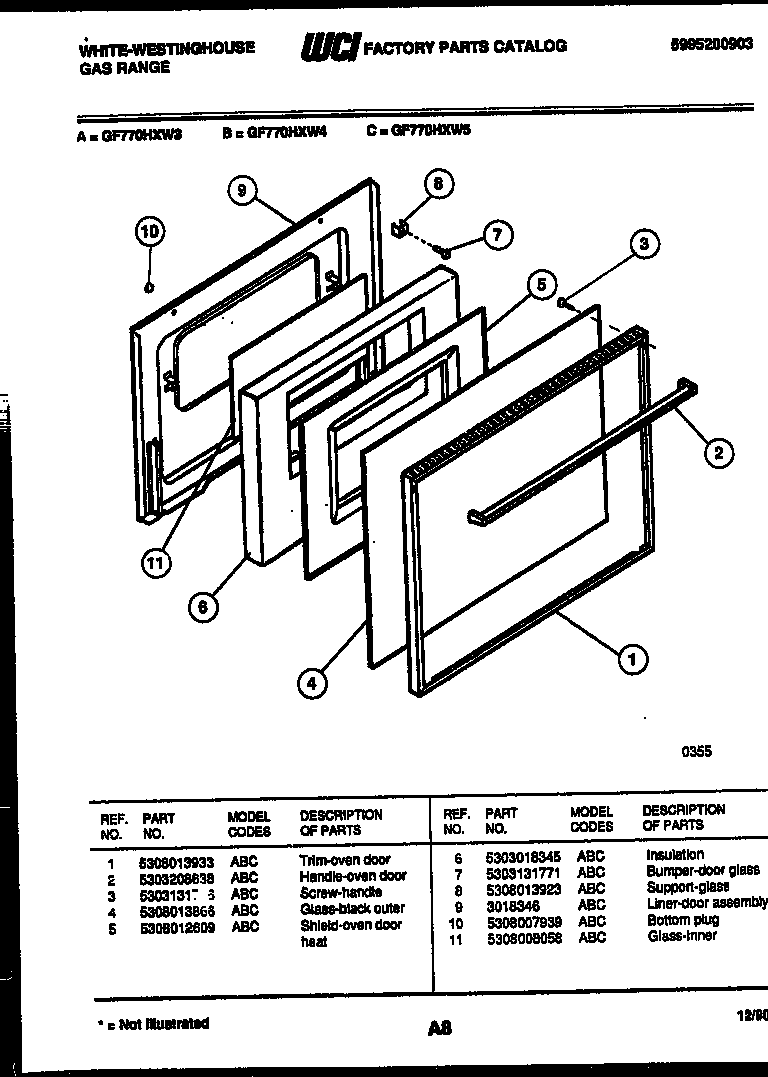

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forGF770HXD5 Ranges

  • Igniter 5308009420
    #22

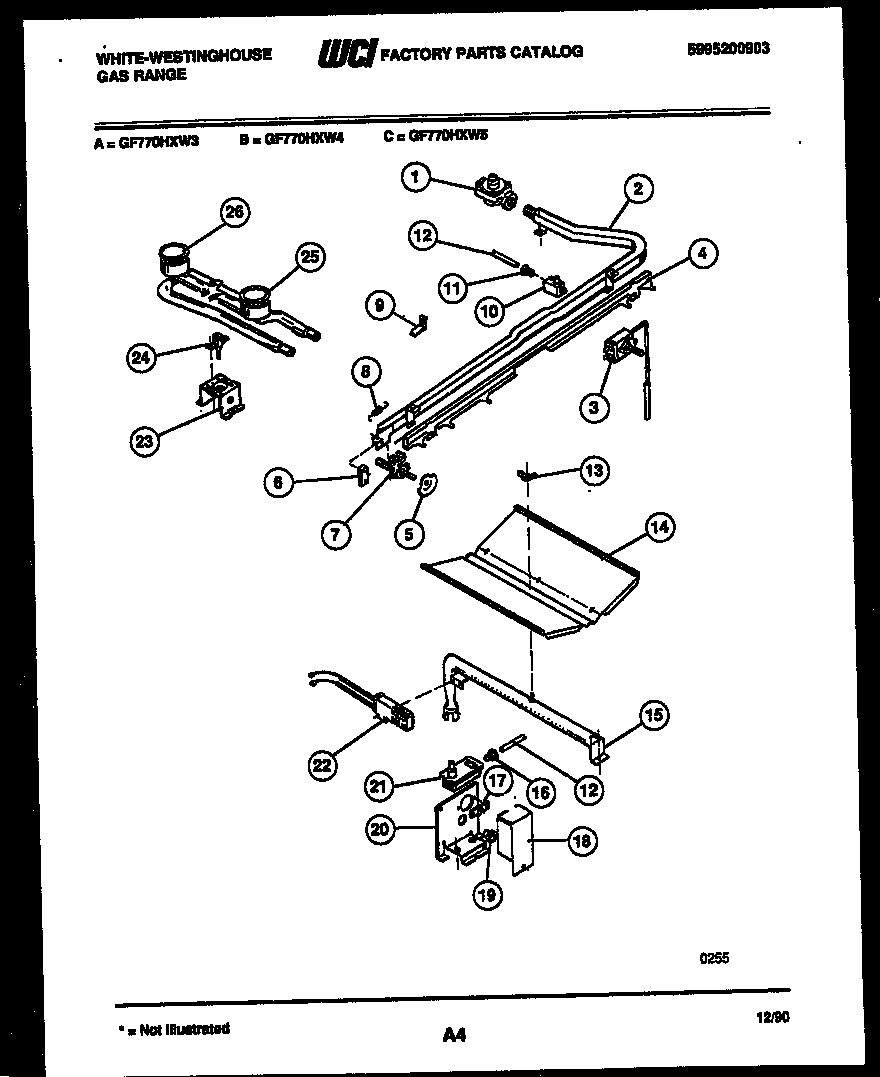

    Burner, manifold and gas control diagram

    Igniter

    Part #5308009420

    Replaced by #5303935066

    ?
    Manufacturer substitution
    This part replaces 5308009420. Substitute parts can look different from the original.
    4.6 (56)
    BEST SELLER
    $34.33 |
    15% OFF Phone Price : $40.33
    In Stock
  • Receptacle 5303009410
    #17

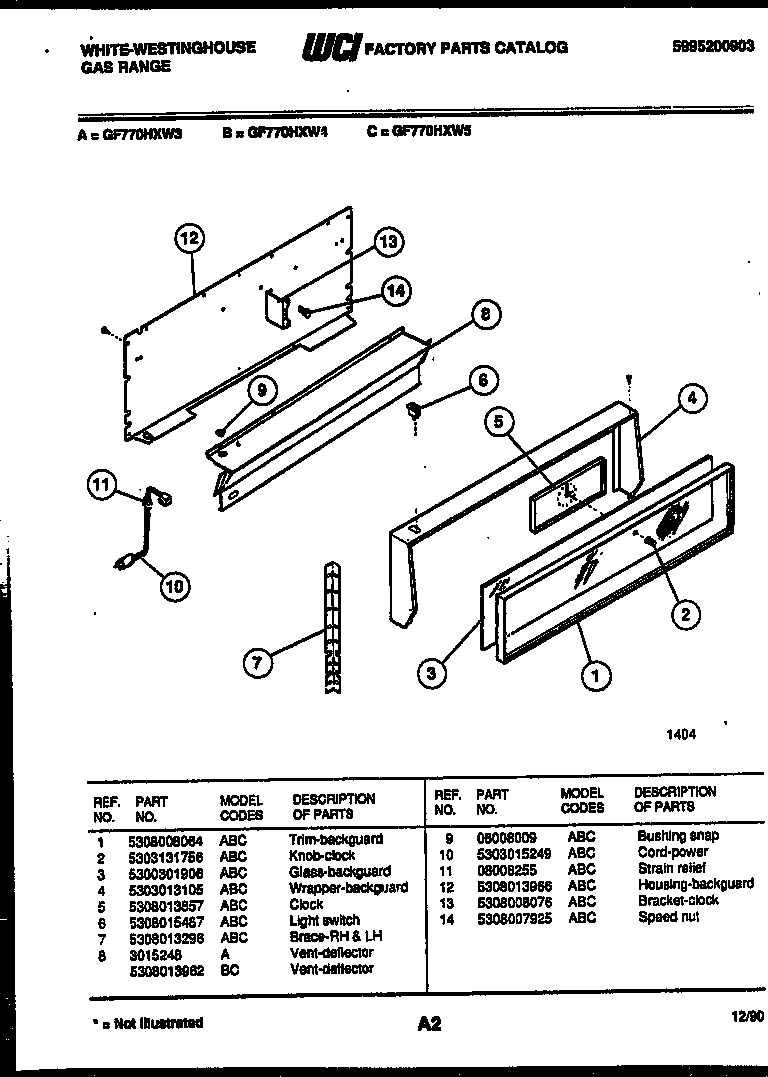

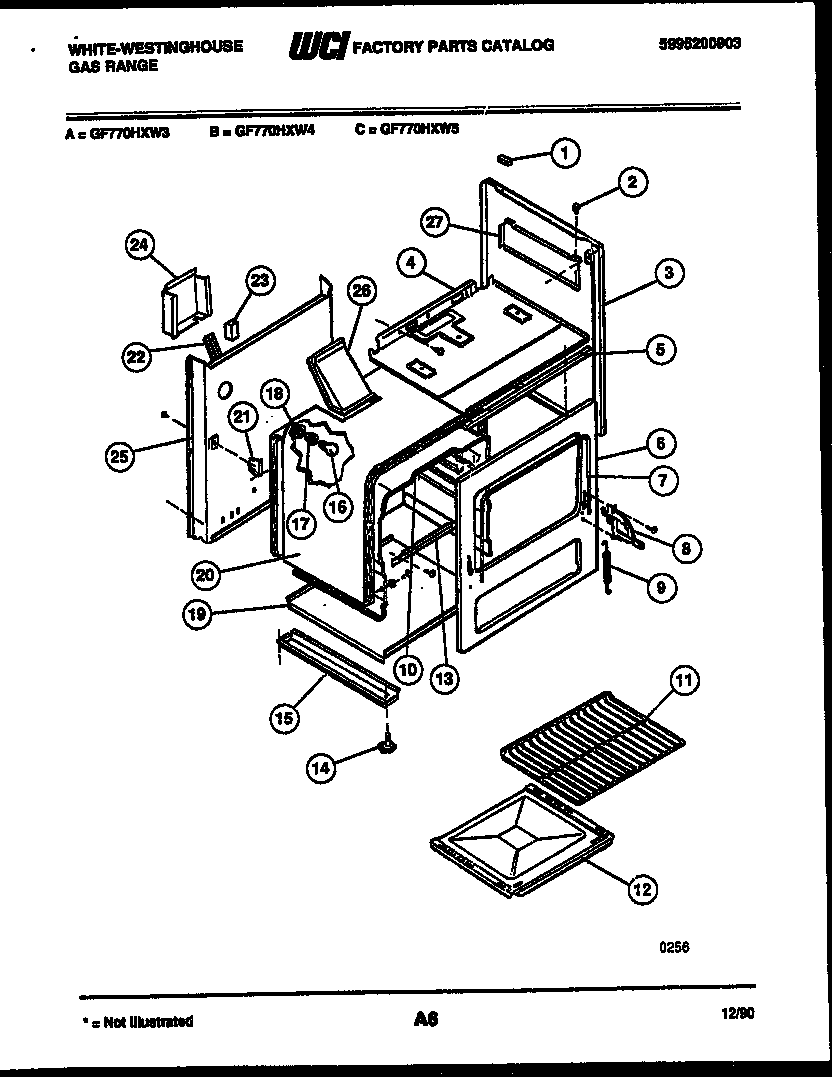

    Body parts diagram

    Receptacle

    Part #5303009410

    Replaced by #316116400

    ?
    Manufacturer substitution
    This part replaces 5303009410. Substitute parts can look different from the original.
    5 (3)
    BEST SELLER
    $43.02 |
    12% OFF Phone Price : $49.02
    In Stock
  • Nut 3051038
    #6

    Broiler drawer parts diagram

    Nut

    Part #3051038

    Replaced by #5303013272

    ?
    Manufacturer substitution
    This part replaces 3051038. Substitute parts can look different from the original.
    This item is not returnable
    $18.06 |
    10% OFF Phone Price : $20.06
    In Stock
  • Module 5303200669
    #23

    Body parts diagram

    Module

    Part #5303200669

    Replaced by #5303912606

    ?
    Manufacturer substitution
    This part replaces 5303200669. Substitute parts can look different from the original.
    1 (1)
    $104.47 |
    10% OFF Phone Price : $116.47
    In Stock
  • Spark Module 5303209931
    #23

    Body parts diagram

    Spark module

    Part #5303209931

    Replaced by #5303912606

    ?
    Manufacturer substitution
    This part replaces 5303209931. Substitute parts can look different from the original.
    1 (1)
    $104.47 |
    10% OFF Phone Price : $116.47
    In Stock
  • Broiler Pan 3131022
    #2

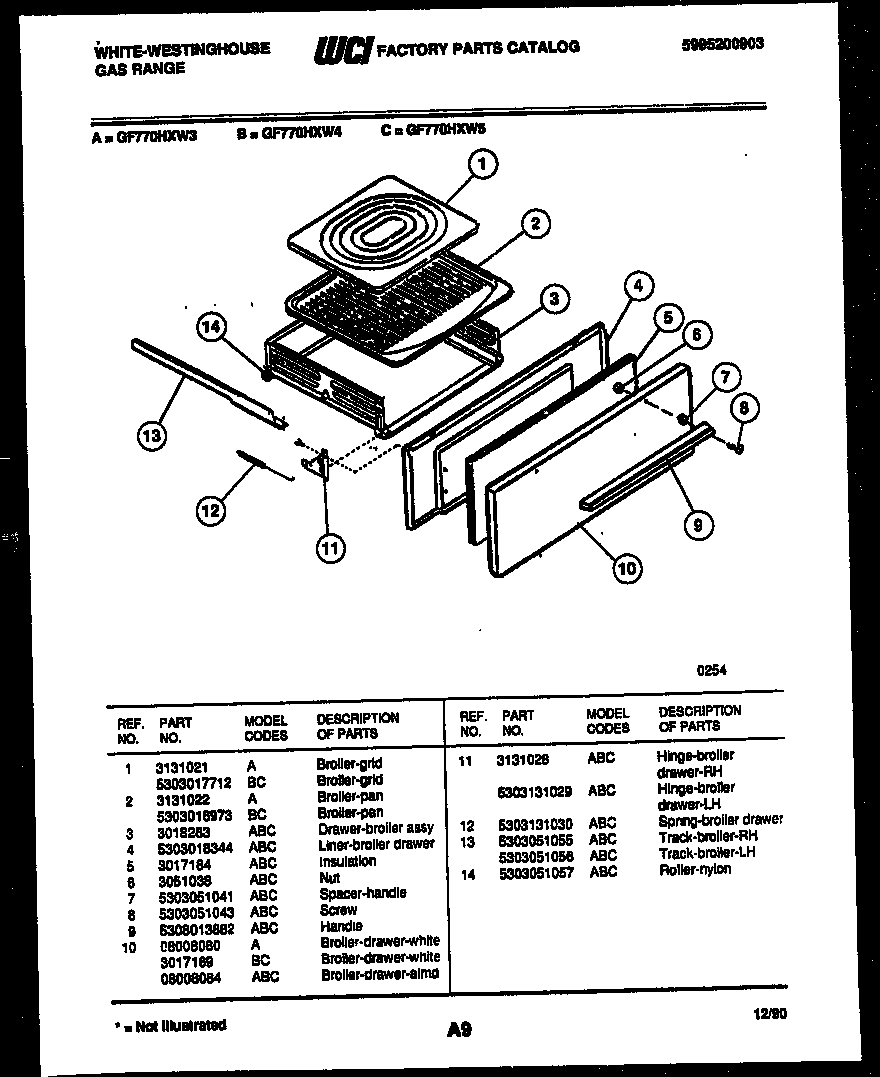

    Broiler drawer parts diagram

    Broiler pan

    Part #3131022

    Replaced by #5304442087

    ?
    Manufacturer substitution
    This part replaces 3131022. Substitute parts can look different from the original.
    3.5 (13)
    $54.53 |
    21% OFF Was : $69.03
    In Stock
  • Level Bolt 5303210257
    #14

    Body parts diagram

    Level bolt

    Part #5303210257

    Replaced by #318175510

    ?
    Manufacturer substitution
    This part replaces 5303210257. Substitute parts can look different from the original.
    5 (1)
    This item is not returnable
    $23.53 |
    20% OFF Phone Price : $29.53
    In Stock
  • Bushing 08008009
    #9

    Backguard diagram

    Bushing

    Part #08008009

    $10.20
    In Stock
  • Glass 5300301906
    #3

    Backguard diagram

    Glass

    Part #5300301906

    $93.02
    In Stock
  • Range Pressure Regulator 5308007974
    #1

    Burner, manifold and gas control diagram

    Range pressure regulator

    Part #5308007974

    $194.70 |
    6% OFF Phone Price : $206.70
    In Stock
