Husqvarna
Gas Walk-Behind Mower

Model # 917374452 Official Husqvarna lawn mower

Here are the diagrams and repair parts for Official Husqvarna 917374452 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |
Lawn & Garden Equipment Nut 409148
#33

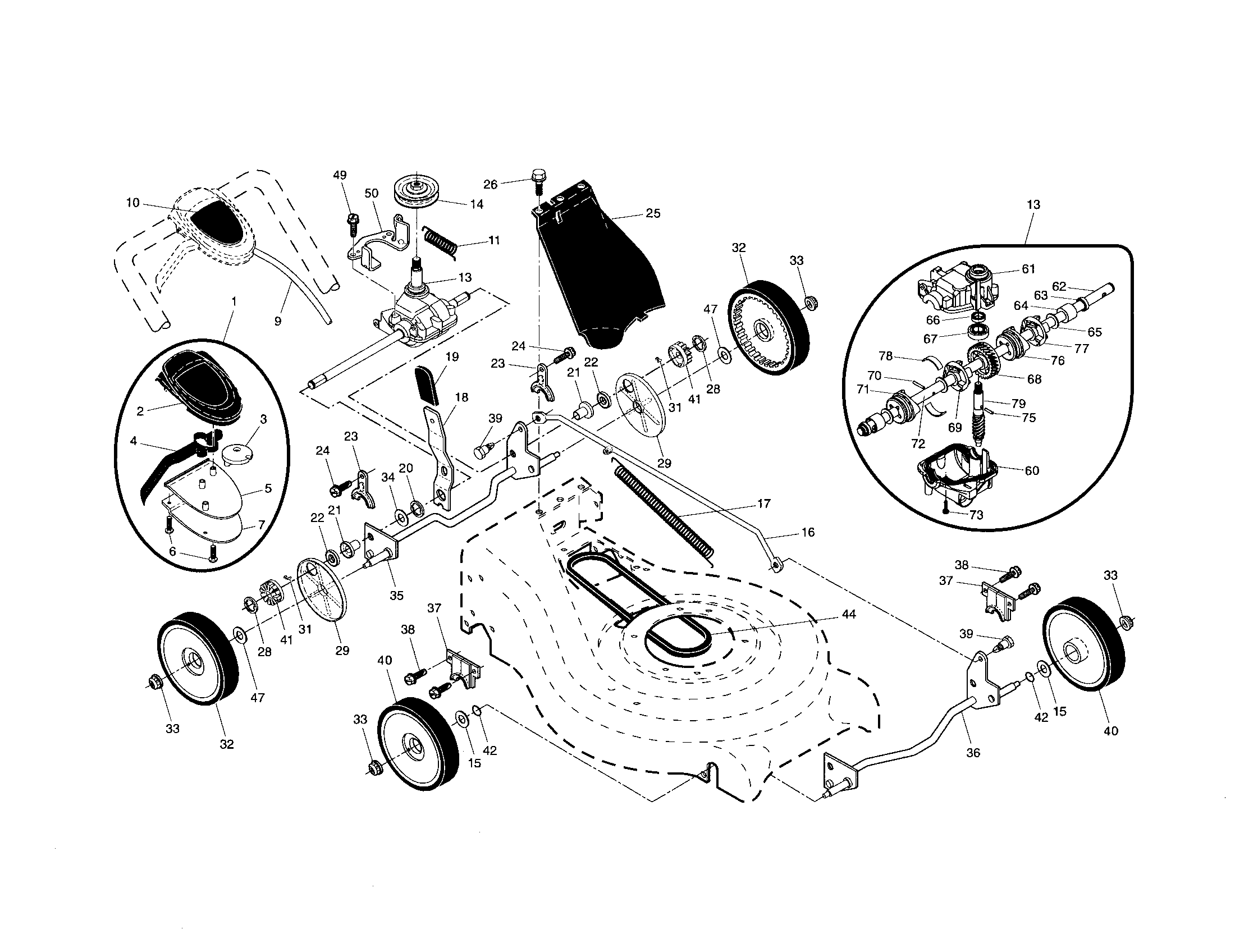

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Wheel Dust Cover 189403
#29

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$8.22 |
11% OFF Phone Price : $9.22
In Stock
Handle Bolt 191574
#7

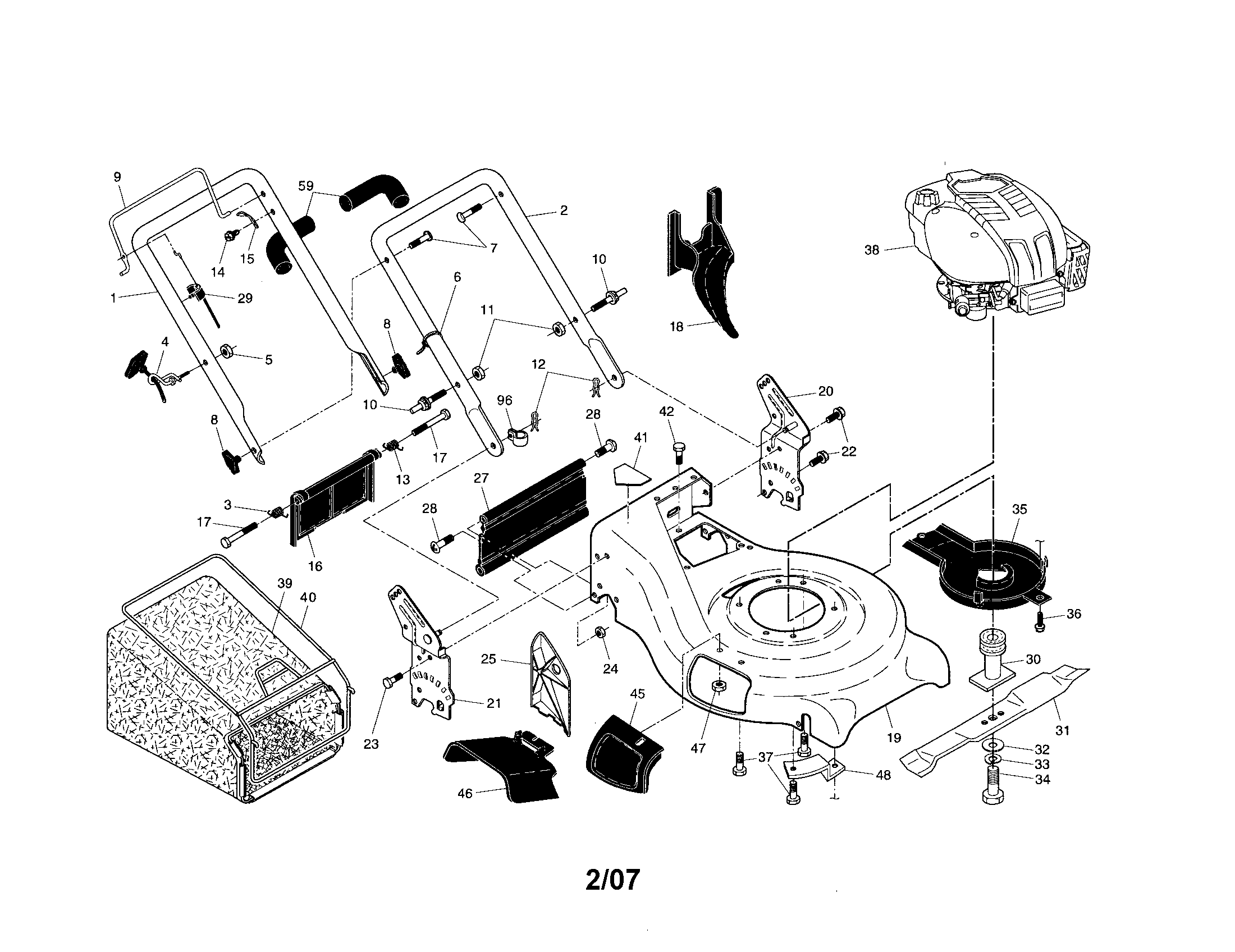

Engine/housing/handle/grassbag diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lock Nut 73800500
#24

Engine/housing/handle/grassbag diagram

Lock nut

Part #73800500

Replaced by #596040501

?
Manufacturer substitution
This part replaces 73800500. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Return Spring 406558
#11

Drive control/gear case/wheels diagram

Return spring

Part #406558

Replaced by #532406558

?
Manufacturer substitution
This part replaces 406558. Substitute parts can look different from the original.
BEST SELLER
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Lawn Mower Cable 406258
#9

Drive control/gear case/wheels diagram

Lawn mower cable

Part #406258

Replaced by #532406258

?
Manufacturer substitution
This part replaces 406258. Substitute parts can look different from the original.
$39.70 |
13% OFF Phone Price : $45.70
In Stock
Upstop Bracket 850733X004
#15

Engine/housing/handle/grassbag diagram

Upstop bracket

Part #850733X004

Replaced by #532850733

?
Manufacturer substitution
This part replaces 850733X004. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#32

Engine/housing/handle/grassbag diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Bearing 191039
#22

Drive control/gear case/wheels diagram

Bearing

Part #191039

Replaced by #587070202

?
Manufacturer substitution
This part replaces 191039. Substitute parts can look different from the original.
$22.26
In Stock
Lawn Mower Zone Control Cable (replaces 532191221) 191221
#29

Engine/housing/handle/grassbag diagram

Lawn mower zone control cable (replaces 532191221)

Part #191221

Replaced by #532191221

?
Manufacturer substitution
This part replaces 191221. Substitute parts can look different from the original.
$26.64
In Stock
