Model # 315268350 Official Craftsman electronic plunge router

Here are the diagrams and repair parts for Official Craftsman 315268350 electronic plunge router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

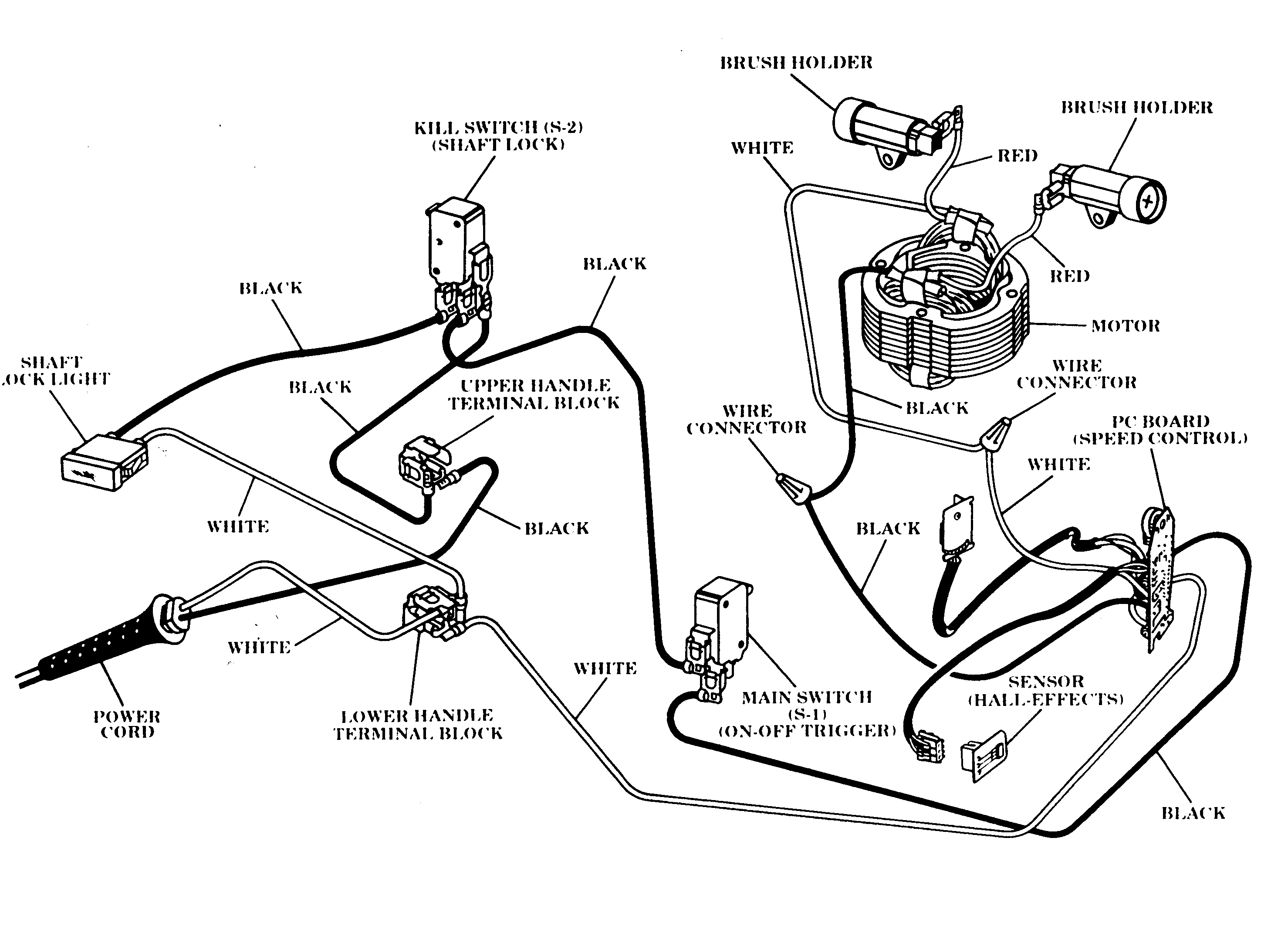

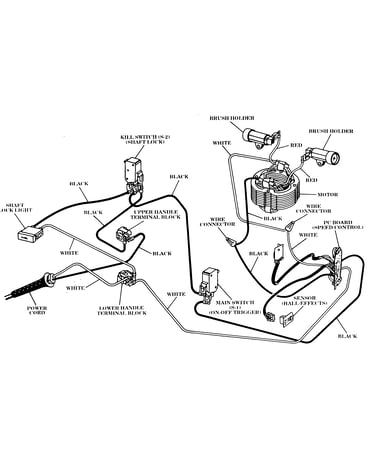

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Actuator 970762-001
#12

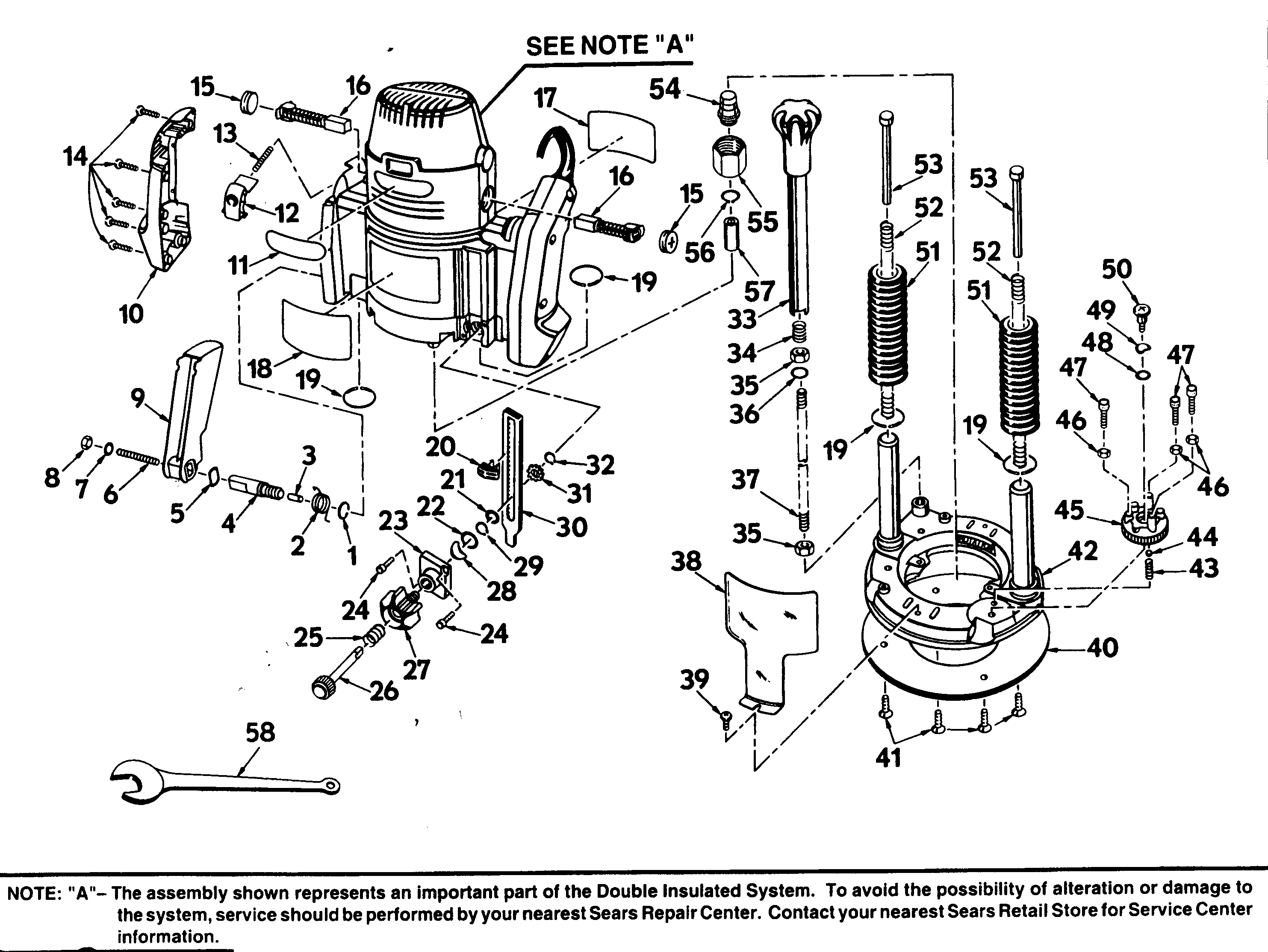

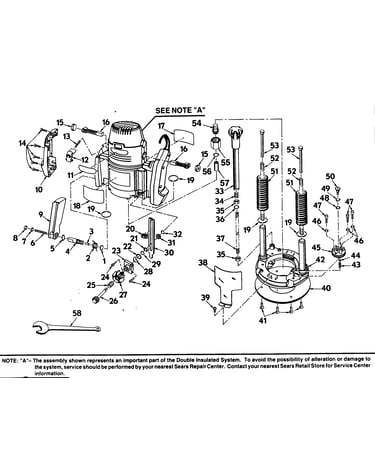

Housing assy diagram

Actuator

Part #970762-001

The manufacturer no longer makes this part, and there's no substitute part

Comp. Spring 970734-001
#25

Housing assy diagram

Comp. spring

Part #970734-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 622163-008
#24

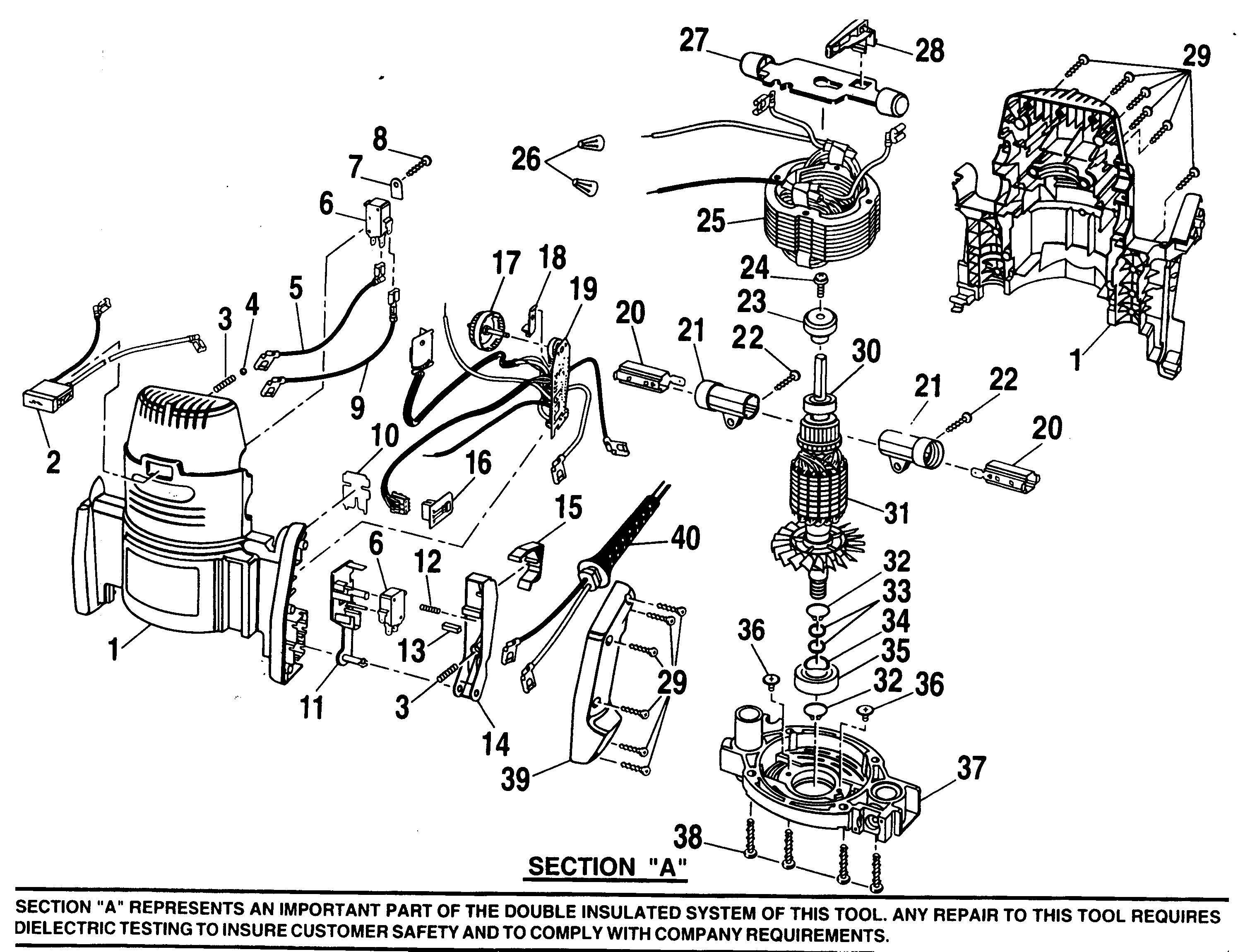

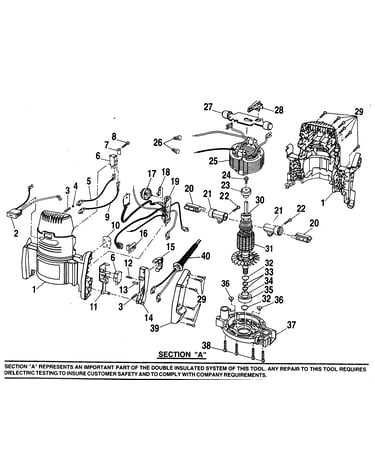

Motor assy diagram

Screw

Part #622163-008

The manufacturer no longer makes this part, and there's no substitute part

Knob 970866-002
#33

Housing assy diagram

Knob

Part #970866-002

The manufacturer no longer makes this part, and there's no substitute part

Lamp W/term 970725-002
#2

Motor assy diagram

Lamp w/term

Part #970725-002

The manufacturer no longer makes this part, and there's no substitute part

Lead (black) 970746-004
#5

Motor assy diagram

Lead (black)

Part #970746-004

The manufacturer no longer makes this part, and there's no substitute part

Barrier 970745-001
#10

Motor assy diagram

Barrier

Part #970745-001

The manufacturer no longer makes this part, and there's no substitute part

Collet Nut 982860-001
#54

Housing assy diagram

Collet nut

Part #982860-001

The manufacturer no longer makes this part, and there's no substitute part

Frame 970767-001
#11

Motor assy diagram

Frame

Part #970767-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 967439-002
#38

Motor assy diagram

Screw

Part #967439-002

The manufacturer no longer makes this part, and there's no substitute part
