Amana
Chest Freezer

Model # C15F-A/P60116-42WA Official Amana chest freezer

Here are the diagrams and repair parts for Official Amana C15F-A-P60116-42WA chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

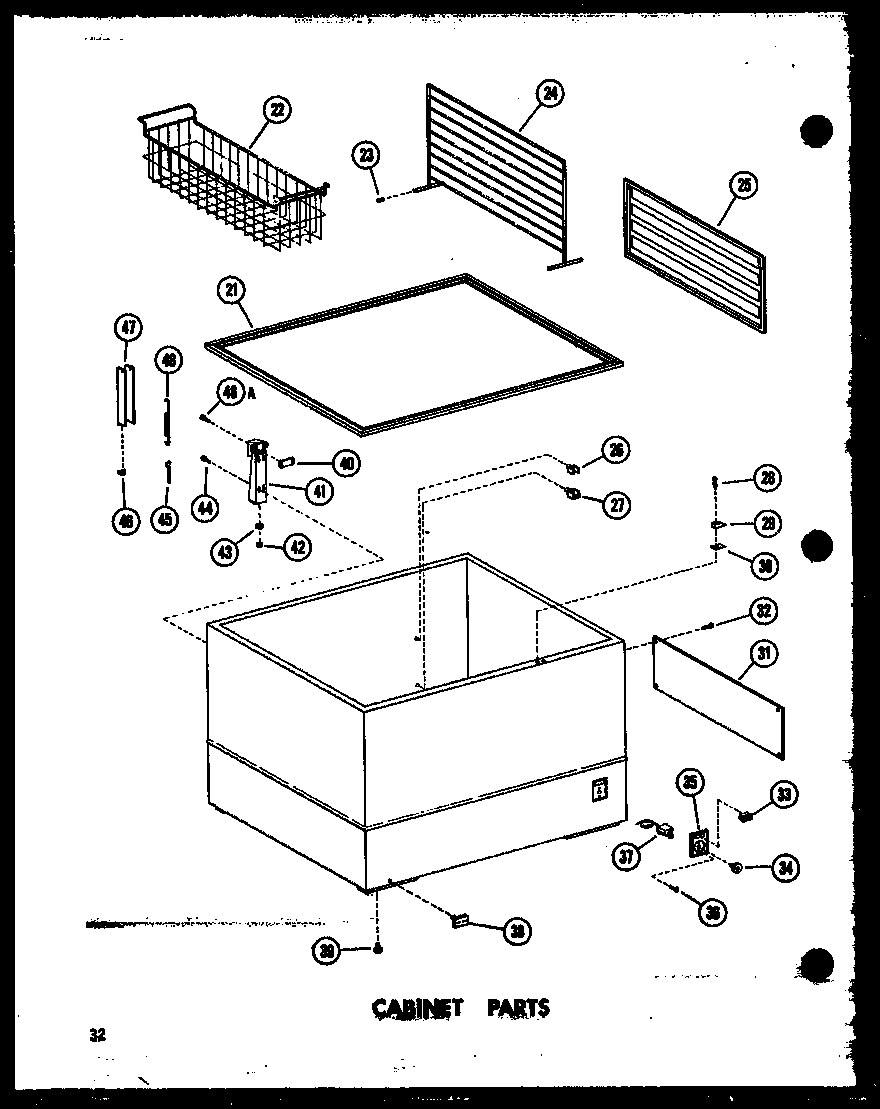

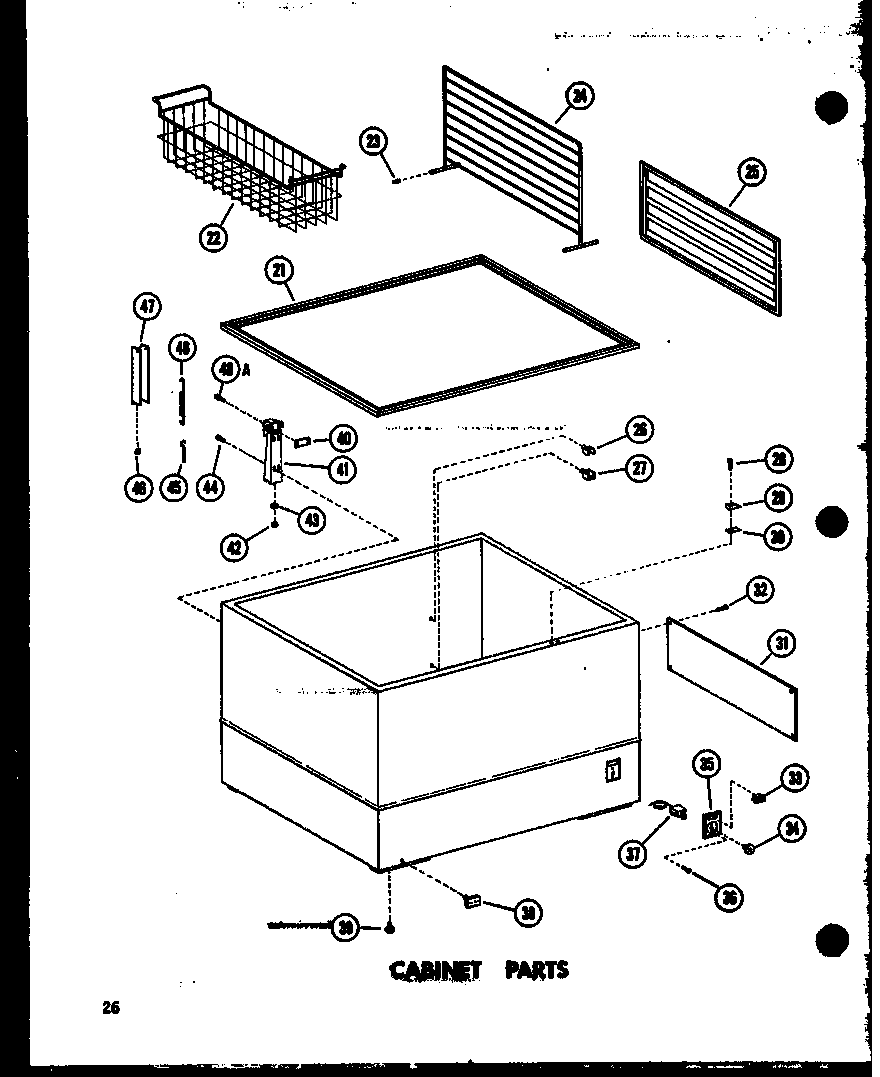

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Imperial Refrigerator Insulation Fill Hole Plug A3076901

#NI

All parts diagram

Imperial refrigerator insulation fill hole plug

Part #A3076901

This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw M0202530
Screw

Part #M0202530

Replaced by #M0202530

?
Manufacturer substitution
This part replaces M0202530. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw M0211018
Screw

Part #M0211018

Replaced by #M0211018

?
Manufacturer substitution
This part replaces M0211018. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Drier B2150501
Drier

Part #B2150501

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150501. Substitute parts can look different from the original.
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Bulb A3073101
#13

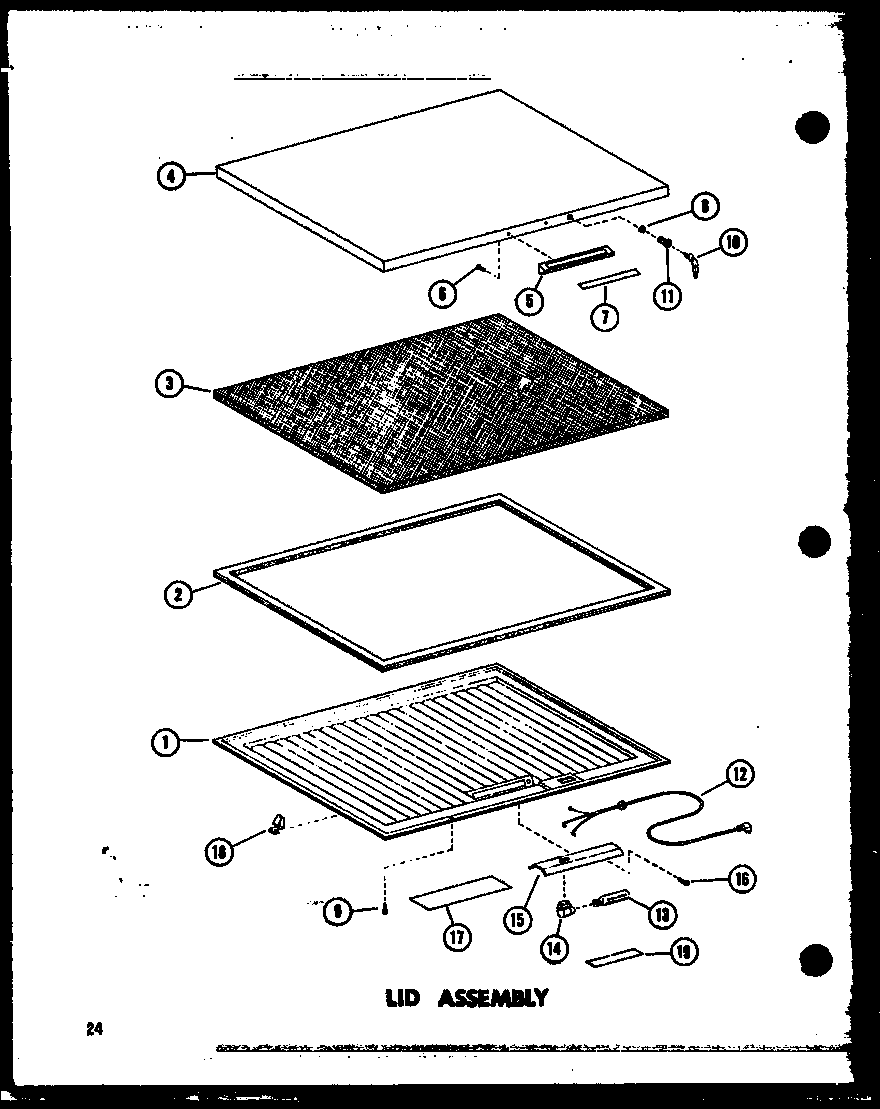

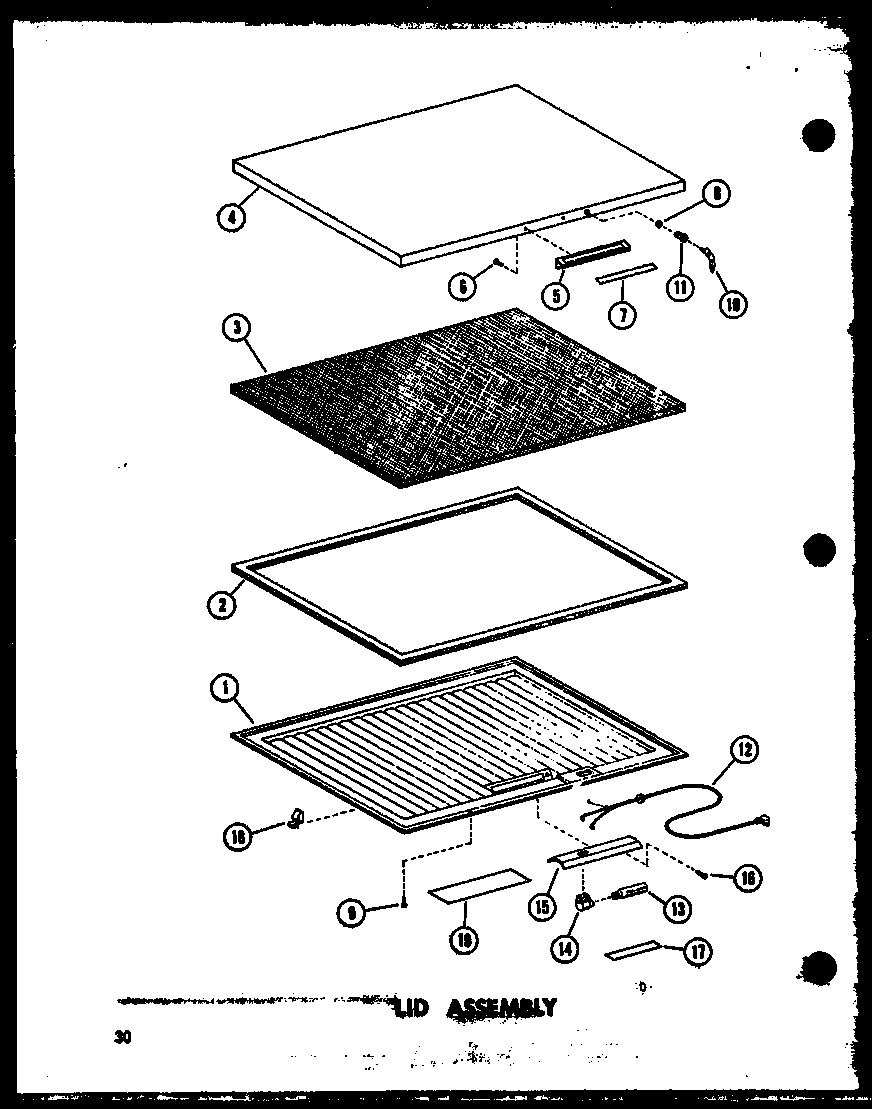

Lid assembly (c11f/p60116-41w) (c11f-c/p60116-41wc) (c11f-ag/p60116-41wg) (c11f-a/p60116-41wa) (c11f-c/p60116-47wc) (c11f-a/p60116-47wa) (c11f/p60116-47w) (c11f-ag/p60116-47wg) (c15f-c/p60116-42wc) (c15f-a/p60116-42wa) (c15f/p60116-42w) (c15f-ag/p60116-42 diagram

Bulb

Part #A3073101

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces A3073101. Substitute parts can look different from the original.
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Hinge B0551701
Hinge

Part #B0551701

The manufacturer no longer makes this part, and there's no substitute part

Comprressor C3949003

#NI

All parts diagram

Comprressor

Part #C3949003

The manufacturer no longer makes this part, and there's no substitute part

Overload C3583901
#53D

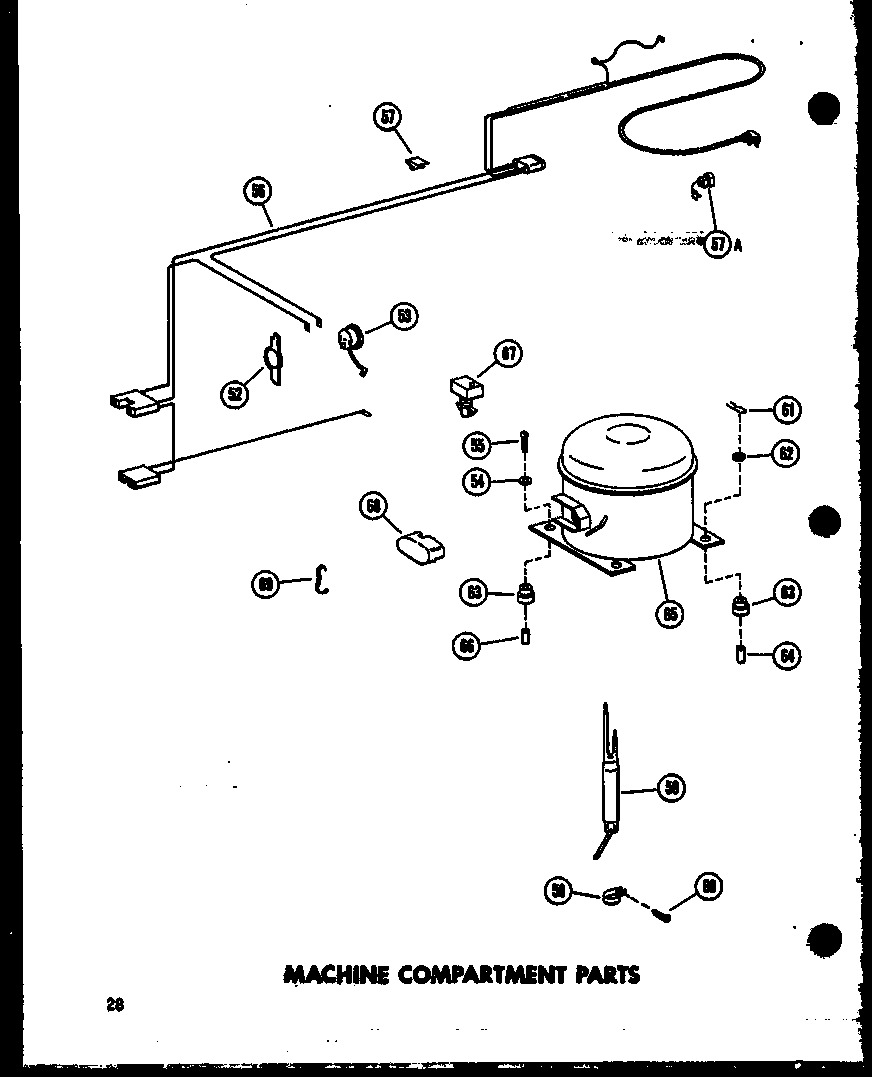

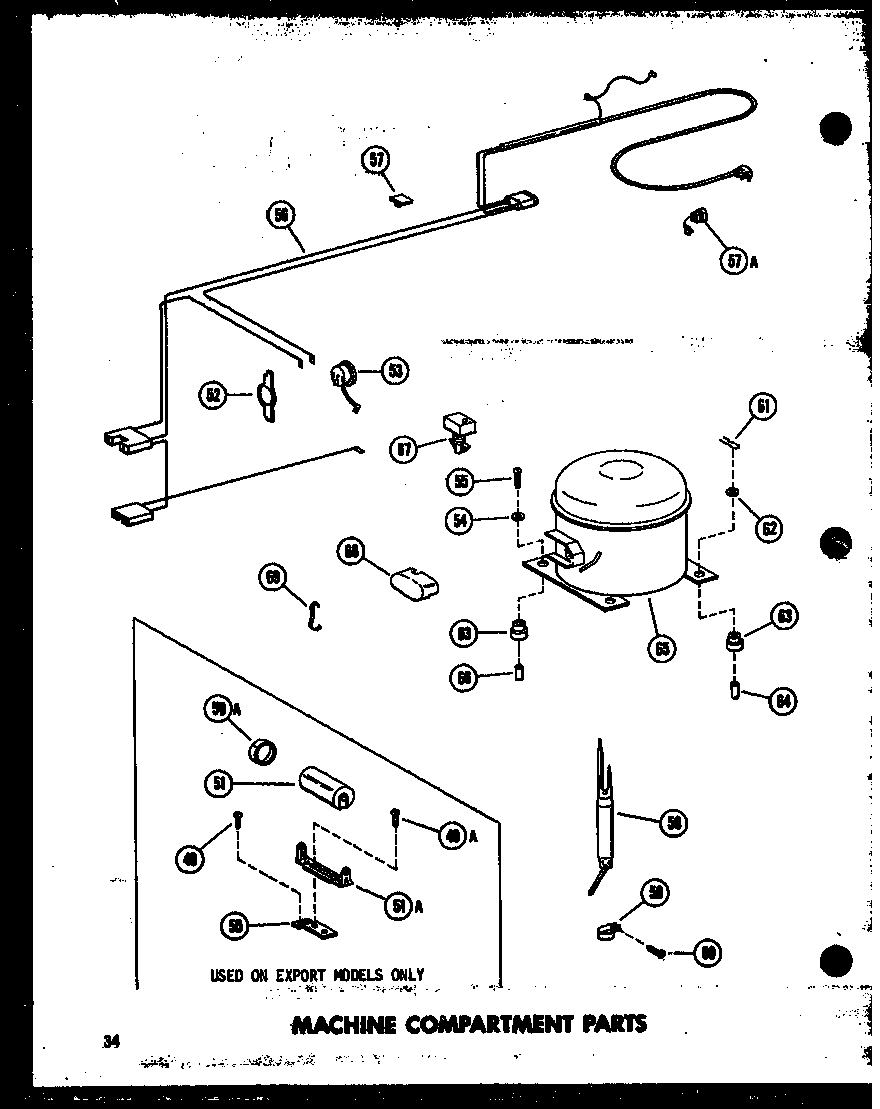

Machine compartment parts (c11f/p60116-41w) (c11f-c/p60116-41wc) (c11f-ag/p60116-41wg) (c11f-a/p60116-41wa) (c11f-c/p60116-47wc) (c11f-a/p60116-47wa) (c11f/p60116-47w) (c11f-ag/p60116-47wg) (c15f-c/p60116-42wc) (c15f-a/p60116-42wa) (c15f/p60116-42w) (c15f diagram

Overload

Part #C3583901

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 5/16" Spring Adjusting M0281007
Hex nut 5/16" spring adjusting

Part #M0281007

The manufacturer no longer makes this part, and there's no substitute part

Collar, Breaker B0585903
Collar, breaker

Part #B0585903

The manufacturer no longer makes this part, and there's no substitute part
