Electrolux
Electric Wall Oven

Model # EI30EW35JS2 Official Electrolux wall oven

Here are the diagrams and repair parts for Official Electrolux EI30EW35JS2 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

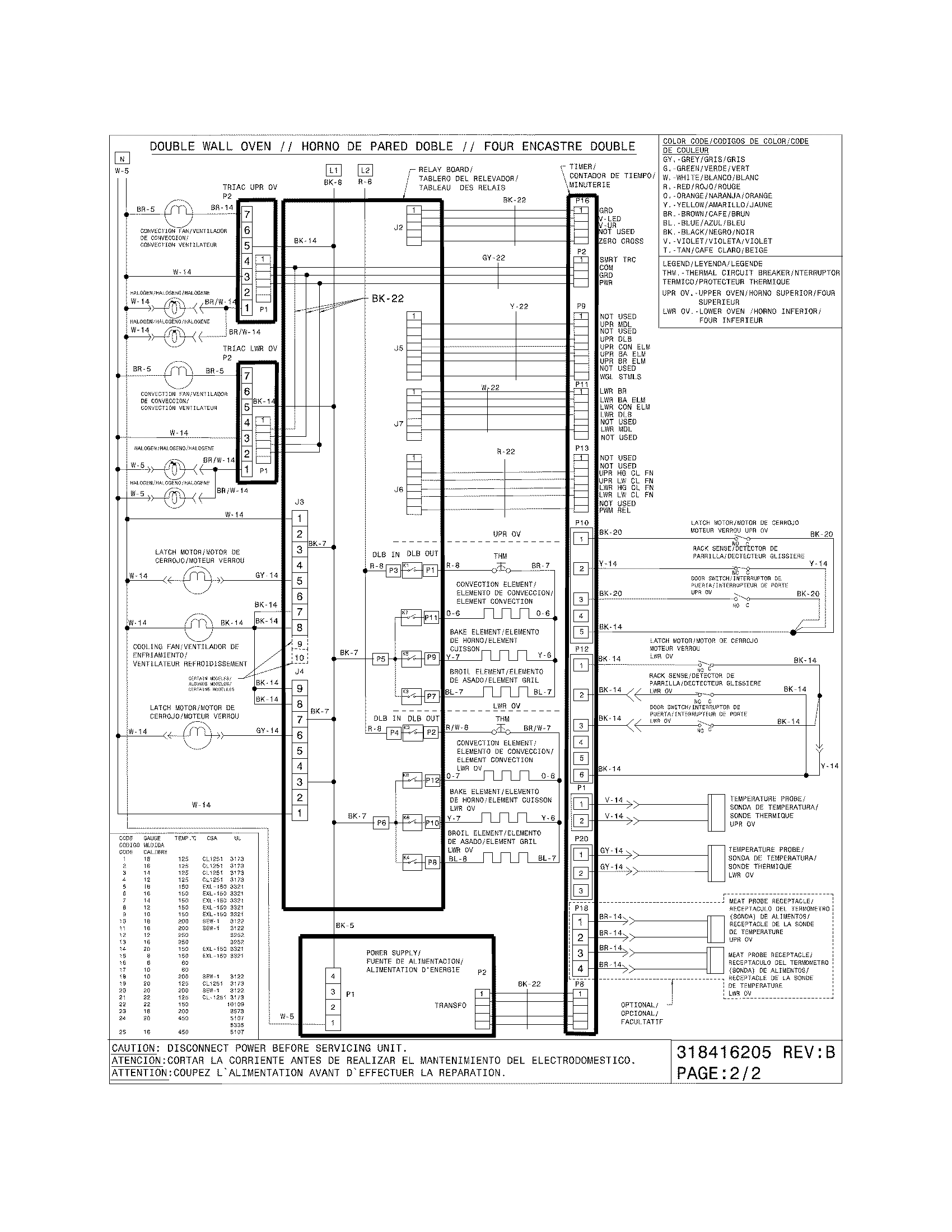

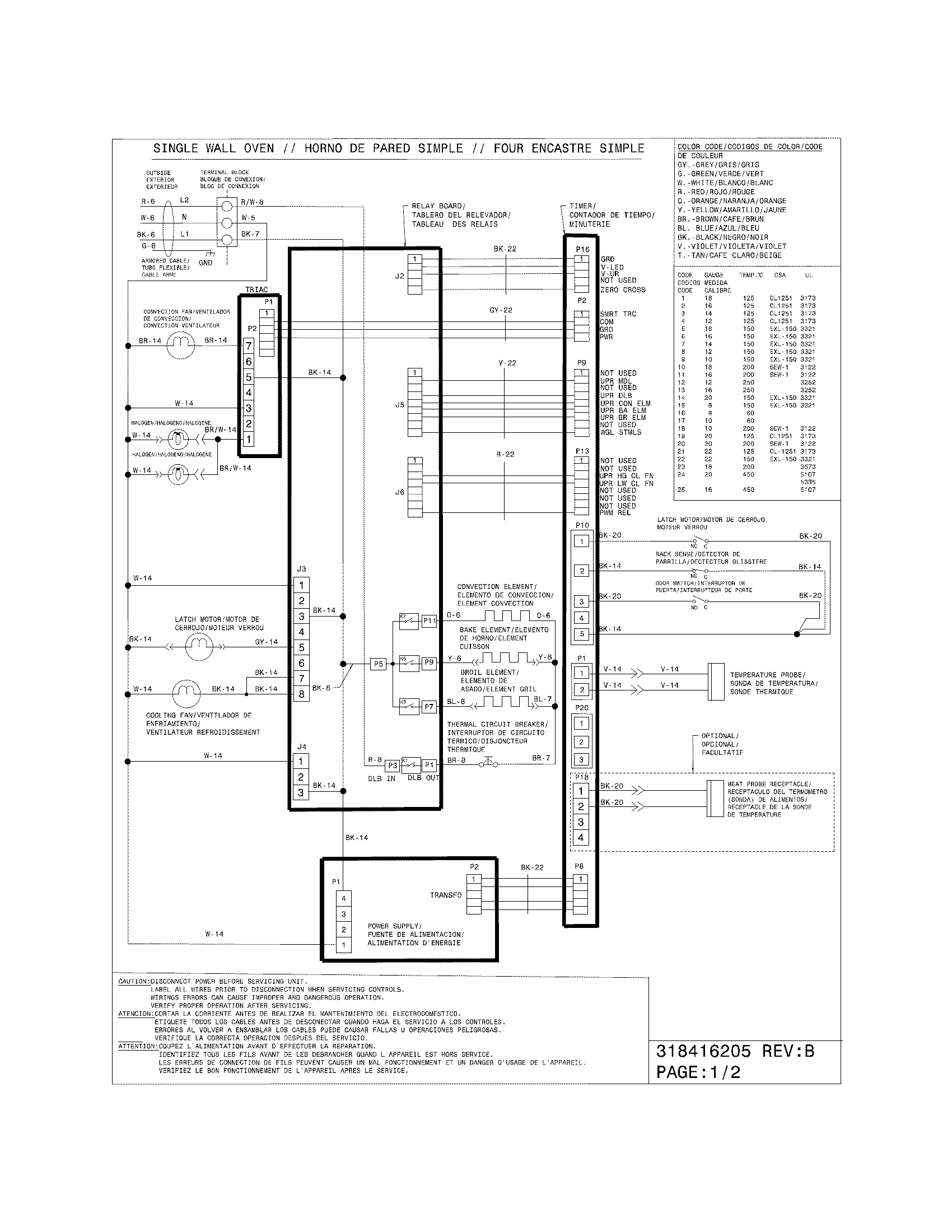

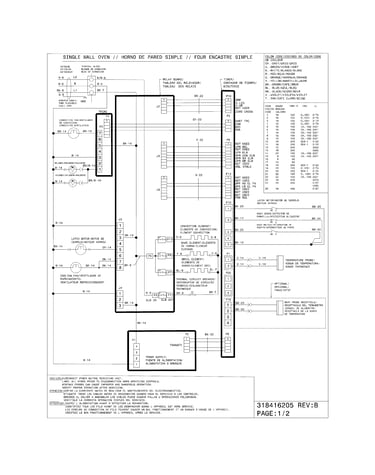

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Range Oven Temperature Sensor 318562500
#37

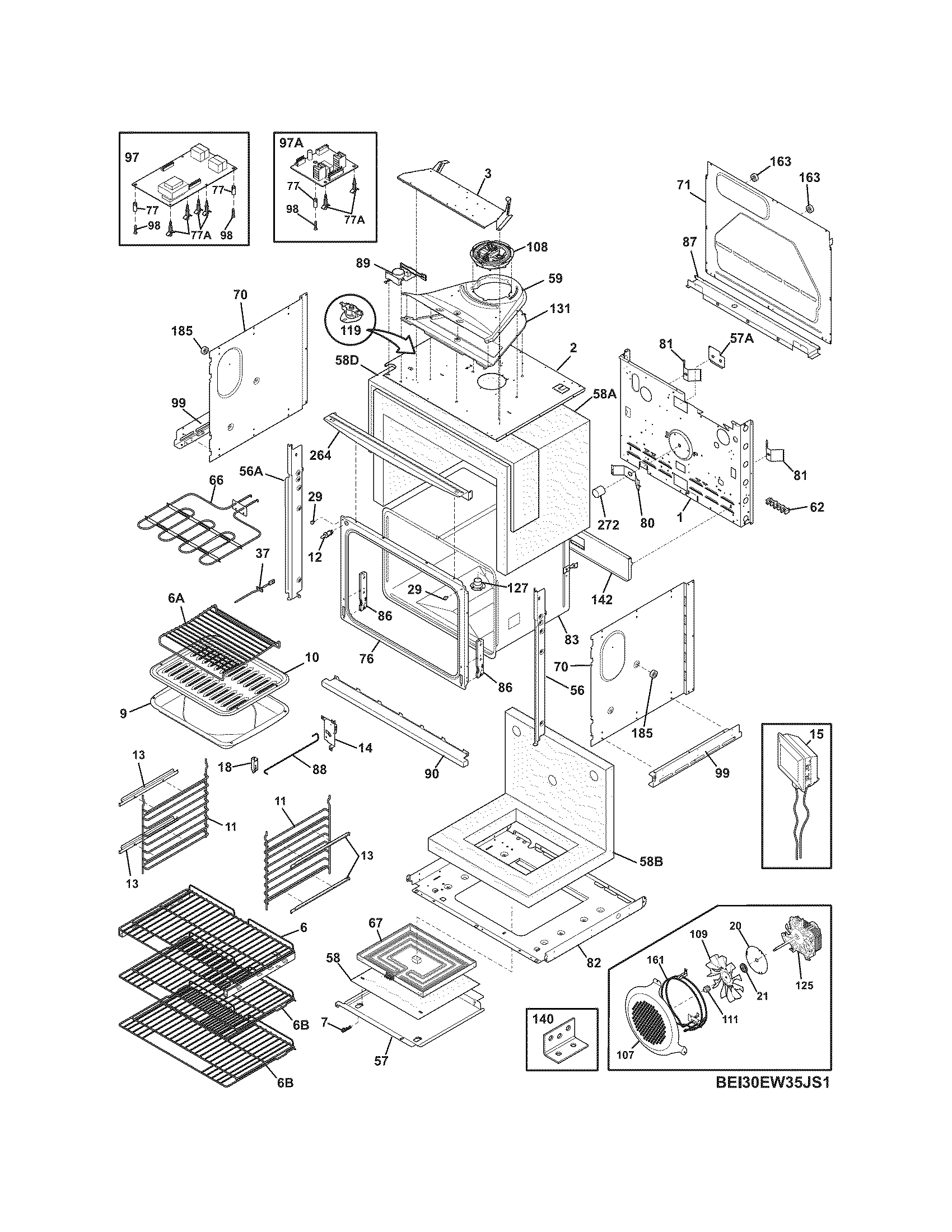

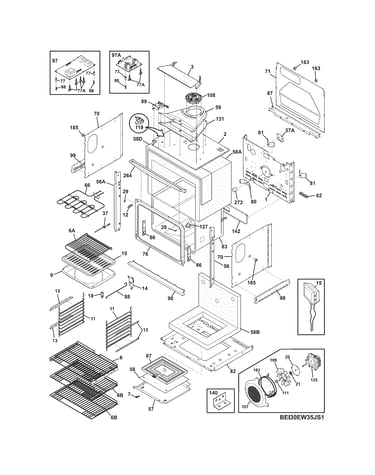

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

Body diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Oven Element 318601601
#67

Body diagram

Oven element

Part #318601601

Replaced by #318601604

?
Manufacturer substitution
This part replaces 318601601. Substitute parts can look different from the original.
BEST SELLER
$197.10 |
6% OFF Phone Price : $209.10
In Stock
Range Oven Door Inner Glass 316117500
#8

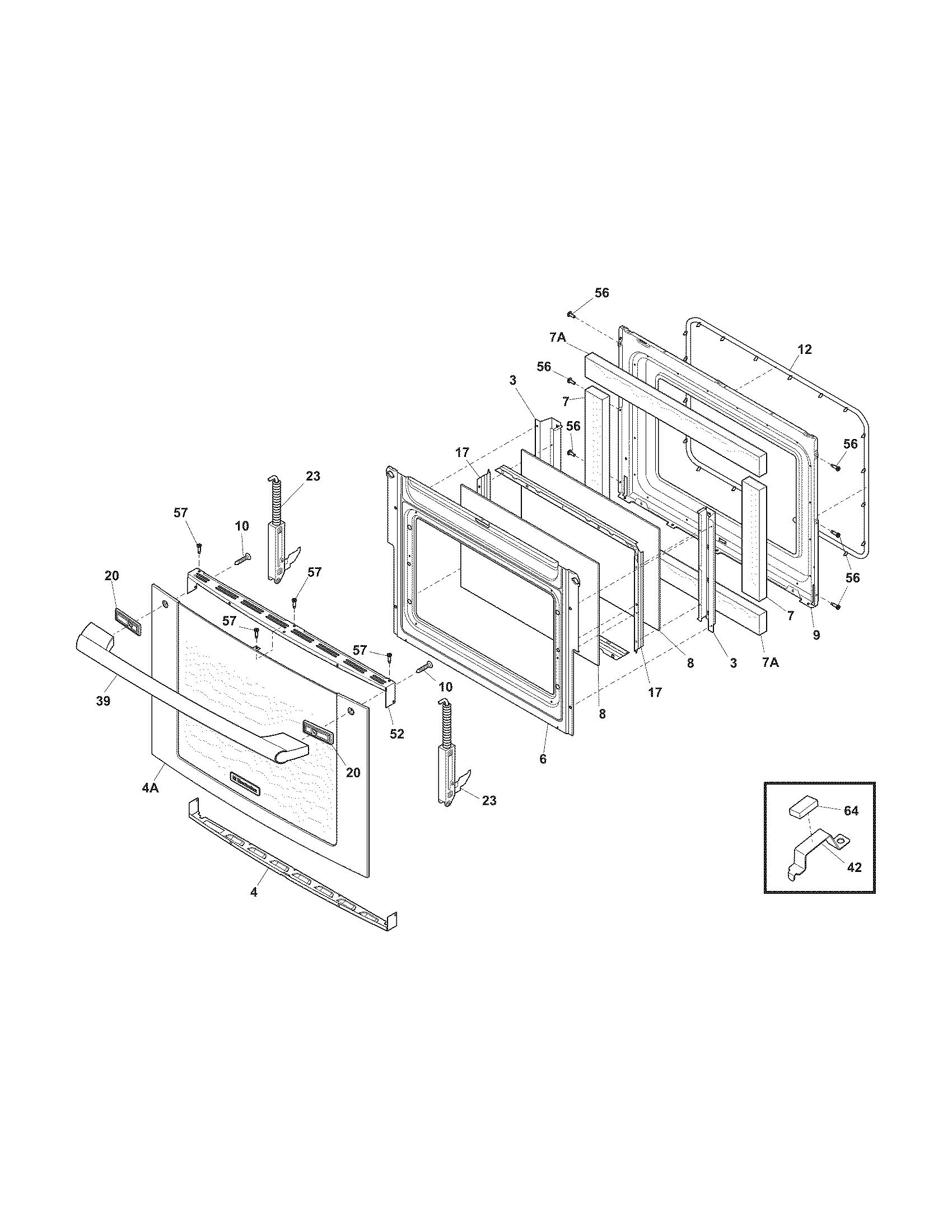

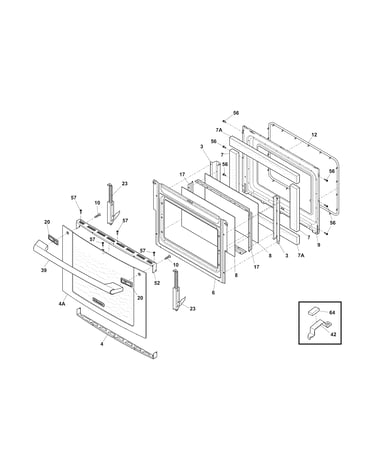

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Range Oven Door Switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, P351140) 316445501
#12

Body diagram

Range oven door switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, p351140)

Part #316445501

$63.47 |
9% OFF Phone Price : $69.47
In Stock
Range Convection Element (replaces 318255506, 7318255511) 318255511
#161

Body diagram

Range convection element (replaces 318255506, 7318255511)

Part #318255511

$97.49 |
11% OFF Phone Price : $109.49
In Stock
Wall Oven Relay Control Board 316443918
#97

Body diagram

Wall oven relay control board

Part #316443918

This item is not returnable
$270.84 |
$12.00 OFF Phone Price : $282.84
In Stock
Kenmore Pro Wall Oven Bake Element Wire Harness (replaces 318231838, 7318231870) 318231870
#NI

Body diagram

Kenmore pro wall oven bake element wire harness (replaces 318231838, 7318231870)

Part #318231870

$56.67 |
10% OFF Phone Price : $62.67
In Stock
Range Oven Door Glass Retainer 318382301
#42

Door diagram

Range oven door glass retainer

Part #318382301

Replaced by #318382302

?
Manufacturer substitution
This part replaces 318382301. Substitute parts can look different from the original.
$43.42
In Stock
Wall Oven Power Supply Board 316535201
#99

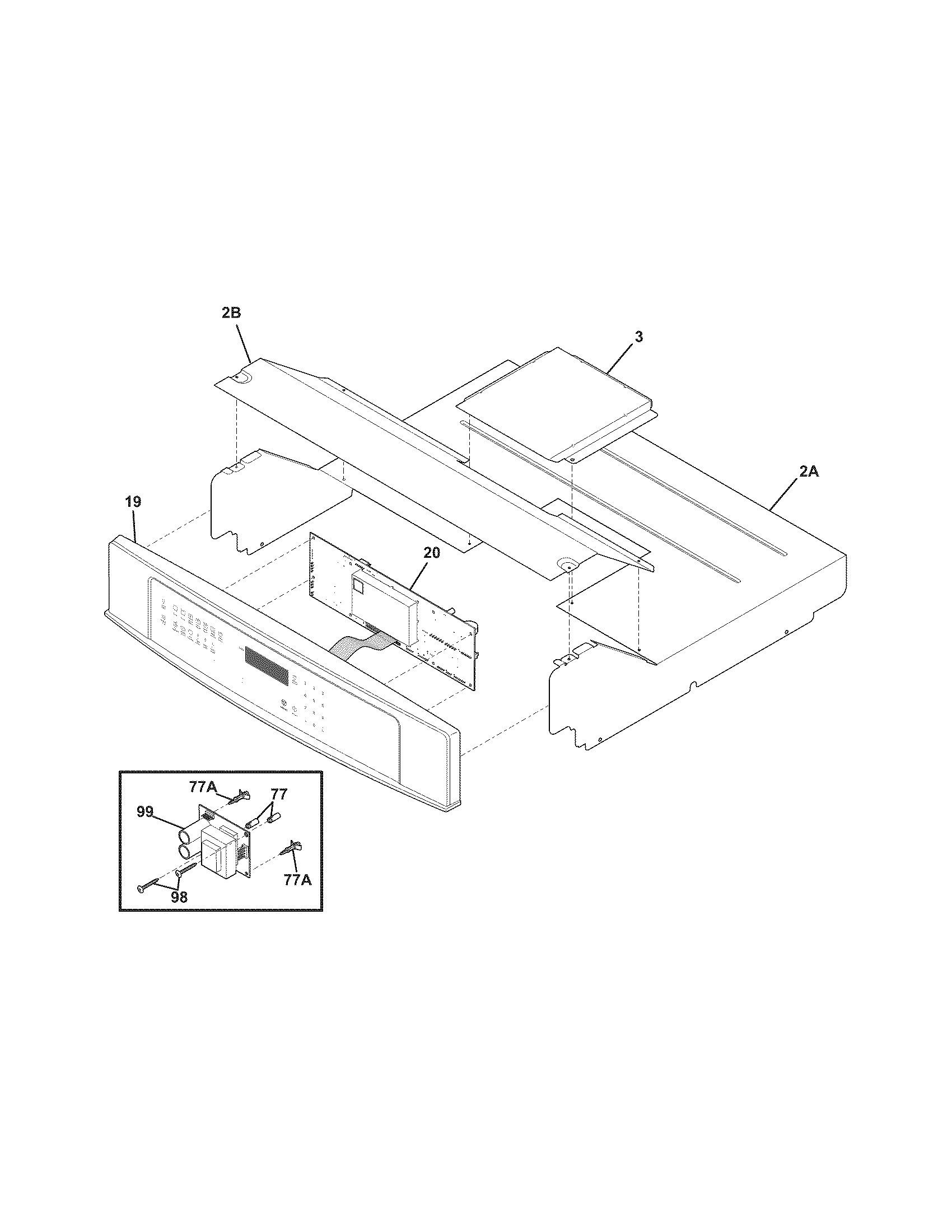

Control panel diagram

Wall oven power supply board

Part #316535201

$224.80 |
5% OFF Phone Price : $236.80
In Stock
