Model # DNF20J Official Maytag freezer

Here are the diagrams and repair parts for Official Maytag DNF20J freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

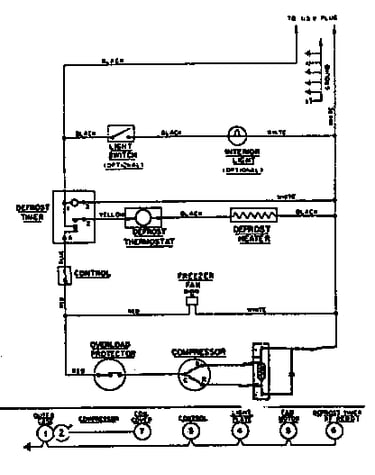

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

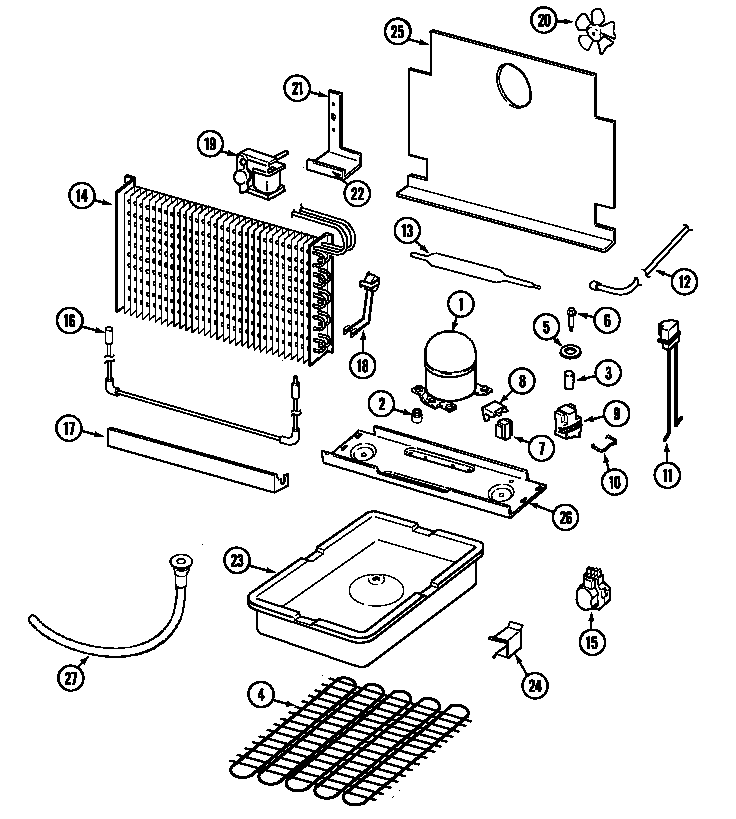

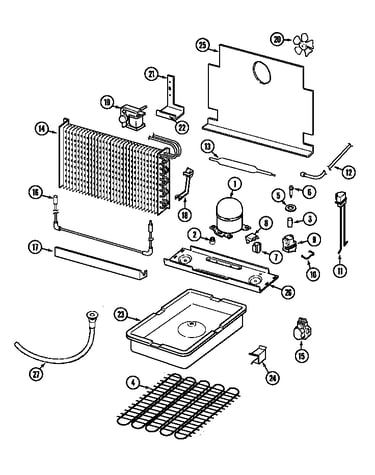

Unit compartment & system diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 68001324
#5A

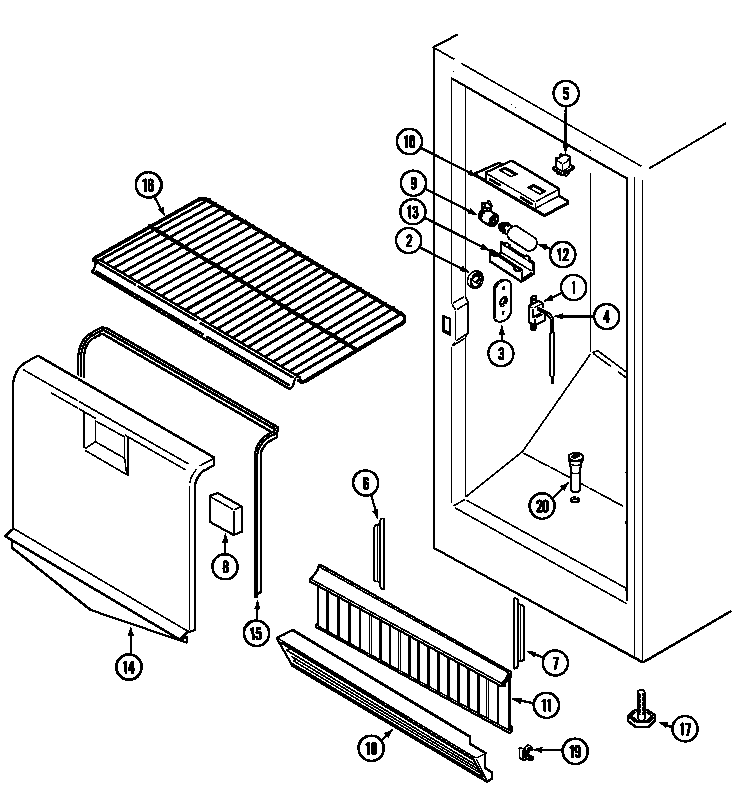

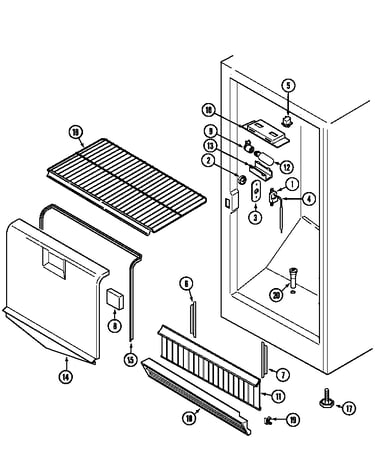

Freezer compartment diagram

Light switch

Part #68001324

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 68001324. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Fan Switch 68001061
#5

Freezer compartment diagram

Fan switch

Part #68001061

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 68001061. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Screw (1 1/4 68001196
#2C

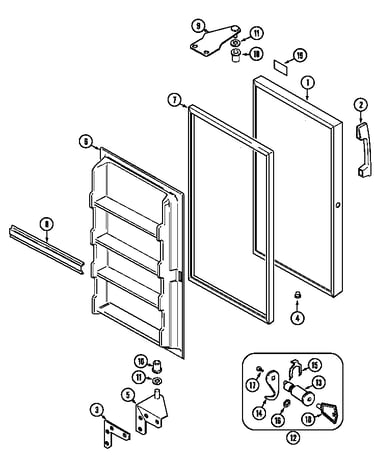

Door diagram

Screw (1 1/4

Part #68001196

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces 68001196. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw Gasket 68001057
#24A

Unit compartment & system diagram

Screw gasket

Part #68001057

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 68001057. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Overload 68001218
#8B

Unit compartment & system diagram

Overload

Part #68001218

Replaced by #WP2154697

?
Manufacturer substitution
This part replaces 68001218. Substitute parts can look different from the original.
BEST SELLER
$55.09 |
10% OFF Phone Price : $61.09
In Stock
Defrost Timer 68001115
#15

Unit compartment & system diagram

Defrost timer

Part #68001115

Replaced by #WP3-81329

?
Manufacturer substitution
This part replaces 68001115. Substitute parts can look different from the original.
$88.66 |
6% OFF Phone Price : $94.66
In Stock
Tubing Control 68001066
#4

Freezer compartment diagram

Tubing control

Part #68001066

Replaced by #WP2196003

?
Manufacturer substitution
This part replaces 68001066. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
Thermostat 68001088
#18

Unit compartment & system diagram

Thermostat

Part #68001088

Replaced by #WP1-81801-001

?
Manufacturer substitution
This part replaces 68001088. Substitute parts can look different from the original.
$48.06 |
11% OFF Phone Price : $54.06
In Stock
Compressor Kit 68001047
#1A

Unit compartment & system diagram

Compressor kit

Part #68001047

Replaced by #W10439652

?
Manufacturer substitution
This part replaces 68001047. Substitute parts can look different from the original.
$265.04 |
$12.00 OFF Phone Price : $277.04
In Stock
