Range Hood

Model # 2335639600 Official Kenmore hideaway hood

Here are the diagrams and repair parts for Official Kenmore 2335639600 hideaway hood, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
2335639600 Hideaway Hood
Motor 99080359
#33

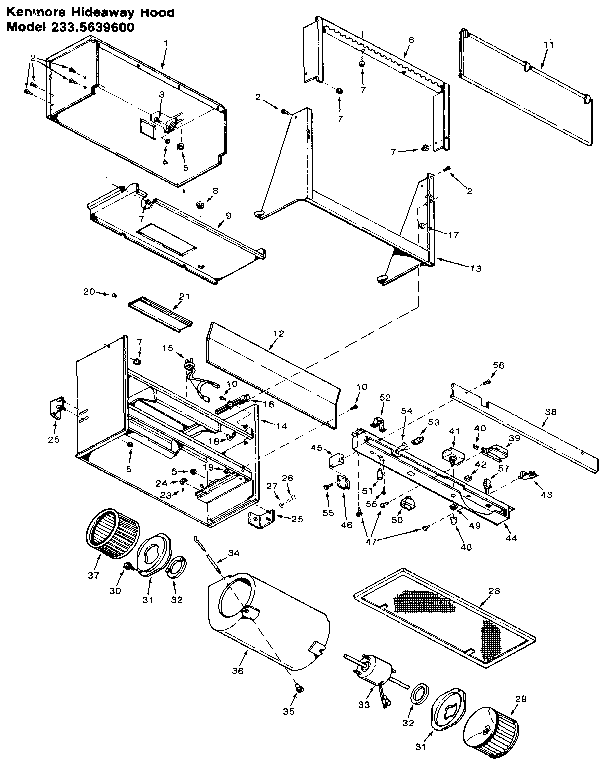

Range hood diagram

Motor

Part #99080359

Replaced by #S97010736

?
Manufacturer substitution
This part replaces 99080359. Substitute parts can look different from the original.
$112.89
10% OFF Phone Price : $124.89
In Stock
Lamp Holder 99270550
#45

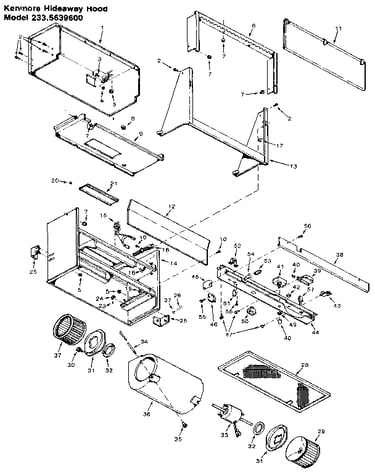

Range hood diagram

Lamp holder

Part #99270550

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Clockwise Blower Wheel Assembly 99020138
#37

Range hood diagram

Range hood clockwise blower wheel assembly

Part #99020138

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Light Starter 99270553
#51

Range hood diagram

Range hood light starter

Part #99270553

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Screw, 8-18 X 3/8-in 99150491
#56

Range hood diagram

Range hood screw, 8-18 x 3/8-in

Part #99150491

Replaced by #S99150491

?
Manufacturer substitution
This part replaces 99150491. Substitute parts can look different from the original.
This item is not returnable
In Stock
Range Hood Motor Retainer Ring 98005212
#31

Range hood diagram

Range hood motor retainer ring

Part #98005212

Replaced by #S98005212

?
Manufacturer substitution
This part replaces 98005212. Substitute parts can look different from the original.
This item is not returnable
In Stock
Range Hood Blower Wheel 99020139
#29

Range hood diagram

Range hood blower wheel

Part #99020139

The manufacturer no longer makes this part, and there's no substitute part

Harness Clip 93270619
#18

Range hood diagram

Harness clip

Part #93270619

This item is not returnable
In Stock
Rivet 99230342
#23

Range hood diagram

Rivet

Part #99230342

This item is not returnable
In Stock
Appliance Lock Nut 93260447
#4

Range hood diagram

Appliance lock nut

Part #93260447

This item is not returnable
In Stock
